Sony CDX-M20

In-Dash AM/FM/CD/MP3 Marine Stereo Featuring Front 3.5mm Auxiliary Input, 3-Band EQ, SiriusXM Ready, and CEA-2006 Compliant Amplifier

Sony
Shop all Sony
highlight-star-icon

• 52W x 4 Chan. MAX
• 17W x 4 Chan. RMS
• 1 Sets of 2V Preamp Outputs
• 3-Band Parametric Equalizer
• Digital Clarity Tuner
• 12 Hour Clock
• Remote Control Included

Learn more about the cdxm20

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

82-8148 main

Metra 82-8148

6" to 6.75" Speaker Bracket for select 1998-2024 vehicles from Toyota, Subaru, Scion

35
-50.01%

$18.99

List price $37.99

70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

82-8146 main

Metra 82-8146

6x9" Speaker Bracket for select 2002-2024 vehicles from Toyota, Subaru, Lexus

31
-46.07%

$19.95

List price $36.99

40-LX11 main

Metra 40-LX11

Connect your factory antenna to a new aftermarket radio for select 2006-2025 vehicles from Toyota, Subaru, Lexus

35
-16.68%

$14.99

List price $17.99

82-8147 main

Metra 82-8147

6"-6 3/4" Speaker Adapter for select 2002-2024 vehicles from Toyota, Subaru, Lexus

7
-44.45%

$24.99

List price $44.99

THAR-ONE-SUB1 main

Fortin THAR-ONE-SUB1

T-harness for remote start data modules for Select Subaru regular key vehicles vehicles with EVO-ONE all-in-one Fortin modules.

1
95-8906HG main

Metra 95-8906HG Dash Kit

Install a new Double-DIN car stereo in select 2015-2019 Outback and Legacy (High Gloss Black)

-10.81%

$32.99

List price $36.99

HRN-HRR-SU2 main

iDataLink Maestro HRN-HRR-SU2 Wiring harness

Install a New Car Stereo in select 2012-2021 vehicles from Subaru, Toyota (Requires ADS-MRR or ADS-MRR2 Module)

-27.28%

$79.99

List price $109.99

SWRSU-38E main

Crux SWRSU-38E

Install a New Car Stereo and Retain Steering Wheel Controls, Factory Amplifier, Backup Camera and Other Factory Features In select 2015-2017 Legacy and Forester and Outback

-35.71%

$125.55

List price $195.30

Description


Sony brand icon

Authorized dealer

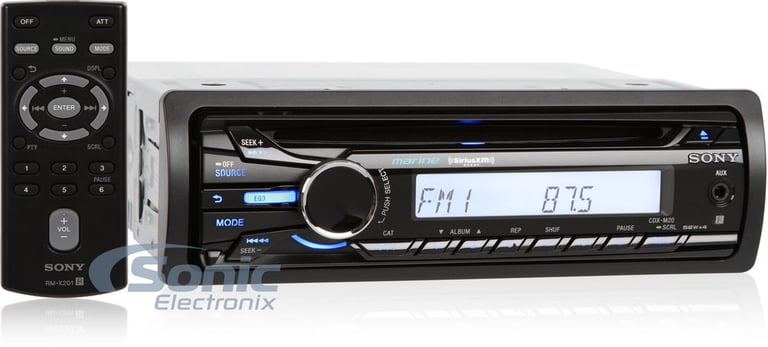

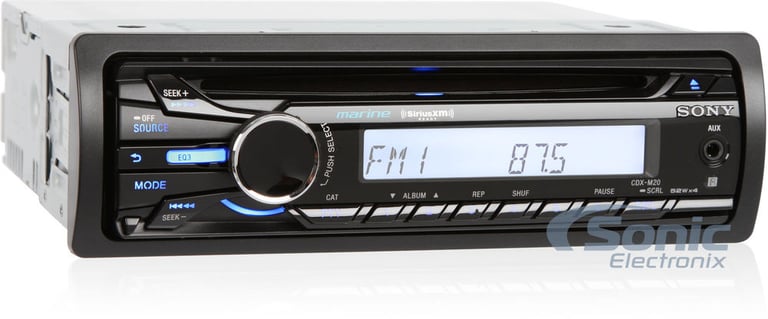

Sony CDX-M20

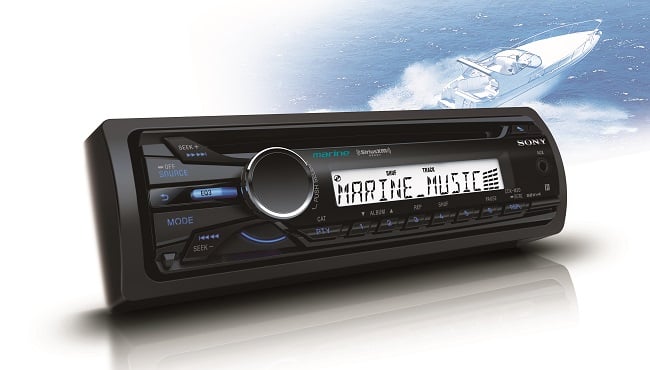

Sony CDX-M20 - Marine CD Receiver

Enjoy your MP3/WMA files from a CD or MP3 player with the Sony® CDX-M20 Marine receiver. Plug in your Smartphone, iPod or Walkman player to the front 3.5mm auxiliary input or connect easily to SiriusXM™* satellite radio to stream your favorite channels on the go. Plus experience great sound quality from the built-in powerful 52x4 high power amplifier. When you’re ready to expand your system, the CDX-M20 offers selectable rear or subwoofer pre-amp RCA outputs for external amplifiers. Set the built in electronic HPF/LPF crossovers to improve sound quality and reduce system distortion. In addition, the 3 band EQ3 allows users to customize the sound centered at 60 Hz, 1000 Hz and 10 kHz frequencies.

Take the party anywhere, the Sony® CDX-M20 is designed with a UV Resistant front panel coating that meets ASTM G154 standards. This protects the faceplate from discoloration often caused by the Sun. Also, Conformal coated circuit boards protect the electronic assembly from damage due to contamination, salt spray, moisture, fungus, dust and corrosion caused by harsh or extreme environments.

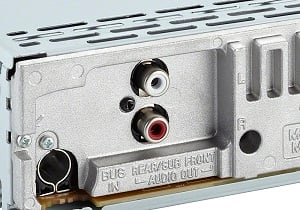

2 Volt Preamp Outputs

2 Volt Preamp Outputs with HPF/LPF

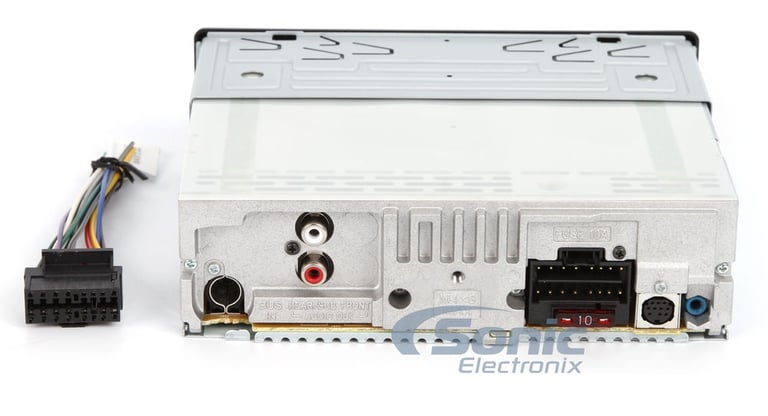

The Sony® CDX-M20 is equipped with 2V selectable preouts that allow you to expand your audio system and add a bit of extra power to your stage. Most audio systems lack the simplicity of low-end frequencies provided by a subwoofer; the pair of preouts are perfect for adding a Monoblock to run a Subwoofer and fill in that deficiency. Many modern amplifiers now have the ability to route the signals connected to the “Front” inputs to the Front, Rear and Subwoofer channels, making the set perfect for such a setup.


 3.5mm Front Auxiliary Input

Universal 3.5mm Front Auxiliary Input

It doesn't get more universal than a 3.5mm input. The Sony® CDX-M20 is equipped with a front panel 3.5mm stereo auxiliary input. A party shouldn't have to wait for you to fumble with Bluetooth pins and unreliable signals. Simply connect a 3.5mm to 3.5mm cable from your MP3 Player, Smartphone or iPod directly to the conveniently located Front input. No need to worry about compatibility, most modern smartphones use a universal "headphone" output!


SiriusXM Satellite Radio Ready

SiriusXM Satellite Radio Ready

Satellite radio has gained much momentum in the new millennium and many companies have emerged as a result. SiriusXM is by far the go to company for adding Satellite radio to your vehicle or boat. With the optional SiriusXM Radio Package, open up the freedom of exploring 50 world class news, sports, and entertainment stations such as NASCAR, NFL, House of Blues, Speedvision, CNBC, CNN, Howard Stern and much more.




General Features:













  • In-dash AM/FM, CD, MP3, WMA Receiver with Remote
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 52 watts x 4 channels
    • RMS: 17 watts x 4 channels
  • CD Signal-to-Noise Ratio: 120 dB

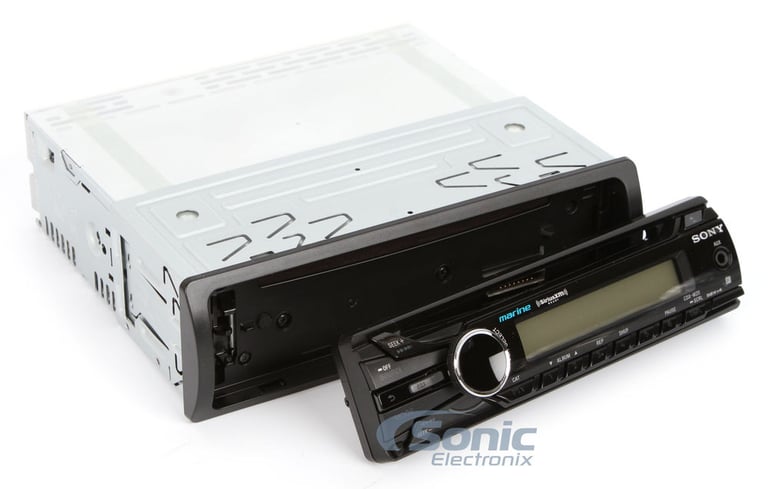

  • Theft-deterrent, detachable face plate

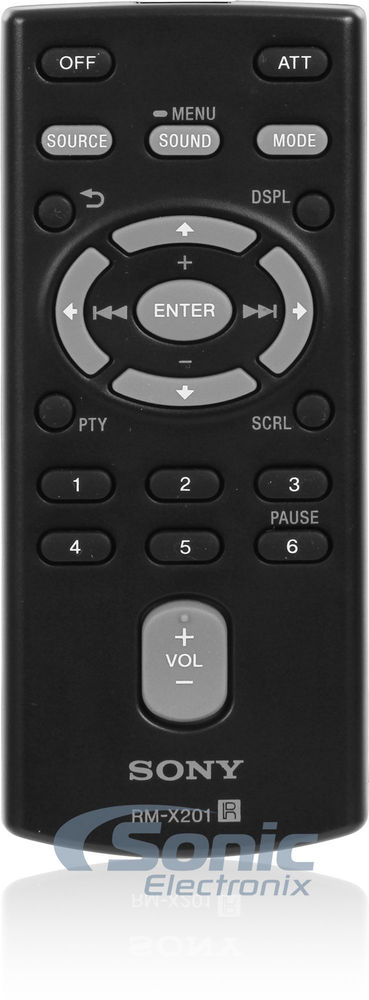

  • Convenient wireless remote (RM-X201) included
  • Maintains looks and functions even after prolonged exposure to sun
  • Ultraviolet Resistant Coating meets ASTM G154 standards
  • Conformal coated circuit boards protects against elements
  • Single-line Dot-Matrix displays clock, station ID & track data
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • Blue illuminated button lighting
  • 12 hour clock display
  • Liquid-resistant Marine Stereo Covers Available, Sold Separately
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Playback and Audio Features:

  • 2 Volt rear/sub selectable preamp outputs with HPF/LPF
  • Selectable High Pass Filter : 80, 100, 120, 140 or 160 Hz
  • Selectable Low Pass Filter : 80, 100, 120, 140 or 160 Hz
  • 3 band EQ w/ +/-10 dB adjustment at 60 Hz, 1 kHz & 10 kHz
  • 7 selectable tone curves: 6 Preset, 1 User
  • 24-bit digital to analog converter for superb sound quality
  • Dynamic Reality AMP for more realistic sound
  • Playback of CD, CD-R, CD-RW, MP3 & WMA
  • Electronic Shock Protection (ESP)
  • AM/FM Tuner Type : SSIR-EXA with RDS & 18FM/12AM preset
  • Tuner Frequency Range : FM 87.5-107.9 / AM 530-1710
  • Digital Clarity Tuner for clear reception of radio
  • Search stations by program type

Expandability Options:

  • SiriusXM Satellite Radio Ready: SiriusXM Radio Package and subscription required and sold separately
  • Front Auxiliary Input: 3.5mm headphone jack allows connection to portable media devices such as MP3 players
  • Marine Remote Ready: Sony RM-X11M required and sold separately

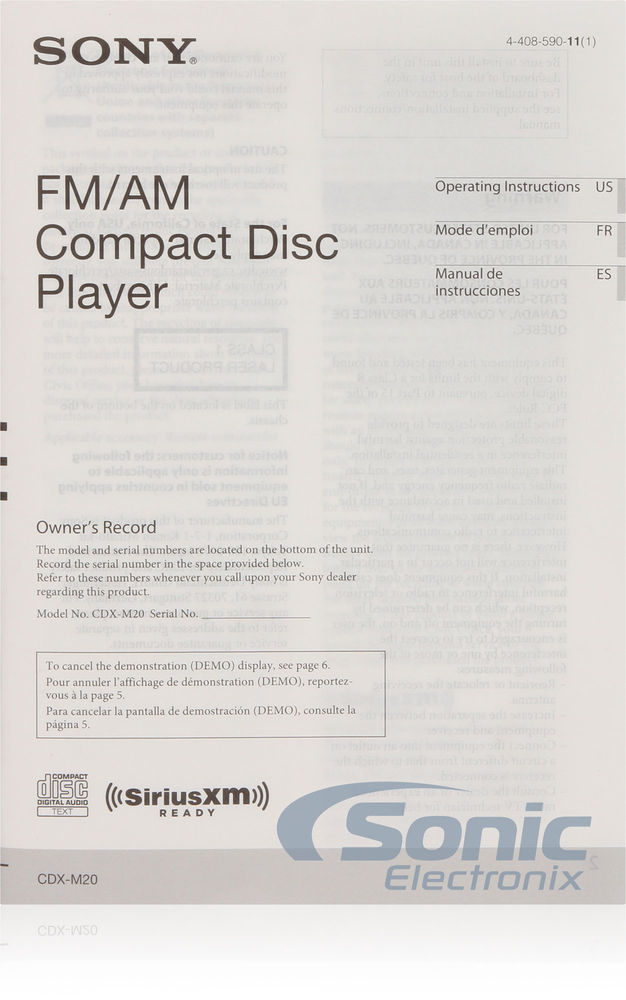

Check out the Sony CDX-M20 User Manual



Product history:

Sony CDX-M20 thumbnail
(newest, current model)
Sony CDX-M10 thumbnail
(previous model, replaced by Sony CDX-M20)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

KMR-M332BT small

Kenwood KMR-M332BT

• Single DIN Bluetooth Marine and Powersports Digital Media Receiver
• LCD Text Display
•Three sets of 4 volts preamp outputs
• 13-Band Graphic Equalizer and Digital Time Alignment
• SiriusXM Satellite Radio Ready
• Conformal-Coated PCB Circuit Board

$139.00

List price $220.00

MXD13 small

Dual MXD13

• Single DIN Bluetooth Digital Audio Marine Receiver
• LCD Text Display
• Compatible with smartphones via Bluetooth connection
• Voice activation button to use Siri or Google Assistant
• 2 sets of 1.2 volts preamp outputs
• 4-Preset Equalizer

$75.00

List price $75.00

KD-X560BT small

JVC KD-X560BT

• Single DIN In-Dash Bluetooth Multimedia Receiver with USB and AUX
• TFT-LCD Display Display
• Conformal marine coated circuitry
• 3 sets of 2 volts preamp outputs
• 13-Band Graphic Equalizer with 9 Selectable Preset

(4)

$239.00

List price $258.80

No picture

Cerwin-Vega RPMRZRDASH

• Gauge Mount Bluetooth Digital Audio Marine Receiver
• 3" TFT-LCD Display
• Compatible with smartphones via Bluetooth connection
• 3 sets of preamp outputs
• 3-Band Equalizer
• Compatible with select 2014-2023 vehicles from Polaris

$599.99

List price $599.99

MDR2.0W small

MB Quart MDR2.0W

• Single DIN Bluetooth Digital Audio Receiver
• Backlit LCD Text Display
• Supports full and direct iPhone or iPod control
• Also compatible with Android via Bluetooth connection
• Two sets of 5.9 volts preamp outputs
• 6-Equalizer Presets

$178.99

List price $198.99

DSX-M55BT_XS160GS small

Sony DSX-M55BT with XS160GS

• Single DIN Bluetooth Digital Media Receiver
• LCD Text Display
• 2 sets of 2 volts preamp outputs
• 5-Band Equalizer with 8 Presets
• SiriusXM Satellite Radio Ready
• Wireless remote control included

(6)

$276.00

List price $319.98

KMRM332BT_SXV300M1 small

Kenwood KMR-M332BT with SiriusXM SXV300M1

• Single DIN Bluetooth Digital Media Receiver
• LCD Text Display
•Three sets of 4 volts preamp outputs
• 13-band graphic equalizer with digital time alignment
• SiriusXM Satellite Radio Ready (XM Tuner Included)
• Conformal-Coated PCB Circuit Board

$214.99

List price $319.99

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Single DIN
Anti-Theft Security
Detachable Faceplate
Wireless Remote
Yes
Peak Power Output
52 watts x 4 channel
RMS Power Output
17 watts x 4 channel
Preamp RCA Outputs
1 Set (2-channel)
Preamp Voltage
2 volts
Built-In Equalizer
3-band parametric equalizer
Display Type
Dot-Matrix Text Display
Smartphone Integration
Compatible Smartphones
iPhone (iOS)
Android
Expandability Features
Inputs
Auxiliary (Front)
Auxiliary (Rear)
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
12
Radio Data System (RDS)
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CDX-M20

Weight:

3.80lbs

Internal SKU:

cdxm20

Internal Product ID:

45119

Customer Ratings & Reviews


Sony CDX-M20 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.6
Value
4.9
Features
4.9
Design
4.9
Usability
4.5

Customer Reviews

Sort by:

Loading...

Good Value for a boat

Good Value for a boat, being in FL, the salt take a toll. So this is priced at the low end, and can be replaced with out much pain.

By Big Dave on September 17, 2013

80 found this helpful


Easy install

Arrived as promised, brand new in sealed carton. Replaced my older
Sony radio with tape player. Fit perfect and used same old connections.
Sound is great, but found a blown speaker in the two speaker system.
Will order some new speakers. Sony I think ? So far so good. I would
reccomend this company to anyone searching.

By Thomas on February 2, 2014

81 found this helpful


great radio

the radio works great looksgood in the truck it is easy to work

By snowman on February 22, 2014

80 found this helpful


Rare Gem - Sony CDXM20

LCD makers obviously haven't leaped that last hurdle -- making a display easily seen in bright daylight. Often we can't even see what we are taking a picture of in brilliant sunshine. We snap away at the ladies on the beach with our fancy smartphones trusting to dumb luck.

Problem is -- those same unthinking smartphone designers are putting the same displays in car stereos, and here we have glare coming not just from one direction, but from every reflective surface inside the car and out. Ever glance to see what station you're on, and find yourself doing the Egyptian neck-stretching dance to find a clear shot at the radio display? And even when you find it, it's a bunch of swirly mush with the salient numbers hidden in there somewhere?

You thought that display looked SO KEWL at the stereo dealer, and the dealer knew that. Betcha Seal teams don't have equipment with silly displays like that. Life-and-death means being able to SEE what you're doing.

Let's go. Let's step up to the Sony CDXM20. Totally unfussy. Black design fits anywhere. Latest electronics for tuning, CD playing, music reproduction, etc. Fits easily into a standard DIN mount. Even comes with a nifty remote control! And the best part -- a simple, black-on-white, backlit, big blocky LCD display. The type that only gets clearer when the ambient light becomes brighter.

Go ahead, race down the Interstate playing with the radio remote. A quick glance at this display tells you immediately what station you've hit, what time it is, or what mp3 is playing -- all without straining and confusion. You may have just made your driving 100% safer.

It says it's a "marine" radio. Ignore that. Misguided marketing. It's a radio for those of us who just like to see what's going on. For $109.99 it is absolutely a no-brainer.

By Madnomadtoo on September 18, 2013

70 found this helpful


Pleased so far.

I've installed this radio in my boat. I needed good reception in a weak signal area. The radio sounds great in my garage. The water is still too hard to test it in the Michigan UP where I will use it. I did find that a whip antennae works much better than a 4 foot VHF antennae. Too new to evaluate durability

By Bob on February 20, 2014

68 found this helpful


Best choice ever!!

I purchase this for my golf cart. Sound is great. Easy to install! Best purchase I ever made!

By Babydoll61 on August 18, 2015

19 found this helpful


Perfect replacement

Very quick to ship the radio. A perfect replacement for my older boat radio that is no longer made but one thing Sony does well is that all their new equipment will use the same plug in for all equipment. My remote in the boat even worked with the new radio. Very satisfied with my purchase.

By Dick on August 10, 2015

20 found this helpful




M3-8D2-2 small

DC Audio M3 8 D2

1200W Peak 8" m3 8-Series Dual 2-Ohm Car Subwoofer - 8m3 D2

(12)

$224.99

List price $302.49

A3 65.4 small

DB Drive A3 65.4

180W RMS 4-Channel Class AB A3 Series Car Amplifier

$0.00

List price $219.99

52GR10 small

Kicker 52GR10

Mesh Grille for Select Kicker 10" Legacy Subwoofers

$19.99

List price $19.99

ABLFTB-1 small

Scosche ABLFTB-1

Single Air Bag Light Cover for 2009-Up Honda Fit

$0.99

List price $9.99

08ZX850.4 small

Kicker 08ZX850.4

850W RMS, 4-Channel ZX Series Amplifier (ZX850.4, 08ZX8504, ZX8504)

$329.99

List price $749.99

SX900.4 small

Kicker SX900.4

SX 4-Channel Amplifier with Digital Sound Processing 04SX900.4

$649.99

List price $1099.99

TDX68 small

MTX Audio TDX68

6" x 8" / 5" x 7" Thunder Dome-Axial Series 2-Way Coaxial Car Speakers

(4)

$108.83

List price $129.95

VIR-7870NRB small

Soundstream VIR-7870NRB

In-Dash 7" Touchscreen TFT-LCD Monitor with CD/DVD/MP3/WMA Player and Built-in Bluetooth

$399.95

List price $499.99

RL200 small

Xscorpion RL200

200 Amp High Current Relay Car Battery Isolator

(2)

$29.99

List price $49.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Subaru Outback

2004 GMC Envoy

2016 Nissan Leaf

2017 Nissan Versa Note

2017 Ram 2500

2012 Mazda 5

2014 Audi RS7

2000 Mercury Sable

2016 Ford Flex

2008 Kia Optima

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
