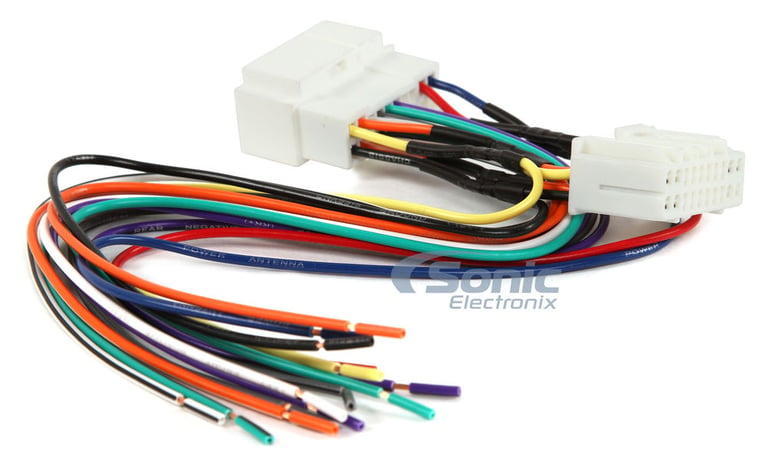

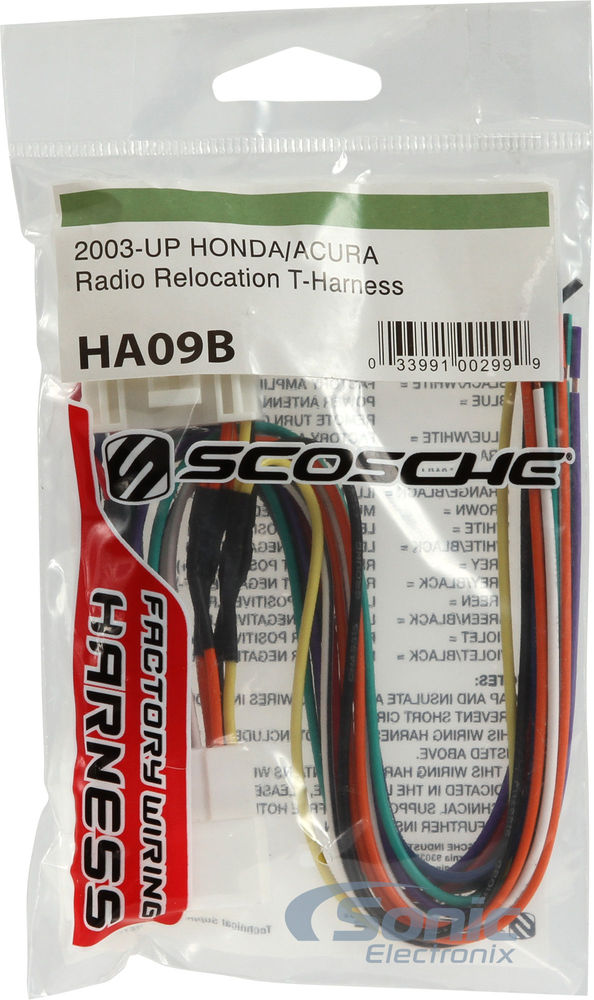

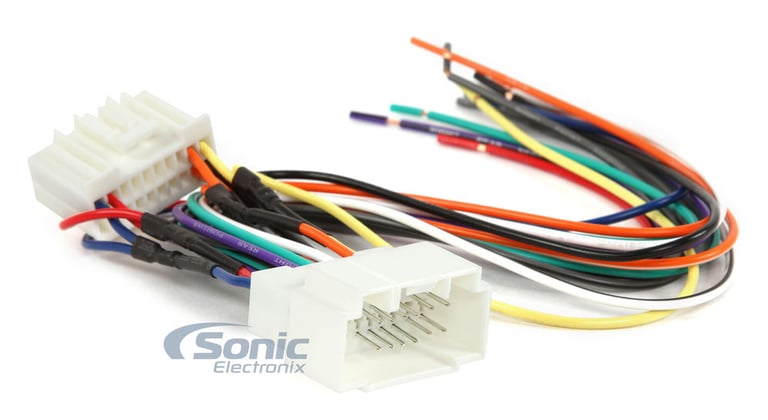

Scosche HA09B Wiring Harness

Install a new car stereo in select 2003-2007 Accord

Scosche
Shop all Scosche
highlight-star-icon

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

See compatible vehicles Learn more about the ha09b

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Description


Scosche brand icon

Authorized dealer

Product Features:

  • Wire harness to Install a new car stereo in Compatible with select 2003-2007 Accord
  • Plugs into the cars original factory radio connectors
  • Color-coded wires for easy installation to the aftermarket radio
  • No wire cutting needed for factory radio connectors
  • 1-year Manufacturer's Warranty

Connections:

  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Blue - Power Antenna
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)

Compatible Vehicles


Please use our Fitment Guide to determine specific compatibility for the submodel and audio features

The vehicle you have selected 1977 Dodge Aspen is not compatible. Change vehicle or See list of compatible similar products


Best selling similar products

DKGM-49 small

Crux DKGM-49 Stereo Replacement Interface

• Stereo Replacement Interface with Dash Kit
• Fits select 2006-2020 vehicles from GMC, Chevrolet, Buick Vehicles
• Accommodates ISO Double DIN Mount
• Retain steering wheel controls and chime functions

(41)

$129.60

List price $201.60

70-1761 small

Metra 70-1761 Wiring Harness

• Direct connection to the factory radio harness
• Color coded wires for easy installation
• No cutting or splicing required

(97)

$5.99

List price $6.99

70-1771 small

Metra 70-1771

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(51)

$12.99

List price $6.99

70-5520 small

Metra 70-5520 Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(56)

$9.95

List price $6.99

RP4-CH11 small

PAC RP4-CH11

• Direct connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(12)

$152.99

List price $379.00

GM02B small

Scosche GM02B Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(246)

$7.95

List price $8.99

70-1858 small

Metra 70-1858 Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(63)

$9.95

List price $6.99

C2R-CHY4 small

PAC C2R-CHY4 Wiring Interface

• Provides 12-Volt accessory power (RAP)
• Designed for non-amplified and amplified models
• Retains balance and fade
• Pre-wired for steering wheel audio controls

(25)

$99.99

List price $299.00

70-7552 small

Metra 70-7552 Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(34)

$10.99

List price $12.99

SWRTY-61C small

Crux SWRTY-61C

• Direct connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(2)

$112.05

List price $174.30

Specifications & Details


Harness Features
Main Harness Function
Connect/Install an Aftermarket Car Stereo
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HA09B

Weight:

0.21lbs

Internal SKU:

ha09b

Internal Product ID:

4517

Customer Ratings & Reviews


Scosche HA09B Wiring Harness thumbnail image

5 star
83%
4 star
17%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.9
Design
5
Usability
4.9

Customer Reviews

Sort by:

Loading...

Good Product

I would recommend this product. It fits as advertised. Just know if you plan using this for a second din deck in a gen7 accord be warned it is a tight fit to connect to the existing radio.

By Chris on June 30, 2011

41 found this helpful


Very good decision!

A very good solution, because it can be useful to someone who decided to install a aftermarket radio behind the torpedo, and does not have a frame

By Oleg on February 16, 2022 Checkmark Icon Verified purchase

28 found this helpful


Perfect

The harness was an easy set up where each wire was labeled and fit perfect to original radio harness...

By Ted on July 20, 2020

27 found this helpful


Just what I needed!

Got the wrong adapter from a local shop here my dash lights didn't work after using the one from them. This adapter fixed that problem and less than half the cost of the other adapter it replaced even after shipping!

Very happy now my ac dash lights work now! Got fast shipping from sonic as well quick service and reasonable prices. Love it

By Chad on January 10, 2017 Checkmark Icon Verified purchase

27 found this helpful


Works, stock hvac/radio lights up!

Works as advertised, some have had issues with the stock head unit lighting up, not with this harness. Make sure you have it wired properly to light up your stock hvac!

By andrew on July 13, 2015 Checkmark Icon Verified purchase

29 found this helpful


Quality construction

The harness was not short, giving me plenty of wire to work with. There was a wiring diagram and color key printed right on the packaging and was easy to read. The clear plastic connectors snapped into place with ease, making a solid connection. The connectors snapped on and off easily. I recommend this!

By Robert on May 9, 2020 Checkmark Icon Verified purchase

20 found this helpful
