Morel Dotech Ovation 5

5-1/4" 2-Way Dotech Ovation Series Component Car Speakers System

Morel
Shop all Morel
highlight-star-icon

5-1/4" Dotech Ovation Series Speakers • 2-Way Component System • 300W Max • 120W RMS • 4 ohm Impedance • Composite Cellular Fiber Cone • Butyl Rubber Surround • Silk Acuflex Soft Dome Tweeter

Learn more about the dotechovation5

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Description


General Features:

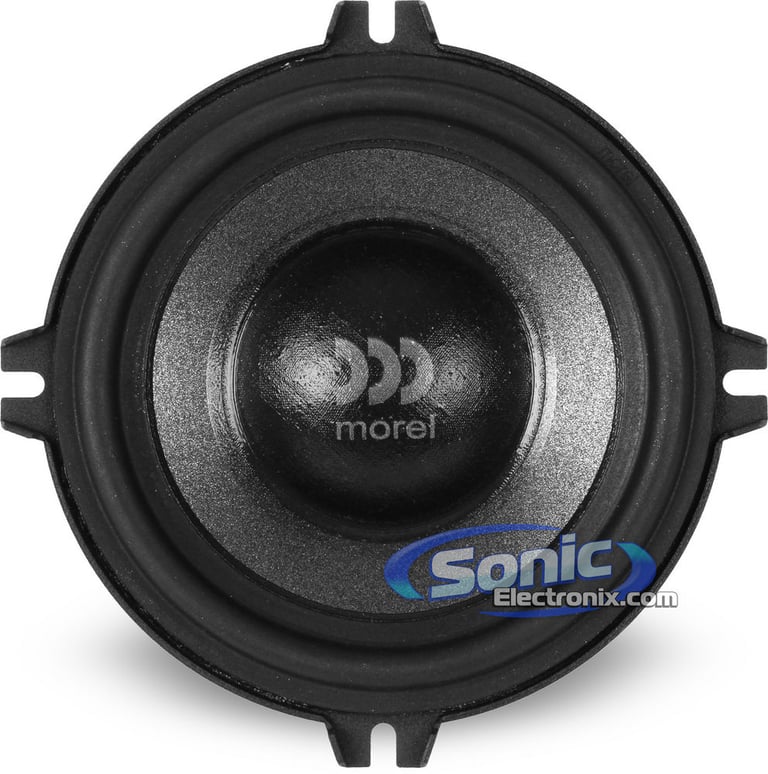

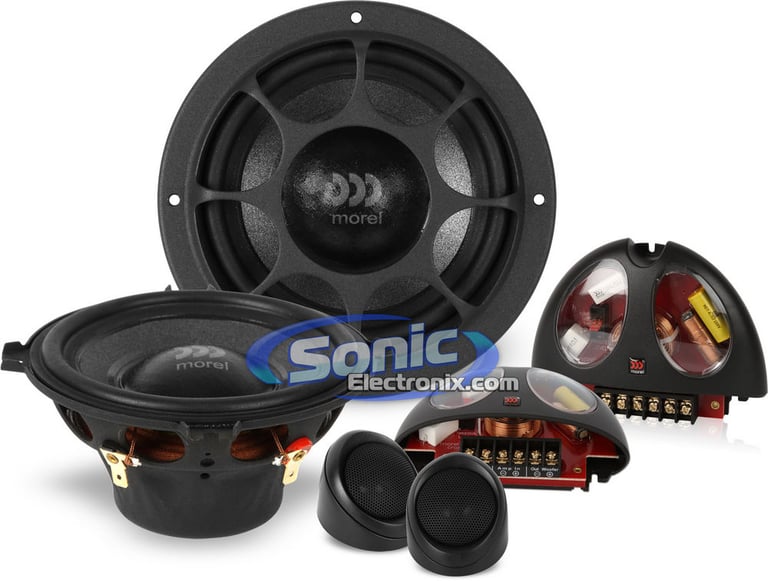

  • 5-1/4" Dotech Ovation Series Component System
  • Power Handling:
    • Peak: 600 watts per set / 300 watts each side
    • RMS: 240 watts per set / 120 watts each side
  • Composite Cellular Fiber cone material
  • Butyl Rubber speaker surround

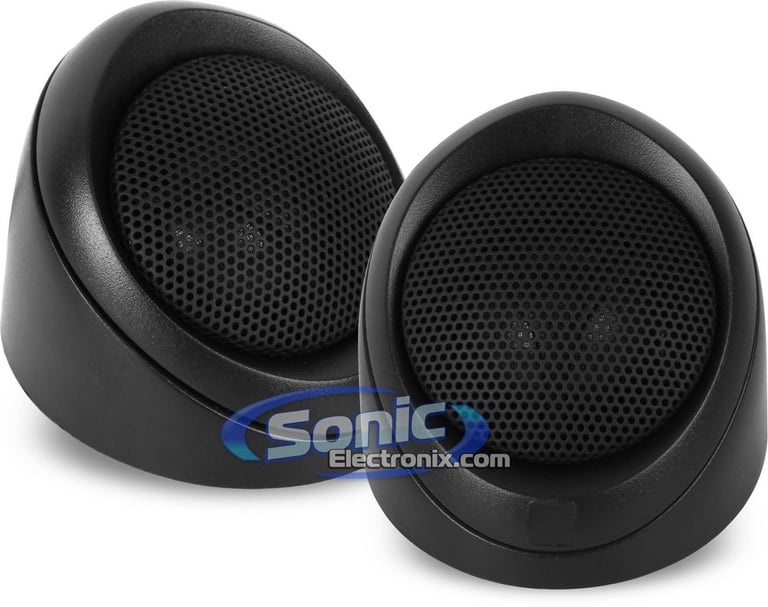

  • 1-1/4" Silk Acuflex Soft Dome tweeter composition
  • 2-1/8" Hexatech Aluminum Copper voice coil

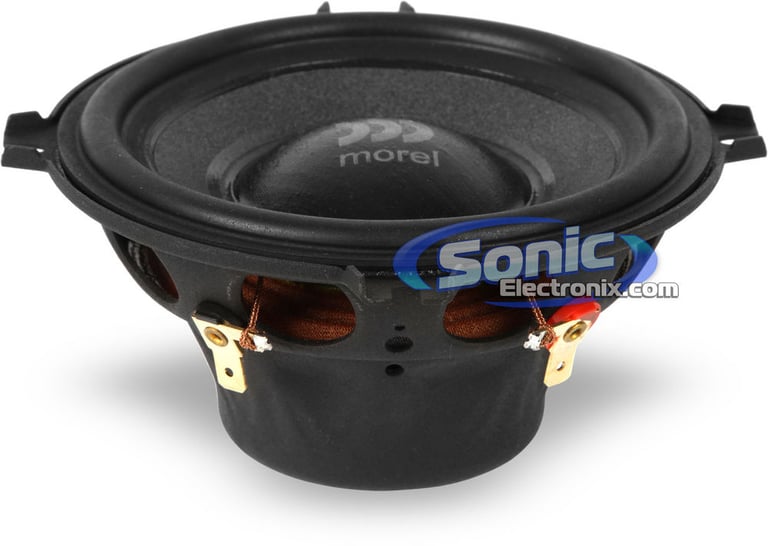

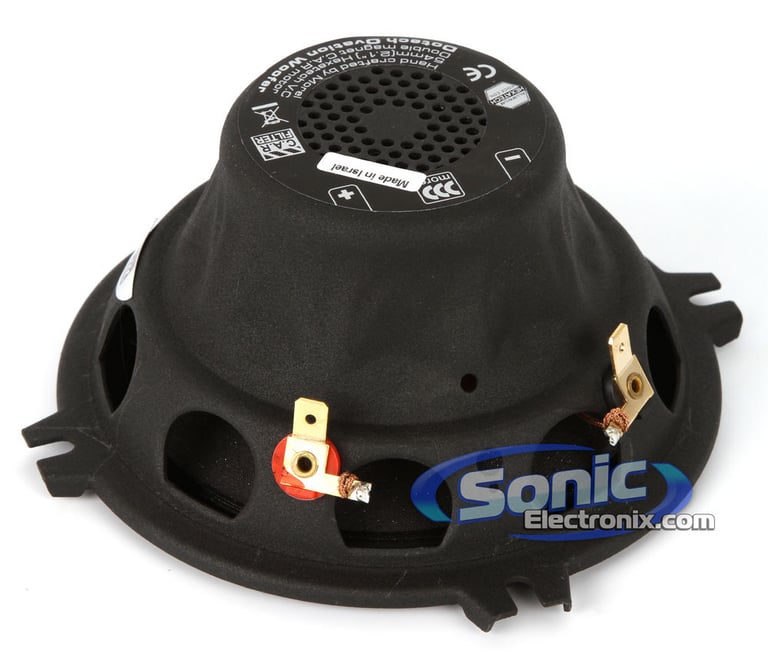

  • Double Ferrite rear vented magnet motor structure
  • Neodymium tweeter magnet structure
  • Uniflow Die-Cast chassis minimizes sound reflection
  • Tweeter designed to allow perfect phase linearity with the woofer
  • 4 ohm impedance
  • Frequency response: 45-22,000 Hz
  • Top-mount depth: 2-3/8"
  • Sensitivity: 89dB
  • 1-year SonicElectronix.com Warranty

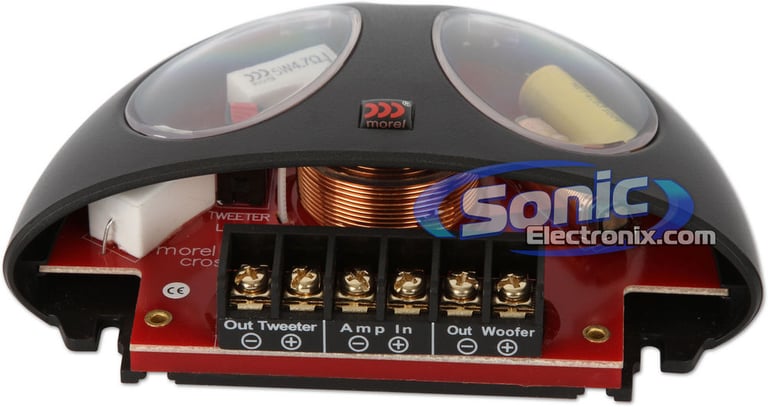

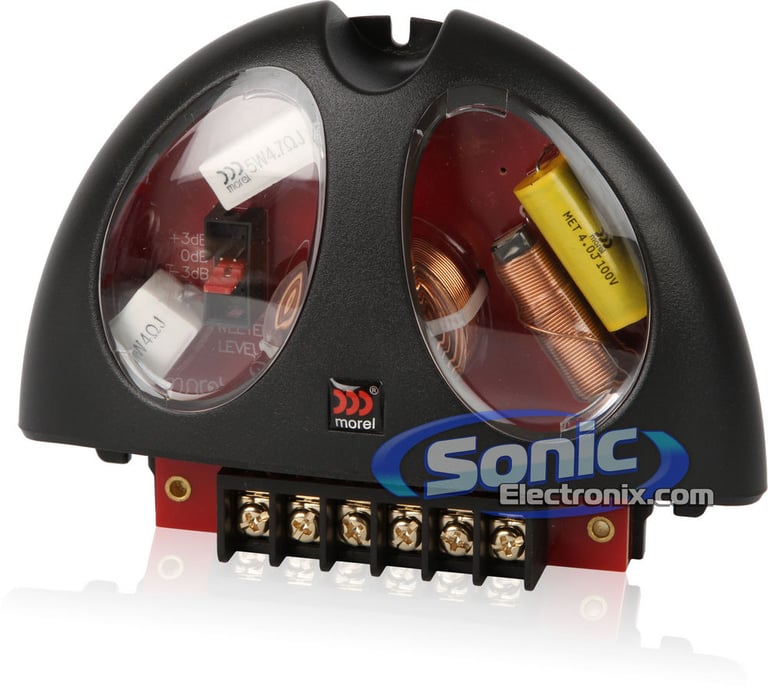

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.


Best selling similar products

Reference 5030cx small

Infinity Reference 5030cx (REF5030CX)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(2)

$99.95

List price $249.95

REF507CF small

Infinity REF507CF (INFSPKRF507CFUS)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome Tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

$219.95

List price $249.95

DB5252 small

Polk Audio DB5252 (DB 5252)

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" dual Silk Dome tweeters
• UV-Resistant Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(4)

$200.00

List price $209.99

Specifications & Details


Speaker Specifications
Speaker Size
5-1/4"
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Composition
Silk
Woofer Composition
Composite Cellular Fiber
Woofer Surround
Butyl Rubber
Peak Power Handling
300 watts
RMS Power Handling
120 watts
Sensitivity
89 dB
Frequency Response
45 - 22000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-3/8"
Bottom-Mount Depth
2-1/2"
Cutout Dimensions
4-3/4" x 4-3/4"
General specifications

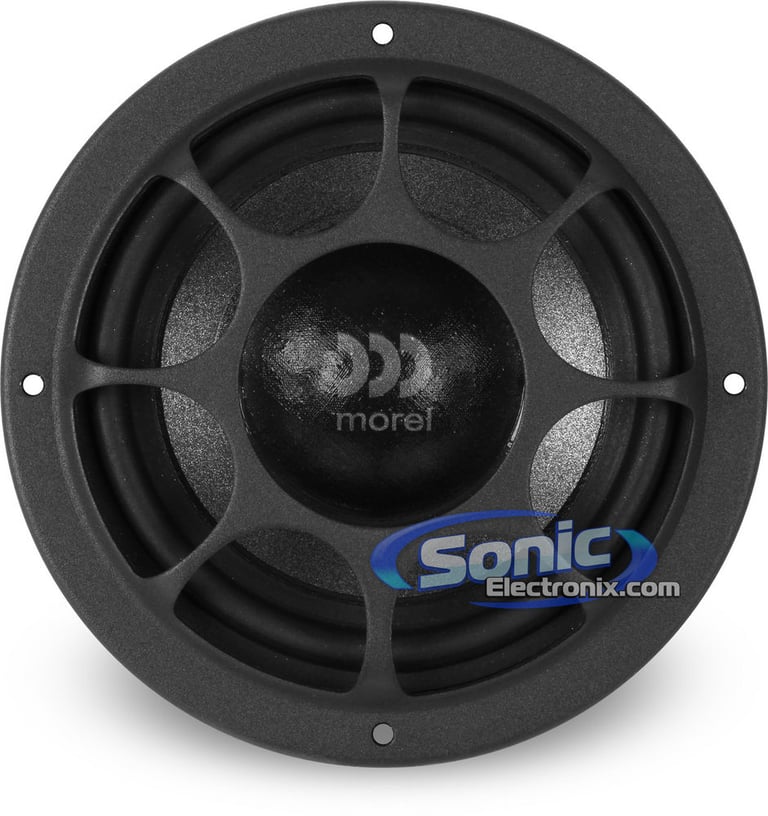

Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

Dotech Ovation 5

Weight:

6.00lbs

Internal SKU:

dotechovation5

Internal Product ID:

45412
