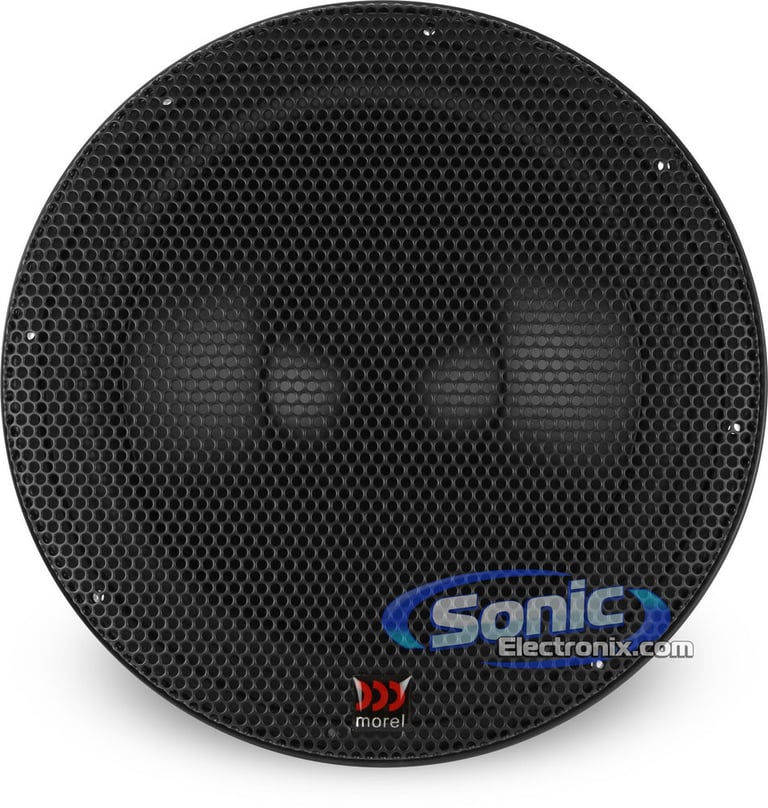

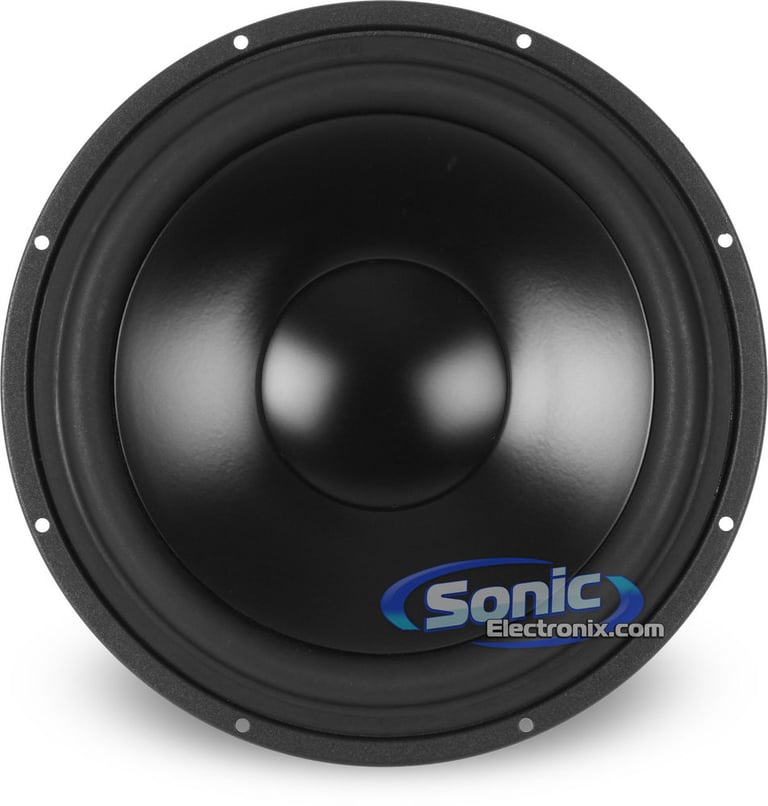

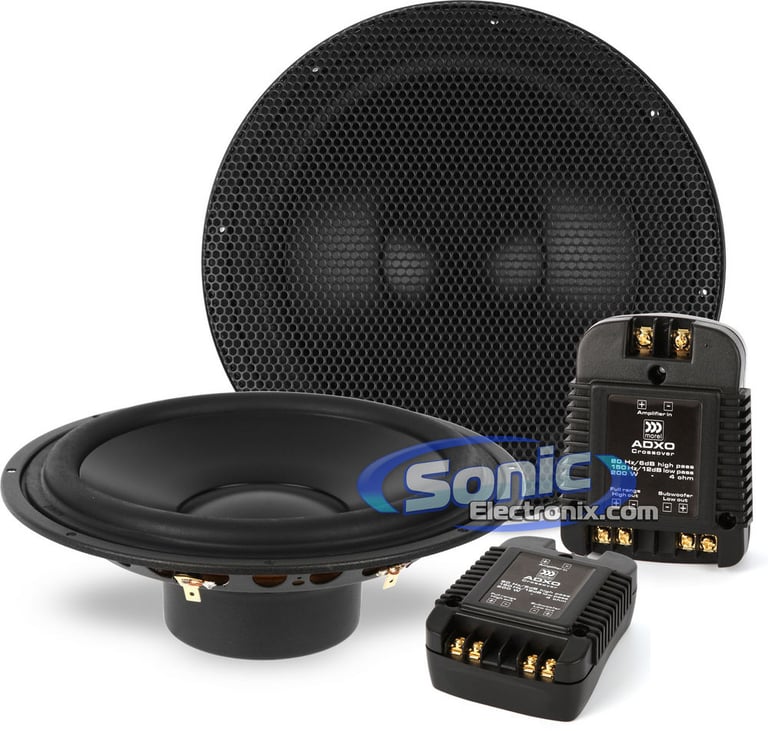

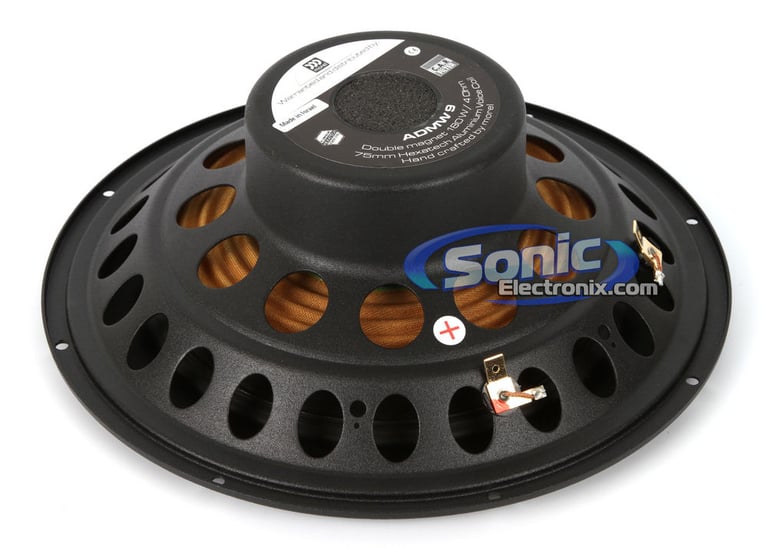

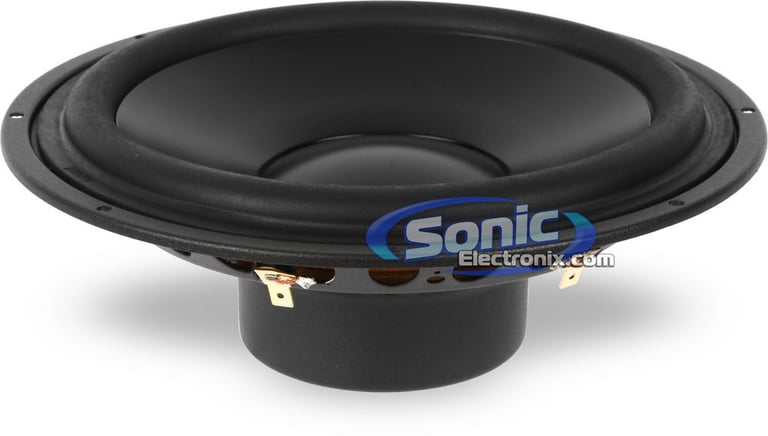

Morel ADMW 9

9" Single 4 ohm ADMW SW Series Subwoofer

Morel
Shop all Morel
Product videos
highlight-star-icon

9" Single 4 ohm ADMW SW Series Subwoofer • Peak: 1000 watts • RMS: 200 watts • Impedance: 4 ohm • Damped polymer composite cone

Learn more about the admw9

We apologize

This item has been discontinued


Loading...
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

82-7500 main

Metra 82-7500

5-1/4" - 6-1/2" Universal Speaker Adapter Brackets for select 1990-2013 vehicles from Honda, Acura, Mazda

9
-10.53%

$16.99

List price $18.99

70-1721 main

Metra 70-1721 Wiring Harness

Install a new car stereo in select 1998-2013 vehicles from Honda, Suzuki, Acura

27
HonK834 main

American International HONK834

Double DIN Stereo Dash Kit for select 2003-2011 Element

2
-55.91%

$14.99

List price $34.00

HA08BCB main

Scosche HA08BCB Wiring Harness

Install a new car stereo in select 1998-2019 vehicles from Honda, Acura

4
-16.74%

$9.95

List price $11.95

95-7863 main

Metra 95-7863 Dash Kit

Install a new Double-DIN car stereo in select 2003-2011 Element

4
-41.68%

$13.99

List price $23.99

99-7863 main

Metra 99-7863 Dash Kit

Install a new Single-DIN car stereo in select 2003-2011 Element

2
-43.76%

$17.99

List price $31.99

70-7863 main

Metra 70-7863 Wiring Harness

Install a new car stereo and retain factory amplifier in select 2003-2011 Element

9
-10.45%

$59.99

List price $66.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Product Highlights


9" Single 4 ohm ADMW SW Series Subwoofer • Peak: 1000 watts • RMS: 200 watts • Impedance: 4 ohm • Damped polymer composite cone

Description


Bass for Free-Air Applications

The ADMW SW subwoofers offer a perfect combination of power handling, deep bass and ease of installation for those who need musical but yet dynamic bass in their cars. They are made to be Combined with Morel 2-way components systems. The Morel Elate 5 2W and Morel Elate 6 2W for a perfectly balanced 3-way component system, or on their own.

The ADMW SW employ Morel's Hybrid magnet motor system, manufactured exclusively by Morel, which combines two types of magnets, neodymium and ferrite, to create a motor of tremendous power, while retaining its compact size. By using a large 3" diameter Hexatech aluminum voice coil to support a large area of the DPC shallow cone, the profile of the woofer remains low and cone breakup distortion at high level is prevented.

The ADMW SW is rear vented making use of Morel's advance C.A.R (Controlled Acoustic Resistance) filter that improved the acoustical by controlling the cone movement, thus, making it ideal for free-air installations.

General Features:

  • 9" Single 4 ohm ADMW SW Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 200 watts
  • Impedance: 4 ohm
  • Combine these subs with the Morel 2-way components systems Morel Elate 5 2W and Morel Elate 6 2W for a perfectly balanced 3-way component system!
  • Damped polymer composite cone
  • Rubber woofer surround type
  • Large 3” Hexatech External Aluminum voice coil
  • Dual layer, vented magnet motor structure
  • C.A.R (Controlled Acoustic Resistance) filter
  • Frequency response: 25 - 3000 Hz
  • Resonance Frequency (Fs): 44 Hz
  • Top-mount depth: 2-13/16"
  • Cut-out: 7-9/16"
  • Sensitivity: 88 dB
  • 1-year SonicElectronix.com Warranty

Priced Per Pair

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Morel ADMW 9 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Morel ADMW 9 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Morel ADMW 9 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Morel ADMW 9 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

TS9924-22 small

MTX TS9924-22

• Peak Power: 8000 watts
• RMS Power: 4000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 24.00"
• Sensitivity: 92 dB

(3)

$9999.95

List price $12500.00

13W7AE-D1.5 small

JL Audio 13W7AE-D1.5


• RMS Power: 1500 watts
• Impedance: Dual 1.5 ohm
• Polypropylene Cone
• Polyester Foam Surround
• Mount depth: 10.50"
• Sensitivity: 86.3 dB

(19)

$1899.99

List price $1899.99

13W7 small

JL Audio 13W7-D1.5

• Sensitivity: 86.3 dB
• OverRoll™ Surround
• W-Cone
• Forced-Air-Cooled Aluminum Alloy Frame
• Radially Cross-Drilled Pole Piece
• Dual Ultra-Long Voice Coils
• Black Powder-Coating

(59)

$1899.99

List price $1899.99

13TW5V24_2 small

JL Audio 13TW5v2-4 - Pair

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$1859.98

List price $1859.98

T2S2-16 small

Rockford Fosgate Power T2 T2S2-16

• Peak Power: 5000 watts
• RMS Power: 2500 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 10.47"
• Sensitivity: 90 dB

$1299.99

List price $1299.99

13TW5v2-4 small

JL Audio 13TW5v2-4

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$929.99

List price $929.99

13W3v3-2 small

JL Audio 13W3v3-2

• Sensitivity: 87.63 dB
• Mounting depth: 7.63"
• Injection-molded, mineral-filled polypropylene cone
• Nitrile butadiene rubber surround
•Customization trim ring
• Floating Cone Attach Method
• DMA Optimized Motor

(6)

$519.99

List price $519.99

T3S1-19 small

Rockford Fosgate Power T3 T3S1-19

• Peak Power: 6000 watts
• RMS Power: 3000 watts
• Impedance: Single 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 15.62"
• Sensitivity: 91 dB

$2199.99

List price $2199.99

T2S1-13 small

Rockford Fosgate Power T2 T2S1-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Triple 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 90 dB

(3)

$1099.99

List price $1099.99

T2S2-13 small

Rockford Fosgate Power T2 T2S2-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 87 dB

$1099.99

List price $1099.99

Specifications & Details


Subwoofer Specifications
Peak Power Handling
1000 watts
RMS Power Handling
200 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Frequency Response
25 - 3000 Hz
Sensitivity
88 dB
Subwoofer Design
Oval
Main Cone Color
Black
Woofer Composition
Damped Polymer Composite - DPC
Woofer Surround
Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
2-13/16"
Cutout Diameter
7-9/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
44 Hz
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

ADMW 9

Weight:

10.50lbs

Internal SKU:

admw9

Internal Product ID:

45452
