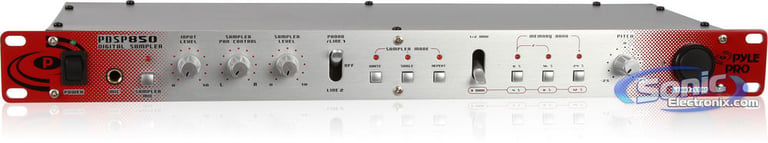

Pyle PDSP850

Product Features:

• 24 Seconds Sampling Time
• Up to 3 Memory Banks
• 1, 2 & 3 Banks Memory Modes
• Single/Repeat Modes
• Large Start/Stop Button for Easy Operation
• Sampler Mic Input
• Source Selector
• Input Gain Control
• Pitch Control +/- 1/2 Octave
• Sampler Level & Pan Controls

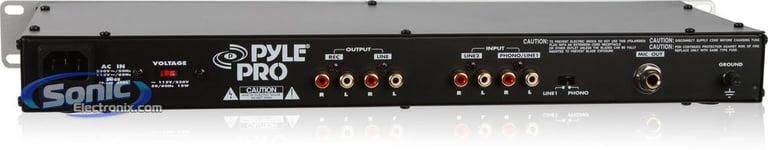

• Phono, Line 1 & Line 2 Inputs
• Line & Rec Outputs
• 1/4" Mic Output
• Ground Screw for Turntables
• Single Rack Space Unit
• 110/220 Voltage Switchable
• Dimensions: 1.75" x 19" x 6"
• Also found as:
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Specifications:

• Input Sensitivity/Impedance:
• Mic: 1mV/600 ohm
• Line: 150mV/27 k ohm
• Phono: 3mV/47 k ohm
• Output Level:
• Mic: 1.5mV/600 ohm
• Line: 1V/1 k ohm
• Rec: 100mV/1 k ohm
• Frequency Response: 20Hz - 20kHz (± 3dB)
• S/N Ratio:
• Mic: >60dB
• Line: >80dB
• Phono: >70dB
• Distortion:
• Mic: <0.2%
• Line: <0.02%
• Phono: <0.08%
• Sampling Length (ADPCM):
• 4sec x 1
• 8sec x 2
• 12sec x 1
• 16sec x 1
• 24sec x 1
• Pitch Changer: ± 1/2 octave
• Power Source: 115VAC, 60Hz/230VAC, 50 Hz
• Size & Weight:
• Weight: 4 lbs. 3 oz. (1.9 kg)
• Width: 19" (482 mm)
• Depth: 6" (153 mm)
• Height: 1-3/4" (44 mm)
