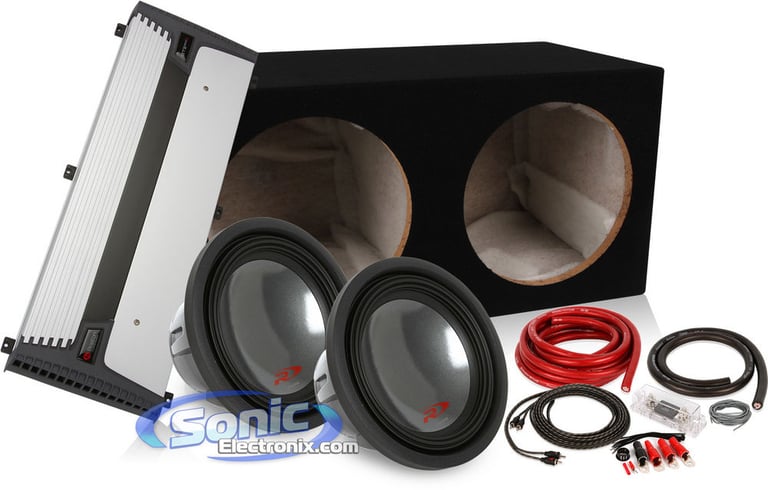

Alpine + Boston Acoustic Bass Package

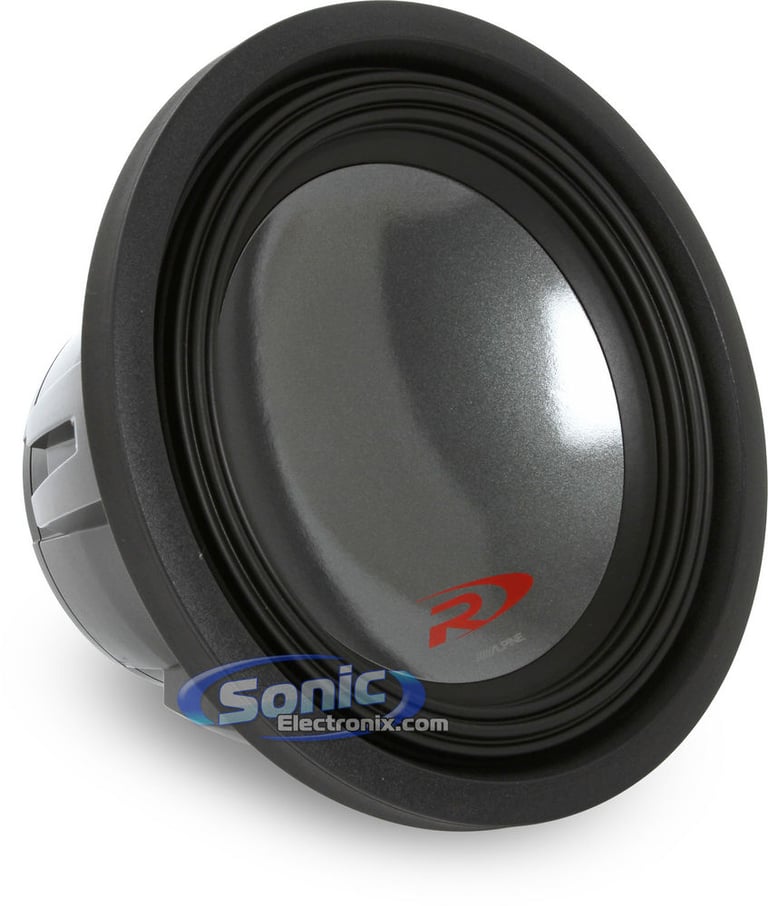

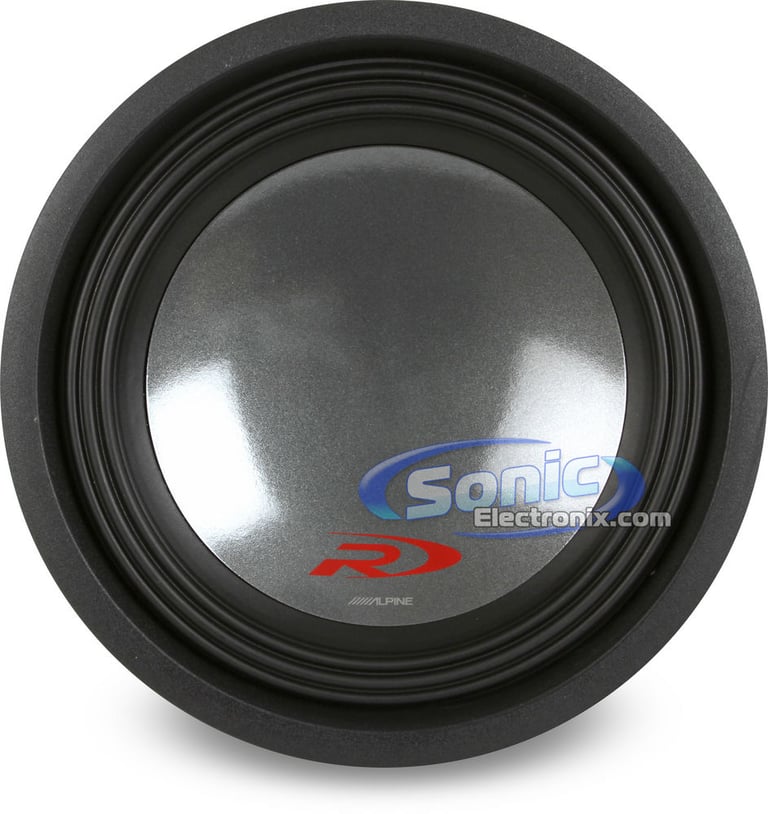

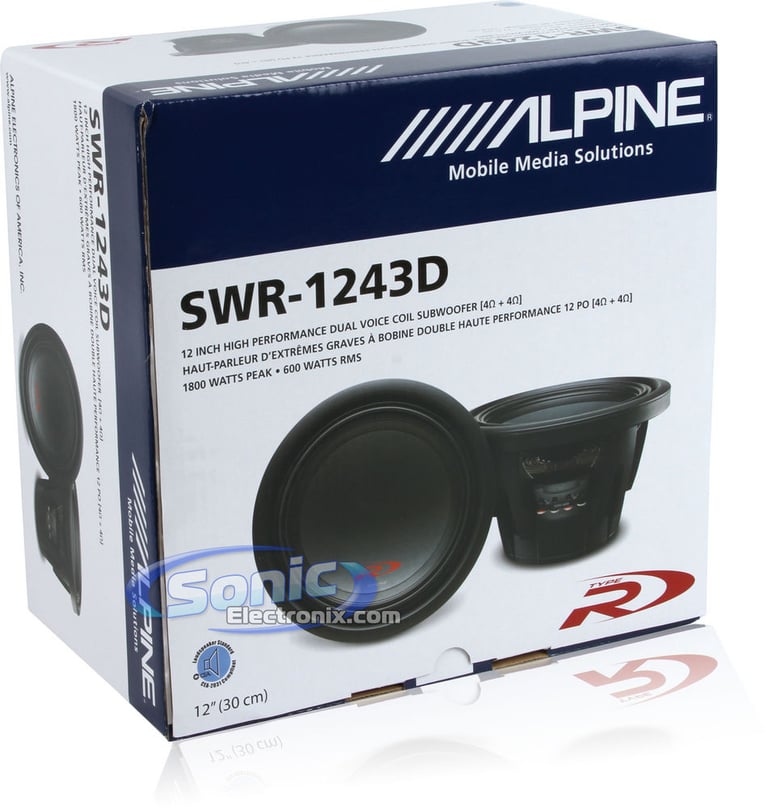

Alpine SWR-1243D

12" Dual 4 ohm Type-R Series Car Subwoofer
Quantity: 2

• 12" Dual 4 ohm Type R Subwoofer
• Power Handling:
  • Peak: 1800 watts
  • RMS: 300-600 watts
• Kevlar reinforced pulp cone woofer
• 2-Piece Structural Parabolic diaphragm design
• Injection molded Santoprene rubber surround
• Alpine exclusive High Amplitude Multi-Roll (H.A.M.R) surround for impressive excursion and clean, accurate bass
• FEA Optimized progressive NOMEX spider
• Radial vented VC head sink
• Concealed mount gasket system
• Reinforced layer spider integration tinsel leads
• Oversized 2-1/2" Voice coil
• 4-Layer dual voice coil design
• Voice coil made from 180°C high temperature wire on spiral cut aluminum former

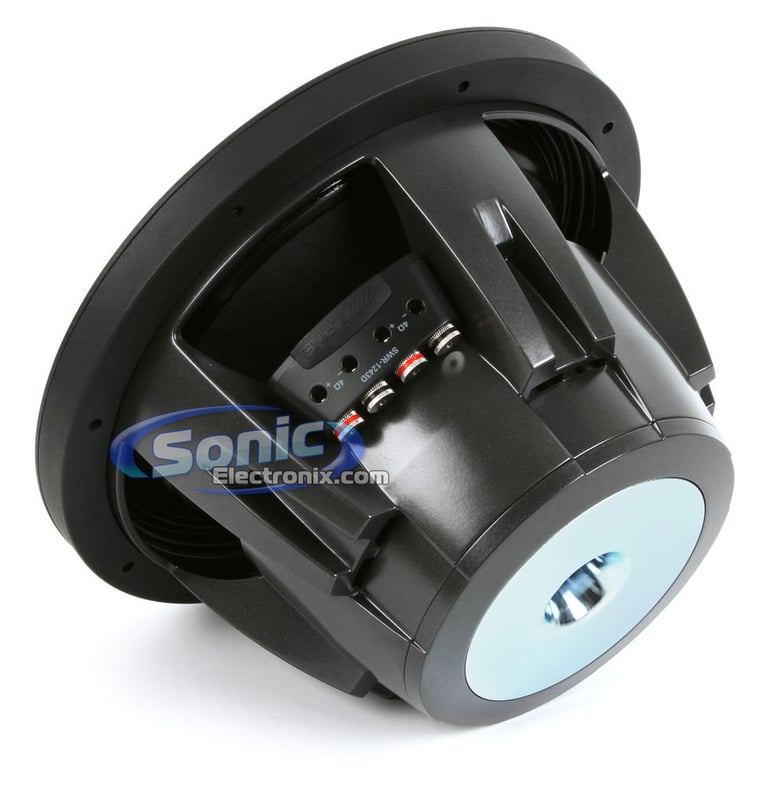

• Single-piece cast aluminum frame with Alpine Patent Pending Airflow Management System for efficient cooling
• Airflow Management system controls the temperature of the voice coil by directing the air across the heatsink

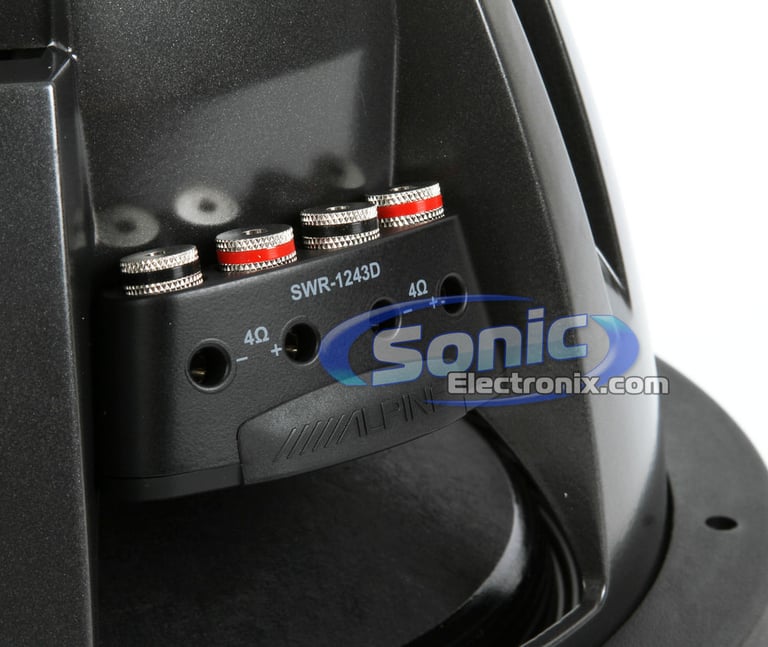

• One sided push terminals make installation and wiring fast and simple
• Each terminal accepts up to 8 AWG wire for high power signal transfer
• Concealed gasket mounting system hides the screw holes and makes for a clean install
• Integrated grill technology allows for a seamless installation of a grill
• US Patented Compound Radius Curve (CRC) design with integrated short sleeve configuration
• CRC Machined motor structure creates a symmetrical magnetic field for less distortion and improves power handling
• High-power, double-stacked strontium magnet structure
• Newly redesigned for a 20% depth reduction
• Frequency response: 24-200 Hz
• Sensitivity: 83 dB
• 1-year Sonic Electronix warranty

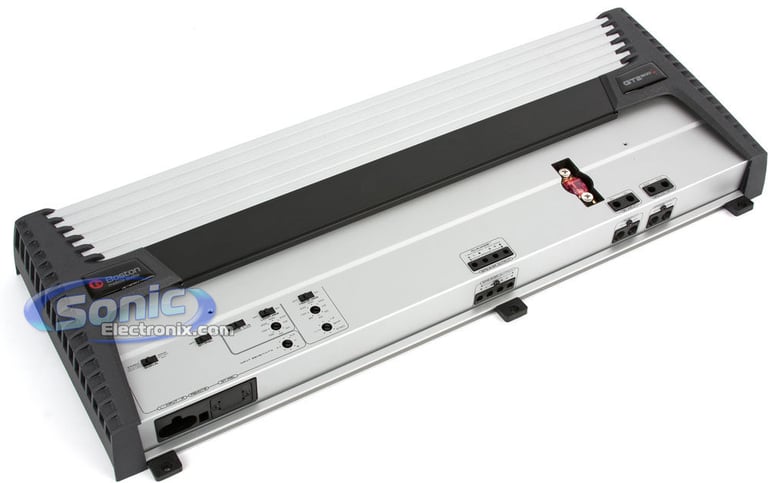

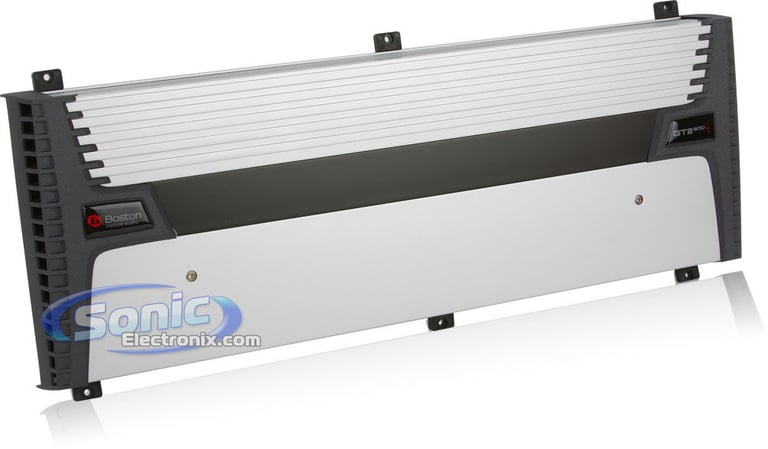

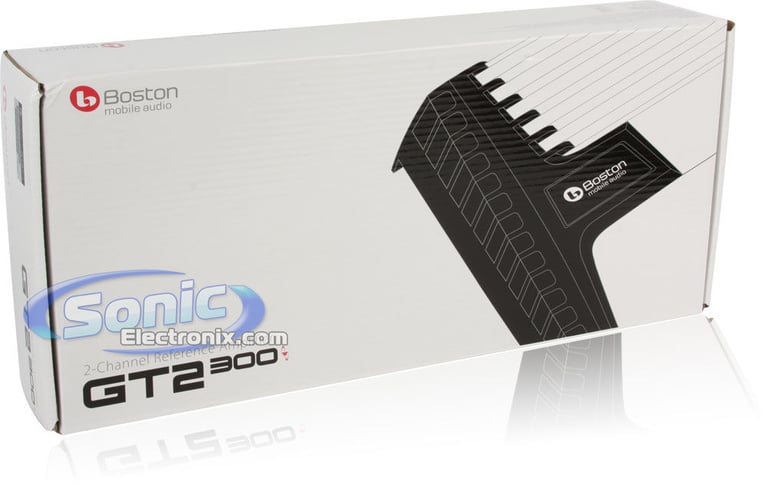

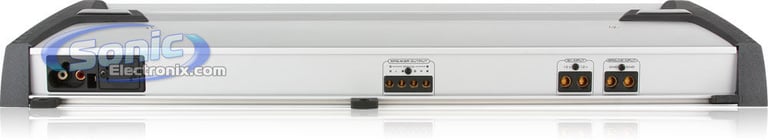

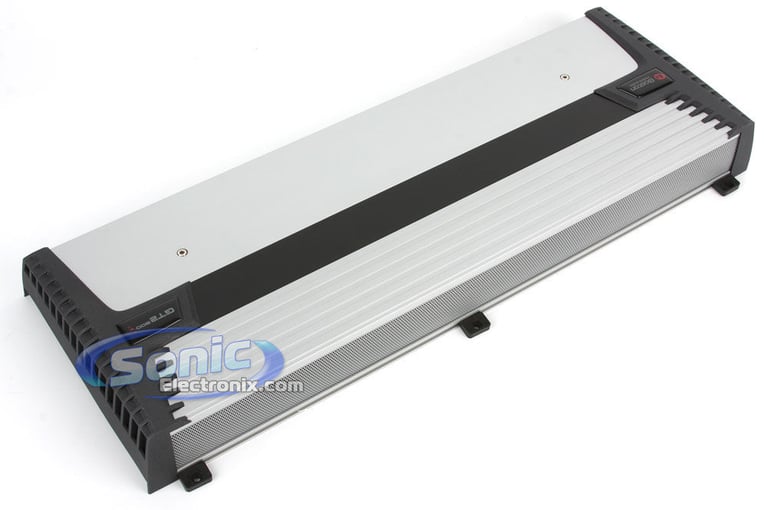

Boston Acoustics GT-2300

1400W RMS, GT Reference Series 2-Channel Amplifier
Quantity: 1

• GT Reference Series 2-Channel Amplifier
• RMS Power Rating(CEA-2006-A):
• 4 ohm: 300 watts x 2 chan.
• 2 ohm: 500 watts x 2 chan.
• Bridged, 4 ohm: 1000 watts x 1 chan.
• Bridged, 2 ohm: 1400 watts x 1 chan.
• RMS Power Rating(12V):
• 4 ohm: 260 watts x 2 chan.
• Bridged, 2 ohm: 1175 watts x 1 chan.
• Remote bass level input (GT-RSL remote level control sold separately)
• Red LED power badge and orange protect indicator
• 2/1 channel operation
• Adjustable mounting feet (mounting feet move along rails to allow the easiest installation)
• Fully computer-controlled diagnostics system (continuously monitors amplifier in case of thermal overload, short circuits, or over voltage)
• Q-Tune™ technology combines sophisticated crossover adjustments with Q-Control settings to seamlessly transition rear bass to the front sound stage

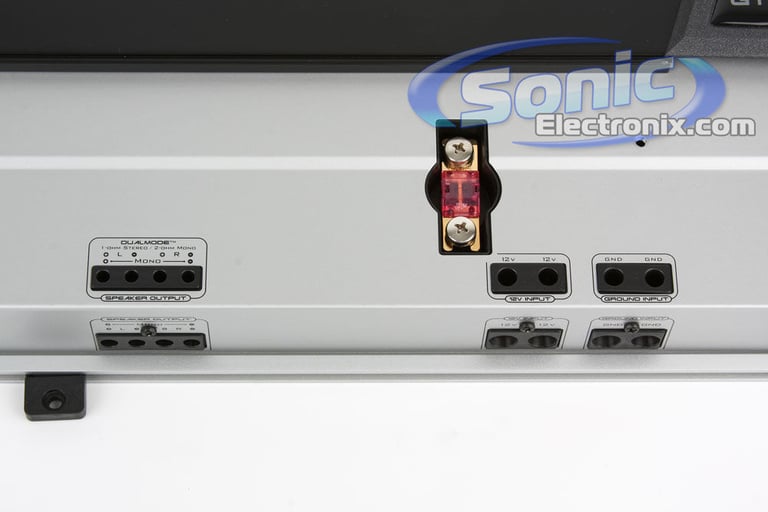

• Uses a 100 amp ANL fuse
• Heavy duty fan cooled aluminum alloy heatsink
• Gold-plated RCA level inputs
• Gold-plated screw terminals

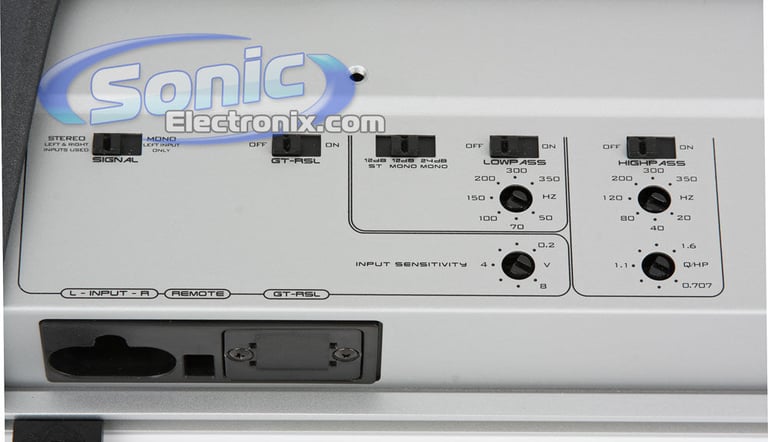

• Variable high-pass filter (20-350 Hz, 12 dB/octave)
• Variable low-pass filter (50-350 Hz, 12 or 24 dB/octave)
• Signal Voltage Input (200mV-8V)
• Frequency response: 10-95,000 Hz
• Dimensions: 22-1/4"L x 9"W x 2-3/8"H
• 1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• 1-year Manufacturer's warranty

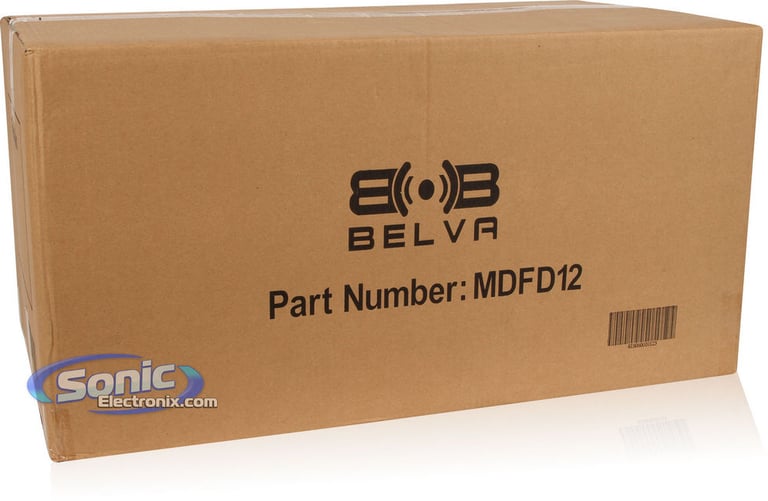

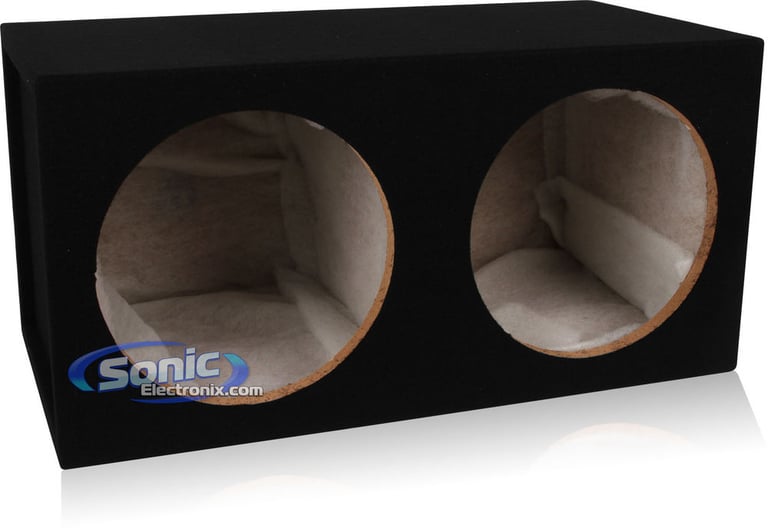

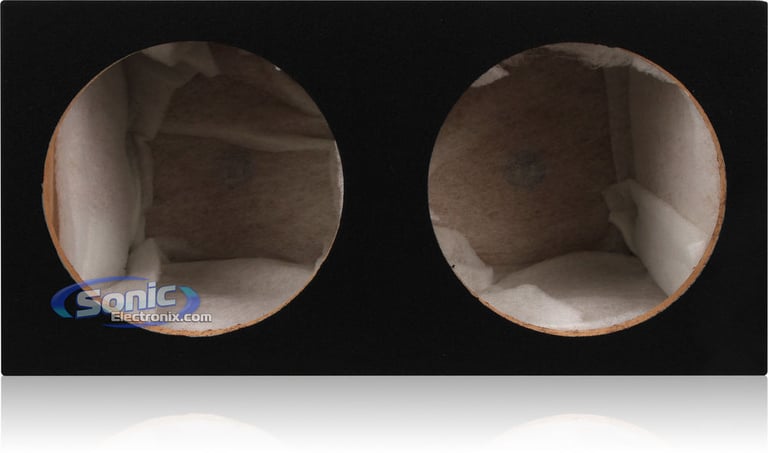

Dual 12" 3/4 MDF Sealed Subwoofer Enclosure (MDFD12)

Dual 12-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (2.46 cu ft Airspace - 12SQB)
Quantity: 1

• 12" Dual Sealed Subwoofer Enclosure
• Durable MDF enclosure for car subwoofers
• Covered in a dark gray carpet
• Pre-lined with Poly-Fil

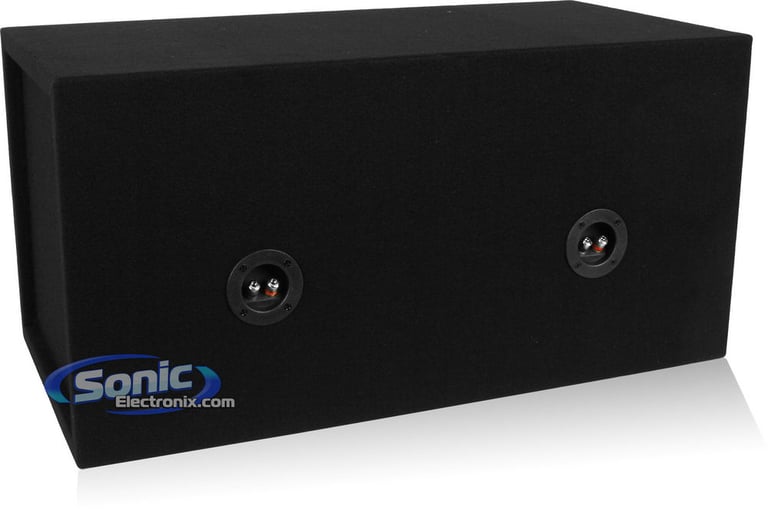

• Two sets of gold-plated speakers terminals

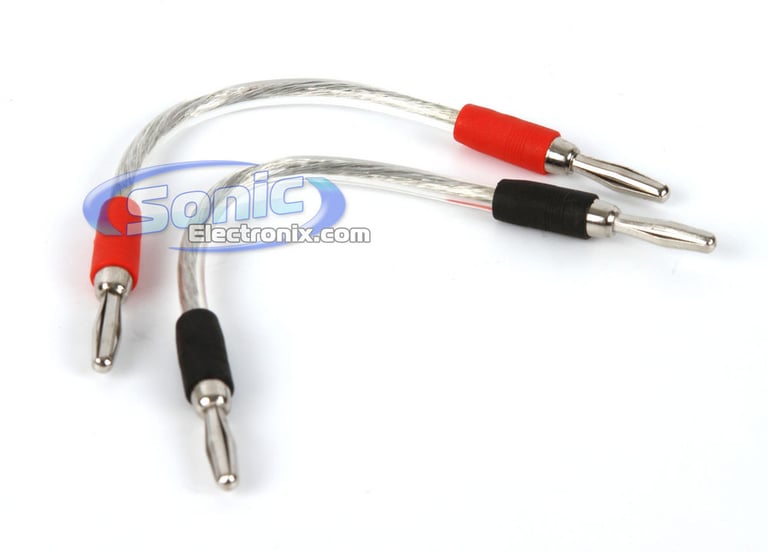

• Banana-clip ready
• Subwoofer mounting depth: 12-1/2"
• Subwoofer cutout diameter: 11"
• Box volume: 1.13 cubic feet (per chamber)
• Total box volume: 2.26 cubic feet
• Dimensions: 14"D x 28-1/4"W x 14"H

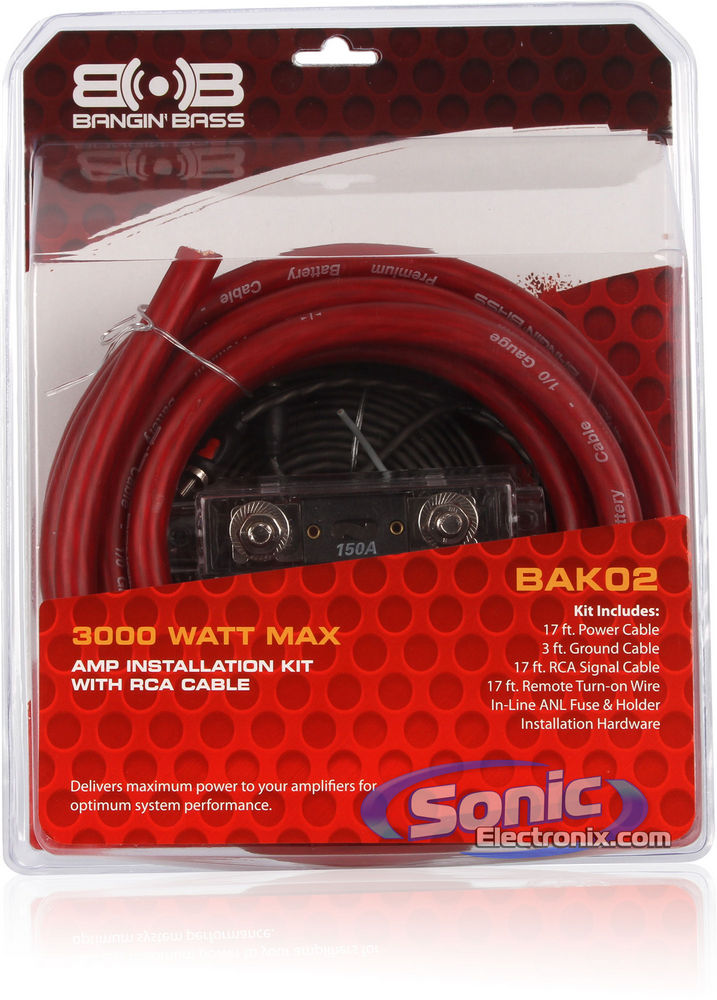

Belva BAK02

Bangin' Bass Complete 0/1 Gauge Amplifier Wiring Kit with RCA Interconnects (CCA Wiring)
Quantity: 1

Belva BAK02 Features:

• 1/0 Gauge 2-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 1500 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• ANL Fuse holder with a 150 amp ANL fuse offers ideal protection for high-powered systems
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

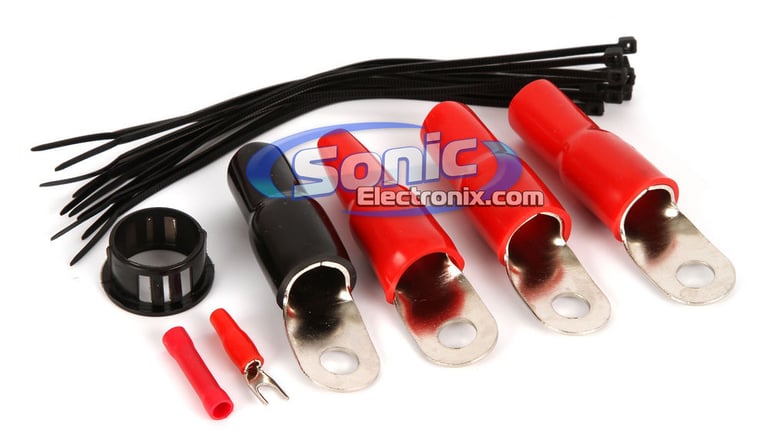

Kit includes:

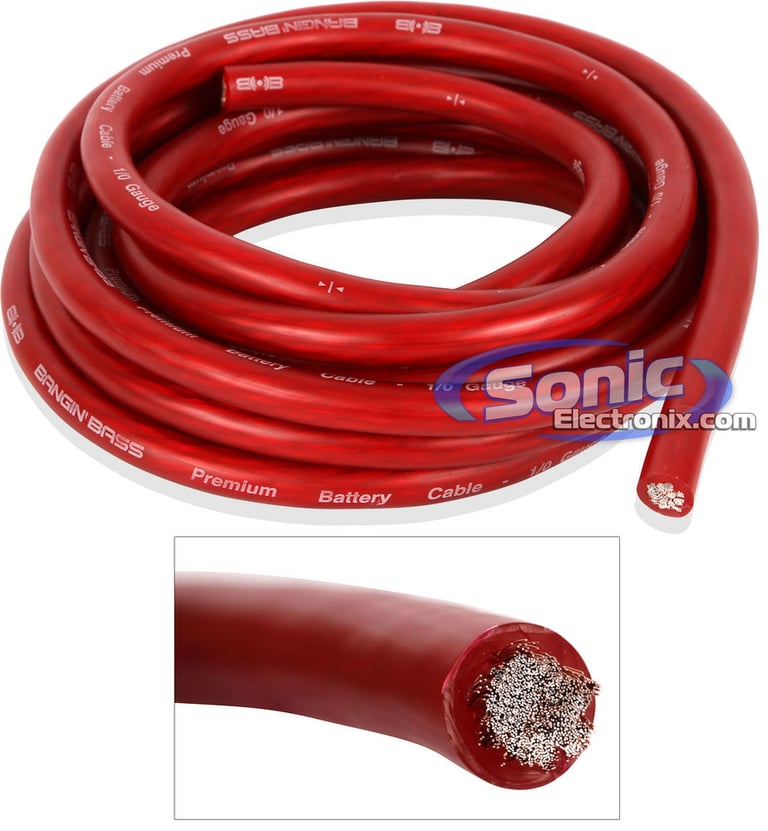

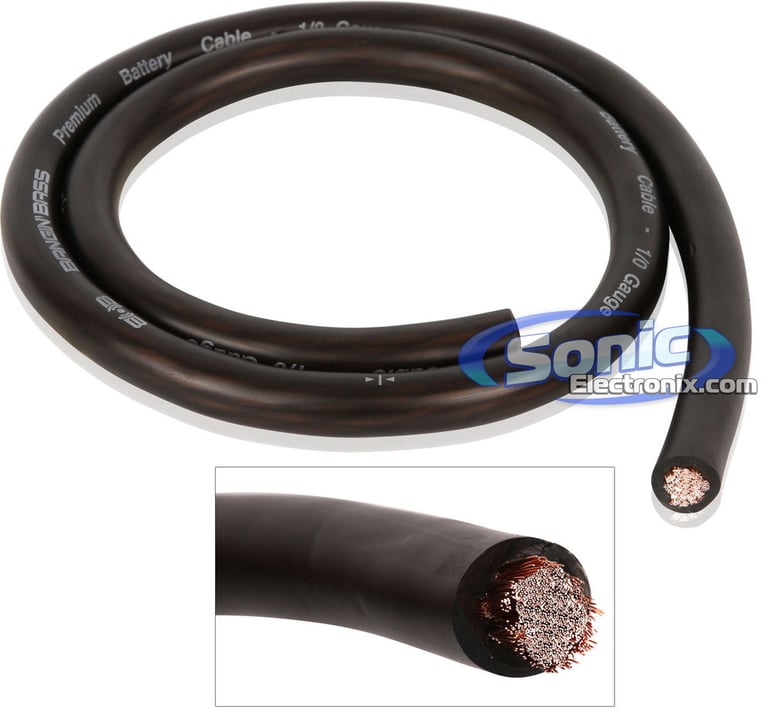

1. 17 ft. (5.2 meters) Red 1/0 gauge power wire
2. 3 ft. (.91 meters) Black 1/0 gauge ground wire
3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

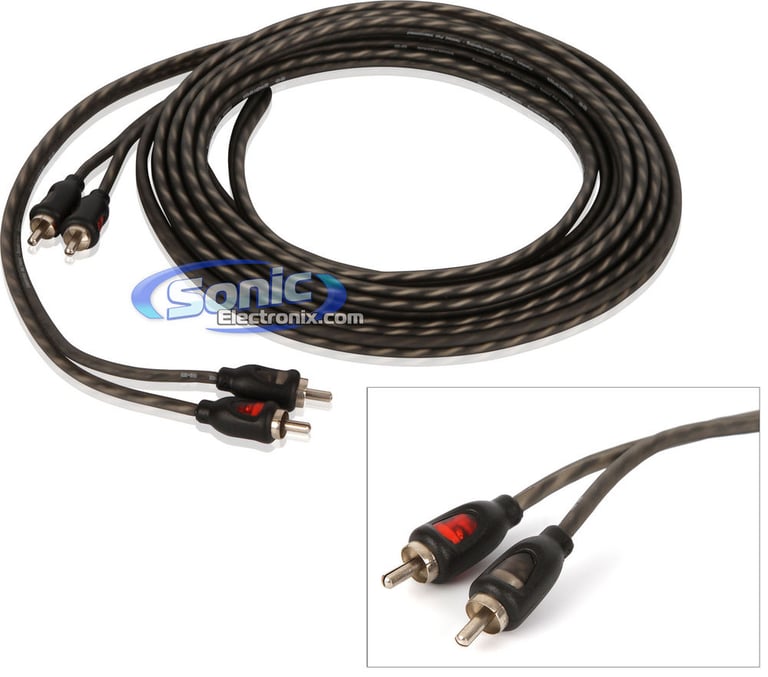

4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

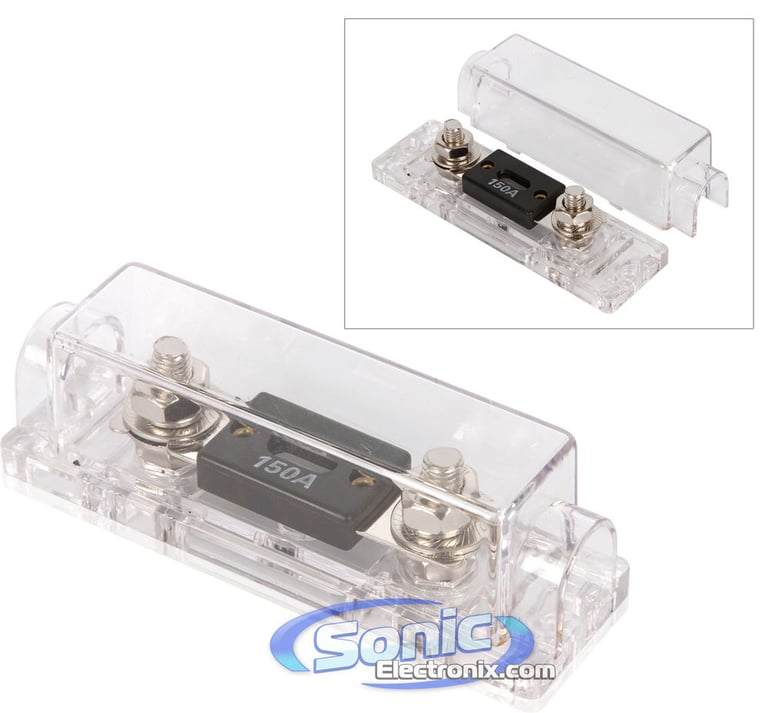

5. One In-line ANL Fuse Holder with a 150 amp ANL fuse
6. One Black rubber firewall grommet
7. Three 1/0 Gauge red chrome plated ring terminals
8. One 1/0 Gauge chrome plated ring terminal
9. One 18 Gauge red Spade terminal
10. One 18 Gauge red butt connector
11. Eight 6" Black zip ties
