Product Features:

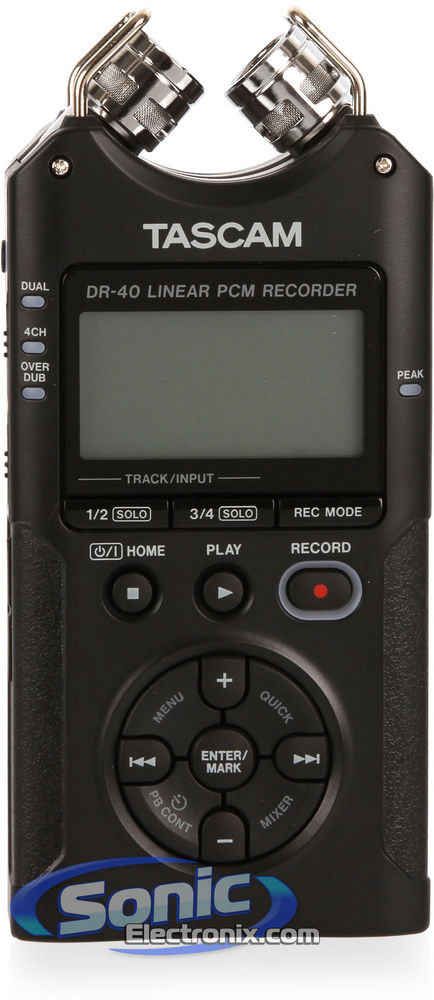

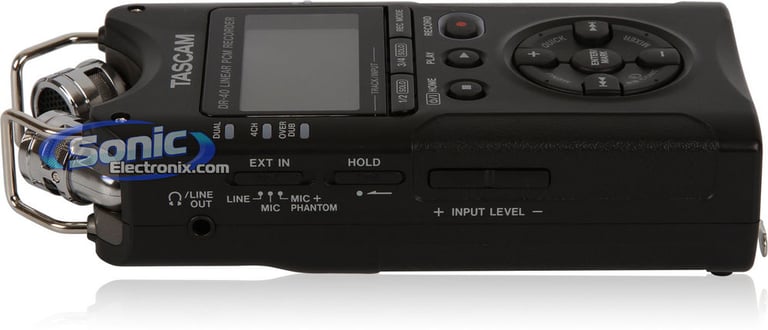

• Handheld 4-track Portable Recorder

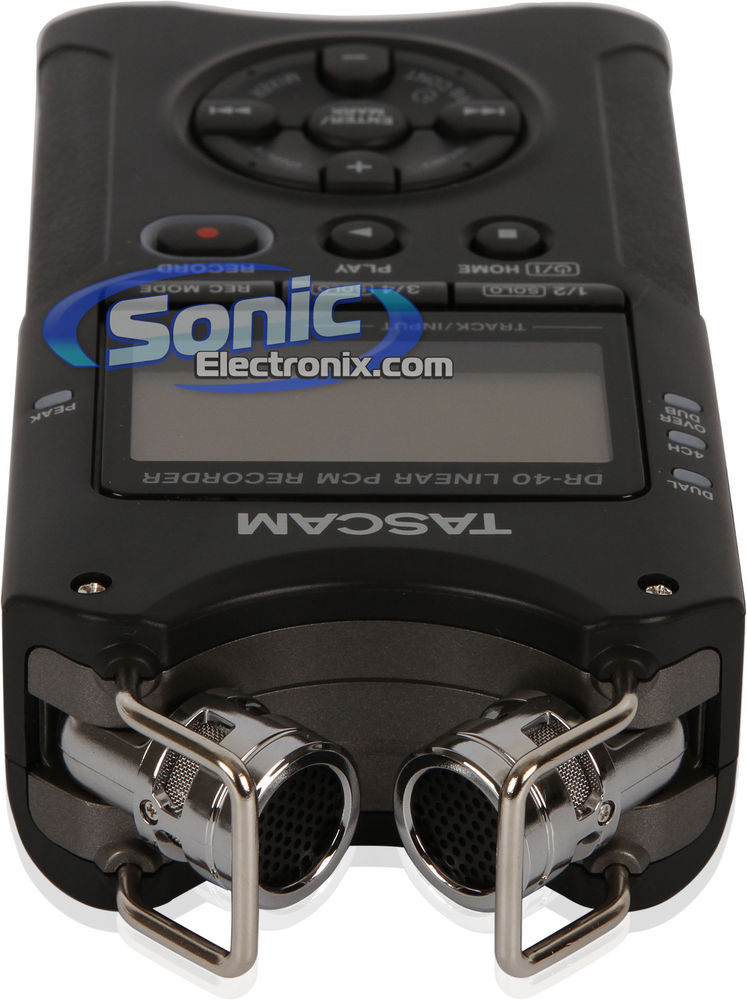

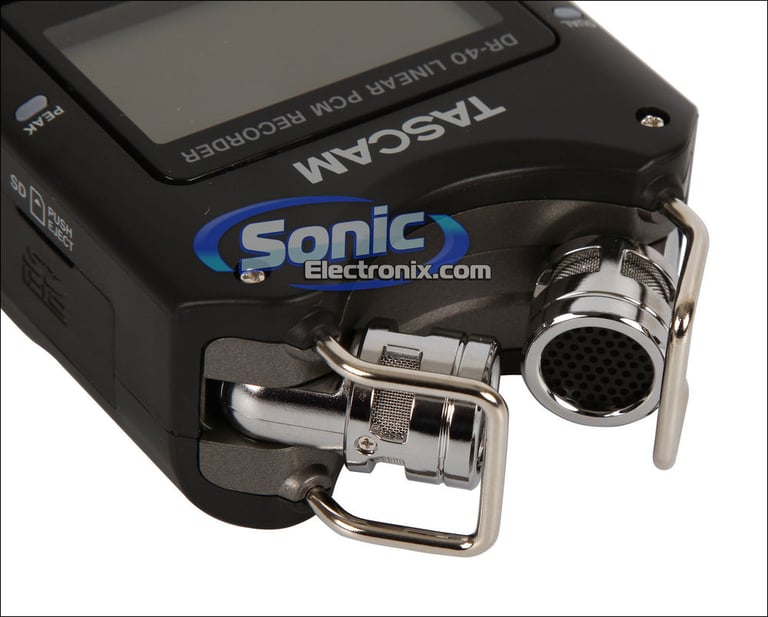

• Built-in condenser microphones, adjustable to XY or AB position
• XLR / 1/4” mic/line input with phantom power
• Record the built-in microphones with the XLR mic or line input for a four-track recording
• Dual recording mode captures a safety track at a lower level to avoid distortion
• Overdub mode allows recording along with a previous take
• Peak reduction automatically sets the ideal recording level
• 15-hour battery life from three AA batteries
• Up to 96kHz/24-bit WAV/BWF or MP3 recording resolution
• 2-second pre-recording buffer
• Variable speed playback from 50-150% speed without changing the pitch
• Adjustable limiter and low cut filter (40 / 80 / 120 Hz)
• Built-in speaker and chromatic tuner
• 1/8” headphone/line output
• Playback EQ and level align
• Stereo Reverb effect
• Tripod mounting hole

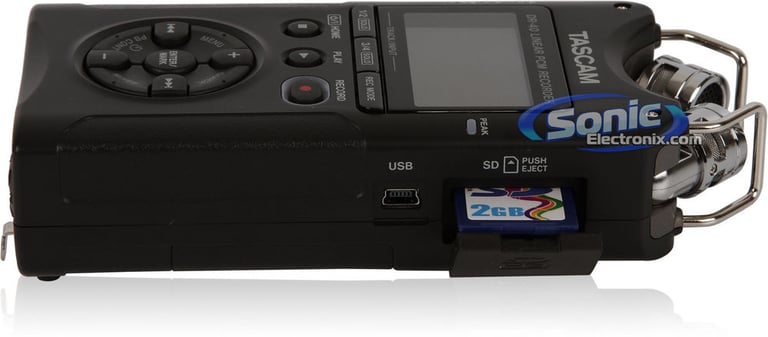

• SD/SDHC card slot supports up to 32GB media (2GB card included)

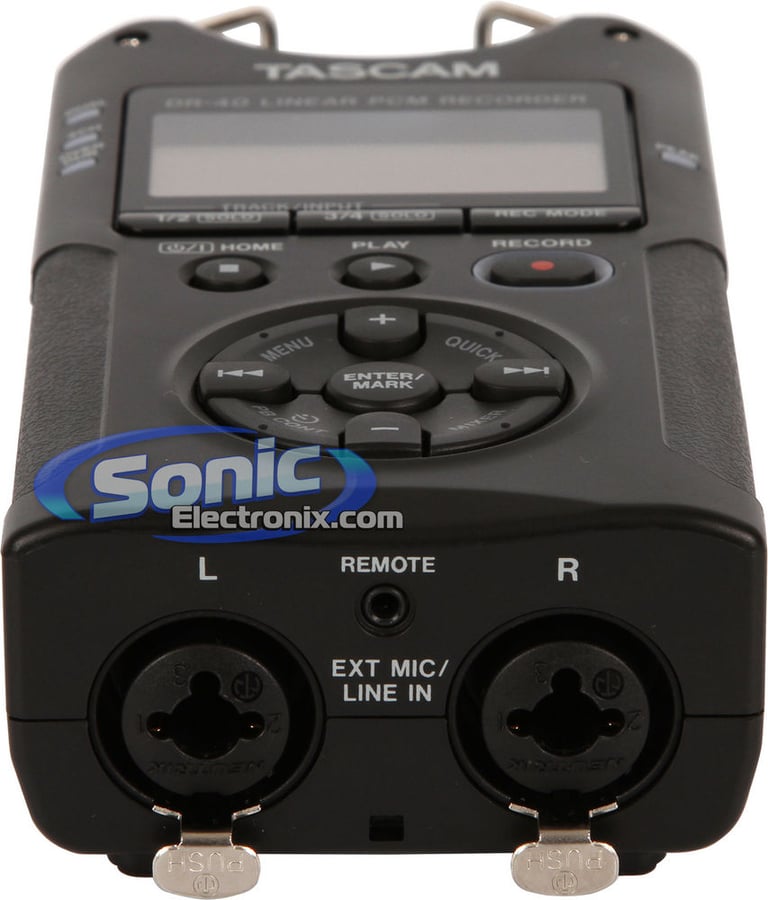

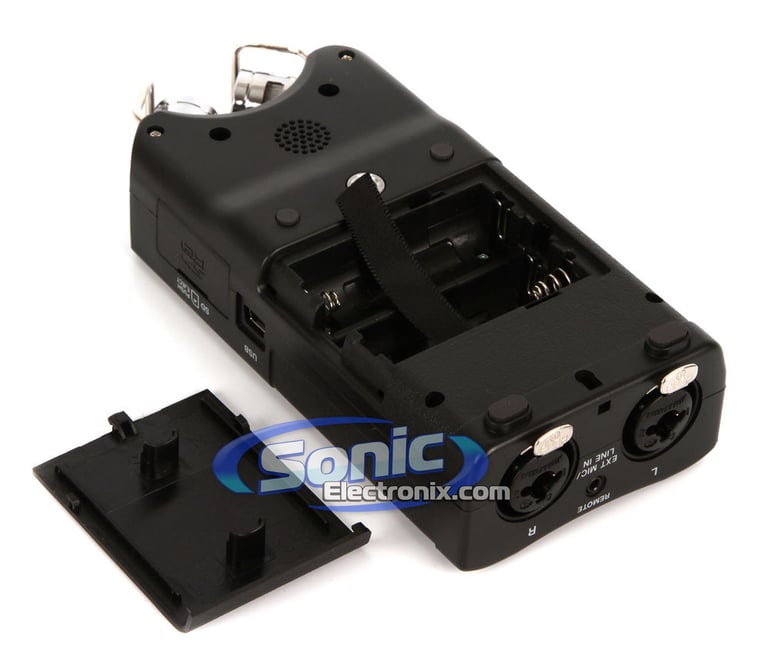

• Locking Neutrik Combi jacks

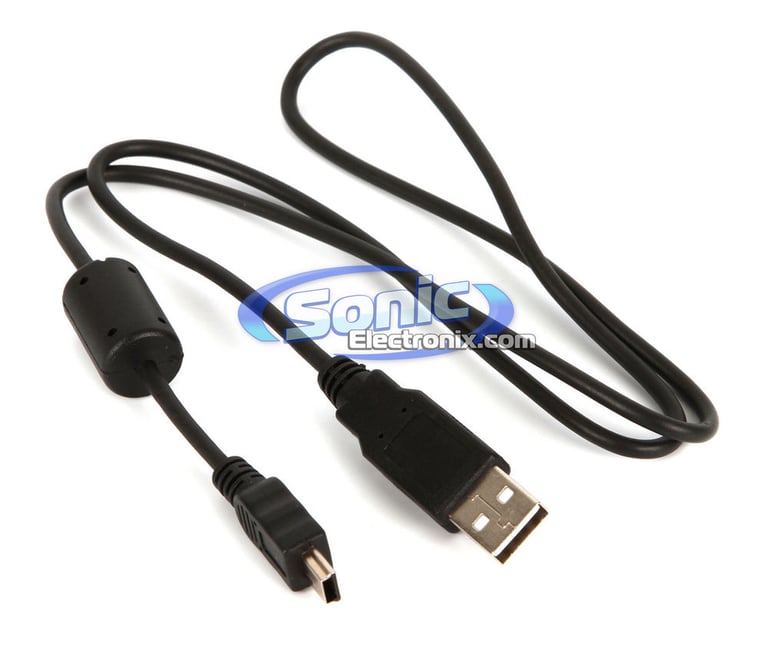

• USB 2.0 jack and cable for transferring recordings to computer
• Powered by three AA batteries, AC adapter (optional PS-P515U),
  external battery pack (optional BP-6AA), or USB bus power
• Also found as: DR40, DR4-0
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Specifications:

• Recording Media:
• SD card (64MB ~ 2GB)
• SDHC card (4GB ~ 32GB)
• Recording and Playback Format:
• WAV / BWF: 44.1kHz/48kHz/96kHz, 16/24 bit (Stereo or Mono)
• MP3: 44.1kHz/48kHz, 32k/64k/96k/128k/192k/256k/320kbps
• Number of Channels: 4 Channels (2 Stereo)
• Playback Speed Control (VSA): 50-150% without changing pitch
  *Only with 44.1kHz/48kHz
• Built-In Microphone:
• Cardioid Condenser microphones
• Supporting both X-Y/A-B microphone settings
• EXT MIC/LINE IN:
• Connector: XLR/TRS Combo Jack (1:GND,2:HOT,3:COLD)
• Input Impedance: 2.2k ohms (MIC)/10k ohms (LINE)
• Nominal Input Level: -19dBV(MIC) / +4dBu (LINE)
• Maximum Input Level: -3dBV (MIC) / +20dBu (LINE)
• PHONES/LINE OUT:
• Line Connector: 1/8" (3.5mm) Stereo mini-phone jack, unbalanced
• Output Impedance: 12 ohms
• Nominal Output Level: -14dBV (10k ohms loaded)
• Maximum Output Level: +2dBV (10k ohms loaded)
• Headphone Maximum Output: 20mW + 20mW (32 ohms loaded)
• Built-in Speaker Output: 0.3W (mono)
• High Pass Filter Cut Off Frequency: 40Hz/80Hz/120Hz
• USB:
• Connector: Mini B type
• Format: USB 2.0 HIGH SPEED Mass Storage Class
• Power:
• Three AA batteries (alkaline batteries or NiMH batteries)
• Provided by the USB bus power
• AC100 ~ 240V ,50-60Hz (AC adapter optional PS-P515U)
• Power Consumption: 2.5W (Max.)
• Battery Operation Time: 15 hours
  (continuous operation, phantom power off)
• Size & Weight:
• Weight: 7.5 oz. (w/o batteries)
• Width: 2-13/16" (70 mm)
• Depth: 6-1/8" (155 mm)
• Height: 1-3/8" (35 mm)

Audio Performance:

• Frequency Response:
• 20Hz ~ 20kHz +1dB/-3dB (Fs 44.1kHz, EXT IN→LINE OUT, JEITA)
• 20Hz ~ 22kHz +1dB/-3dB (Fs 48kHz, EXT IN→LINE OUT, JEITA)
• 20Hz ~ 40kHz +1dB/-3dB (Fs 96kHz, EXT IN→LINE OUT)
• Total Harmonic Distortion: Less than 0.05% (Fs 44.1/48/96kHz, EXT IN→LINE OUT)
• S/N Ratio: Greater than 92dB (Fs 44.1/48/96kHz, EXT IN→LINE OUT)

TASCAM® Portable Recorder Comparison, Jan 2012

	DR-05:	DR-07mkII:	DR-40:	GT-R1:	DR-100mkII:	DR-680:	HS-P82:
Estimated Street Price:	$99	$149	$199	$229	$329	$999	$3,599
Tracks @ 48 kHz:	2	2	4	2	2	8	10
Tracks @ 96 kHz:	2	2	4	-	2	8	8
Tracks @ 192 kHz:	-	-	-	-	-	2	4
Tracks @ MP3:	2	2	4	2	2	4	-
SMPTE Timecode:	-	-	-	-	-	Time of day BWAV stamp, but no sync in	Yes, Jamsync & Generate
Adjustable Playback Speed/Trainer:	Yes	Yes	Yes	Yes	Yes	-	-
Effects:	-	Reverb	Reverb	Guitar amp models, effects, reverb	-	-	-
Stereo Microphone Pattern:	AB, Omni	XY or AB, adjustable	XY or AB, adjustable	AB, adjustable	AB cardioid & omni, switchable	-	-
Mic Inputs:	1/8" mini	1/8" mini	(2) Locking XLR w/ phantom power	1/8" mini, 1/4" guitar input	(2) Locking XLR w/ phantom power	(4) XLR & (2) TRS w/ phantom power	(8) Locking XLR w/ phantom power
Digital I/O:	-	-	-	-	Stereo S/PDIF	Stereo S/PDIF	(8) AES/EBU In/Out
Remote Control:	-	-	RC-10, optional	-	Wired/wireless, incl.	-	RC-F82 fader/coms
Recording Media:	MicroSD/SDHC	MicroSD/SDHC	SD/SDHC	SD/SDHC	SD/SDHC	SD/SDHC	Dual CF
Optional Windscreen:	WS-DR2	WS-DR2 (X/Y)	WS-DR2d	WS-DR2d	(included)	-	-
Optional Case:	-	-	(carry bag included)	(padded case included)	(padded case included)	CS-DR680, Portabrace AR-DR680	Portabrace AR-P82
