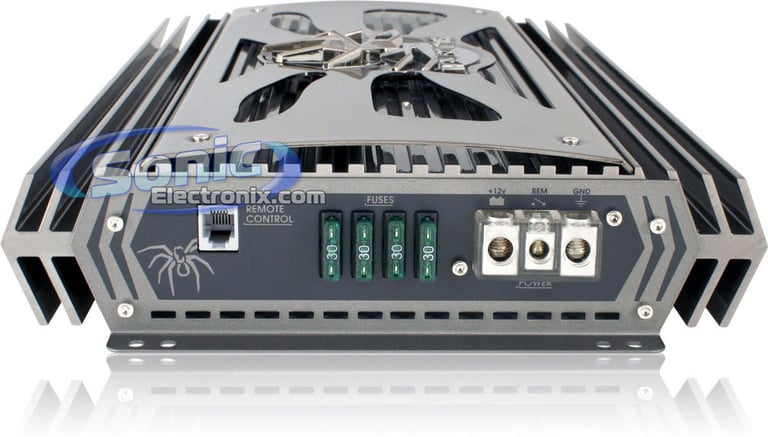

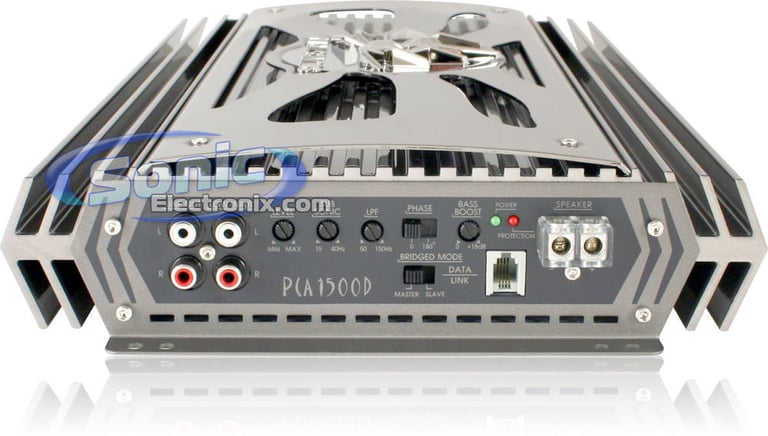

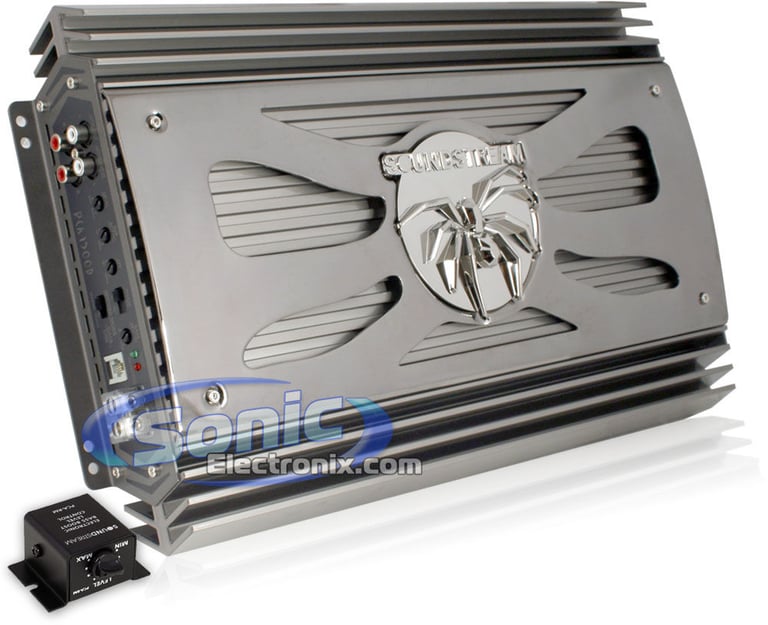

Soundstream PCA1500D

1500W RMS, Class D Monoblock Picasso Series Amplifier

Product videos
highlight-star-icon

Monoblock Picasso Series Amplifier • 800W RMS x 1 @ 4 • 1500W RMX x 1 @ 1 • Wired Remote • TST • Class D • Built-In Crossovers • IDI • Platinum RCA Connectors • Tri-Guard

Learn more about the pca1500d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

Product Highlights


Monoblock Picasso Series Amplifier • 800W RMS x 1 @ 4 • 1500W RMX x 1 @ 1 • Wired Remote • TST • Class D • Built-In Crossovers • IDI • Platinum RCA Connectors • Tri-Guard

Description


Soundstream brand icon

Authorized dealer

  • Monoblock Picasso Series Amplifier
  • RMS Power Ratings:
    • 800 Watts x 1 Channel @ 4 Ohm
    • 1100 Watts x 1 Channel @ 2 Ohm
    • 1500 Watts x 1 Channel @ 1 Ohm
  • TST (Twin Stack Technology): Allows 2 Amps to Drive One Voice Coil!
  • High Quality FR-4 Circuit Board
  • Class D Circuitry
  • Continuously Variable Low-Pass Crossover: 50 - 150 Hz (24 dB/Oct.)
  • Continuously Variable Subsonic Filter: 15 - 40 Hz (24 dB/Oct.)
  • Variable Subwoofer Equalizer: 0 - 18 dB
  • Phase Control: 0° / 180°
  • Frequency Response: 5 - 250 Hz
  • Adjustable Input Sensitivity: 0.5 - 4V
  • Damping Factor: >200
  • Fully Regulated MOSFET Power Supply
  • PWM Circuitry
  • Platinum Power and Ground Connectors
  • Accepts up to 16VDC Power Input

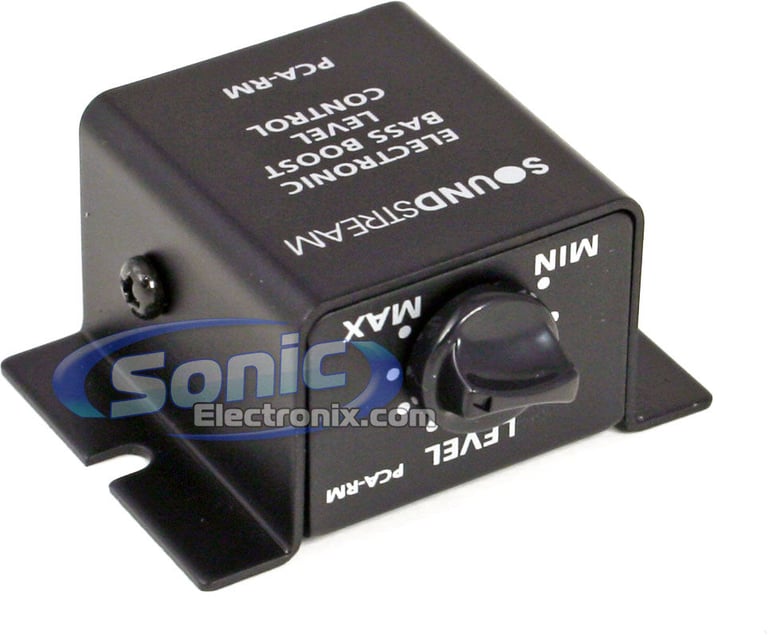

  • Wire Bass Remote Included
  • Dimensions: 15" L x 9-1/2" W x 2-1/2" H
  • 1-year SonicElectronix.com warranty

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(41)

$399.99

List price $429.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(24)

$199.99

List price $219.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
800 watts x 1 channel
RMS Power @ 2 ohms
1100 watts x 1 channel
RMS Power @ 1 ohm
1500 watts x 1 channel
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Number of Channels
1 - Mono
Total RMS Power Output
1500 watts
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.5%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 18 dB

Item Details


Manufacturer:

Model Number:

PCA1500D

Weight:

15.75lbs

Internal SKU:

pca1500d

Internal Product ID:

5433

Product and How-to Videos


Customer Ratings & Reviews


Soundstream PCA1500D thumbnail image

5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4
Design
3
Usability
4

Customer Reviews

Sort by:

Loading...

good amp

This is an all around good amp ive owned alpine, kicker, and boss amps and this one is one is one of my favorites, no over heating even on my two hr drive to san diego. Got it pushing a 15" kicker l7 at 2 ohms I feel it comes really close to rms rating that manufacturer states. Price is ok, sound quality is not the best out there but im personally looking for spl. I really don't find any cons to this amp besides it being pretty ugly.
