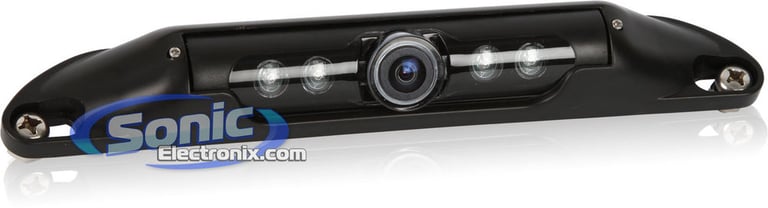

ScyTek Bar-Cam (Barcam 1)

Universal Bar-Style Rear View Back-Up Camera w/ Night Vision

ScyTek
Shop all ScyTek
highlight-star-icon

• Universal Bar-Style Rear View Back-Up Camera
• Black Matte Finish

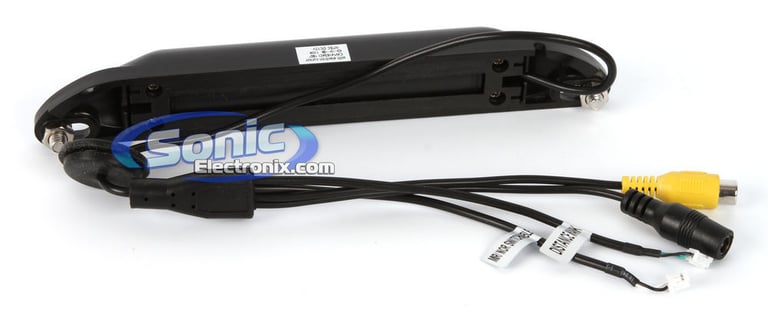

• Video RCA Output Connection
• Waterproof
• Night Vision Available
• IR Distance: 1-3m
• 12V DC Power Socket Connection

Learn more about the scy-barcam

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

95-7526B main

Metra 95-7526B Dash Kit

Install a new Double-DIN car stereo in select 2014-2018 3

-10.00%

$89.99

List price $99.99

40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

82-7501 main

Metra 82-7501

Speaker Brackets for select 2013-2023 vehicles from Mazda - Pair

3
-48.85%

$21.99

List price $42.99

70-7905 main

Metra 70-7905 Wiring Harness

Install a New Car Stereo in select 2016-2024 vehicles from Mazda

-11.12%

$23.99

List price $26.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Description


BAR-CAM Features:

  • Universal Bar-Style Rear View Back-Up Camera
  • Black matte finish
  • Video RCA output connection
  • Waterproof
  • Standard or mirror image option on/off
  • Equipped with optional distance marking feature (1, 3, and 6 foot increments)
  • Night vision available
  • IR distance: 1-3m
  • Also found as: Scy-Bar-Cam1, Scy-Barcam1

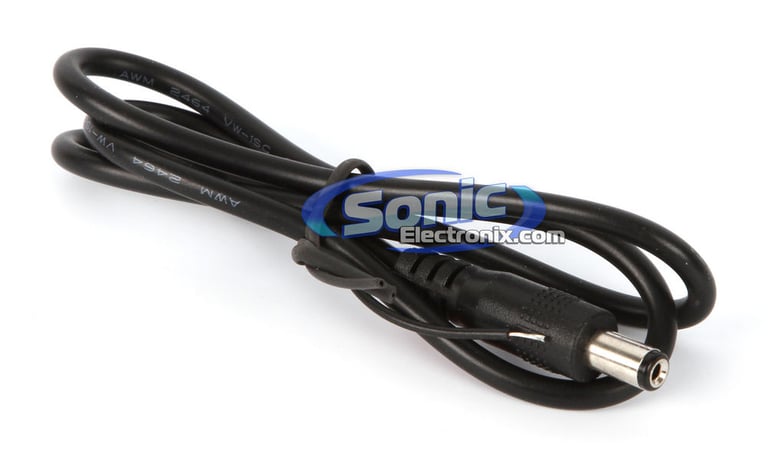

  • 12V DC Power socket connection
  • 1-year Manufacturer's Warranty

BAR-CAM Specifications:

  • Image Device: 1/4" V-MT9V011+VC0703PLEB
  • TV System: NTSC
  • Effective Pixels: 640 x 480 pixels
  • Sensing Area: 3.58mm(h) x 2.69mm(v)
  • Sync System: Internal
  • Resolution: 420 TV Lines
  • Minimum Illumination: 0.3 Lux
  • Video Output: 1.0Vp-p, 75 Ohm
  • Gamma Correction: 0.45
  • AGC: Auto
  • S/N Ratio: Better than 48dB
  • White Balance: Auto
  • Electronic Shutter: 1/50-1/15,000 sec / 1/60-1/15,000 sec
  • BLC: Auto
  • Current Consumption: Max 150mA
  • Power Supply: DC 12V
  • Operating Temperature: -20°C~60°C, RH95%MAX
  • Operating Temperature: -40°C~80°C, RH95%MAX
  • Lens: f=1.8mm
  • Lens Angle: 180°

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

RVCTY-71 small

Crux RVCTY-71

• Rear-View Camera Integration for 2012-2014 Toyota Vehicles
• Waterproof Rear-view Camera included
• Automatically switches to Rear-View when car is in Reverse mode
• 170 Degree Viewing Angle
• Dimension: 4.8" L x 3" W x 2.5" H

(4)

$75.60

List price $117.60

XCADJ1 small

NVX XCADJ1

• Universal Rear View Backup Camera
• High Resolution 1089 HDCCD Image Sensor
• Mounting Style: Bracket Mount
• Viewing Angle: 170 ° (wide viewing)
• Resolution: 800 x 533
• Waterproof: Yes (IP68 waterproof)
• Night vision: Low-light

(37)

$39.99

List price $119.99

BLPCAM2 small

Belva BLPCAM2

• Universal Rear View Backup Camera
• Mounting Style: Full License Plate Frame
• Resolution: 720 x 480
• Waterproof: Yes
• Nightvision: Infrared LED's

(57)

$39.99

List price $99.99

CFD-03E small

Crux CFD-03E

• Ford Emblem Camera For Select Ford Vehicles
• IP67 Waterproof Rating
• Resolution: 480 TV Lines
• Viewing Angle: 170°
• Dimensions: 10"L x 7.75"W x 3.25"H

(1)

$216.00

List price $336.00

CCV-01X small

Crux CCV-01X

•Third Brake Light Camera
• Water Resistant Connectors
• 6 Infrared LEDs for Night Time Usage
• Built-In Microphone
• Dimensions: 10.75"L x 3.25"W x 2"H

(1)

$199.80

List price $310.80

RVCVW-73L small

Crux RVCVW-73L

• Plug & Play Installation
• Automatically Switches Screen Rear-view when Vehicle is in Reverse Mode
• Vehicle Specific LED License Plate Rear-view Camera Included
• OBD Coder for Single Activation Included
• Dimension: 5" L x 2.5" W x 8.8" H

$321.30

List price $499.80

RVCCH-75WT small

Crux RVCCH-75WT

• Interface Included for Rearview Camera Integration to Factory MYGIG Radio
• Spare Tire Mount Rearview Back Up Camera
• Fits Select 2007-2017 Jeep Wrangler Vehicles
• IP68 Waterproof Rating
• Resolution: 480 TV Lines
• Viewing Angle: 170°
• Dimension: 10" L x 7.75" W x 3.25" H

$321.30

List price $499.80

RVCCH-75D small

Crux RVCCH-75D

• Rear-View Integration System with Camera
• For select 2013-2017 1500 and 3500 and 2500
• Activates Uconnect touchscreen radio
• Aftermarket backup camera included
• Forced reverse camera view features
• Includes VIM function

(1)

$303.75

List price $472.50

CMB-18SY small

Crux CMB-18SY

• Third Brake Light Camera Mount Rearview Back Up Camera
• Nightvision
• Resolution: 975 x 582
• Viewing Angle: 150°

$180.90

List price $281.40

BARCAM221 small

NVX BARCAM221

• Universal Rear View Backup Camera
• High-Resolution CMOS PC1089 Image Sensor
• Mounting Style: Top of License Plate Frame
• Viewing Angle: 170 ° (super wide viewing angle)
• Resolution: 510 x 496
• Waterproof: Yes (IP67/68 waterproof)
• Night vision: Infrared LED's

(39)

$39.99

List price $99.99

Specifications & Details


General Features
Color Type
Color
Night Vision
Infrared LED's
Resolution (pixels)
640 x 480
Video Output
RCA Composite Cable
Mounting Type
Top of License Plate Frame
Adjustable Tilt
Yes
Weatherproof
Yes
Reverse Image
Adjustable
Parking Guidelines
Adjustable
Built-in Microphone
No
Primary Color
Black
Camera Housing Material
Plastic
Minimum Illuminance
0.3 lx
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BAR-CAM

Weight:

0.90lbs

Internal SKU:

scy-barcam

Internal Product ID:

45780

Customer Ratings & Reviews


ScyTek Bar-Cam (Barcam 1) thumbnail image

5 star
33%
4 star
33%
3 star
0%
2 star
0%
1 star
33%



Durability
3.5
Value
3.5
Features
3.4
Design
3.5
Usability
3.4

Customer Reviews

Sort by:

Loading...

Not bad for the money

Works good most of the time every once in awhile the grid gets a glitch and is weird looking. Camera seems to work fine thou. I purchased this camera 6 months ago and have it hooked to a kenwood double din head unit. If your looking for a reasonable priced camera I would buy it again.

By HarleyRider on May 28, 2013

11 found this helpful


Best camera for the price

I purchased 2 of these after another brand failed to perform. It was a great decision, flawless operation down to -10 degrees farhenheit and probably even colder. I am very pleased and recommend.

By Richard on June 27, 2013

10 found this helpful


Back up Camera

The back up camera was a easy install, has a great picture, and good value.

By TED on February 16, 2014

8 found this helpful


Very disappointed

Very poor picture quality, lots of interference, not recommended.

By DR on September 19, 2013

8 found this helpful


POS

This product only works half the time. Picture quality is aweful. ripped it out and went with a different configuration.

By Duke on September 18, 2013

7 found this helpful


rear view camera

camera installed easily and worked fine. The only problem was that the instructions were very mimimal and failed to describe some of the basic stuff. like how the reverse image feature was activated.

By jack on May 28, 2013

7 found this helpful



WG2520-2_XC2110 small

Clarion 300 Watt RMS Dual 10" Bass Package (WG2520 + XC2110)

2 10" Clarion WG Series Single 4 Ohm Subwoofers + Ultra Compact Monoblock XC Series Micro Class D Amplifier

(6)

$325.37

List price $499.97

ZV615D2_XCA3K small

Sundown Audio ZV6 15" D2 + NVX XCA3K

2500W RMS 15" Z Series Dual 2-ohm Car Subwoofer with Monoblock Amplifier with LED Remote Bass Knob

(2)

$1699.98

List price $2339.98

19-25-CHEVY-SLVRDO-1500-EFS small

NVX E-Series Front Speaker Upgrade Kit (Crew & Double Cab)

Fits select 2019-2025 Silverado 1500 ; Includes Speakers Harness and Speaker Wire Adapters

(29)

$114.97

List price $154.97

Power Mag Mount 1 small

Universal Car Magnetic Phone Holder Mount with Dual USB Charger for Cell Phones

Gooseneck Mount with Cigarette Lighter Socket Charger - Belva Power Mag Mount 1

(2)

$14.99

List price $29.99

KFCC1056S_2 small

Kenwood KFC-C1056S (2-Pairs, 4-Total)

880W Max (82W RMS) 4" 2-Way Coaxial Car Speakers (2-Pairs)

(1)

$78.00

List price $140.00

(2) 43CVR102,BAK42BK,46CXA8001T small

2) Kicker 43CVR102 COMPVR 10" 1400 Watt Subwoofers+Kicker Mono Amplifier+Amp Kit

700W Peak (350W RMS) 10" Comp VR Series Dual 2 ohm Car Subwoofer Package

(144)

$499.99

List price $669.96

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 Subaru Impreza

2017 Mazda 3

1997 Ford F-150

1991 Dodge Stealth

2006 Chevrolet Cobalt

1993 GMC C2500

2007 Mercury Milan

2000 Chrysler 300M

2003 Infiniti Q45

1996 Ford Taurus

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
