JVC KW-R800BT - Factory Refurbished

(Factory Refurbished) In-Dash AM/FM/CD Car Stereo Receiver w/ Bluetooth, USB iPod Connection, Aux Input & Pandora Control

Shop all JVC
Product videos

• Double DIN 50W x 4 Chan. Max, 20W x 4 Chan. RMS
• 3 Sets of 2.5V Preamp Outputs
• 3-Band Parametric Equalizer
• 24bit Digital Analog Converter
• Bluetooth A2DP Audio Streaming
• Integrated Pandora Control

Learn more about the kwr800bt

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

kwr940bts thumbnail


OUR PRICE: $179.95

View item

Product Highlights

• Double DIN 50W x 4 Chan. Max, 20W x 4 Chan. RMS
• 3 Sets of 2.5V Preamp Outputs
• 3-Band Parametric Equalizer
• 24bit Digital Analog Converter
• Bluetooth A2DP Audio Streaming
• Integrated Pandora Control



Authorized dealer

Save BIG With This Factory Refurbished Model!

Limited Time Offer While Supplies Last!












General Features:

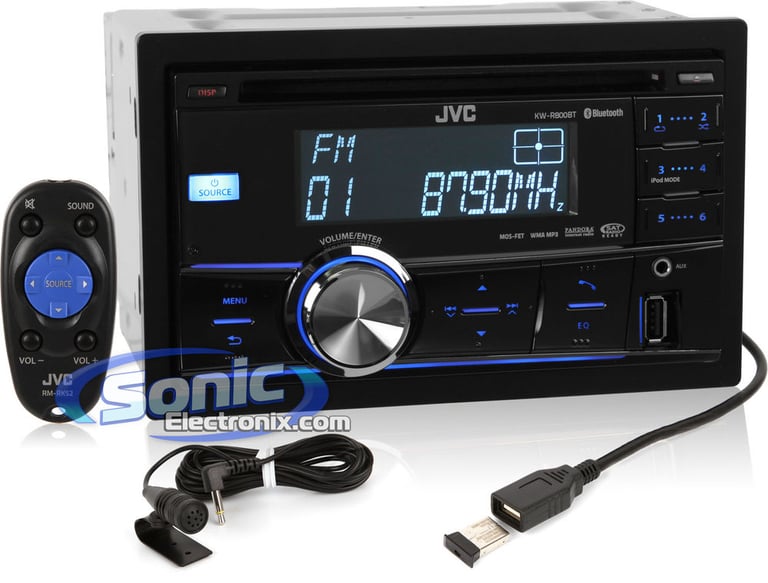

  • In-dash AM/FM, CD, MP3, WMA Receiver with Remote
  • 4-line Dot-Matrix text display
  • A2DP audio streaming with compatible Bluetooth phone
  • Integrated Pandora internet radio control with attached iPhone
  • 2-location Variable Color Illumination with 30,000 color options
  • Supports Android phones with downloaded JVC app
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 20 watts x 4 channels

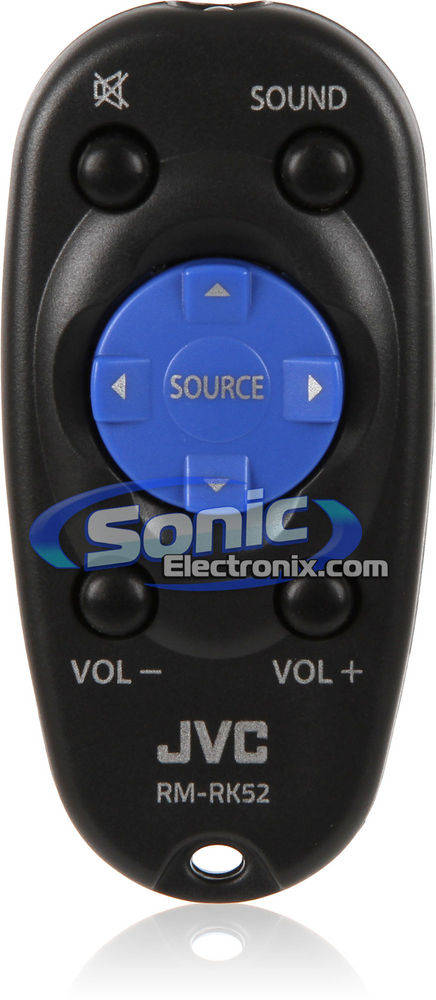

  • Wireless remote control included
  • CD text information display
  • 12 or 24 hours digital clock display
  • Separate night and day illumination
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Playback and Audio Features:

  • Playback of CD, CD-R, CD-RW, MP3 and WMA
  • AM/FM tuner with 18FM/12AM presets
  • Electronic Shock Protection (ESP)
  • 3-band parametric equalizer with 6 selectable tone curves (5 Preset, 1 User)
  • 24bit Digital Analog Converter (DAC) to enhance your MP3/WMA playback
  • Low Pass and High Pass crossover filter control
  • Separate subwoofer level control

Expandability Options:

  • 2 Sets of 2.5V preamp outputs (front, switchable rear/subwoofer)
  • SIRIUS or XM Satellite Radio Ready: SIRIUS Radio Package or XM Radio Package and subscription required and sold separately
  • Bluetooth technology supports hands-free calling with a compatible Bluetooth phone
  • iPod and iPhone Ready: Standard USB-to-iPod Cable compatible
  • Plays music stored on the iPhone 5 via Apple’s supplied Lightning-to-USB cable
  • Front Auxiliary Input: 3.5mm headphone jack allows connection to portable media devices such as MP3 players
  • Front and Rear USB Inputs: USB port allows connection to digital devices such as flash drives, portable media players, etc.
  • Steering Wheel Control Ready: PAC SWI-JACKv1 or the Axxess ASWC required and sold separately

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth version 2.1 +EDR certified
  • Bluetooth range up to 32.8 ft.
  • Supports A2DP audio streaming
  • Bluetooth Profiles Supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
    • OPP: Object Push Profile for sending basic "objects" such as pictures and other virtual material
  • Works with most Bluetooth enabled cell phones

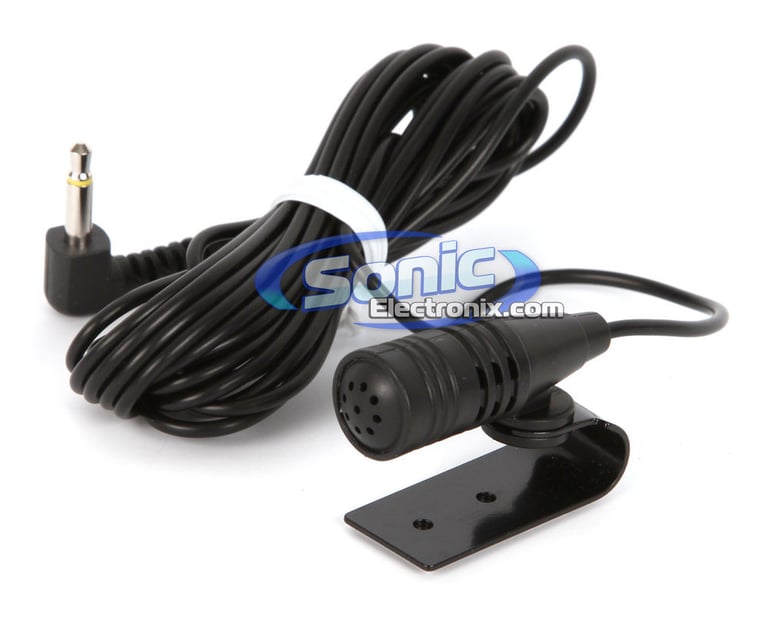

  • Includes an external wired microphone for clear, distortion-free talking
Also Found As: KWR900BT

Product history:

JVC KW-R940BTS thumbnail
(newest, current model)
JVC KW-R930BTS thumbnail
(previous model, replaced by JVC KW-R940BTS)
JVC KW-930BTS thumbnail
(previous model, replaced by JVC KW-R930BTS)
JVC KW-R920BTS thumbnail
(previous model, replaced by JVC KW-930BTS)
JVC KW-R910BT thumbnail
(previous model, replaced by JVC KW-R920BTS)
JVC KW-R800BT thumbnail
(previous model, replaced by JVC KW-R910BT (Ships as KW-R920BTS))

Specifications & Details

In-Dash Receiver Specifications
Receiver Size
Double DIN
Anti-Theft Security
Detachable Controls
Wireless Remote
Peak Power Output
50 watts x 4 channel
RMS Power Output
20 watts x 4 channel
Preamp RCA Outputs
2 Sets (4-Channel)
Dedicated Subwoofer Preamp RCA Output
Preamp Voltage
2.5 volts
Built-In Equalizer
3-band parametric equalizer
Display Type
Dot-Matrix Text Display
Expandability Features
Auxiliary (Front)
Auxiliary (Rear)
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
AM/FM Tuner
FM Presets
AM Presets
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider

Item Details



Model Number:




Internal SKU:


Internal Product ID:


Product and How-to Videos

  • JVC Bluetooth Stereo Control Receivers | CES 2014
  • How To Install a Car Stereo (Single & Double DIN) | Car Audio 101

Customer Ratings & Reviews

5 star
4 star
3 star
2 star
1 star


Customer Reviews

Sort by:



Great radio great price pandora on this radio is very useful I could listen to the music on the I phone and get direction at the same time.

By Mario on September 17, 2013


found this helpful.

A great car stereo with lot to offer

I have this stereo for the last six months and I really love this. I have replaced my original 2006 Hyundai Danta Fe Double-Din Stereo Receiver with this, initially to get the benefit of bluetooth technology. But it has actually gone over my expectation in the sense that it also gave me improved sound quality and a lot of input capability. I can connet a source through bluetooth, USB, RCA jack - whatever I want to. The added feature of having the color based on your mood and taste is simply impeccable. And the price from Sonic - an unbeatable for me! I had been checkin gfor the price of it for 2 months, and anywhere in Canada it was $300 plus, whereas I got it much cheaper!

By Syed Raihan on January 22, 2013


found this helpful.

Great System

Blue tooth is awesome, picks up my samsung phone great. Plays back music great. Phone is very clear, and automatically connects when I get in. Will take two phones.

By Les on July 27, 2013


found this helpful.

This JVC unit is a good option

Bought this receiver to replace a similar double din Pioneer unit that refused to work well for me. When comparing the two units, I'd have to give the edge to Pioneer in terms of sound quality and Bluetooth functionality. The JVC occasionally produces a lot of feedback to callers even with noise reduction turned on and Mic level at lowest setting. The JVC also takes longer to reconnect to my Galaxy S3 compared to the Pioneer. On the other hand, the look and build quality of the JVC is much better and all of the functions work, which I couldn't say for the Pioneer. Overall, I'm happy with this JVC unit, it has every feature that I was looking for, is fairly easy to operate and produces sound quality that's good enough for my application. I would recommend this product.

By Edwin on September 17, 2013


found this helpful.

vey nice!

I bought and installed this radio over a month ago and am very happy with it. The sound quality is good for a value player, plays MP3 disks flawlessly, and plays streaming music from my cell phone thru the bluetooth well. I was especially impressed with the quality of the connection i get while making and receiving cell phone calls via bluetooth: callers voice is clear through the speakers and they can hear me fine through the little microphone included even though it is in the console below the unit. The only flaw I see is that the diplay is difficult to see in bright daylight, I've tried several changes to the color of the display and havent found a combination that helps yet ... but it is a minor inconveince not a real problem.

By Chip on November 13, 2012


found this helpful.

What a buy!

This unit plays great, sounds great, haven't had any problems! Going to get another for my 1997 ford ranger. Only one thing is screen changes color all the time haven't figured out yet.

By Jeff on August 15, 2013


found this helpful.

Awesome stereo

I just installed this in my 2002 Toyota Tundra. Everything I needed came with the unit. Install was straight forward and it looks and sounds great even with the factory speakers (my next upgrade project). This unit has so many features for me to utilize with my Galaxy S-III phone.

By Dave on November 1, 2012


found this helpful.

Budget Buster

This was a seemless transition from factory radio to aftermarket. I received the product on time without a hic-up. The radio install was easy and the additional products that were part of the package help greatly. The radio syncs easily with my smartphone and works great with ipod. Take your time reading the manual so that you can appreciate all the features this JVC has to offer. I would recommend this to my friends and family.

By David on December 2, 2013


found this helpful.

Overall Good Value for Money

I've had this unit for about 2 weeks and like it. Pros: good sound and features, ease of operation. Cons: the flashing "spider web" display in the upper right hand corner serves no purpose and is annoying and there is no way to turn it off. Also, the Bluetooth usb dongle on my unit died after less than 2 weeks of use, don't know why JVC could not design this unit with internal Bluetooth capability as the dongle is a weak link. For the money I still like the unit and would recommend it, installed Kicker coax 6.25's and 4'x6's in my truck sounds great.

By Elvis_Tex on December 2, 2013


found this helpful.

Very Nice Head Unit

Bought this as replacement for GM double din head unit...sounds great with so many features...

Bluetooth and auxiliary inputs on front are a plus...many different sound setting for tuning to your listening needs...looks great in the dash and the many different illumination features for the display is a nice touch...use the little remote control as well...like it because it allows driver to keep eyes on the road...well worth the purchase price ...would buy again if needing another head unit

By Stereo Guy on September 19, 2013


found this helpful.
