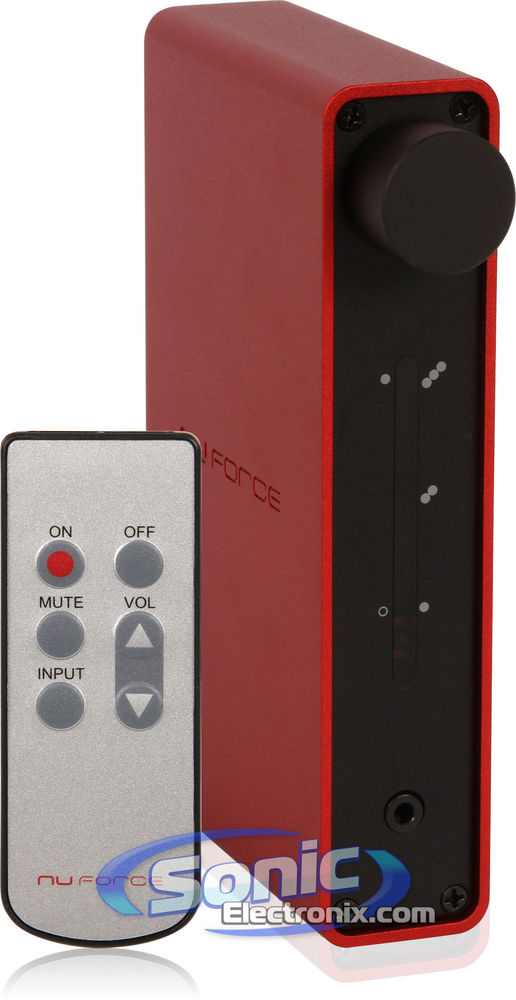

NuForce Dia Red (DIA-RED) Desktop Headphone Amplifier and DAC

24bit/192kHz with Optical, Coaxial Digital Inputs, and 24W Stereo Amplifier

NuForce
Shop all NuForce
highlight-star-icon

• Desktop Headphone DAC/Amp
• Coaxial Digital and Optical Inputs
• 24-Bit/192kHz Sample Rate
• DC 15V Powered

Learn more about the dia-red

We apologize

This item has been discontinued


Loading...
72-9303 main

Metra 72-9303

Install New Speakers in select 1998-2022 vehicles from Volvo

-32.44%

$24.99

List price $36.99

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

XS-162GS main

Sony XS-162GS

500W Peak (90W RMS) 6.5" GS Series 2-way 4-ohm Component Car Speakers

$198.00

List price $199.99

Stage1621 main

JBL Stage1 621 (STAGE1621)

350W Peak (70W RMS) 6.5" Stage1 Series 2 Way Coaxial 4-ohm Speakers

5
-50.05%

$49.95

List price $99.99

Description


NuForce brand icon

Authorized dealer

The Dawn of a New Sound

The NuForce Dia headphone amplifier and DAC is a fully equipped model ready and capable of enhancing a wide variety of digital media. Equipped with 1 pair of high quality Toslink fiber-optic inputs and 1 coaxial-S/PDIF input, the available applications of the NuForce Dia range from home theater systems to gaming systems and audiophile audio reproduction. With a powerful sampling rate of 192kHz and a brilliant 24-bit resolution, the difference in sound will not only be immediately perceptible, it will be at once astounding. Apart from its capabilities, the NuForce Dia produces very little distortion and includes an IR remote with an input select button, volume adjustment and on/off for complete control from virtually anywhere.

Product Features:

  • Digital to Analog Converter and Headphone Amp
  • Equipped with coaxial digital inputs and optical input for a broad range of digital signal conversion
  • Improves digital signals by converting them to analog signals from applications such as gaming consoles, media players, and television
  • Great 24-bit/192kHz sample rate for higher fidelity
  • Compatible with wireless transmission devices such as Airport Express and Apple TV for great resolution without cables
  • LED volume indicator for precise tracking of volume level

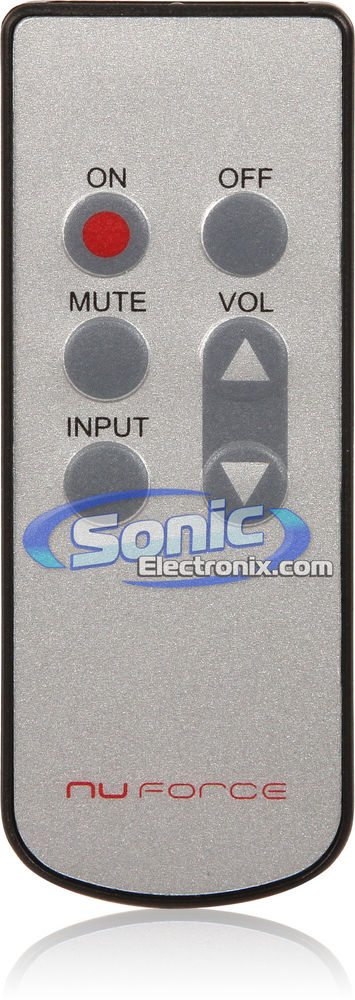

  • Includes an infrared (IR) remote for adjustments from a distance
  • one 3.5mm headphone out

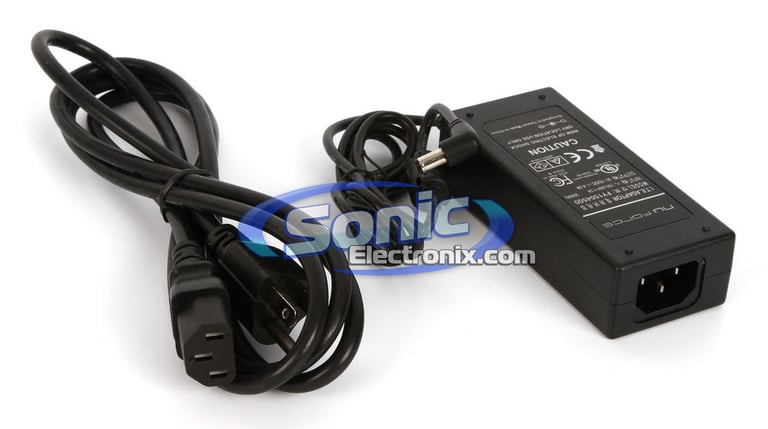

  • DC 15V powered
  • Does not use capacitors in the signal path, thus improving overall sound quality, imaging, and sound-stage

Technical Specifications:

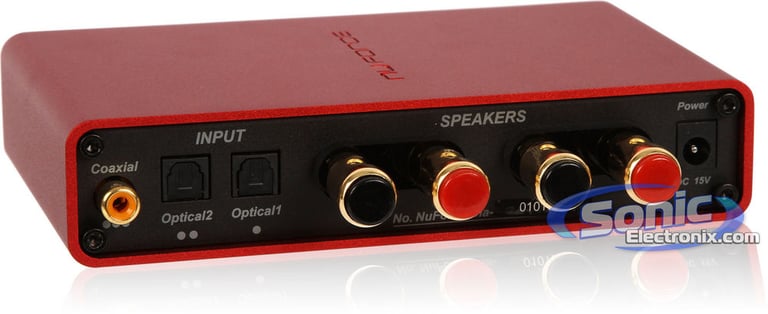

  • Digital Inputs: 2 TOSLINK, 1 RCA Coaxial 75-Ohm
  • Maximum sampling rate: 192kHz
  • Resolution: 24bit
  • 3.5mm line out
  • Speaker output: 30Wx2 (4Ohm) max power
  • Frequency Response: 20-20,000 Hz
  • THD: .02%
  • SNR: >90dB
  • Also available in Blue, Black, and Silver
  • Dimensions: 6"W x 4 1/2"D x 1"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Specifications & Details


Headphone Amplifier Specifications
Amplifier Style
Desktop
Digital-to-Analog Converter (DAC)
Built-in
Frequency Response
20 - 20000 Hz
THD (Total Harmonic Distortion)
0.02%
Input Connection
3.5mm Mini-Jack
Output Connection
Stereo RCA
Output Power
24 mW
Output Impedance
4 ohm
Power Requirement
15V DC
Width
6"
Height
4 1/2"
Depth
1"
DAC Specifications
THD (Total Harmonic Distortion)
0.02%
Frequency Response
20 - 20000 Hz
Signal-to-Noise Ratio
>90 dB
Digital Inputs
S/PDIF Optical (TOSLINK)
Sample Rate
24-bit at 192 kHz
Power Requirement
15V DC
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DIA-RED

Weight:

2.50lbs

Internal SKU:

dia-red

Internal Product ID:

46759

Customer Ratings & Reviews


NuForce Dia Red (DIA-RED) Desktop Headphone Amplifier and DAC thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
4.5
Features
4
Design
4.5
Usability
5

Customer Reviews

Sort by:

Loading...

Beautiful Product

This works great with my Dayton B625s and I couldn't ask for a better desktop/living room amplifier! The remote control is a bit simplistic but gets the job done. The smooth metal and red finish can complement a color scheme perfectly and the silicone stand is an added bonus!

By Armstrong on November 16, 2013

15 found this helpful


Excellent compact integrated amp.

IO picked up this little gem to add stereo amplification to a TV setup. It has since also been used for music as well. The simple design and excellent quality of the sound were astonishing for the price. I would certainly recommend this amp for anyone needing quality stereo output from a digital source.

By Harcourt001 on January 21, 2013

14 found this helpful
