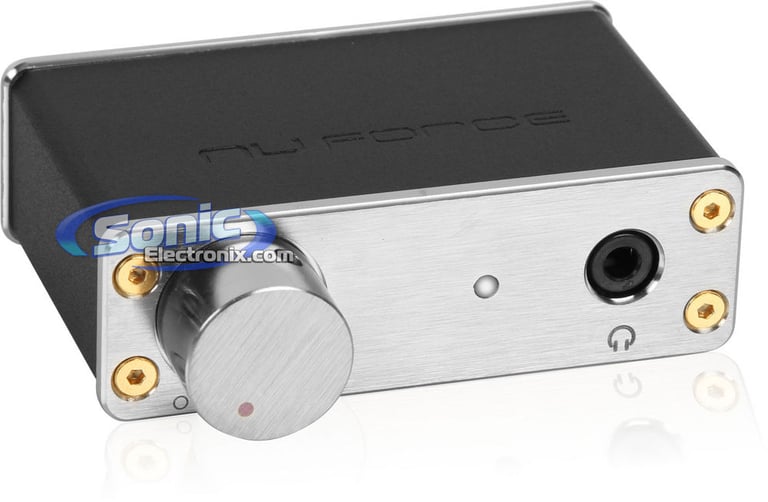

NuForce Icon uDAC-2 Special Edition Black

96kHz Sample Rate and 24-Bit Desktop DAC with Asynchronous Audio

NuForce
Shop all NuForce
highlight-star-icon

Desktop USB DAC • 24-Bit/96 kHz • TOCOS Volume Control • Analog RCA, Digital Coaxial, and 3.5mm Outputs • USB Bus Powered, 80 mA/5V

Learn more about the iconudac2se-black

We apologize

This item has been discontinued


Loading...
MM652 main

Polk Audio MM652 (MM 652)

600W Peak (200W RMS) 6.5" Mobile Monitor Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

9
-28.11%

$179.00

List price $249.00

JBL Stage2 634 (STAGE2634)

500W Peak (80W RMS) 6.5" Stage2 Series 3 Way Coaxial 4-ohm Speakers

15
-26.00%

$73.99

List price $99.99

JBL SHOCK WAVE 150W65 (JBLSPKSW150W65)

600W Peak (300W RMS) 6.5" Shock Wave Series 4-ohm Midrange Speakers

5
-7.70%

$119.95

List price $129.95

Description


NuForce brand icon

Authorized dealer

Product Features:

  • Desktop USB DAC with Asynchronous USB Audio
  • Designed for asynchronous USB Audio model
  • High-performance 24-bit resolution and 96kHz sample rate for immaculate reproduction
  • TOCOS volume control for precise channel tracking
  • Headphone amp circuitry powers headphones with impedance ratings from 16 to 300 Ohm, producing 80mW x 2 channels at 16 Ohm

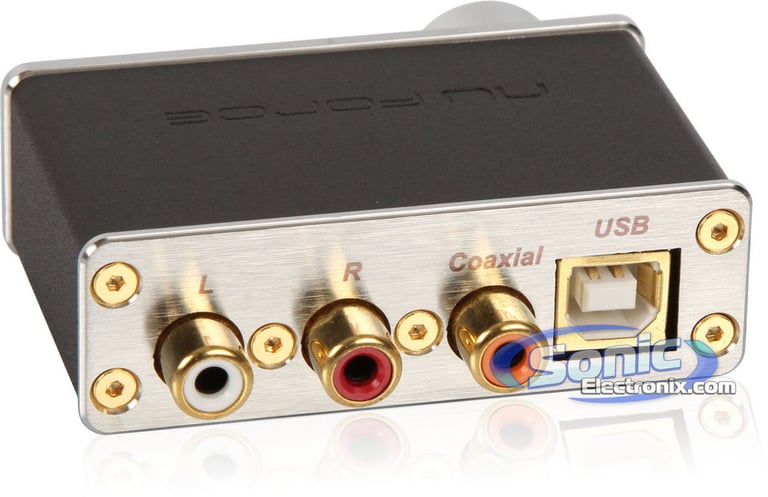

  • Includes analog RCA, digital coaxial, and 3.5mm outputs for a variety of applications
  • Double jitter-reduction mechanism at data level and oversampling filter stages for the best sound quality
  • 2v output
  • No capacitors in any of the signal paths to reduce and prevent signal tarnish
  • Also available in Silver, Red, Black, and Violet

Technical Specifications:

  • Input: USB Digital (1.1 and 2.0 compatible)
  • Sampling Rate: 96 kHz
  • Resolution: 24-bits
  • Analog RCA Output: 2Vrms
  • Dynamic Range: 90 dB
  • SNR: 98 dB
  • THD: 0.05%
  • Digital Output: coaxial RCA 75-ohm
  • 3.5mm Output Power: 80mW x 2 @ 16-Ohm
  • Frequency Response: 20-20000 Hz
  • USB Bus Powered, 80 mA/5V
  • Maximum Power Consumption: 500mW
  • Dimensions: 2-11/16"W x 1-1/2"D x 53/64"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • 1-year SonicElectronix.com Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Specifications & Details


Headphone Amplifier Specifications
Amplifier Style
Desktop
Digital-to-Analog Converter (DAC)
Built-in
Frequency Response
20 - 20000 Hz
THD (Total Harmonic Distortion)
0.05%
Input Connection
USB
Output Connection
3.5mm Mini-Jack
Number of Outputs
3
Output Power
80 mW
Power Requirement
USB
Width
2-11/16"
Height
1-1/2"
Depth
53/64"
DAC Specifications
THD (Total Harmonic Distortion)
0.05%
Frequency Response
20 - 20000 Hz
Signal-to-Noise Ratio
98 dB
Digital Inputs
USB Type-A
Line Level Outputs
3.5mm Headphone Jack
Sample Rate
24-bit at 96 kHz
Power Requirement
USB
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

NF-ICON-UDAC2SE-BLACK

Weight:

0.50lbs

Internal SKU:

iconudac2se-black

Internal Product ID:

46762
