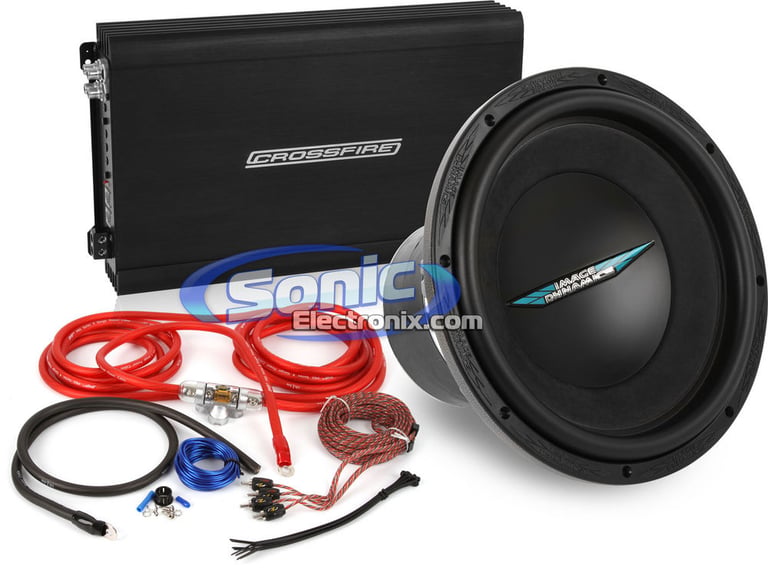

1800W Image Dynamics + Crossfire Bass Bundle

Image Dynamics IDMAX12 V.3 D2 + Crossfire C51000D + 4 Gauge Amplifier Kit

EXCLUSIVE
Product videos
highlight-star-icon

12" Dual 2 ohm ID MAX V.3 Series Car Subwoofer • 1000W RMS, Monoblock C5 Series Class D Car Amplifier • 4 Gauge 4000 Series Power & Signal Amplifier Installation Kit

Learn more about the idmax12v3d2_c51000d

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10

Product Highlights


12" Dual 2 ohm ID MAX V.3 Series Car Subwoofer • 1000W RMS, Monoblock C5 Series Class D Car Amplifier • 4 Gauge 4000 Series Power & Signal Amplifier Installation Kit

Description


Image Dynamics brand icon

Authorized dealer

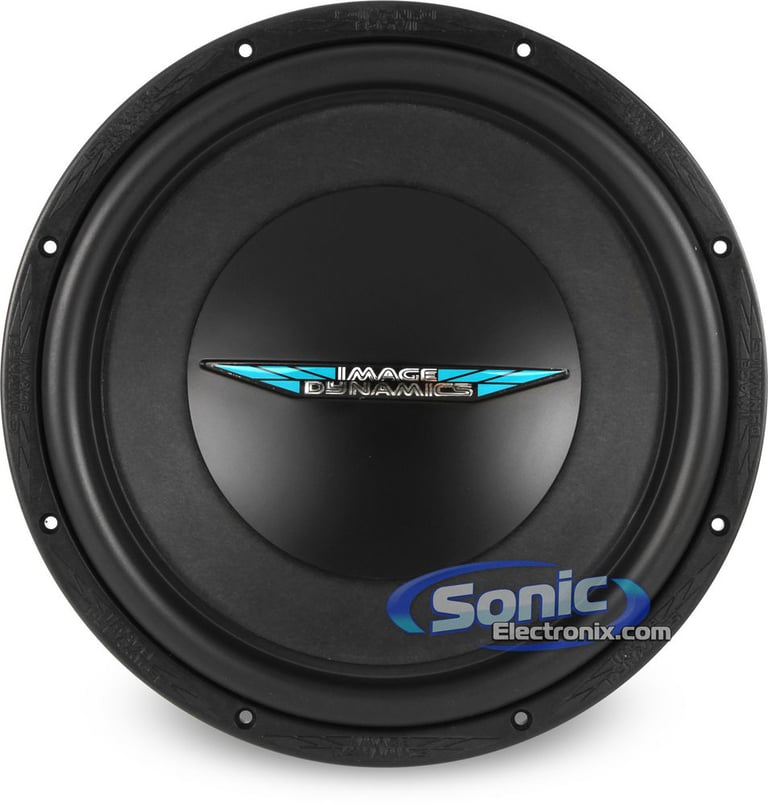

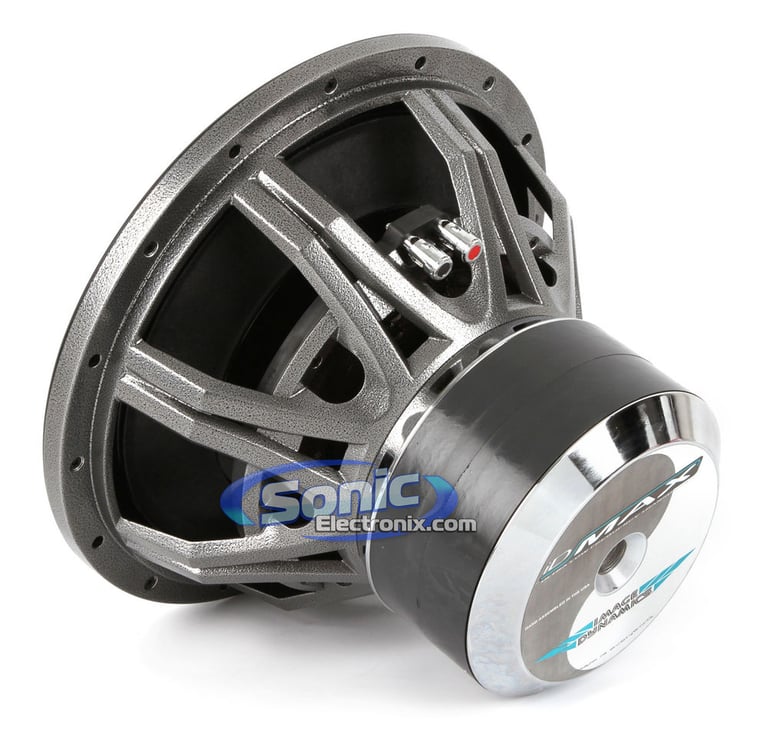

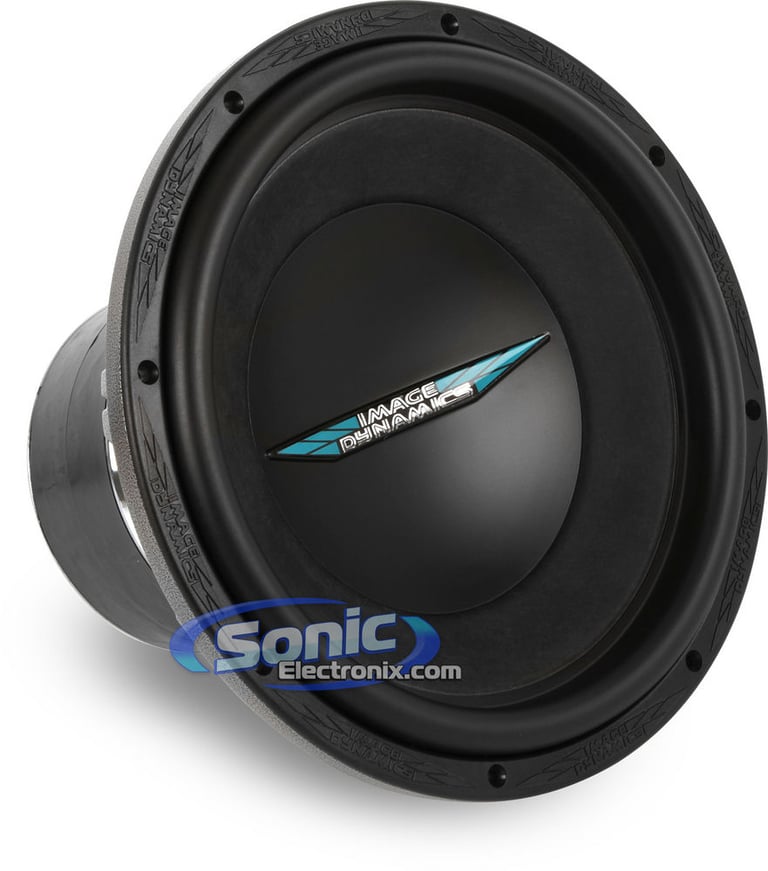

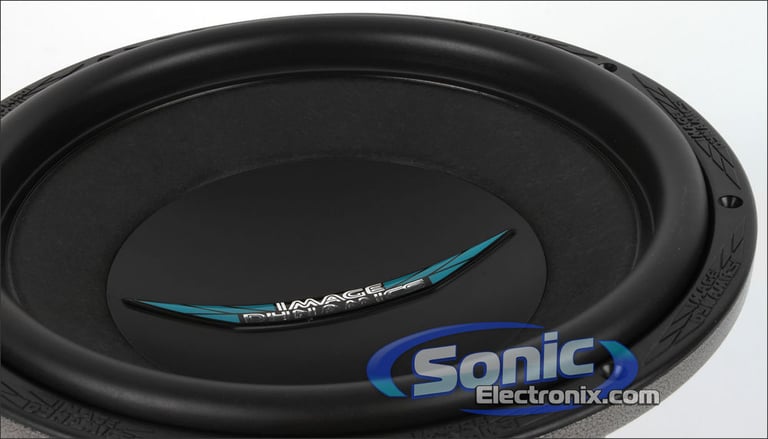

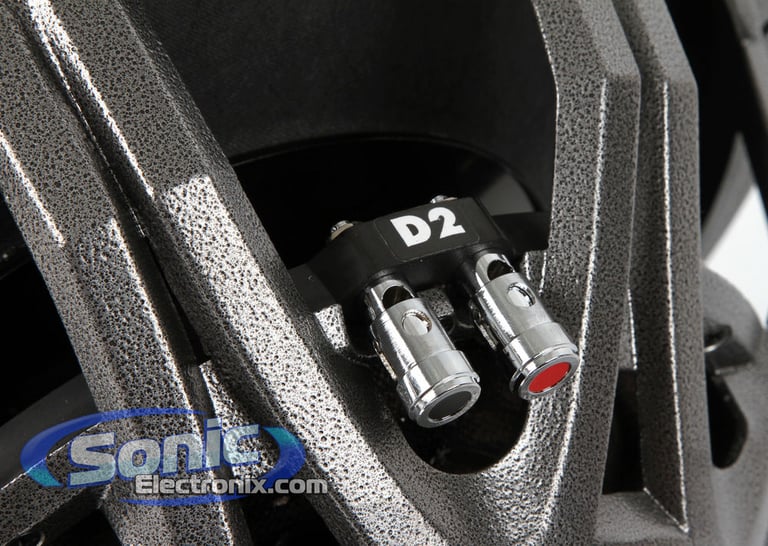

Image Dynamics IDMAX12 V.3 D2

12" Dual 2 ohm ID MAX V.3 Series Car Subwoofer
Quantity: 1

  • Power Handling:
    • Peak: 1800 watts
    • RMS: 1000 watts
    • Recommended Power Range: 200-1000 watts
  • Pressed paper composite cone woofer
  • Parabolic EPDM rubber surround
  • Over 2" long linear excursion
  • RaDiaToR cooling system for heat dissipation
  • Radiant Diametric Torisonal Reinforcement
  • High compliance suspension design
  • Flat spider with NOMEX cloth woven tinsel leads
  • High-temperature flat wire, flat wound voice coil
  • Inverted dust cap with logo
  • Powder coated alloy proprietary basket
  • 3-1/2" peak-to-peak surround excursion
  • Also found as: IDMAX12D2 V.3, IDMAX12 D2 V.3, IDMAX12 D2, IDMAX12D2, IDMAX12V.3 D2, IDMAXv3
  • Frequency response: 20-250 Hz
  • Sensitivity: 93.1dB
  • Mounting depth: 8-1/4"
  • Cutout dimensions: 11"
  • 1-year Manufacturer's Warranty

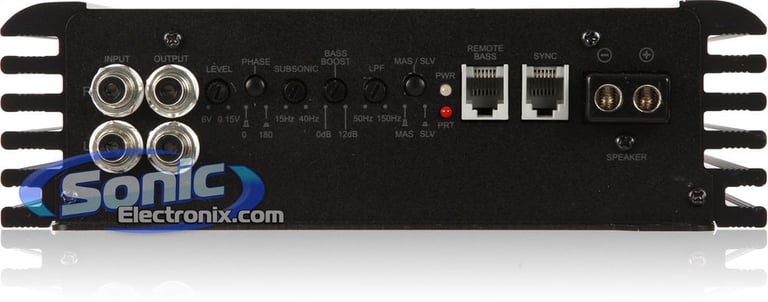

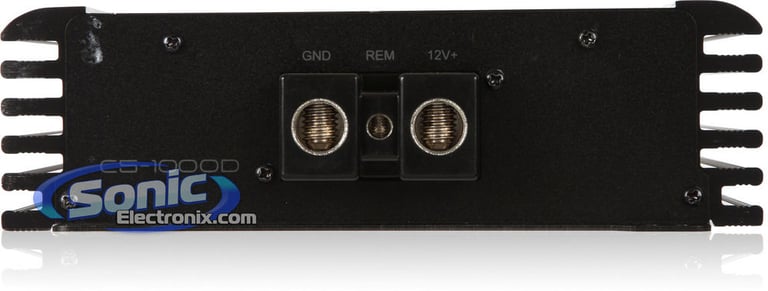

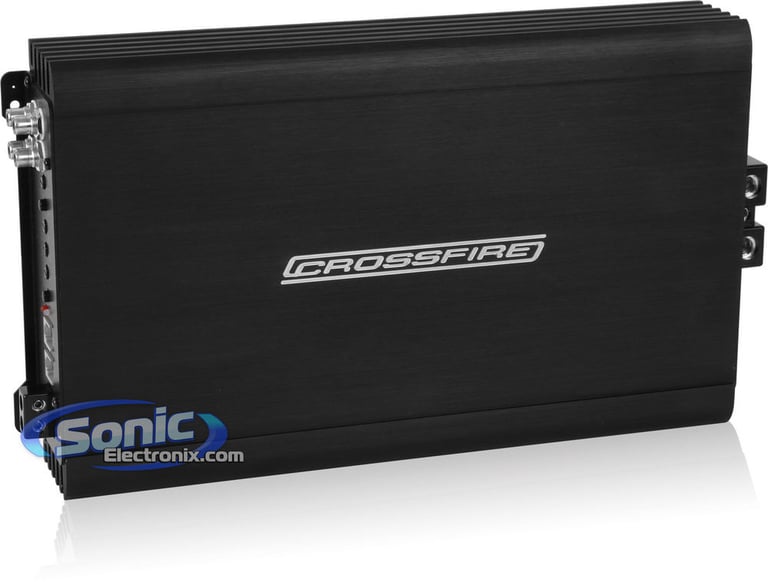

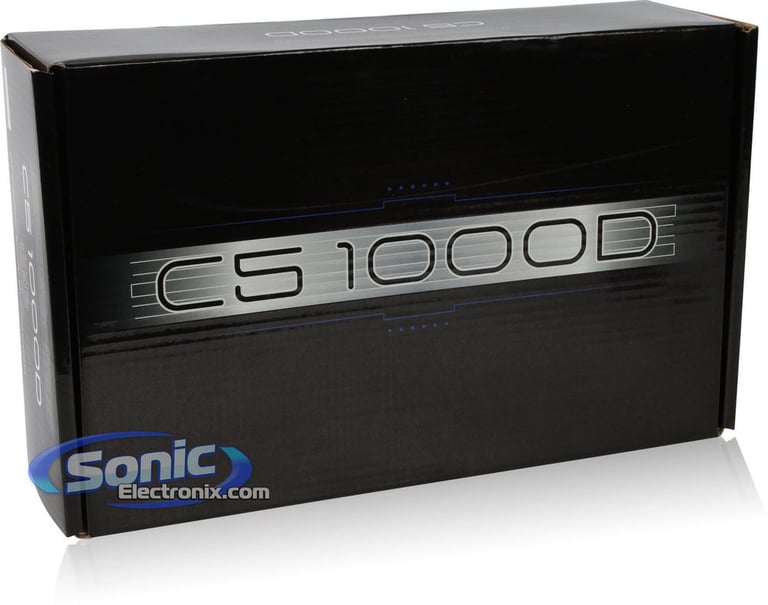

Crossfire C51000D

1000W RMS, Monoblock C5 Series Class D Car Amplifier
Quantity: 1

  • Monoblock C5 Series Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 250 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
    • 1 ohm: 1000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Soft start turn-on
  • Mono channel operation
  • Military spec audiophile grade components
  • Preamp RCA outputs to daisy chain multiple amps
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable low-pass filter (50-150 Hz, 24 dB/octave)
  • Subsonic filter (24 dB at 15 Hz)
  • Phase Shift: 0-180°
  • Dimensions: 8"W x 12-15/16"L x 2-1/3"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

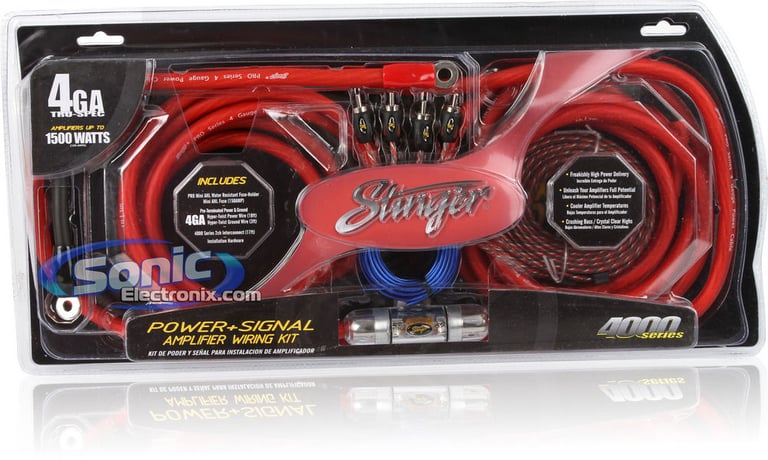

Stinger SK4641

4 Gauge 4000 Series Power & Signal Amplifier Installation Kit
Quantity: 1

Product Features:
  • 4 Gauge 4000 Series Power & Signal Amplifier Wiring Kit
  • Designed specifically for car audio systems up to 1500 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
  • Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
  • RCA Interconnects are made with twisted-pair technology for noise reduction
  • Mini-ANL style fuse holder offers ideal protection
  • Pre-Terminated power connections for reliable performance
  • Wire is true to spec for optimal current delivery
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Package Includes:

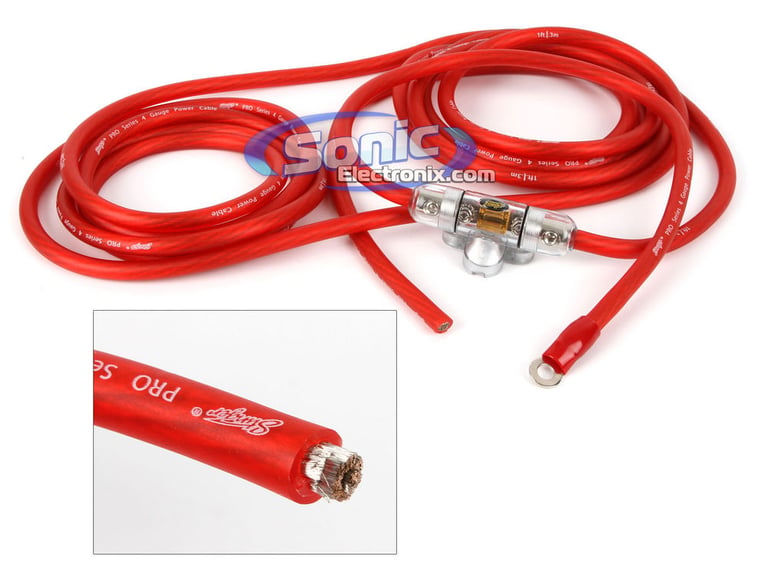

  1. 17 ft. 4 Gauge translucent red power wire

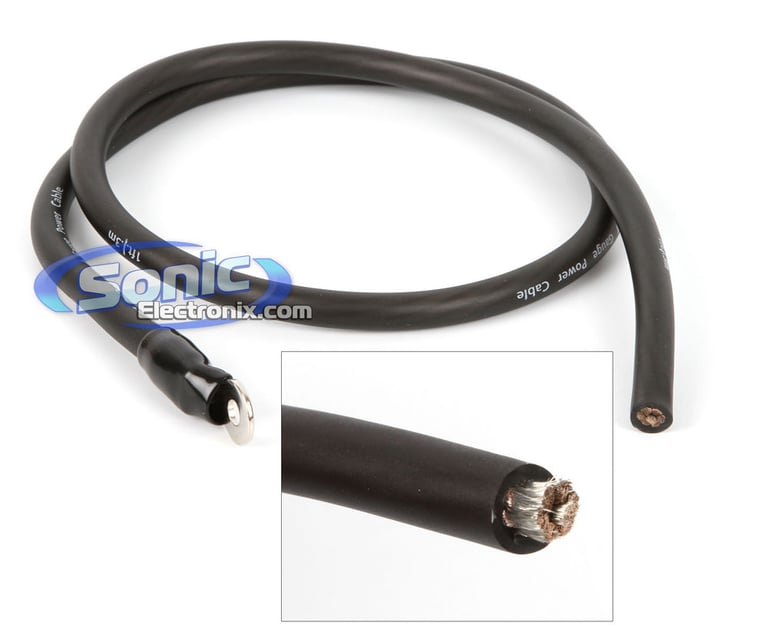

  2. 3 ft. 4 Gauge translucent black ground wire

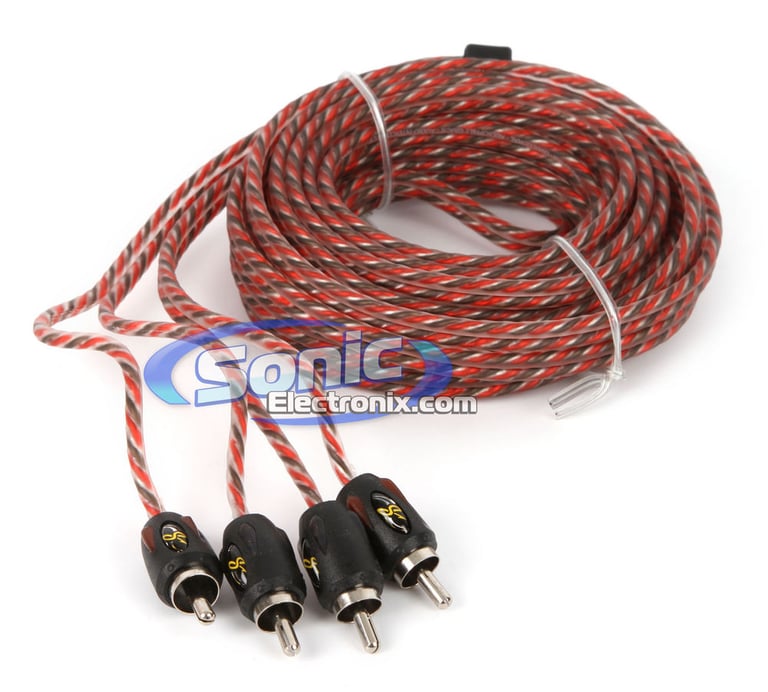

  3. 17 ft. 2 Channel Twisted-pair interconnect cables

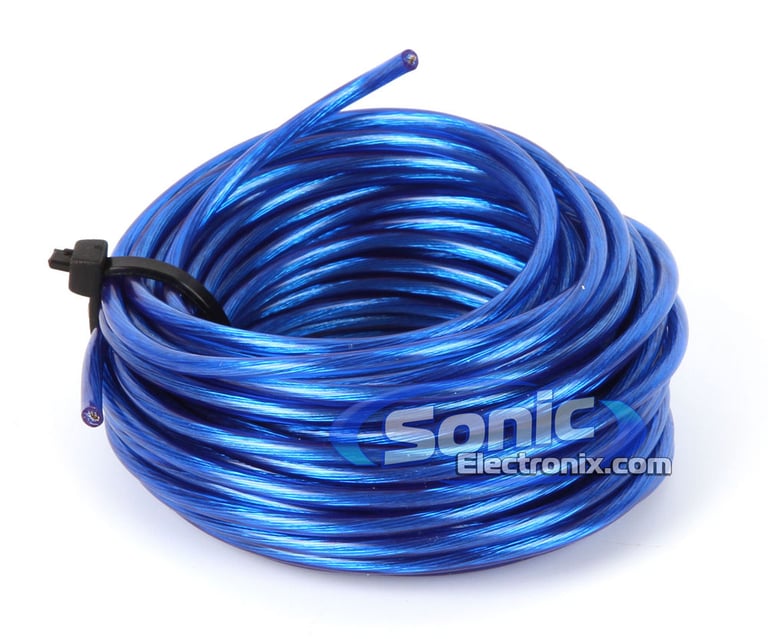

  4. 17 ft. 18 Gauge blue remote wire

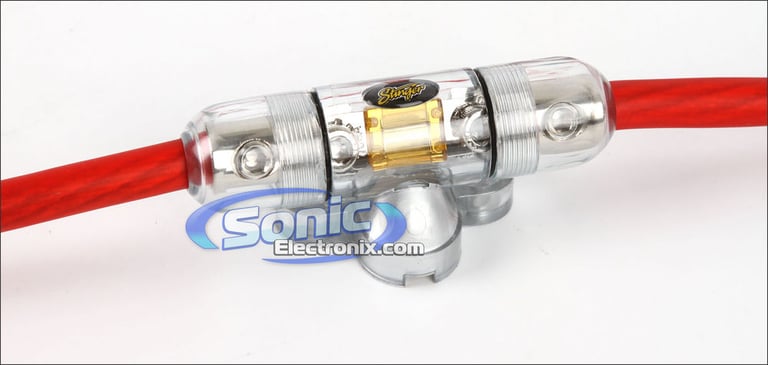

  5. Mini-ANL Style fuse holder
  6. 150A Mini-ANL Style fuse

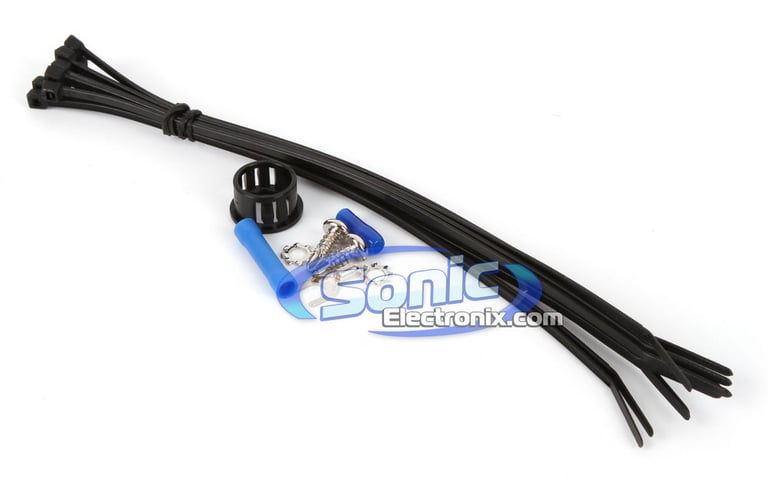

  7. Includes installation hardware

Item Details


Manufacturer:

Model Number:

IDMAX12 V.3 D2_C51000D

Weight:

49.93lbs

Internal SKU:

idmax12v3d2_c51000d

Internal Product ID:

46814
