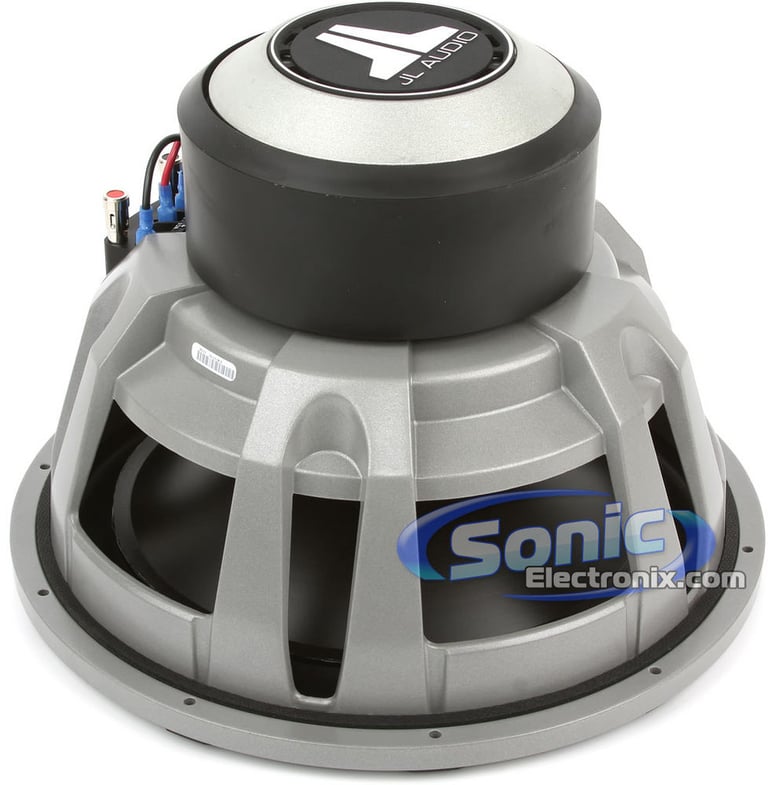

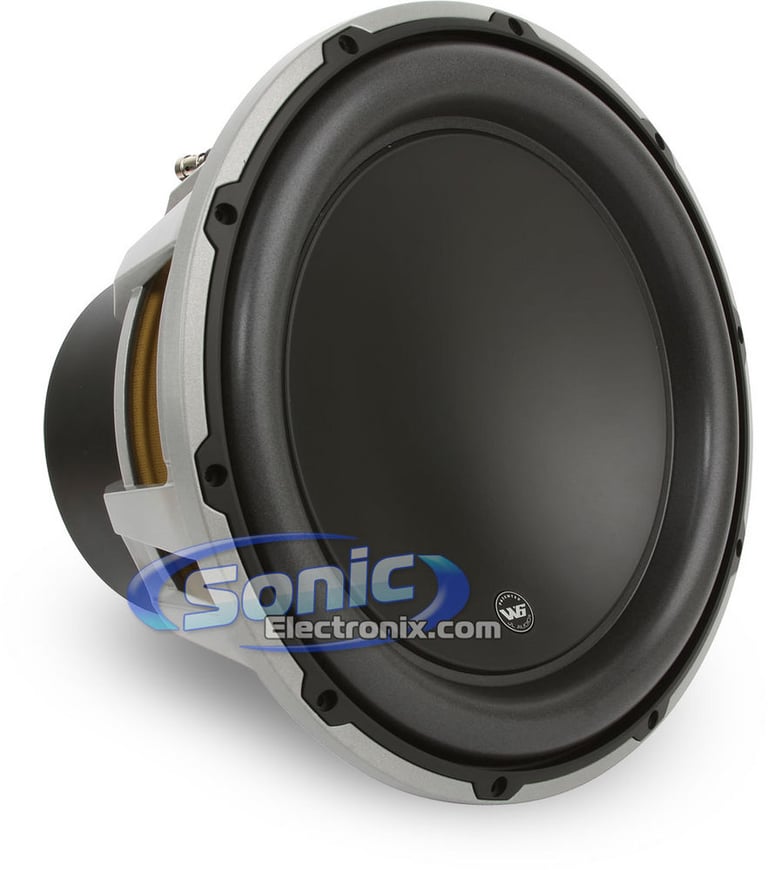

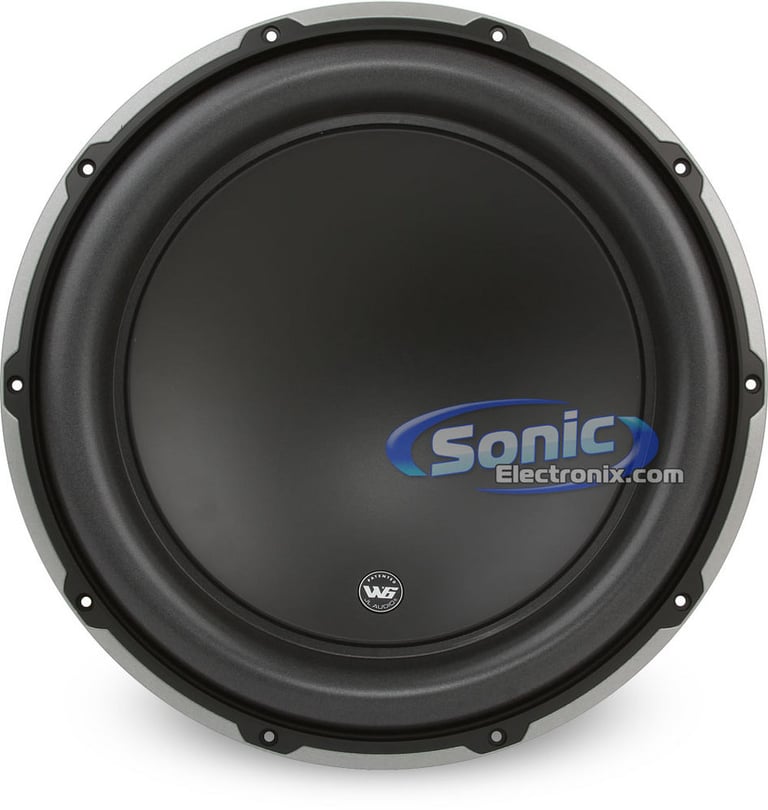

JL Audio 13W6V2-D4

13" Dual 4 ohm W6v2 Series Car Subwoofer

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

13" Dual 4 Ohm W6v2 Series Subwoofer • 1500W Max • 750W RMS • Floating-Cone Attach • Forced-Air-Cooled Aluminum Alloy Frame • Engineered lead Wires and Connectors • Pole and Cone Venting • Elevated Frame Technology

Learn more about the 13w6v2d4

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Product Highlights


13" Dual 4 Ohm W6v2 Series Subwoofer • 1500W Max • 750W RMS • Floating-Cone Attach • Forced-Air-Cooled Aluminum Alloy Frame • Engineered lead Wires and Connectors • Pole and Cone Venting • Elevated Frame Technology

Description


JL Audio brand icon

Authorized dealer




Product Features:

  • 13" Dual 4 Ohm W6v2 Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 750 watts
    • Recommended Power Range: 200-750
  • Impedance: Dual 4 ohm
  • W-Cone: Unibody design, extremely stiff and light
  • Woofer surround type
  • Floating-Cone attach method: ensures proper surround geometry for better excursion and voice coil alignment
  • Plateau-reinforced spider attachment: relieves stress from the spider at high excursions
  • Pole and cone venting: removes hot air during high power operation to improve sound quality and reliability
  • Forced-air-cooled aluminum alloy frame: enhances power handling and sound quality
  • Highly optimized motor systems: reduce distortion, and improve transient behavior
  • Large, progressive-roll spiders: optimized to controls long excursion without limiting it
  • Customizable trim ring can be painted to match installation colors
  • Dual 4 Ohm 2.75" diameter, 4-layer voice coils
  • Kapton voice coil former
  • Black Steel-Mesh Grille Insert Available: JL Audio SGR-13W6v2
  • 1-year SonicElectronix.com warranty
JL Audio 13W6v2D4 Recommended Power Range

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio 13W6V2-D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JL Audio 13W6V2-D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio 13W6V2-D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 JL Audio 13W6V2-D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

13W7AE-D1.5 small

JL Audio 13W7AE-D1.5


• RMS Power: 1500 watts
• Impedance: Dual 1.5 ohm
• Polypropylene Cone
• Polyester Foam Surround
• Mount depth: 10.50"
• Sensitivity: 86.3 dB

(19)

$1899.99

List price $1899.99

TS9924-22 small

MTX TS9924-22

• Peak Power: 8000 watts
• RMS Power: 4000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 24.00"
• Sensitivity: 92 dB

(3)

$9999.95

List price $12500.00

13W7 small

JL Audio 13W7-D1.5

• Sensitivity: 86.3 dB
• OverRoll™ Surround
• W-Cone
• Forced-Air-Cooled Aluminum Alloy Frame
• Radially Cross-Drilled Pole Piece
• Dual Ultra-Long Voice Coils
• Black Powder-Coating

(59)

$1899.99

List price $1899.99

13TW5V24_2 small

JL Audio 13TW5v2-4 - Pair

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$1859.98

List price $1859.98

13TW5v2-4 small

JL Audio 13TW5v2-4

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$929.99

List price $929.99

T2S2-16 small

Rockford Fosgate Power T2 T2S2-16

• Peak Power: 5000 watts
• RMS Power: 2500 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 10.47"
• Sensitivity: 90 dB

$1299.99

List price $1299.99

13W3v3-2 small

JL Audio 13W3v3-2

• Sensitivity: 87.63 dB
• Mounting depth: 7.63"
• Injection-molded, mineral-filled polypropylene cone
• Nitrile butadiene rubber surround
•Customization trim ring
• Floating Cone Attach Method
• DMA Optimized Motor

(6)

$519.99

List price $519.99

T3S1-19 small

Rockford Fosgate Power T3 T3S1-19

• Peak Power: 6000 watts
• RMS Power: 3000 watts
• Impedance: Single 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 15.62"
• Sensitivity: 91 dB

$2199.99

List price $2199.99

T2S1-13 small

Rockford Fosgate Power T2 T2S1-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Triple 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 90 dB

(3)

$1099.99

List price $1099.99

13TW5V2-2 small

JL Audio 13TW5v2-2

• Mounting depth: 2.625 "
• Requires Only 0.8 Cubic Feet of Airspace
• Excellent linear excursion capability (xmax)
• Patented "floating cone attach method" technology
• Patented "concentric tube" architecture

(1)

$929.99

List price $929.99

Specifications & Details


Subwoofer Specifications
Series
W6 v2 Series
Subwoofer Size
13"
Peak Power Handling
1500 watts
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
87 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Foam
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.0 cubic feet
Maximum Sealed Box Volume
2.0 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Maximum Ported Box Volume
2.5 cubic feet
Top-Mount Depth (Mounting Depth)
9-1/4"
Cutout Diameter
12-1/2"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

13W6V2-D4

Weight:

34.00lbs

Internal SKU:

13w6v2d4

Internal Product ID:

4810

Product and How-to Videos


Customer Ratings & Reviews


JL Audio 13W6V2-D4 thumbnail image

5 star
85%
4 star
4%
3 star
4%
2 star
4%
1 star
4%



Durability
4.5
Value
4.3
Features
4.5
Design
4.7
Usability
4.9
