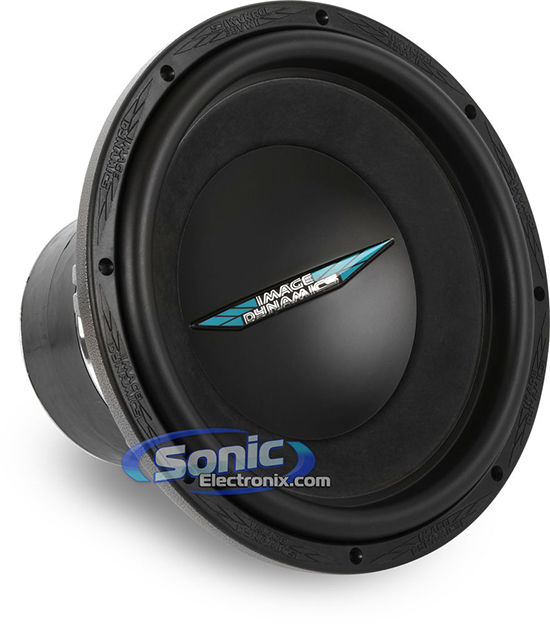

Image Dynamics IDMAX12 V.3 D2 Like New

Like New 12" Dual 2 ohm ID MAX V.3 Series Car Subwoofer

Product videos
highlight-star-icon

12" Dual 2 ohm ID MAX V.3 Series Subwoofer • 1800W Max • 1000W RMS • Paper Composite Cone Woofer • Parabolic EPDM Rubber Surround • Over 2" Linear Excursion • RaDiaToR Cooling System

Learn more about the LS-idmax12v3d2-NIBOB

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Product Highlights


12" Dual 2 ohm ID MAX V.3 Series Subwoofer • 1800W Max • 1000W RMS • Paper Composite Cone Woofer • Parabolic EPDM Rubber Surround • Over 2" Linear Excursion • RaDiaToR Cooling System

Description


Image Dynamics brand icon

Authorized dealer

HUGE Discount on this Open Box Subwoofer!

This Image Dynamics IDMAX12 V.3 D2 was opened at our Valencia, California location to show a will-call customer.
The woofer has never been used! It has never been played or installed. We have carefully repackaged it, however we cannot sell it as a new item. Since the woofer has never been used, it still comes with a full manufacturer warranty.

  • 12" Dual 2 ohm ID MAX V.3 Series Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 1000 watts
    • Recommended Power Range: 200-1000 watts
  • Pressed paper composite cone woofer
  • Parabolic EPDM rubber surround
  • Over 2" long linear excursion
  • RaDiaToR cooling system for heat dissipation
  • Radiant Diametric Torisonal Reinforcement
  • High compliance suspension design
  • Flat spider with NOMEX cloth woven tinsel leads
  • High-temperature flat wire, flat wound voice coil
  • Inverted dust cap with logo
  • Powder coated alloy proprietary basket
  • 3-1/2" peak-to-peak surround excursion
  • Also found as: IDMAX12D2 V.3, IDMAX12 D2 V.3, IDMAX12 D2, IDMAX12D2, IDMAX12V.3 D2, IDMAXv3
  • Frequency response: 20-250 Hz
  • Sensitivity: 93.1dB
  • Mounting depth: 8-1/4"
  • Cutout dimensions: 11"
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Image Dynamics IDMAX12 V.3 D2 Like New Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Image Dynamics IDMAX12 V.3 D2 Like New Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Image Dynamics IDMAX12 V.3 D2 Like New Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Image Dynamics IDMAX12 V.3 D2 Like New Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

Specifications & Details


Subwoofer Specifications
Series
ID Max V.3 Series
Subwoofer Size
12"
Peak Power Handling
1800 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
20 - 150 Hz
Sensitivity
93.1 dB
Xmax (millimeters)
24.9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Reinforced Paper
Woofer Surround
EPDM Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.30 cubic feet
Maximum Sealed Box Volume
1.52 cubic feet
Minimum Ported Box Volume
1.80 cubic feet
Maximum Ported Box Volume
2.50 cubic feet
Top-Mount Depth (Mounting Depth)
8-1/4"
Cutout Diameter
11"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

IDMAX12 V.3 D2-NIB

Weight:

35.00lbs

Internal SKU:

LS-idmax12v3d2-NIBOB

Internal Product ID:

48461
