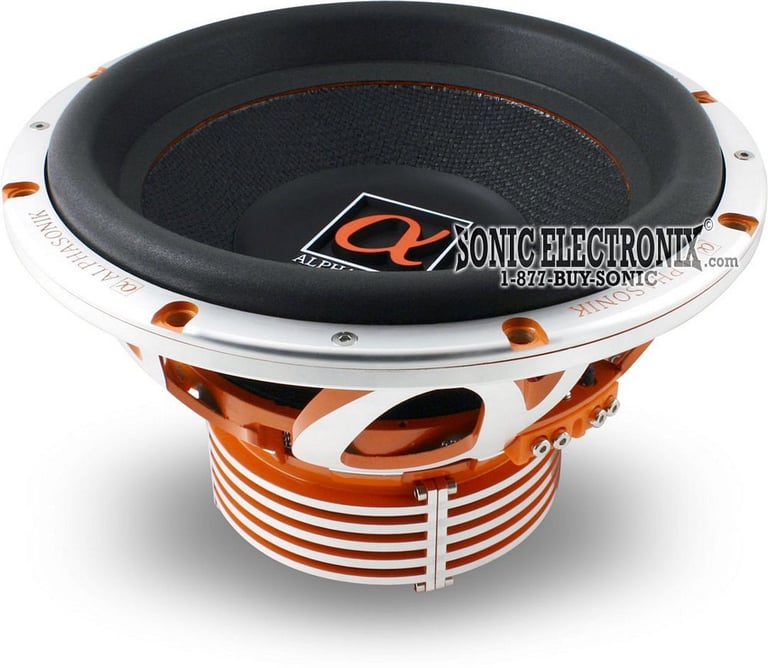

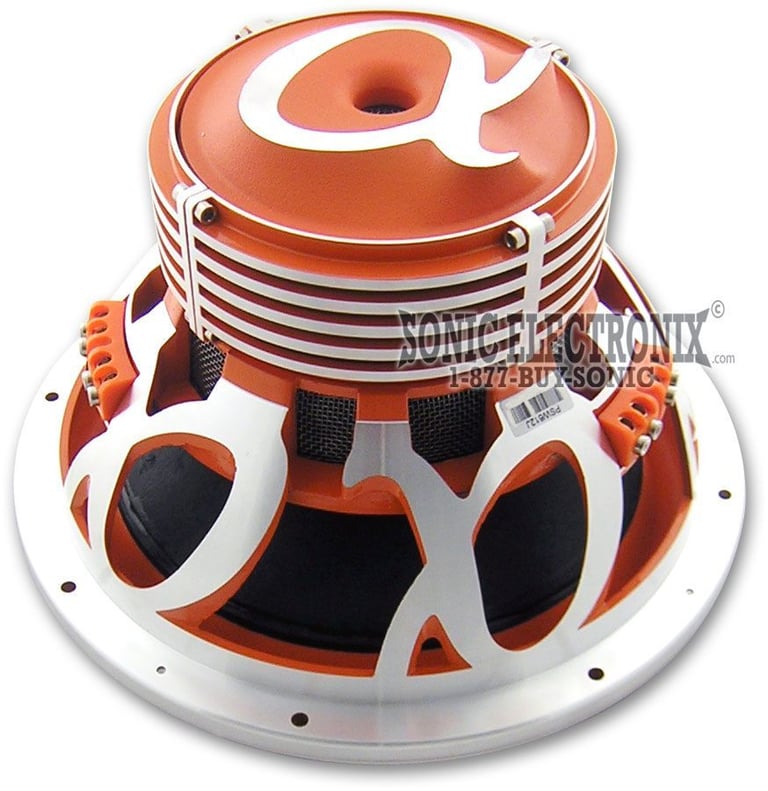

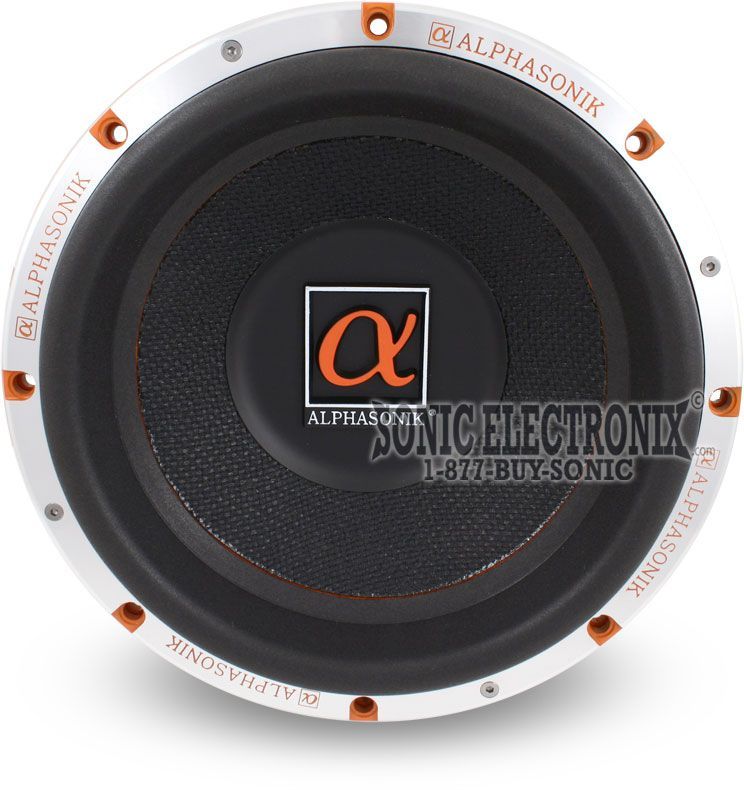

Alphasonik PSW612J

Dual 4 ohms 12" 600 Series Subwoofer (PSW612 J)

Product videos
highlight-star-icon

12" Alpha 600 Series Subwoofer • 700 watts RMS • High Tensile Strength Two-Layer "J" Surround • Dual 4 Ohm • Kevlar Reinforced Composite Balanced & Laminated Cone

Learn more about the psw612j

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
H746 main

Cerwin-Vega H746

550W Peak (80W RMS) 4x6" HED Series 2-Way Coaxial 4-ohm Speakers

9

Product Highlights


12" Alpha 600 Series Subwoofer • 700 watts RMS • High Tensile Strength Two-Layer "J" Surround • Dual 4 Ohm • Kevlar Reinforced Composite Balanced & Laminated Cone

Description


  • 12” ALPHA 600 SERIES SUBWOOFER
  • Replaces PSW612 2004 model
  • Proprietary Cast Aluminum Alloy Machine Cut "Alpha" Basket
  • Proprietary Cooling Rings for Motor Assembly (Patent Pending)
  • Kevlar Reinforced Composite Balanced & Laminated Cone
  • High Tensile Strength Two-Layer "J" Surround for Enhanced Control
  • Flat Progressive Rate Nomex® Damper w/ Spiral-Woven Leads
  • Dual Contact Terminals for Wiring Ease
  • 75 oz. Double Stack Magnet
  • Rated at 700 Watts RMS
  • Efficiency: 88dB
  • Frequency Response: 30 - 500 Hz
  • Dual 4 ohm 2-1/2” Voice Coils
  • 8-Gauge Lug-Lock Input Terminals
  • 90 days SonicElectronix.com warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alphasonik PSW612J Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alphasonik PSW612J Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alphasonik PSW612J Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alphasonik PSW612J Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

16
-11.77%

$149.99

List price $170.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

SW-LCSV212D4 small

Sundown Audio LCS 12 v.2 D4 12" (LCS12V2D4)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Paper cone
• Foam surround
• Sensitivity: 87.4 dB

(3)

$99.99

List price $209.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
700 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
30 - 500 Hz
Sensitivity
88 dB
Woofer Surround
High-Tensile Foam
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
6-1/2"
Cutout Diameter
10-7/8"

Item Details


Manufacturer:

Model Number:

PSW612J

Weight:

27.00lbs

Internal SKU:

psw612j

Internal Product ID:

5123
