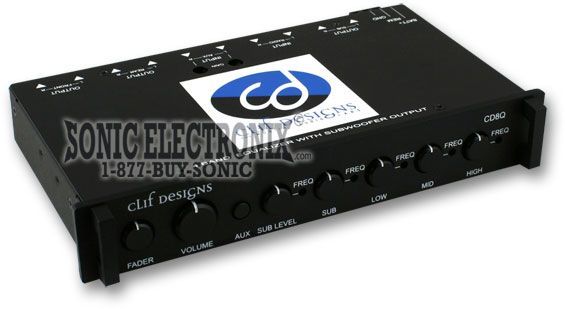

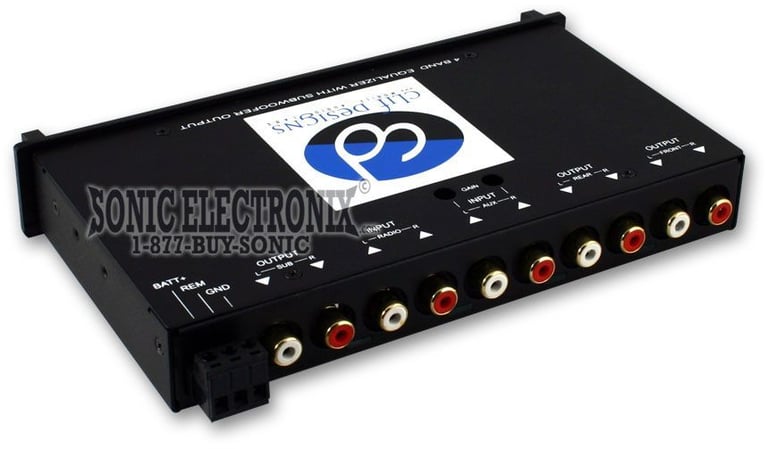

Clif Designs CD8Q

Clif Designs
Shop all Clif Designs
Product videos
highlight-star-icon

8-Band Parametric In-Dash Equalizer • +/- 18dB • Variable Frequency • Subwoofer Outputs and Level Control • AUX Input & Switch • 1/2 DIN Size

Learn more about the cd8q

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Product Highlights


8-Band Parametric In-Dash Equalizer • +/- 18dB • Variable Frequency • Subwoofer Outputs and Level Control • AUX Input & Switch • 1/2 DIN Size

Description


Clif Designs brand icon

Authorized dealer

  • 8-Band Parametric in-Dash Equalizer
  • Volume Control with up to 7V RMS Output
  • Four Band Parametric Equalizer with +/- 18dB Boost/Cut
  • Specific Variable Bandwidths for Each Band:
    • Sub: 20 - 60 Hz
    • Low: 120 - 300 Hz
    • Mid: 1 - 2.4 kHz
    • High: 7 - 20 kHz
  • Low Noise BI-FET Op-Amp Design Yeilds Minimum Distortion
  • On-Board 30V Bi-Polar Switching Power Supply
  • Subwoofer Outputs and Level Controls
  • Subwoofer Crossover: 50 - 250 Hz, -12dB/Oct.
  • Adjustable Subwoofer Frequencies: 50 - 260 Hz
  • Auxiliary / Head Unit Input Selector
  • Universal Half-DIN Chassis for Ease of Installtion
  • 20dB Headroom Eliminates Signal Overload
  • Variable Aux Input Sensitivity
  • Inputs: 2 Pair (Main / Aux)
  • Outputs: 3 Pair (Front, Rear, Sub)
  • Input Impedance: 10k Ohm
  • Dimensions: 4.62" L x 6.87" W x 1" H
  • 3-year Authorized Manufacturer's warranty

Best selling similar products

AXDSPX-ETH1 small

Axxess AXDSPX-ETH1

• Plug and Play T-harness for faster installation
• For select 2019-2024 vehicles from Chevrolet, GMC, Cadillac
• Designed for Ethernet amplifiers
• Designed to be used with factory radios
• Selectable 31-band graphic EQ or 5-band parametric EQ
• Settings adjusted via Bluetooth in a smart device
• Selectable high pass, low pass, or bandpass filters

(3)

$517.99

List price $613.99

XDSP28 small

NVX XDSP28

• 15 Band Parametric EQ
• 8-Channel RCA Outputs
• Provides up to 2 Volts of output
• Fully adjustable High and Low-pass filters
• Time alignment in 0.02 ms increments

(3)

$109.99

List price $131.99

DM-810 small

AudioControl DM-810

• Premium matrix digital sound processor
• 8-Channel preamp input and 10-Channel preamp output
• 30-Band equalizer for adjusting gain, delay, and polarity
• High-pass, low-pass and band-pass crossovers
• Features GTO signal sensing, MILC clip detection, and AccuBASS
• Also features signal summing and signal delay

(8)

$829.00

List price $1109.00

Specifications & Details


General Specifications
Equalizer Frequencies
20 - 60 Hz, 120 - 300 Hz, 1 - 2.4 kHz, 7 - 20 kHz
Signal Boost/Cut
18 dB
Max Output Level
7.5V RMS volts
Frequency Response
10 - 20000 Hz
THD (Total Harmonic Distortion)
0.005%
Signal-to-Noise Ratio
110 dB

Item Details


Manufacturer:

Model Number:

CD8Q

Weight:

5.00lbs

Internal SKU:

cd8q

Internal Product ID:

5137
