ScyTek ASTRA-300RS

ASTRA-300RS Features:

• Complete Remote Engine Start and Keyless Entry System

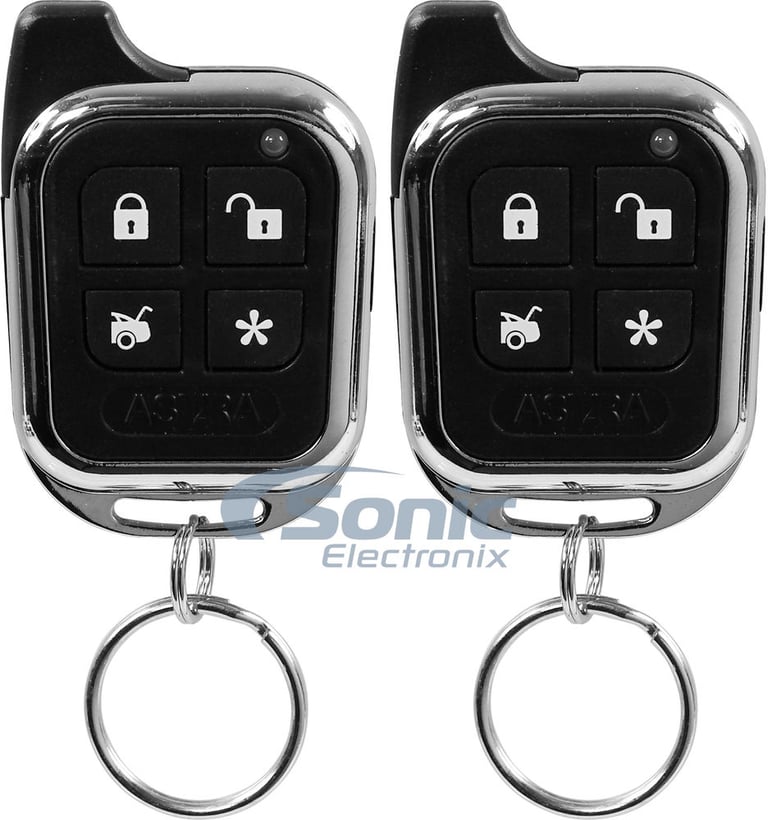

• Supplied with two 4-button remote transmitters
• Remote unlocking for vehicles with automatic locks
• Visual Car Locator Mode: Flashes parking lights for easy location of your vehicle in crowded parking lots
• Valet Mode: Temporarily disables the remote start system so the vehicle can be serviced
• Quick Stop: Allows you to exit the vehicle for short durations and leave it running
• Automatic Start Mode: Allows the vehicle to automatically start every one or two hours and run for a preset duration
• Ignition Door Lock/Unlock: For vehicles with automatic door locks, automatically locks the doors when the ignition is on and unlocks then when it is off
• Trunk Release
• Data Port

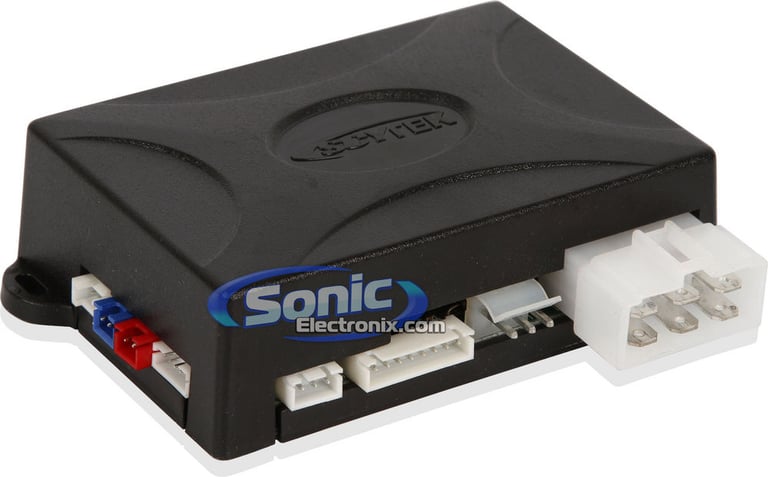

• Control Module Dimensions: 4-1/4"L x 3"W x 1-1/4"H
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

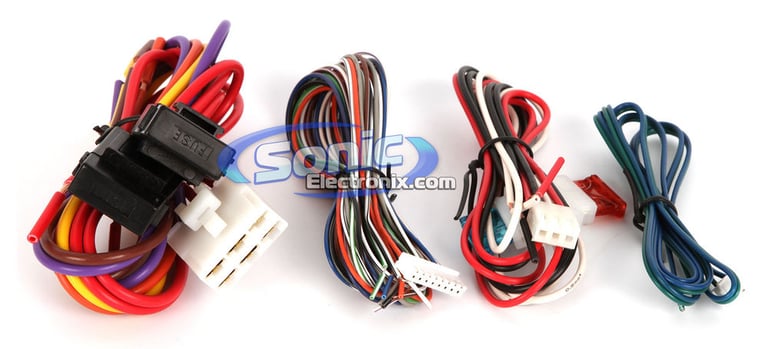

• Red: +12V Battery Input #3
• Green/White: Brake Input (+)
• Brown/White: Horn Output (-) 500mA
• White: Parking Light Output (+/- Built-in relay)
• White/Black: Hood/Trunk Input (-)
• Blue/Orange: Remote Start Output (-) when running
• Black: Ground
• Black/Gray: Tachometer Input

• Violet: Starter Output
• Yellow: Ignition 1 Output
• Orange: Accessory Output
• Brown: Ignition 2 Output/ACC/Starter2
• Red: +12V Battery Input #1 25Amp
• Red: +12V Battery Input #2 25Amp

• Green: Lock Output (-) 500mA
• Blue: Unlock Output (-) 500mA
