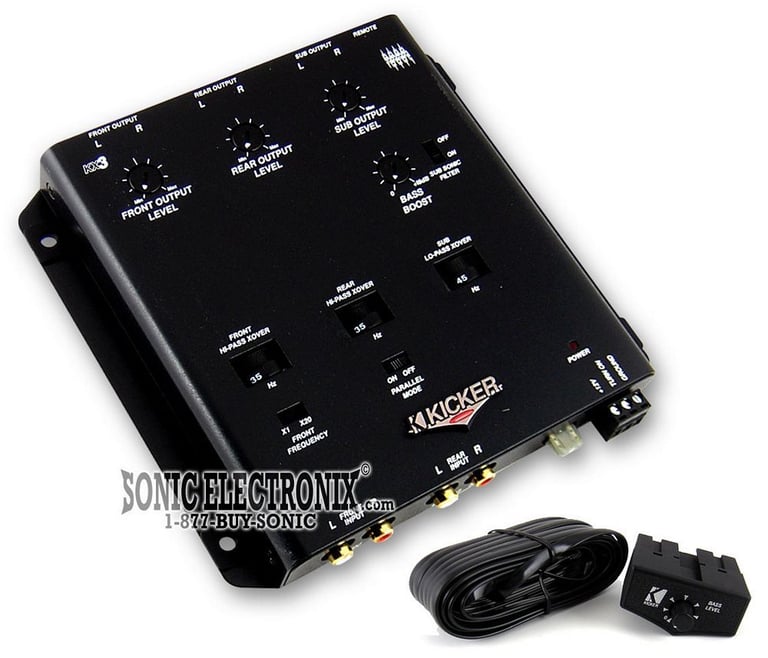

Kicker KX3 (03KX3)

3-way Electronic Crossover

Kicker
Shop all Kicker
highlight-star-icon

• 3-way 18dB/octave Active Electronic Crossover

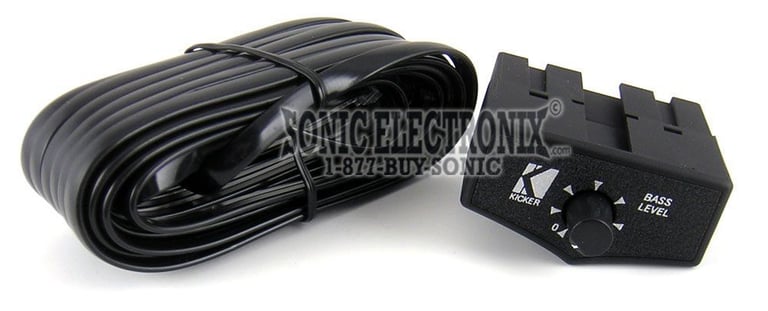

• Remote Level Controller
• Bass Boost Variable to +18dB at 40Hz

Learn more about the 03kx3

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Description


Kicker brand icon

Authorized dealer

The KX3 is 3-way, the KX2 is 2-way, and both have a low-profile chasis for mount-anywhere flexibility. Slopes are 18dB/octave with variable frequencies, output is 5 volts, and the S-N ratio is an ultra-quiet 110dB. The KX3 adds a sub-sonic filter and remote control bass boost.

KICKER KX3 is a 3-way 18dB/octave active electronic crossover with one variable low pass and two variable high pass filters. Remote control bass boost is variable to +18dB at 40Hz. Also features 24dB/octave subsonic filter, two stereo inputs, and three stereo outputs for

  • Front and Rear High Pass Crossovers - 18dB/octave, Variable
  • Frequency (35-400Hz; 20x Multiplier Option on Front Crossover)
  • Sub Low Pass Crossover - 18dB/octave, Variable Frequency (45 250Hz)
  • Bass Boost Variable to +18dB at 40Hz
  • Remote Level Controller
  • 24dB/octave Subsonic Filter

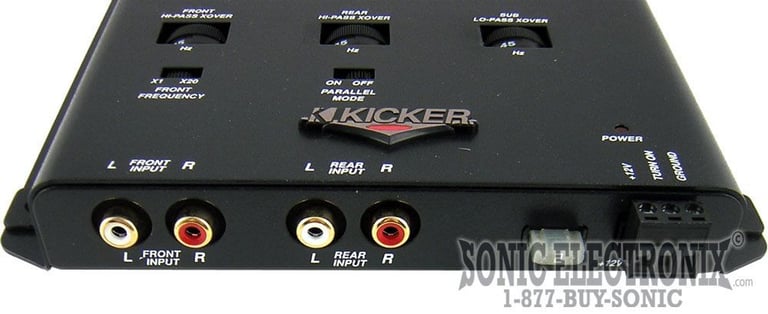

  • Two Stereo Inputs with Parallel Input Option

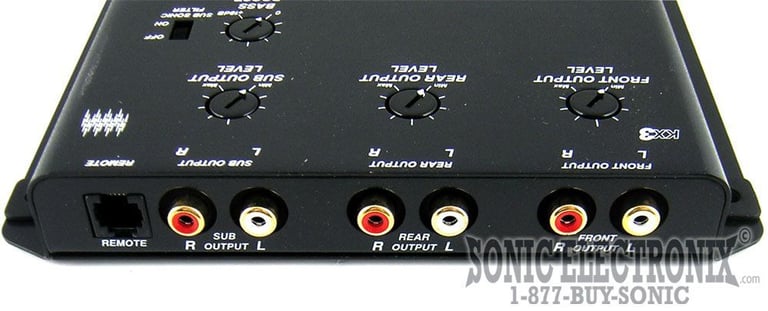

  • Three Stereo Outputs (5V rms)
  • Signal-to-Noise Ratio - >110dB
  • 1-year Manufacturer warranty
2011 Kicker Authorized Online Dealer and eBay Seller

Best selling similar products

PNW-XN3 small

AudioControl PNW-XN3

• 3-way Passive Crossover Network
• Designed to expand a 2-way component system into a 3-way setup
• Ideal for adding a midrange driver to your 2-way component system
• Includes woofer, midrange and tweeter outputs
• Compatible with AudioControl PNW and Altitude Series speakers

(2)

$159.00

List price $179.00

XM3 small

DS18 XM3

• 3-Way active crossover with sub-level control
• Mixed input and output
• Level output knob with individual output
• Features front and rear high-pass filters
• Includes remote subwoofer level control
• Stereo or mono subwoofer mode selector

$124.95

List price $122.99

XM5 small

DS18 XM5

• 5-Way high-voltage active crossover
• (2) front and (2) rear/sub inputs
• High/mid, high/mid/low, and mid/low outputs
• Features clip indicators

$239.95

List price $287.99

HFXR small

Hifonics HFXR

• 2-Way/3-Way Electronic Crossover
• Bass boost (0-12dB @ 45Hz)
• Quasi-Parametric EQ
• 180-Degree Phase-Shift Switch
• Front/Rear Channel Frequency
• Front and Rear Adjustments
• RCA Pre-Amp Output

(17)

$59.99

List price $99.99

XOHV small

DS18 XOHV

• 2-Channel high-voltage external pre-amplifier with crossover
• Perfect for high-voltage amplifiers
• Selectable bass boost frequency
• Allows match of 2 or more amplifiers with same audio setting

$95.95

List price $115.99

Specifications & Details


Crossover Specifications
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Built-in Bass Reconstruction
No
Signal Boost/Cut
18 dB
Max Output Level
5 volts
Frequency Response
35 - 400 Hz
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

KX3

Weight:

3.00lbs

Internal SKU:

03kx3

Internal Product ID:

526

Customer Ratings & Reviews


Kicker KX3 (03KX3) thumbnail image

5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.5
Features
4.9
Design
4.7
Usability
4.5

Customer Reviews

Sort by:

Loading...

a must have

This is a great crossover. I use one for competition purposes but even when not at a competition this thing works great! The sound quality that it provides to your amps is awesome. I gained a lot of decibels just by installing it. Its super easy to use and very durable.

By brian on November 3, 2006

12 found this helpful


...Changed my whole system...

I have a system i am proud of in my car. Not a competition setup, but an enviable system nonetheless. When I was in need of a new crossover, I just HAPPENED to choose the Kicker KX3 3-Way. Just by pure happenstance. Whoa! Now, i get excited about car audio products, this much is true. But I really was impressed with this crossover! Great design, fits under my passenger seat on a little routed piece of MDF I made for it; the bass control module fits on the dash of my Altima like it was born there. Just a little, black, knobby birth-mark, makin' my Fosgate S3 subs work for their vittles! The big, heavy, black cord attached to the module though was a bit unweildy, but who cares?!? The Kicker KX3 3-Way crossover is the nicest of its kind I have ever owned. I am definately hooked on their products; plus they make 'em just up the road!

By colton on September 8, 2006

11 found this helpful


Usefull thing

..Very usefull when your head unit is not so good... you can separate hi frequencies from low... usefull when you have a subwoofer, that allows you to get the hi frequencies to the speakers and give all the bass to the subwoofer !

By Mathieu on January 17, 2006

10 found this helpful


Great Xover!

My friend had a great idea to put two of each: 8", 12" and 15" subs in his suv, and the sound was horrible, and the amps built in Xovers were doing nothing. this EQ worked wonders. now the low band is seperated between the 6 different subs and it sounds so much better with each different size handling a frequency range thats suitable to its size.

By Andy on December 31, 2005

10 found this helpful


kicker midbass drivers

I have 8 in my rear doors connected to 2 kx840 amps and they hit pretty damn hard. I recommened these for anybody that doesnt have enough bass running through there subs.

By jason on August 10, 2005

11 found this helpful


gatta have this

this just made my whole system quality way better. love this crossover wont buy anything else but kicker and only buy from this site..got all the features you need all 5's

By tom on January 30, 2008

9 found this helpful


Works Great!

I purchased this x-over when the sub out on my head unit gave up, much cheaper than a good head unit replacement, and I have to say that this thing really makes a difference on the sound. It gives a lot more control and clarity to the sub channel, even better than what the head unit had. It also made a big difference in the clarity of my highs and mids. Overall I am very impressed and would recommend this to anyone looking for more control and quality in their music.

By Jeremy on July 14, 2010

8 found this helpful


Everything Great!

I'm using the KX3 a six month... I have 2 Kicker Solobaric L7 8" on my pick up. Easy Installation and Easy configuration. Products Kicker is the best.

By Silvio on January 15, 2013

8 found this helpful
