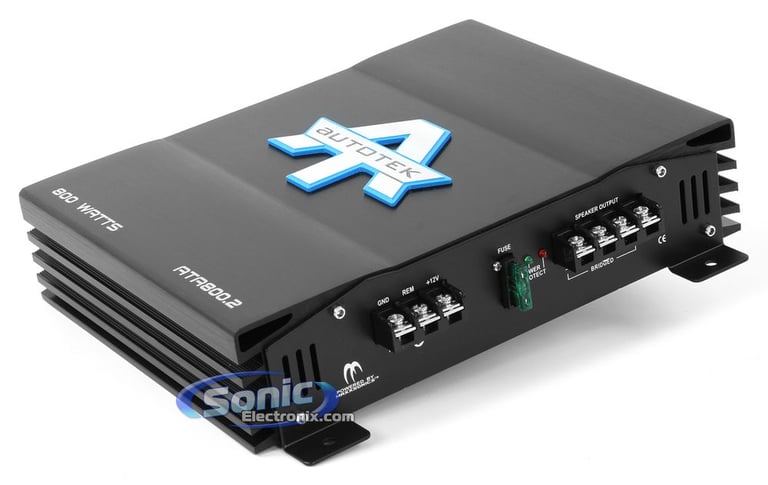

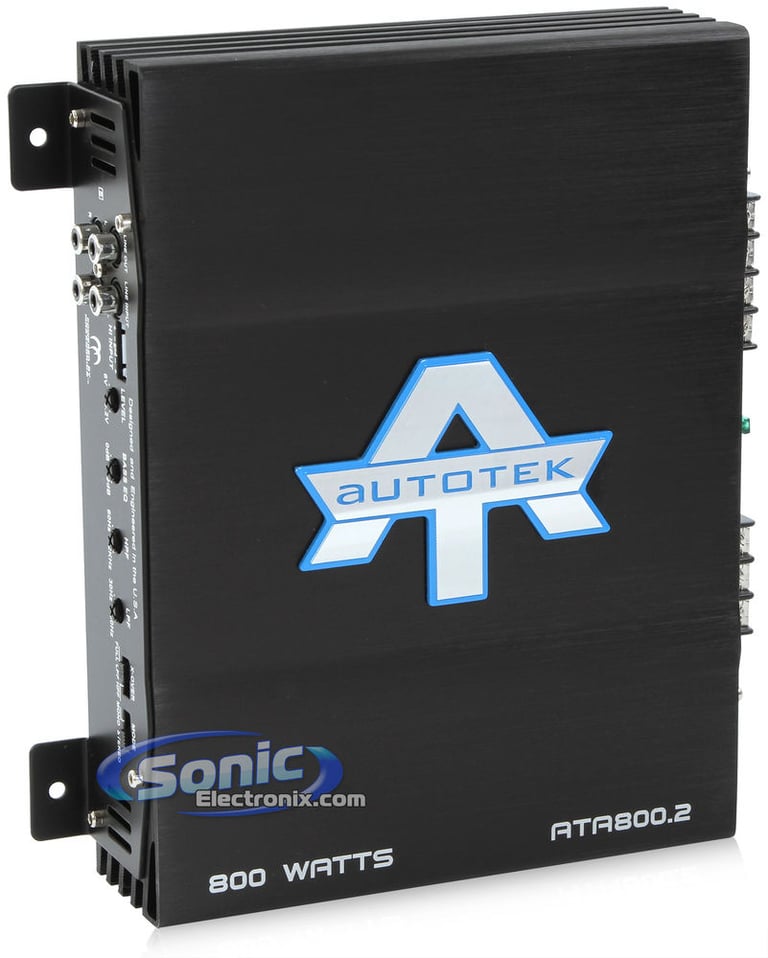

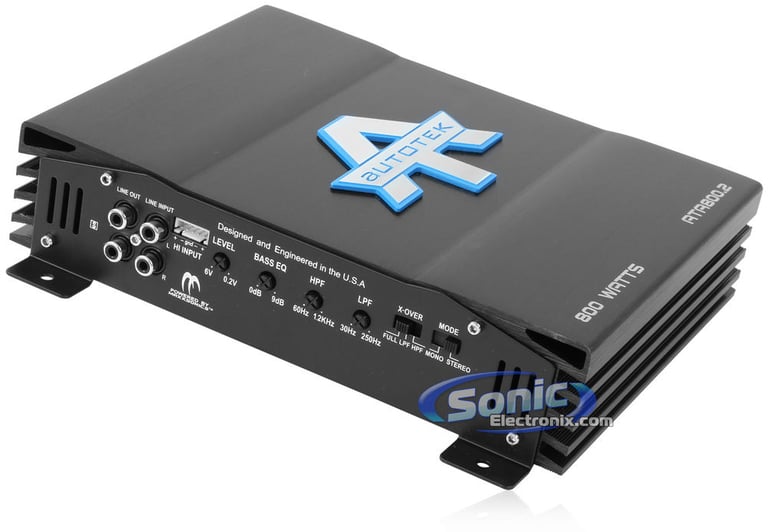

Autotek ATA800.2

800W 2-Channel ATA Series Class AB Car Amplifier

Autotek
Shop all Autotek
Product videos
highlight-star-icon

• Max Power: 200W x 2 @ 4 ohm, 400W x 2 @ 2 ohm
• Total Peak Power: 800W
• 2 or Mono channel operation
• Dimensions: 9.45" W x 7.09" L x 2.08" H

Learn more about the ata8002

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC684 main

Kicker CSC68 (46CSC684)

450W Peak (150W RMS) 6x8” CS Series 2 Way Coaxial 4-ohm Speakers

11
-33.36%

$79.96

List price $119.99

T1650-S main

Rockford Fosgate Power T1 T1650-S

320W Peak (160W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

1
CVMPCL8.0 main

Cerwin Vega CVMPCL8.0 (Sold Individually)

400W Peak (200W RMS) 8" Stroker Pro Series Full Range 4-ohm Speakers

-16.67%

$139.99

List price $167.99

GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

35
-34.45%

$117.99

List price $180.00

Limited time!
CST20 main

Kicker CST204 (46CST204)

200W Peak (100W RMS) 3/4” CS Series 4-ohm Titanium Dome Tweeters

3
-30.04%

$55.96

List price $79.99

Crunch CS5768CX

500W Peak (100W RMS) 5x7"/6x8" CS Series 2-Way Coaxial 4-ohm Car Speakers

13
-11.77%

$29.99

List price $33.99

Limited time!

JVC KW-M595BT

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

3
-30.30%

$299.00

List price $429.00

Product Highlights


• Max Power: 200W x 2 @ 4 ohm, 400W x 2 @ 2 ohm
• Total Peak Power: 800W
• 2 or Mono channel operation
• Dimensions: 9.45" W x 7.09" L x 2.08" H

Description


Autotek brand icon

Authorized dealer

General Features:

  • ATA Series 2-Channel Class AB Car Amplifier
  • Max Power Rating:
    • 4 ohm: 200 watts x 2 chan.
    • 2 ohm: 400 watts x 2 chan.
    • Bridged, 4 ohm: 800 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 2 or Mono channel operation

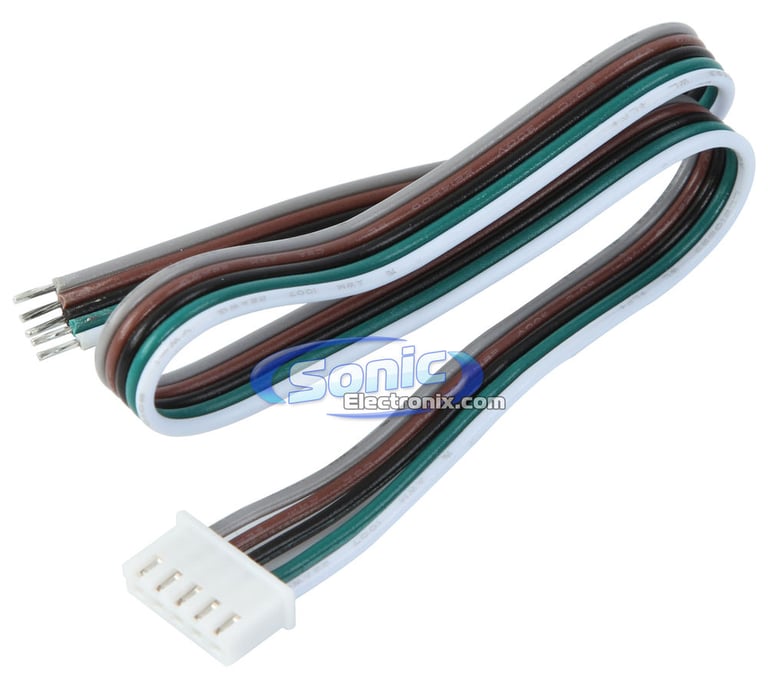

  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 30 - 12000 Hz
  • Total Harmonic Distortion (THD): 0.05%

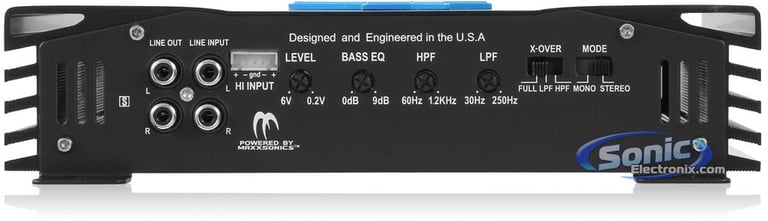

  • Selectable crossover modes: FULL / LPF / HPF
  • Variable high-pass filter: 60 - 1200 Hz
  • Variable low-pass filter: 30 - 250 Hz
  • Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz

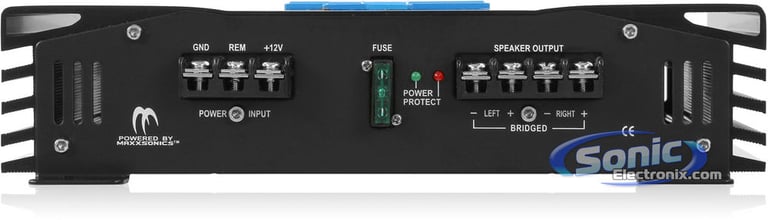

  • Fuse Rating: 30 A x 1
  • 4- 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9.45"W x 7.09"L x 2.08"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

PBR300X2 small

Rockford Fosgate Punch PBR300X2

• 100 watts x 2 channel @ 4 ohm
• 150 watts x 2 channel @ 2 ohm
• Bridged: 300 watts x 1 channel @ 4 ohm
• Total RMS Power: 300 watts
• Class BR 2 ohm Stable 2-Channel Amplifier

(22)

$249.99

List price $279.99

GP-2000.2 small

Crunch GP-2000.2

• 500 watts x 2 channel @ 4 ohm
• 1000 watts x 2 channel @ 2 ohm
• Bridged: 2000 watts x 1 channel @ 4 ohm
• Total Peak Power: 2000 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

$74.99

List price $119.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 2 channel
RMS Power @ 2 ohms
200 watts x 2 channel
Bridged RMS Power
400 watts x 1 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
200 watts x 2 channel
Peak Power @ 2 ohms
400 watts x 2 channel
Bridged Peak/Max Power
800 watts x 1 channel
Amplifier Specifications
Series
ATA Series
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
400 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal, 4 - 8 AWG Recommended
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
30A x 1
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ATA800.2

Weight:

5.36lbs

Internal SKU:

ata8002

Internal Product ID:

76958
