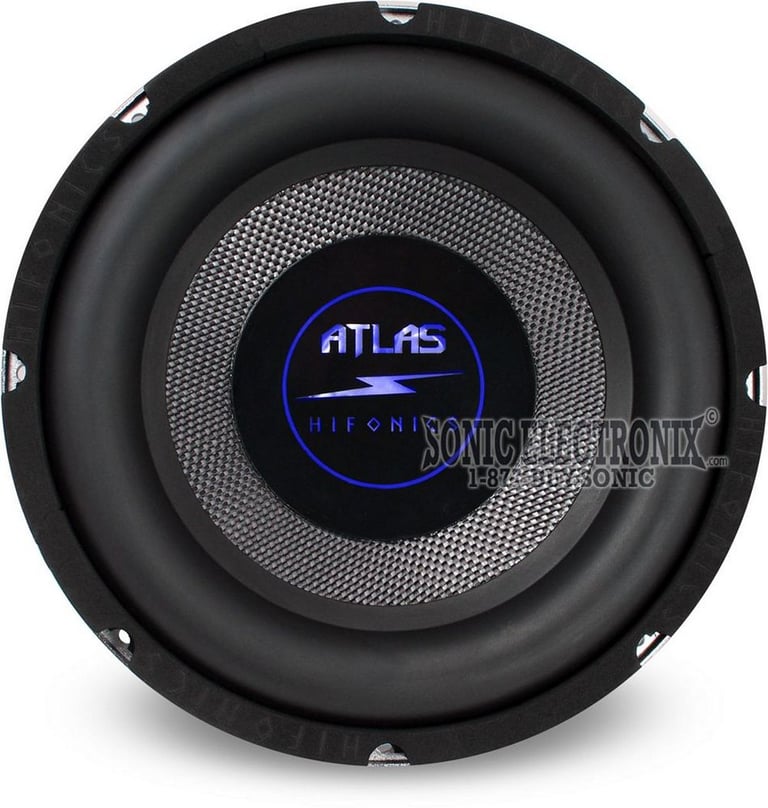

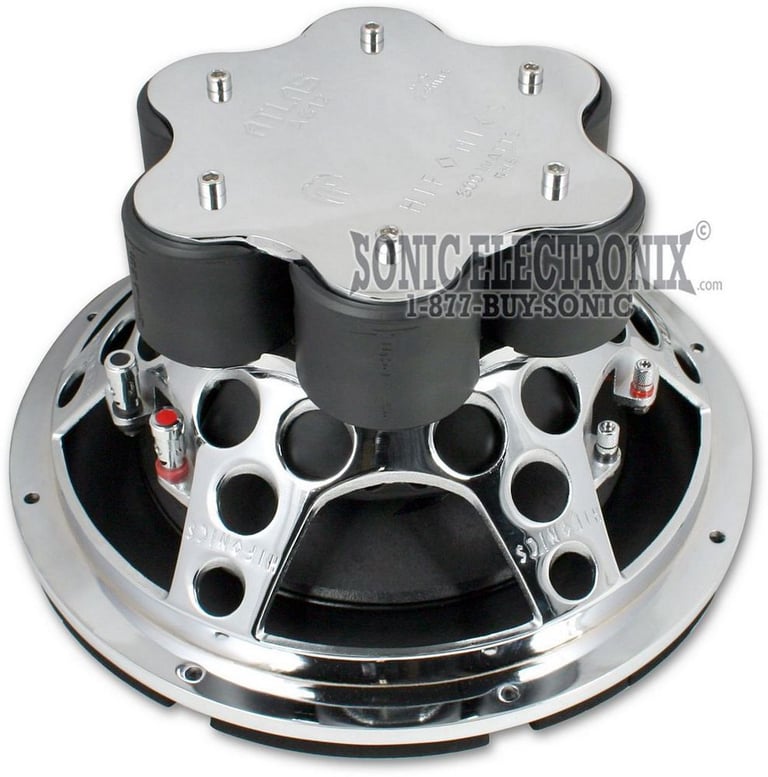

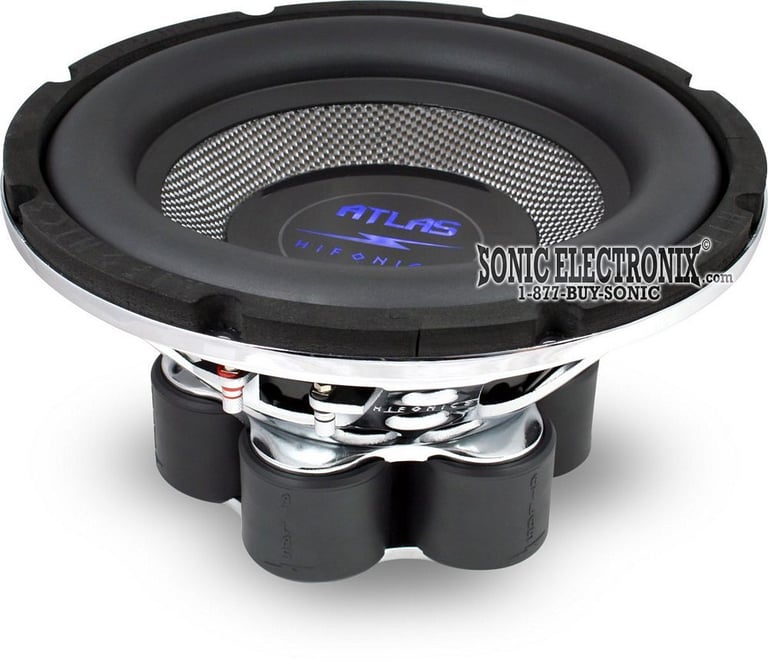

Hifonics AS12 ( AS12R 12" Round Atlas )

12" High Performance Subwoofer

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

12" Round High Performance Subwoofer • Neon Blue Illumination • 1200 watts peak / 600 watts RMS Power Handling • Rubber Surround • Dual 2 Ohm Voice Coils

Learn more about the as12r

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

107
-33.36%

$9.99

List price $14.99

95-5817 main

Metra 95-5817 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

44
-21.92%

$17.95

List price $22.99

FM-K552 main

American International FM-K552

Single DIN or Double DIN Stereo Dash Kit for select 1995-2011 vehicles from Ford, Lincoln, Mazda

21
-55.03%

$8.99

List price $19.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
-12.50%

$69.99

List price $79.99

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Product Highlights


12" Round High Performance Subwoofer • Neon Blue Illumination • 1200 watts peak / 600 watts RMS Power Handling • Rubber Surround • Dual 2 Ohm Voice Coils

Description


Hifonics brand icon

Authorized dealer

  • 12" Round High Performance Subwoofer
  • 600 watts RMS Continuous Power
  • 1200 watts Maximum Power Handling
  • Hifonics Atlas Cast Aluminum Chrome Basket
  • Woven Glass Fiber Cone
  • Acrylic Illuminated Dust Cap
  • 1.4" Rubber Surround
  • Nomex Fiber Spider with Woven Tinsel Leads
  • 2.5" Bi-fair Wound 4 Layer Voice Coil
  • Thick Aluminum Voice Coil Former
  • Dual 2 Ohm Voice Coil with 40 NM Voice Coil Winding
  • 6 Flare Shape Magnet Design with 140 Oz. Magnet
  • 8 MM Polished Top Plate
  • Chrome Plated Flare T-Plate
  • Push Pin Terminal
  • Rubber Magnet Boot
  • Power of the Gods Included
  • 1-year SonicElectronix.com warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Hifonics AS12 ( AS12R 12" Round Atlas ) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Hifonics AS12 ( AS12R 12" Round Atlas ) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Hifonics AS12 ( AS12R 12" Round Atlas ) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Hifonics AS12 ( AS12R 12" Round Atlas ) Subwoofers

2 Channel Amp

4 Channel Amp
