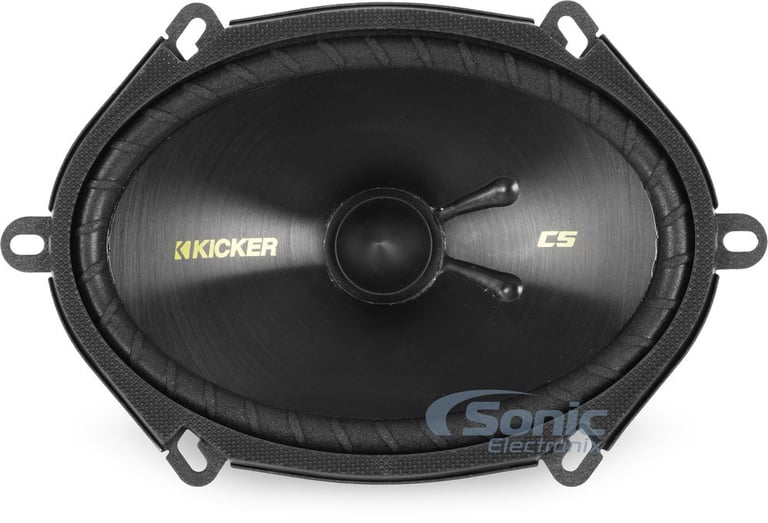

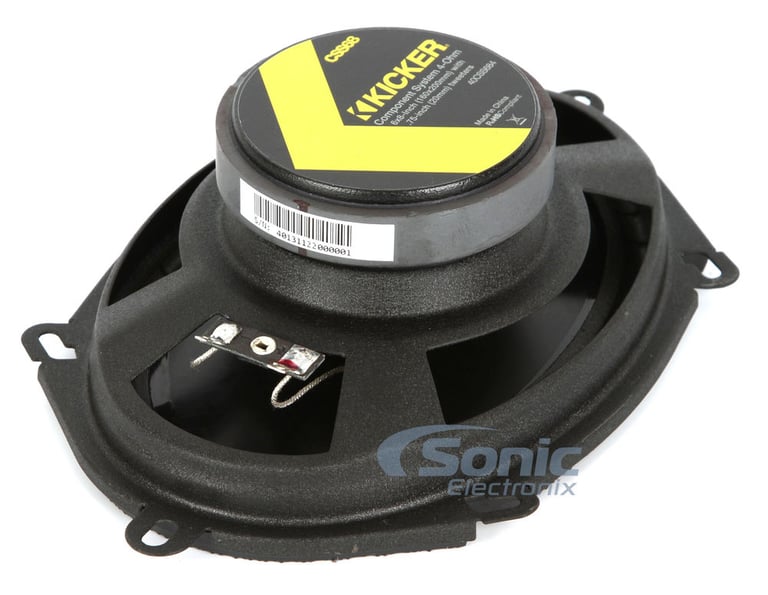

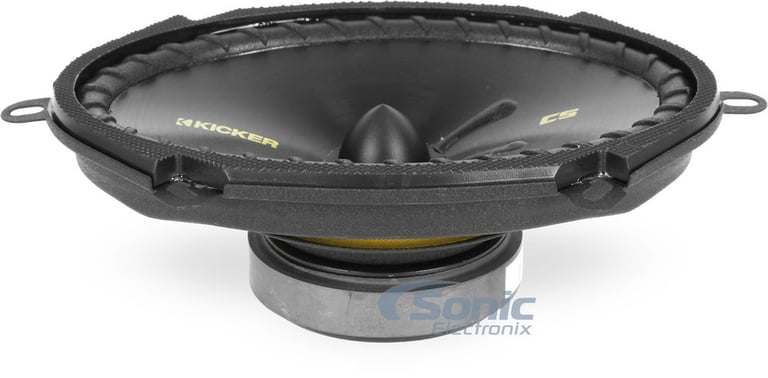

Kicker CSS68 6"x8" Component Speaker System (40CSS684)

450W Max (150W RMS) 6" x 8" / 5" x 7" 2-Way CS Series Component Car Speakers System

Kicker
Shop all Kicker
Product videos
highlight-star-icon

• 225W Max
• 75W RMS
• 2-Way Component System
• 4 ohms Impedance
• Polypropylene Cone
• Ribbed, Polyester Foam Surround
• 3/4" Titanium Balanced Dome Tweeter

Learn more about the 40css684

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

46css684 thumbnail

Kicker CSS68 (46CSS684)

OUR PRICE: $143.96

View item

Product Highlights


• 225W Max
• 75W RMS
• 2-Way Component System
• 4 ohms Impedance
• Polypropylene Cone
• Ribbed, Polyester Foam Surround
• 3/4" Titanium Balanced Dome Tweeter

Description


Kicker brand icon

Authorized dealer






Kicker Audio: Quality, Performance, and Passion
(Sonic at Stillwater Designs HQ)



Kicker Authorized Dealer

General Features:

  • 6" x 8" / 5" x 7" CSS Series 2-Way Component System
  • Power Handling:
    • Peak: 450 watts per pair / 225 watts each
    • RMS: 150 watts per pair / 75 watts each
  • Recommended power range: 5 - 75 watts RMS per channel
  • Polypropylene cone material
  • Durable, Ribbed UV-Treated Polyester Foam speaker surround for precise linear excursion

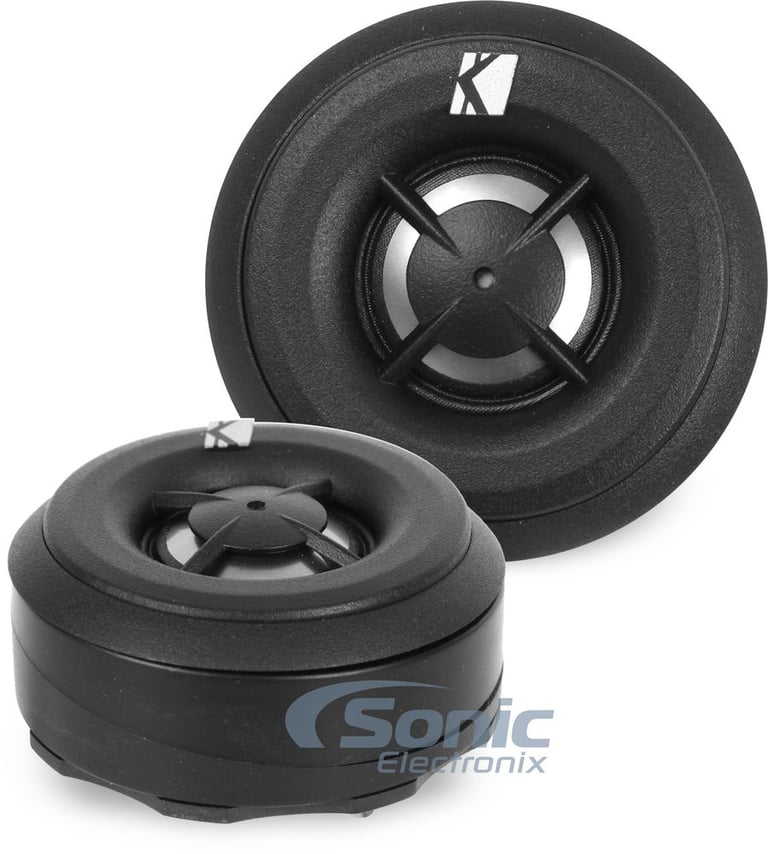

  • Lightweight 3/4" Titanium Balanced Dome tweeter design for outstanding definition

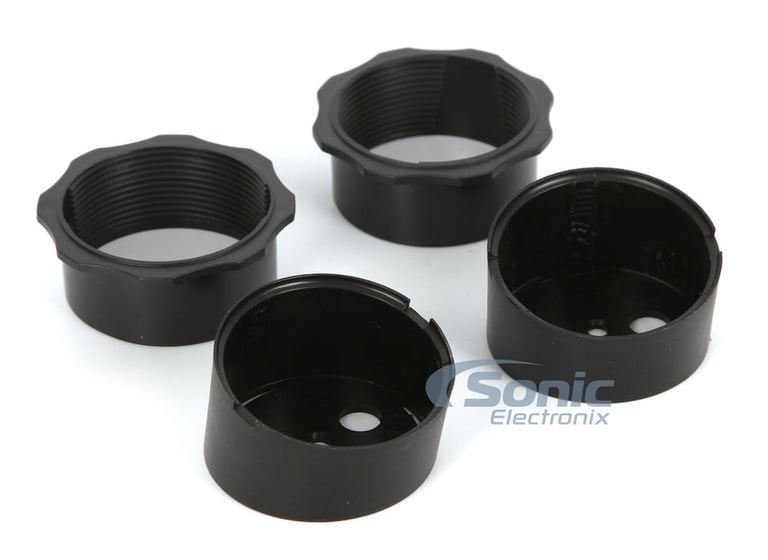

  • Tweeter can be Flush, Surface or Angled mounted
  • Neodymium tweeter magnet motor structure
  • EVC (Extended Voice Coil) technology for high thermal handling
  • Shallow mounting design allows fitment into virtually any vehicle
  • Built-in phase plugs disperse woofer sound evenly
  • Substantial upgrade from factory speakers
  • 12dB/octave High Pass and Low Pass crossover filters

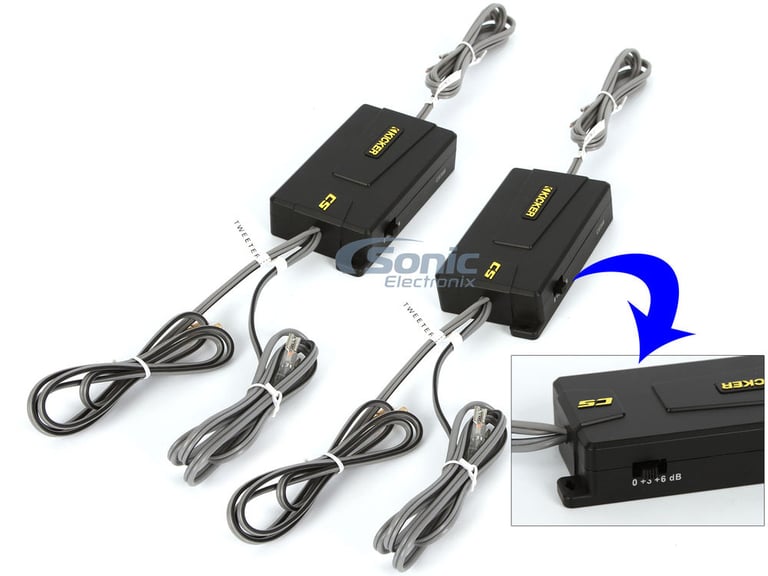

  • Selectable tweeter attenuation level (0, -3 & -6dB)
  • 4 ohms impedance
  • Frequency response: 40-21,000 Hz
  • Top-mount depth: 2-3/16"
  • Sensitivity: 90dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

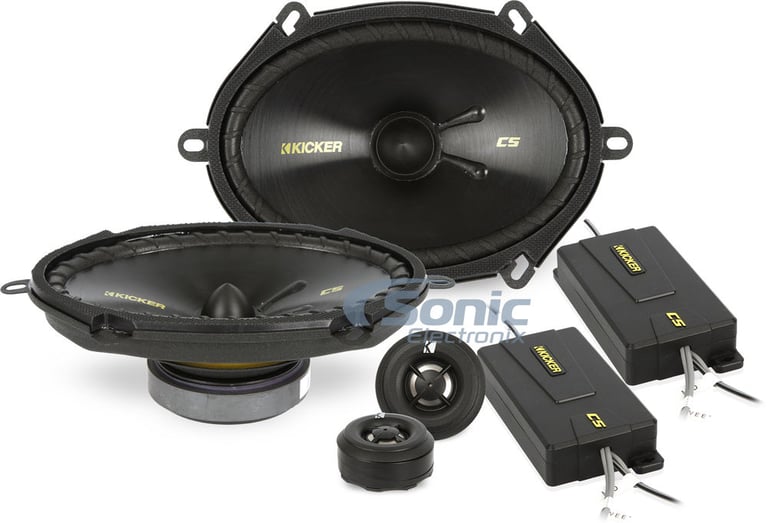

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.

Product history:

Kicker CSS68 thumbnail
(newest, current model)
Kicker 43CSS684 thumbnail
(previous model, replaced by Kicker CSS68 (46CSS684))
Kicker 40CSS684 thumbnail
(previous model, replaced by Kicker CSS68 Speakers (43CSS684) Ships as (46CSS684))
Kicker 11DS68.2 thumbnail
(previous model, replaced by Kicker CSS68 6"x8" Component Speaker System (40CSS684))

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details


Speaker Specifications
Series
CS Series
Priced Per
Pair
Number of Speakers
2 Woofers + 2 Tweeters
Speaker Size
6" x 8" (also mounts in most 5" x 7" locations)
Design
2-way Component System
Tweeter Design
Dome
Tweeter Size
3/4"
Tweeter Composition
Titanium
Woofer Composition
Polypropylene
Woofer Surround
Polyester Foam
Peak Power Handling
225 watts
RMS Power Handling
75 watts
Sensitivity
90 dB
Frequency Response
40 - 21000 Hz
Impedance (Per Voice Coil)
4 ohms
Shallow Mount Installation
Yes
Top-Mount Depth (Mounting Depth)
2-3/16"
Cutout Dimensions
5" x 7-3/16"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

40CSS684

Weight:

5.80lbs

Internal SKU:

40css684

Internal Product ID:

64190

Product and How-to Videos


Customer Ratings & Reviews



5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
4.4
Value
4.7
Features
4.4
Design
4.4
Usability
4.7

Customer Reviews

Sort by:

Loading...

excellent quality

Solid sturdy speakers, good sound quality. Deep bass and crisp highs.

By Cory on May 6, 2017

17

found this helpful.

Love The Kickers!

I bought the Kicker 40CSS684 Component Speaker System for my 2002 Miata. I needed the high wattage because I had an 80watt-per-channel Pyle radio - which exceeded the EOM speakers' ratings.

Pros: The crossover box fit nicely behind the in-door mid-range speaker mounts...the speakers perform very well and are a vast improvement from the originals.

Cons: I had to trim the tweeters a bit (with a Dremel tool) to make them fit the tweeter housings...but no degradation resulted.

HIGHLY RECOMMENDED.

By Russ on August 27, 2015 Checkmark Icon Verified purchase

18

found this helpful.

Overall pretty good

I like the bass that comes from these speakers. They are overall pretty good. My only dislike would be the highs. About 40% of the time the highs are too piercing.

If you can I would recommend the KS series, or the KS series tweeters. These are larger and silk instead of the titanium dome. They also sound much nicer. Just a though.

If installing in a 2010-2013 Mazda3, you'll need spacers in the front. The back will drop right in.

Oh, and these two videos make a big difference in sound quality:
https://www.youtube.com/watch?v=AxCpUUB5fDI
https://www.youtube.com/watch?v=S7WKCFHGwRY

By Aloysius on January 4, 2016

16

found this helpful.
