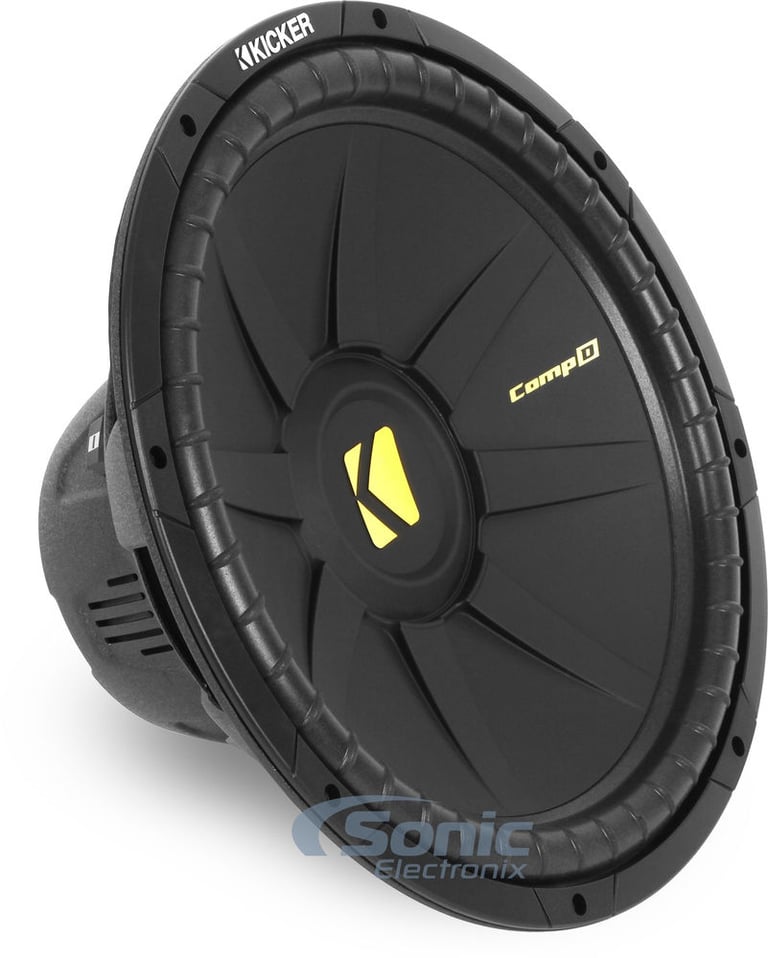

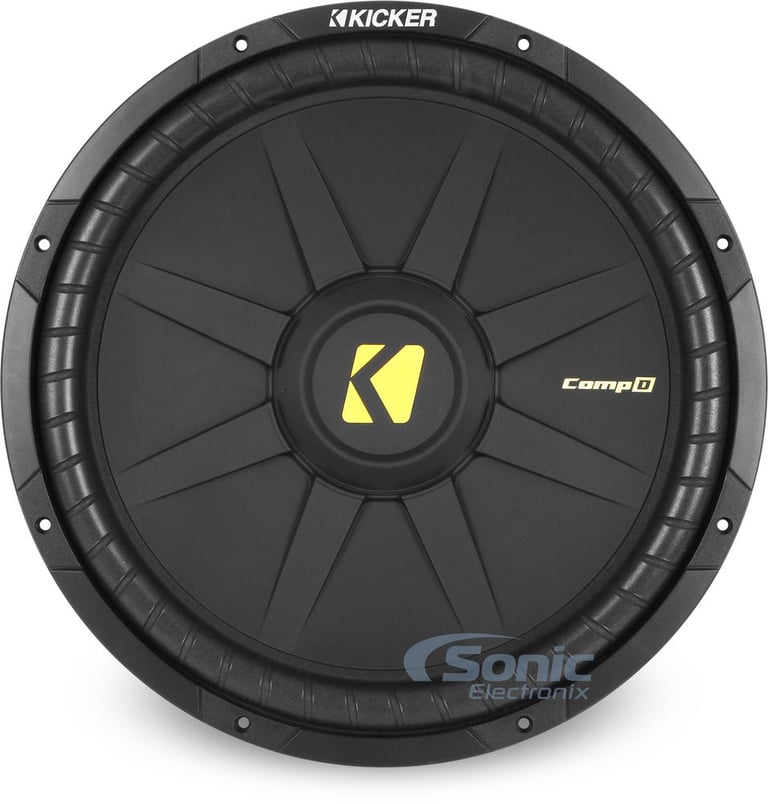

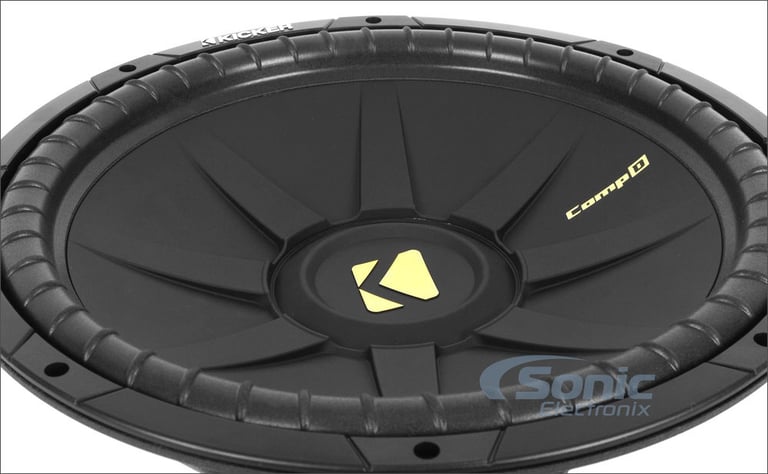

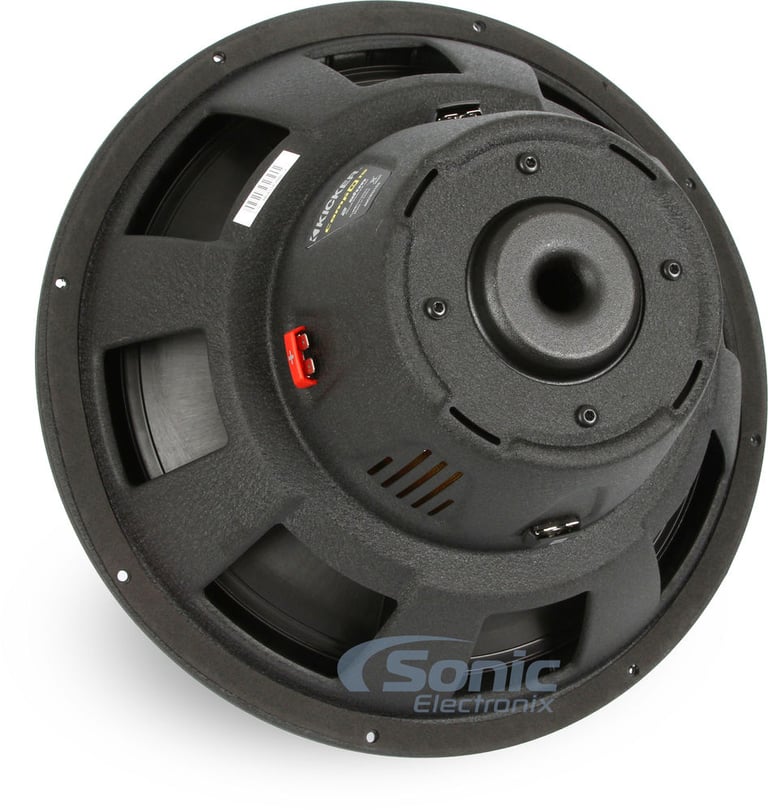

Kicker CompD154 (40CWD154)

600W 15" Comp-D Series Dual 4-Ohm Subwoofer

Kicker
Shop all Kicker
Product videos
highlight-star-icon

• 1200W Peak
• 600W RMS
• Dual 4-Ohm Voice Coil
• Injection-Molded Polypropylene Cone
• Ribbed Polyurethane Surround
• Large-Diameter Spider
• High-Strength Spiralead Tinsel Leads

Learn more about the 40cwd154

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


• 1200W Peak
• 600W RMS
• Dual 4-Ohm Voice Coil
• Injection-Molded Polypropylene Cone
• Ribbed Polyurethane Surround
• Large-Diameter Spider
• High-Strength Spiralead Tinsel Leads

Description


Kicker brand icon

Authorized dealer



Legendary Kicker Bass

KICKER continues to offer the greatest balance between high value and high performance with the legendary single-voice-coil CompS Subwoofer. Equipped with proven KICKER construction, the CompS utilizes elite innovations for world-class KICKER power, durability and hard-hitting, high-performance bass.

CompS Subwoofers is founded on engineering that is tried and true, building upon the success of the KICKER’s original Competition Series from 1986. It’s available in four sizes (15, 12, 10, 8) and in either 2- or 4-Ohm impedances.

CompS Subwoofers is ideal for vented or sealed enclosures, or even in free-air applications, and handles more power than any previous Comp Series generation. It is equipped with a lightweight, injection-molded polypropylene cone and tough, ribbed polyurethane surround for eliminating flex and distortion. The heavy-duty motor structure includes a rip-resistant, large-diameter spider and high-strength Spiralead tinsel leads for max signal transfer. High-temp coil wire winding around a vented pole piece and innovative Quad Venting slots contribute to the woofer’s efficient cooling attributes and durability.

Its full-coverage, steel basket is shallower than previous Comp baskets, fitting into more applications, and it incorporates 1/4-inch, heavy-duty spade connections. The CompS provides the most intense bass for the buck and leave every music lover with enough money to throw toward a powerful KICKER Amplifier, resulting in an incredible musical experience.




Kicker Audio: Quality, Performance, and Passion
(Sonic at Stillwater Designs HQ)



Kicker Authorized Dealer

General Features:

  • 15" Dual 4-Ohm CompD Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Impedance: Dual 4 ohm
  • Injection-Molded Polypropylene Cone
  • Ribbed polyurethane surround
  • Large-diameter spider
  • High-strength Spiralead tinsel leads
  • Frequency response: 25-500 Hz
  • Resonance Frequency (Fs): 23 Hz
  • Top-mount depth: 7"
  • Sensitivity: 90.3dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Also Found As: 40-CWD154, 40CWD15-4, CWD15-4, CWD154, 40 CWD154, 40CW154, CWD15, Comp D 154, Comp D154, CompD 154, CompD15, Comp-D154, CompD15-4

Tips for Installing the 40CWD154 Subwoofer


This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker CompD154 (40CWD154) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker CompD154 (40CWD154) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker CompD154 (40CWD154) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Kicker CompD154 (40CWD154) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

P3D2-15 small

Rockford Fosgate Punch P3 P3D2-15

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 2 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 7.58"
• Sensitivity: 86 dB

(27)

$309.99

List price $339.99

YSW152 small

NVX YSW152

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

SW-M15D1 small

Sundown Audio M-15 D1 15" (M15D1)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 12.06"
• Sensitivity: 83.024 dB

(1)

$659.99

List price $791.99

Specifications & Details


Subwoofer Specifications
Series
CompD Series
Subwoofer Size
15"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
25 - 500 Hz
Sensitivity
90.3 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Ribbed Poly-Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
2.25 cubic feet
Maximum Sealed Box Volume
5.0 cubic feet
Minimum Ported Box Volume
3.0 cubic feet
Maximum Ported Box Volume
4.0 cubic feet
Top-Mount Depth (Mounting Depth)
7"
Cutout Diameter
13-3/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
23 Hz
Equivalent Compliance (Vas)
226.14 liters
Total Speaker Q Value (Qts)
.404
Electrical Q Value (Qes)
.422
Electrical Resistance of Voice Coil (Re)
3.32 ohm
Mechanical Q Value (Qms)
9.607
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

40CWD154

Weight:

17.00lbs

Internal SKU:

40cwd154

Internal Product ID:

64263
