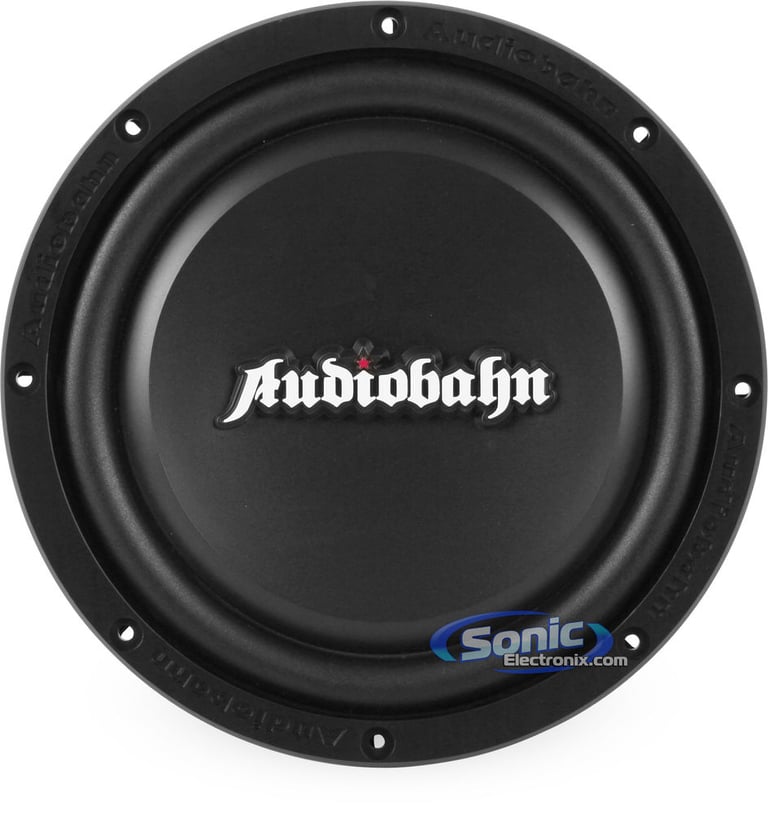

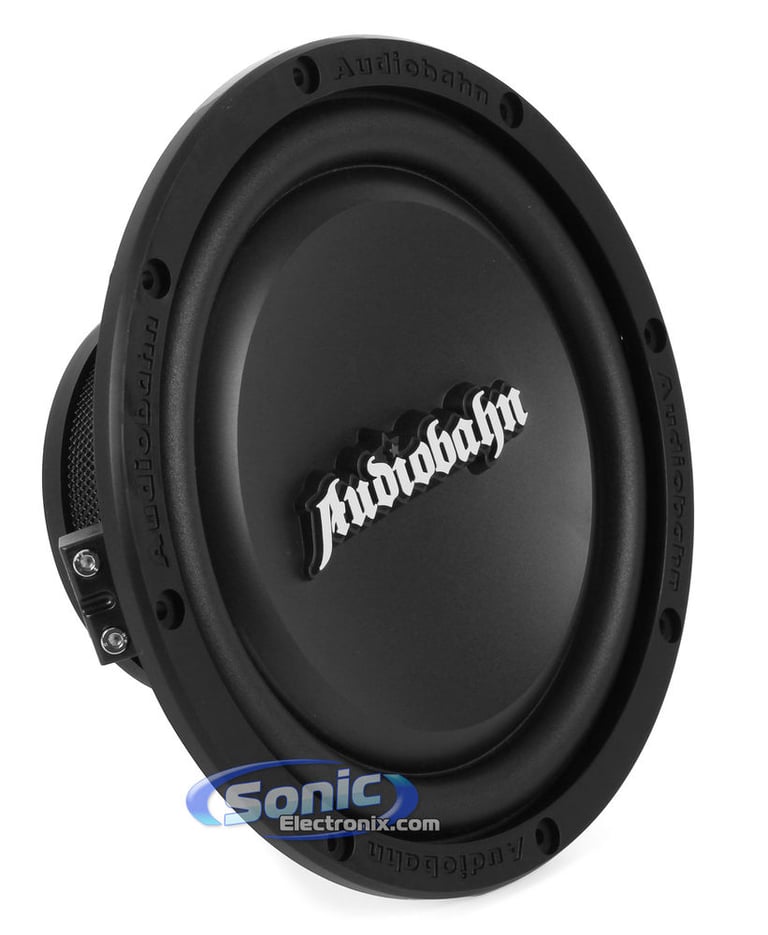

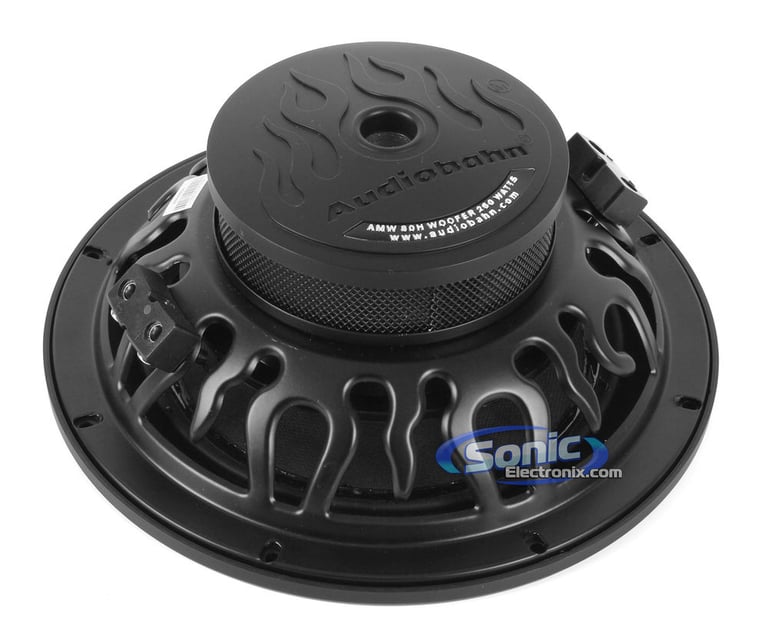

Audiobahn AMW80H

250W 8" Murdered Out Series Dual 4 Ohm Subwoofer

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

• 550W Peak
• 250W RMS
• Dual 4-Ohm Voice Coil
• Polypropylene Cone
• Rubber Surround
• Stamped Steel Flame Basket
• Multi-Connect Lug Lock Terminals

Learn more about the amw80h

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
C2-400X main

JL Audio C2-400x

70W RMS 4" C2 Series 2-Way Coaxial 4-ohm Car Speakers

9
-13.16%

$164.99

List price $189.99

Product Highlights


• 550W Peak
• 250W RMS
• Dual 4-Ohm Voice Coil
• Polypropylene Cone
• Rubber Surround
• Stamped Steel Flame Basket
• Multi-Connect Lug Lock Terminals

Description


Murdered Out

The new Murdered Out Subwoofer series from Audiobahn combines the high-end motor structure of a great bass producer with the shallow mounting depth that allows them to be utilized in more of today’s compact vehicle installations. Audiobahn’s product design department has developed a new proprietary 3D flame basket design that reduces the overall mounting depth but still maximizes the low-end frequency reproduction. The designers also paired this with a cone material and design that reduces distortion from flexing. The Murdered Out Subwoofer Series is built to perform and designed to excite.

Powder Coated Outer Chassis: The new Murdered Out series subwoofers feature an advanced cooling and protective outer layer. The powder coated exterior is superior to a conventional liquid paint because powder coating does not require a solvent to keep the binder and filler parts in a liquid suspension form which can reduce the heat dissipation of the subwoofers drive mechanism. This outer “skin” provides a hard finish that is also tougher than conventional paint.

Cone Material and Design: These subwoofers feature a molded, texture injected, poly cone with an EPDM rubber surround. The cone design is highlighted by the ultra-embossed Audiobahn logo which helps provide the rigidity that prevents low-frequency response distortion during deep bass notes. The weather resistant surround helps maintain linear travel of the cone and accurate musical reproduction.

Multi-Connect Lug Lock Terminals: Audiobahn’s patented Multi-Connect Lug Lock Terminals offer increased versatility in wiring multiple subwoofers to an amplifier or to another voice coil. Multi-Connect terminals allow you to use single wire connections in each terminal rather than combining multiple wires into one terminal. This feature allows you to use a full 8-gauge wire in each terminal.

General Features:

  • 8" Dual 4-Ohm Murdered Out Series Subwoofer
  • Power Handling:
    • Peak: 550 watts
    • RMS: 250 watts
  • Impedance: Dual 4-Ohm
  • Polypropylene cone
  • Rubber surround
  • Stamped Steel Flame Basket
  • Multi-Connect Lug Lock Terminals
  • 4-Layer, edge wound voice coil
  • Frequency response: 32-1,000 Hz
  • Resonance Frequency (Fs): 48.82
  • Top-mount depth: 3-1/2"
  • Sensitivity: 90dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiobahn AMW80H Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiobahn AMW80H Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiobahn AMW80H Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Audiobahn AMW80H Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

Limited time!
P1V2-25 main

Rockford Fosgate Punch P1V2-25

300W Peak (150W RMS) 2.5" Punch P1 Series 3 Way Coaxial 4-ohm Speakers

-25.93%

$159.99

List price $215.99

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

35
-9.99%

$90.00

List price $99.99

DMDX8 main

Diamond Audio DMDX8

390W Peak (130W RMS) 8" DMDX Series 2-Way Cocentric Coaxial Car Speakers

EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

CVMPCL8.0 main

Cerwin Vega CVMPCL8.0 (Sold Individually)

400W Peak (200W RMS) 8" Stroker Pro Series Full Range 4-ohm Speakers

-16.67%

$139.99

List price $167.99

H80C main

Cerwin-Vega H80C

900W Peak (300W RMS) 8" HED Series 2 Way Component 4-ohm Speaker System

-16.67%

$219.99

List price $263.99

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
Limited time!
CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
-14.71%

$144.99

List price $169.99


Best selling similar products

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

R2-W8D2 small

Alpine R2-W8D2

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.6 dB

$239.95

List price $360.00

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

SW-EV68D2 small

Sundown Audio E8 v.6 D2 8" (E8V6D2)

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 2 ohm
• Pressed Paper Cone
• Pressed Foam Surround
• Mount depth: 4.98"
• Sensitivity: 82.4 dB

$169.99

List price $203.99

R2-W8D4 small

Alpine R2-W8D4

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 4 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.7 dB

$239.95

List price $360.00

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

DES84 small

Diamond Audio DES84

• Peak Power: 500 watts
• RMS Power: 250 watts
• Fiber-Reinforced High Strength Paper Cone
• Impedance: Dual 4 ohm
• Sensitivity: 82.1 dB

$239.99

List price $219.99

Specifications & Details


Subwoofer Specifications
Series
Murdered Out Series
Subwoofer Size
8"
Peak Power Handling
550 watts
RMS Power Handling
250 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
32 - 1000 Hz
Sensitivity
90 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.25 cubic feet
Maximum Sealed Box Volume
1.00 cubic feet
Minimum Ported Box Volume
0.68 cubic feet
Maximum Ported Box Volume
1.9 cubic feet
Top-Mount Depth (Mounting Depth)
3-1/8"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
48.82 Hz
Equivalent Compliance (Vas)
13.86 liters
Electrical Q Value (Qes)
1.24
Electrical Resistance of Voice Coil (Re)
3.2 ohm
Mechanical Q Value (Qms)
6.78
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AMW80H

Weight:

4.60lbs

Internal SKU:

amw80h

Internal Product ID:

65006

Product and How-to Videos


Customer Ratings & Reviews


Audiobahn AMW80H thumbnail image

5 star
43%
4 star
43%
3 star
0%
2 star
0%
1 star
14%



Durability
4.2
Value
4.7
Features
3.9
Design
4.5
Usability
4.6

Customer Reviews

Sort by:

Loading...

awesome product

Awesome buy for what i needed. I can't wait to try out the higher end audiobahn subs. I would recommend Audiobahn to anyone who has a budget and wants sound quality.

By clutch on May 7, 2014

19 found this helpful


Blew out within 2 weeks of use

Great sound, but very weak durability!
Had Audiobahn 8" DVC Sub and had if for 2 years. After blowing the 1st one I decided since it was so good to me, I would go for another one.
Unfortunately after 2 weeks this one blew out and would be the last product I get from them.

By fastcar on April 19, 2014

19 found this helpful


Good deal!

Put the shallow mount 8" in my mustang doors. Looks great and has good sound!

By B on March 31, 2014

19 found this helpful


Audiobahn AMW80H - Low-profile, 8" Sub Driver

I used this low-profile, driver as a passive sub with a 130 hz crossover, in a small custom-built sealed cabinet designed to fit under a car seat in a very small space. For this project, limited mounting depth and DVC (for left and right channel) capability were primary considerations. The AMW80H did the trick. It fills in the bottom as well as you'd expect for an 8" sub, in spite of the low profile. Bass is quite clean and musical in spite of the passive circuit and crossover. I can't speak to it's durability or longevity, since it's only been in service a couple of months.

By Misha on June 21, 2014

18 found this helpful


Money well spent!!!!!!

I have 2 of these subs in my 01 silverado single cab truck, and they sound and feel AWESOME... Would recommend this to anyone that wants a small and cheap sound system that sounds and feels great...

By Wattz380 on January 22, 2014

18 found this helpful


Audiobahn sub

I have a 2010 Kia Soul+ that has a factory shallow-mount opening, so I was limited as to what I could put in and keep it factory, this little sub KICKS BUTT!!!!!!!!!

By frenchie2u on April 11, 2014

17 found this helpful


Kickin!

Replaced the stock 6 1/2 inch woofer in my Jeep Wrangler factory subbox in my center console. Trimmed up the box (won't be using a 6 1/2 inch woofer ever again) and sealed up with 3/4 inch foam insulation after partial fill of the box with fiber insulation. With the stock radio this installation now has the bass needed to be heard over highway noise - the stock one did not. Won't win any stereo competition, but sure make a big difference in the sound!

By DesertSasqwatch on February 10, 2013

18 found this helpful




MB1524 small

Memphis MB1524

1000W Peak (500W RMS) 15" MB Series Selectable 2-or 4-ohms Car Subwoofer

$199.95

List price $439.95

DX5320-BLACK small

Digital Tech DX5320 (Black)

20" TFT-LCD Overhead Ceiling Mount Flip-Down Monitor with Built-in IR Transmitter and Remote

$249.99

List price $499.99

DX5312-BLACK small

Digital Tech DX5312 (Black)

12.1" TFT-LCD Overhead Flip-Down Monitor with Built-in IR Transmitter and Remote

$109.99

List price $249.99

HIR9BGTA small

Boss HIR9BGTA

9" Universal Widescreen TFT Headrest Monitor w/ Built-In DVD Player

(1)

$129.99

List price $459.00

PRXS1044 small

Memphis PRXS1044

10" 4-Ohm DVC Power Reference Shallow Mount Subwoofer

$159.95

List price $159.95

ACCKMB1 small

Myron & Davis ACCKMB1

Mercedes Benz Vehicle Specific Bracket for PACCM85

$19.99

List price $98.99

HD555/595 Headphone Cable (510626) small

Sennheiser Replacement HD 555/HD 595 Headphone Cable - 510626

Genuine Original HD555 & HD595 Replacement Headphone Cable

(1)

$11.95

List price $24.95

uPAC-HON1 small

PAC uPAC-HON1

iPod and Aux Input Interface Adapter with HD Radio Option. Compatible with Select 2006-2009 Honda Vehicles

$139.99

List price $189.99

IX-10D4 small

SKAR Audio IX-10D4

200W 10" IX Series Dual 4 ohm Car Subwoofer

$59.99

List price $89.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1999 Dodge Intrepid

2020 Mazda 3

2018 Ford Transit Connect

2006 Ford Freestyle

2017 Audi Q3

2002 Dodge Ram 2500

2017 Ram 2500

2005 Kia Optima

2011 Mazda 6

1978 Dodge B200

Vehicle
Store
Delete

2019 Harley Davidson FLHT Electra Glide Standard

2001 Harley Davidson FLHTC/I Electra Glide Classic

Vehicle
Store
Delete

2013 Can-Am Commander E

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
