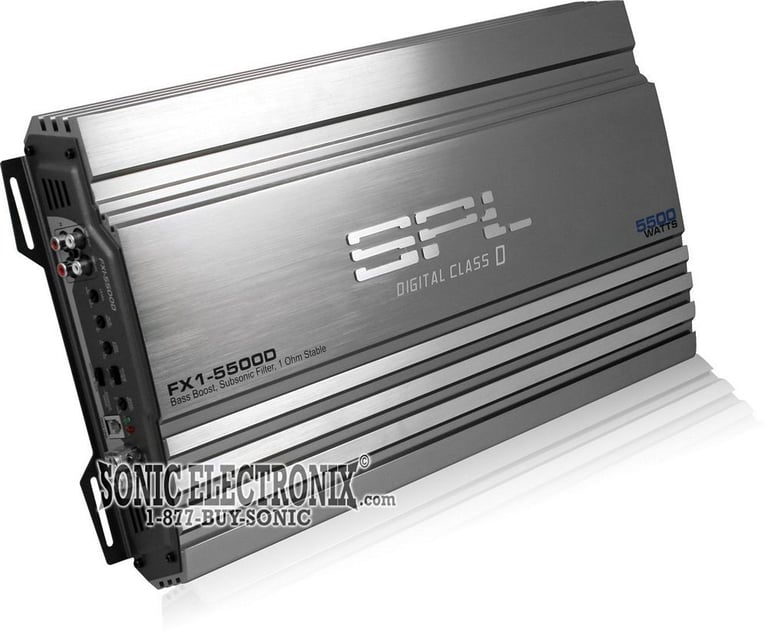

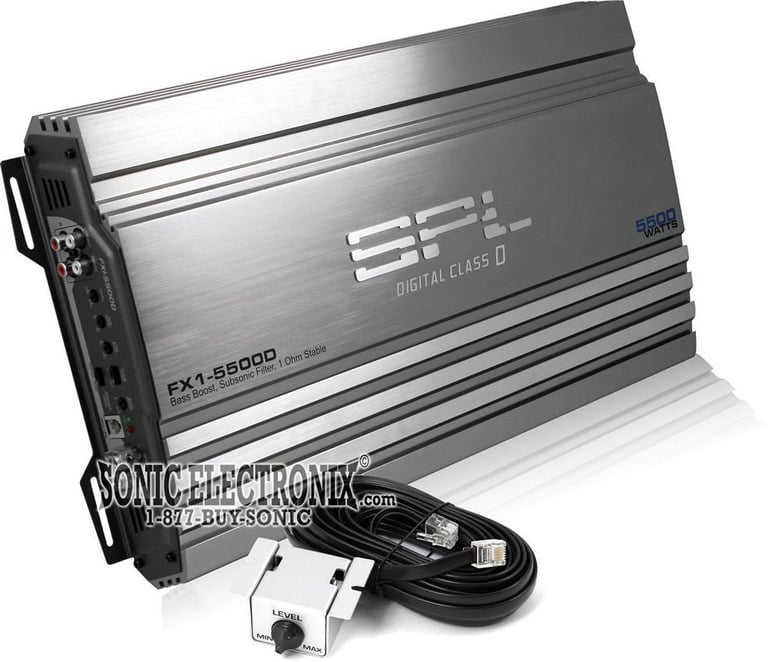

SPL FX1-5500D

5500W Max, Class D Monoblock Amplifier

SPL
Shop all SPL
Product videos
highlight-star-icon

FX1 Series 1-Channel Class D Car Amplifier • 1700W x 1 chan. @ 4 ohm • 2500W x 1 chan. @ 2 ohm • 3200W x 1 chan. @ 1 ohm • 5500W x 1 chan. Max • Nickel Plated Heavy Duty Power & Speaker Terminals

Learn more about the fx15500d

We apologize

This item has been discontinued


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Product Highlights


FX1 Series 1-Channel Class D Car Amplifier • 1700W x 1 chan. @ 4 ohm • 2500W x 1 chan. @ 2 ohm • 3200W x 1 chan. @ 1 ohm • 5500W x 1 chan. Max • Nickel Plated Heavy Duty Power & Speaker Terminals

Description


SPL brand icon

Authorized dealer

  • FX1 Series 1-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1700 watts x 1 chan.
    • 2 ohm: 2500 watts x 1 chan.
    • 1 ohm: 3200 watts x 1 chan.
  • Max power output: 5500 watts x 1 chan.
  • Fully regulated PWM Power Supply

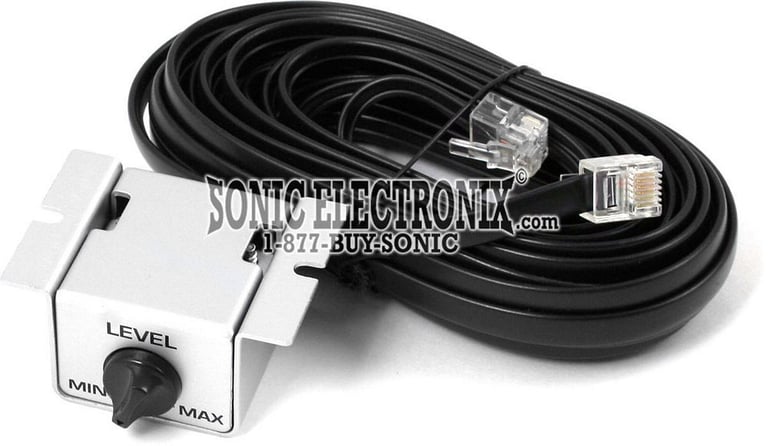

  • Wired remote bass level control included.
  • LED power and protection indicators
  • Tuned Bass EQ (0-18 dB bass boost)
  • High Speed Digital Circuitry
  • Single channel operation
  • Bridging Synchronization
  • System distress indicator
  • 4-Way Protection circuitry
  • Mono speaker output connector
  • Nickel Plated Heavy Duty Power & Speaker Terminals

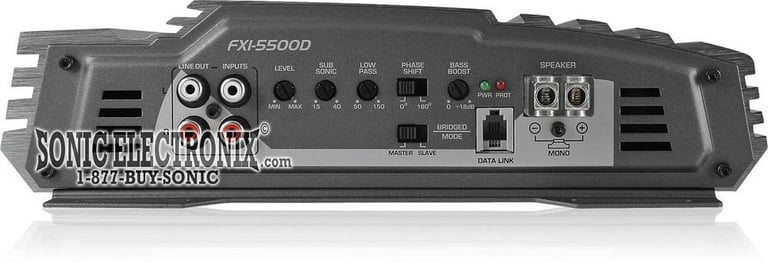

  • Phase Switch 0-180
  • Variable low-pass filter (50-150 Hz)
  • Subsonic Filter (15-40 Hz)
  • Frequency response: 15-150 Hz
  • Dimensions: 17.5" L x 10.3" W x 2.4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1700 watts x 1 channel
RMS Power @ 2 ohms
2500 watts x 1 channel
RMS Power @ 1 ohm
3200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
5500 watts
Total RMS Power Output
3200 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
.5%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes

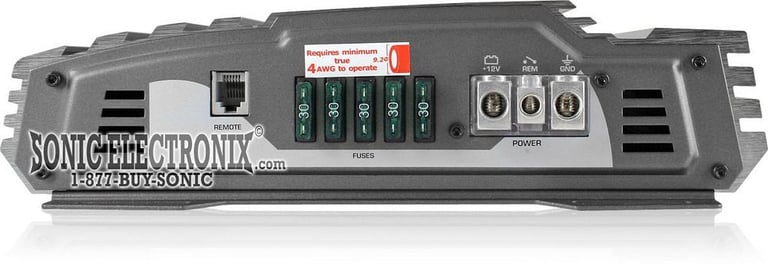

Fuse Rating
30A x 5
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

SPL

Model Number:

FX1-5500D

Weight:

17.00lbs

Internal SKU:

fx15500d

Internal Product ID:

9463

Product and How-to Videos


Customer Ratings & Reviews


SPL FX1-5500D thumbnail image

5 star
57%
4 star
21%
3 star
21%
2 star
0%
1 star
0%



Durability
4.6
Value
4.8
Features
4.7
Design
4.5
Usability
4.7

Customer Reviews

Sort by:

Loading...

Bridgeable?

I am looking to buy this amp & hook it up to 2-kicker cvx 2010 model. I wanted to know if this amp would be a good choice for them.

By Antonio on February 12, 2010

43 found this helpful


SPL FX1-5500D

THE SPL FX1-5500D IS A VERY POWERFUL AMP IT IS WORTH THE MONEY. IM VERY PLEASED WITH THIS AMP IT PUSHES MY MOFO 15S WITH NO PROBLEM. I LIKED THIS AMP SO MUCH I GOT MY LIL BROTHER TO BUY ONE FOR HIS SPL 15S. I WOULD RECOMMEND THIS AMP TO EVERYBODY AND ANYBODY

By TAZ on September 7, 2009

40 found this helpful


Good for the money

Really good base. Allot of power available. Pretty good Amp for the price, I am very happy with it. It's big so dont plan on putting it under your seat because it probably wont fit.

By Billy J on June 14, 2011

37 found this helpful


the best amp i have ever owned the trick is finding subs that it wont blow i started off with 2 12" kicker cvrs one of them now has a 4 inch crack in the face and the other has burned up voice coils and the amp was turned way down now it is hooked up to 2 10" L7s i dominated the last sound competition with a 165 out of a mini cooper

By david on July 11, 2008

36 found this helpful


Best amp I have had

This is one of the best amps I have ever owned. You can't match the power for the price! More bang for your buck!

By Julian on November 6, 2011

35 found this helpful


Wow

I have this amp running two Fi BL 18's and its nuts. For the price I couldn't be happier.

By Schroeder on April 23, 2010

35 found this helpful


Great AMP for PRICE. but not the actual OUTPUT.

This AMP gives out some nice Power for the price. but i had 2 Pioneer Premier 12" subs in and it wouldnt play both.( they run at 1000watts RMS) so i figure this amp only puts out about 1000 to 1500 watts at 1ohm. but for this price your getting a good deal. i will be buying another one of these to run both of my Subs.

By Adam on July 3, 2008

34 found this helpful


Great amp

pushing a set of 15's and a set of 12' and windows are flexin

By Keith on November 14, 2014

30 found this helpful


NOT TO BAD

This amp is not bad at all. has a lot of power it will not put out 5500 more like 1500 at most. thats a lot of power for the price try one you will like it

By Earl on February 7, 2012

30 found this helpful


great buy great price

Yea i bought the spl fx1-5500d its a great amp it will push any sub but after six months it started blowing fuses

By HEAVYD on September 5, 2011

29 found this helpful
