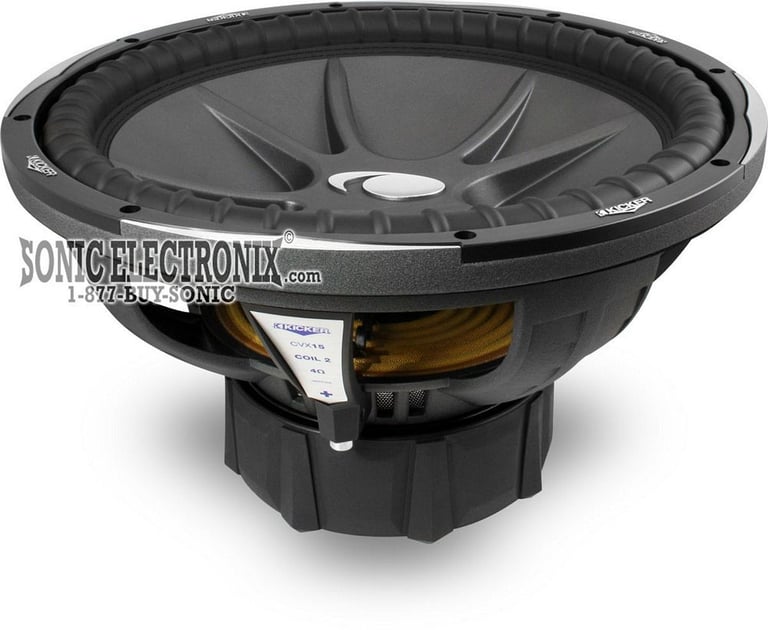

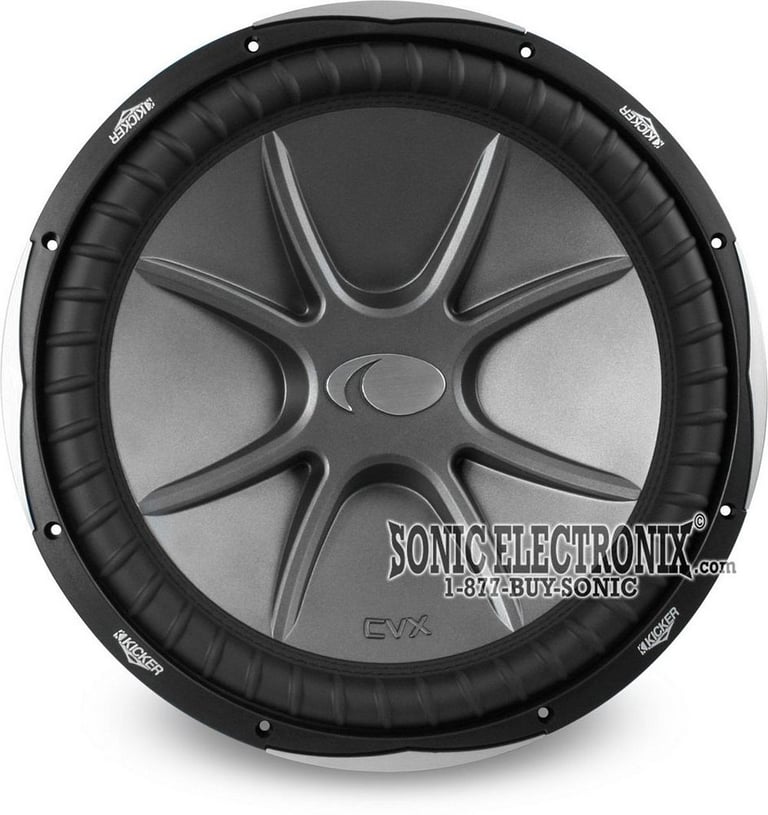

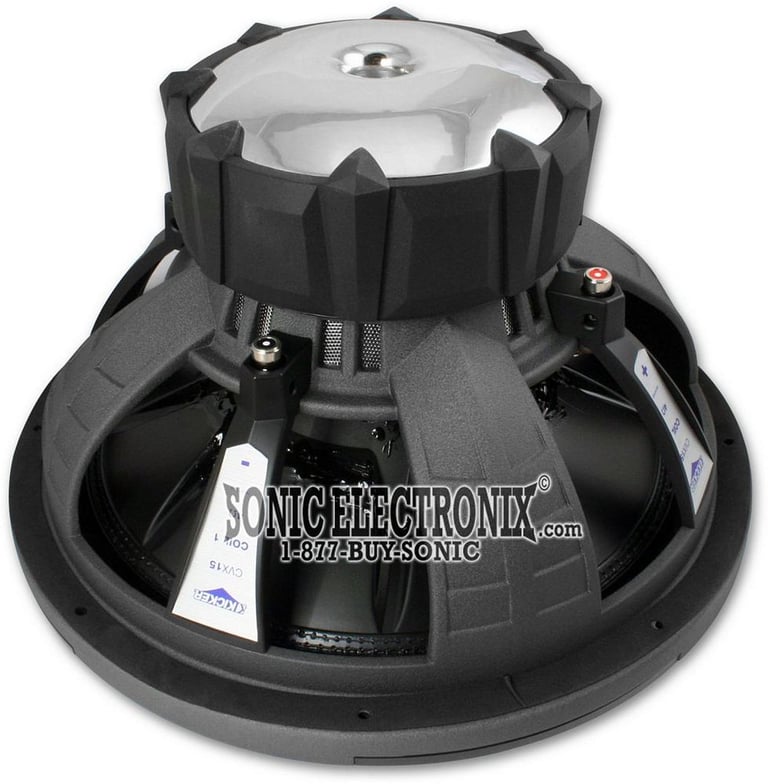

Kicker CVX154 (06CVX154)

15" Dual 4 ohm CompVX Series Car Subwoofer

Kicker
Shop all Kicker
Product videos
highlight-star-icon

15" 2000 watt Component Subwoofer • Dual 4-ohm Voice Coils • 1000W RMS • Polymineral Injection ISD Cone • Stamped Steel Basket • Ultra-Length Voice Coils • Rear Cone Brace

Learn more about the 06cvx154

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

50cvx124 thumbnail

Kicker 50CVX124

OUR PRICE: $237.96

View item

Product Highlights


15" 2000 watt Component Subwoofer • Dual 4-ohm Voice Coils • 1000W RMS • Polymineral Injection ISD Cone • Stamped Steel Basket • Ultra-Length Voice Coils • Rear Cone Brace

Description


Kicker brand icon

Authorized dealer

  • 15" CompVX Series Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 1000 watts
  • Inverted Structural Dome Polymineral Injection Molded Cone: Remains rigid, and lowers distortion
  • Ribbed Santoprene Surround for Linear Cone Motion
  • Rear Cone Brace: Offers unmatched strength and resistance to deformation
  • Stitched Surround: Ensures the cone and surround won't separate, even under the highest loads
  • Silver-Coated Stamped Steel Basket
  • High-temp Polyimide Film Voice Coil Former
  • Dual Ultra-Length Voice Coils
  • Perimiter Venting
  • Sleeved High-Power Tinsel Lead Wires
  • Spring Loaded Nickel-Plated Terminals
  • Other search terms: 06CVX15, 06CVX154, CVX15, CVX154, CVX 15" 4 ohm
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

Kicker 50CVX124 thumbnail
(newest, current model)
Kicker CVX154 thumbnail
(previous model, replaced by Kicker 50CVX124)
Kicker 10CVX154 thumbnail
(previous model, replaced by Kicker CompVX CVX154 (44CVX154))
Kicker CVX154 thumbnail
(previous model, replaced by Kicker 15" CompVX 4 Ohm (10CVX154))

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker CVX154 (06CVX154) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker CVX154 (06CVX154) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker CVX154 (06CVX154) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Kicker CVX154 (06CVX154) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
CompVX Series
Subwoofer Size
15"
Peak Power Handling
2000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
Frequency Response
18 - 500 Hz
Sensitivity
92.3 dB
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Polymineral
Woofer Surround
Santoprene Rubber
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.8 cubic feet
Maximum Sealed Box Volume
5.2 cubic feet
Minimum Ported Box Volume
3 cubic feet
Maximum Ported Box Volume
5 cubic feet
Top-Mount Depth (Mounting Depth)
8-1/4"
Cutout Diameter
13-7/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CVX154

Weight:

35.00lbs

Internal SKU:

06cvx154

Internal Product ID:

6516

Product and How-to Videos


  • KICKER CVX Car Subwoofer Loaded Enclosure Loud Sub Shows Bass Thumps
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews



5 star
95%
4 star
5%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.8
Design
4.9
Usability
5

Customer Reviews

Sort by:

Loading...

Great

The following review is for 10CVX154, which is a part of the bundle you are viewing.

Well i bought one of these for my friend cuz he wanted some loud bass. We are powering it with a hifonics brz1200.1 and let me tell you THIS THING POUNDS!! We put it in the back of a Tacoma extended cab and the very first day we broke his side hatch window!! He is very pleased and i would reccomend this sub to anyone.

By Kevin on November 30, 2011

38

found this helpful.

15 CVX Dual 4 ohm

The following review is for 10CVX154, which is a part of the bundle you are viewing.

would highly recommend this sub to anyone who is SPL hungry, i have one of these subs powered by an ASA 1000.1 power bass amp only running at half power, due to my large 5.0 cubic foot ported box. With this beast you can hear coming at least 2 blocks away in the city. Would reccomend two batteries to get the most output and 0 gauge wiring.

By windy city guy on November 27, 2011

36

found this helpful.

bang for your buck

The following review is for 10CVX154, which is a part of the bundle you are viewing.

i upgraded to this cvx from a rockford fosgate p3. considering this sub is on average only 30 bucks more than the p3... its packs twice the power!! crystal clear sound and hits every single note!!! highly reccomend kicker products to anyone. i would totally get 2 of these if i had the room. (not that u will need 2 of them tho one does just fine)

By Devin on September 29, 2011

36

found this helpful.

HITS HARD AND CLEAN! Best sub ive ever had

The following review is for 10CVX154, which is a part of the bundle you are viewing.

I have 2 of these in a custom sealed box wired to a Hifonics BRZ2400.1D @ 1 ohm and they SLAM! The bass sounds really good and it'l shake everything around you. All of my windows need to be resealed because the bass knocked them loose. Everyone who gets in my car is impressed at how good it sounds. If i could i'd try them out in a ported box but this sealed box sounds so good i might just keep them this way.

By Big Stu on January 28, 2012

36

found this helpful.

Amazing

The following review is for 10CVX154, which is a part of the bundle you are viewing.

These subs are catching lows! They have a great range of sound and are producing tons of bass. My truck is slowly falling apart lol. They hit tremendously hard if powered right! Very similar to the sound of an L7 but a little more inexpensive. They have been the best subs i have had so far and I have 2 15" 4ohmDVC's powered by a Rockford Fosgate T1000-1bd wired at 1ohm. They are definitely satisfying my bass addiction. Very sturdy subs as well. They look awesome, sound great, and people WILL know you have a system...trust me. These things are beyond wangin'. Again i stress they HIT HARD! The best part is you not only hear the bass but FEEL it too. Great Subs. Def recommend.

By Jeremy on August 15, 2010

35

found this helpful.

These subs knock!

The following review is for 10CVX154, which is a part of the bundle you are viewing.

I have 2 of these hooked up to a hifonics bxi 2608, which is putting out at least 2400 rms, in a ported box tuned to 32 Hz, wired to 1 ohm, and I'm hitting 135 db at the dashboard all day long with no problem. When I put 'em in my custom box tuned to 28 Hz, I was getting over 140db, nearly blew out the windows. The SQ is beautiful. I would say that you could probably put about 1300 watts to each of these and be fine. Bottom line, these subs are built to handle quite a lot of power, and they get really loud, hair trick loud. Keep in mind, with good subs like this, don't waste your time with an amp and a battery that don't have the power to push 'em. If you are thinking about a nice system for your daily driver, do a custom build with these and you will not be disappointed.

By The BigHAM bass on February 23, 2014

34

found this helpful.

great sub

The following review is for 10CVX154, which is a part of the bundle you are viewing.

These are great subs if in the correct box with the right amp. I have 1 in a 5.0 cube box ported to 32 htz, on a memphis 1000.1 and it gets down!!! just wished i got the d2 instead. Only getting half my watts to it, but its still loud. I would tell anyone to get it. Livin loud n loving it.

By get right on October 10, 2012

34

found this helpful.

Biggest Bang For Your Buck!!!

I'm running 2 CVX-15 4ohm speakers parallel bridged in my 07' Avalanche ported box built to speaker spec. according to kicker. I'm using a Pioneer PRS-D2000SPL 4000 Watt amp which rates at 2000RMS at 1 ohm. Which is the perfect combination for this set up seeing how my speakers rate at 1000RMS at 1 ohm. Plenty off power out of this amp to do the job. I had the box custom built and everything was professionally installed. Very crisp clean sound thats suitable for soft eleagate bass but can be cranked up using its bass control knob when listening to hard rock or rap.

By Cole on November 30, 2009

32

found this helpful.

Great build quality and sound

The following review is for 10CVX154, which is a part of the bundle you are viewing.

The cone is all plastic and very stiff. The surround is rigid and appears very durable. They are sewn together, which also is very durable. Sounds great. Push style wire connectors work well and will take up to 10 gauge speaker wire. Includes hole cutout template as part of box. I built a box into my sofa using the specs for a sealed high sound quality box - and it is very good quality. Powering with an AudioSource AMP310, bridged. It could take more power than that.

By Mike on March 17, 2014

33

found this helpful.

Redic

The following review is for 10CVX154, which is a part of the bundle you are viewing.

This sub is amazing. I have it hooked up to a pioneer 600rms 1200 peak amp and this thing slams. Its in A 5 cubic box in a camry!! shakes the car to death. I recommend a hifonics brutus 1700 amp.

By Chuck on September 16, 2011

32

found this helpful.
