Memphis 16-MCD4KW

4000W RMS, Class D Monoblock MOJO Series Amplifier

Memphis
Shop all Memphis
Product videos
highlight-star-icon

MOJO Series Monoblock Class D • 4000W RMS x 1 @ 1 • 2000W RMS x 1 @ 2 • Low Heat Generation • Gold-plated RCA Inputs • MOSFET Power Supply • Custom Black Pearl Finish • Power, Protection, Blown Fuse LED Indicators

Learn more about the 16mcd4kw

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

Product Highlights


MOJO Series Monoblock Class D • 4000W RMS x 1 @ 1 • 2000W RMS x 1 @ 2 • Low Heat Generation • Gold-plated RCA Inputs • MOSFET Power Supply • Custom Black Pearl Finish • Power, Protection, Blown Fuse LED Indicators

Description


Memphis brand icon

Authorized dealer

This amplifier has a beauty that runs much deeper than its custom black pearl finish. Its super efficient microprocessor-controlled power supplies produce amazing bass on less electrical current than most ordinary amps and generate less heat. Most monoblock amplifiers are not bridgeable, but with a special Memphis device, you can bridge together two of these amplifiers to double your power. This amp runs a true 4000 watts of clean power at your disposal.

  • MOJO Series Monoblock Class D 4000W Max Amplifer
  • RMS Power Rating:
    • 4 ohm: 1000 watts x 1 chan.
    • 2 ohm: 2000 watts x 1 chan.
    • 1 ohm: 4000 watts x 1 chan.
  • Max power output: 4000 watts x 1 chan.
  • Total Harmonic Distortion:
    • 4 ohm: 0.5%
    • 2 ohm: 0.75%
    • 1 ohm: 1.0%
  • MOSFET power supply
  • Remote bass level input (remote level control sold separately)

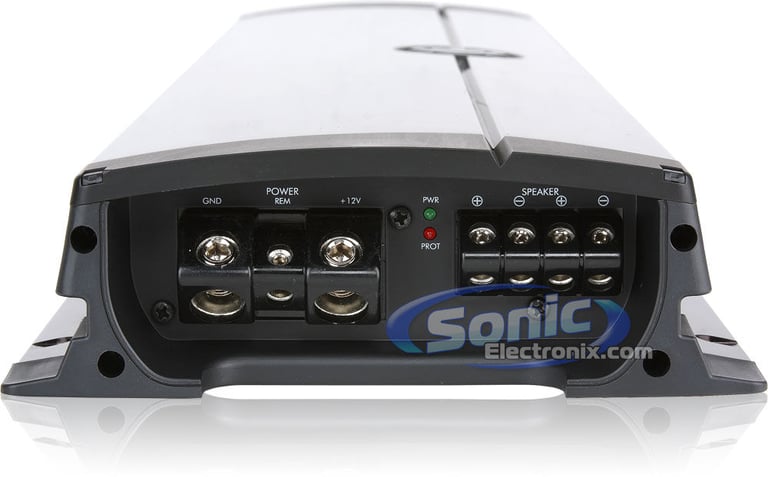

  • Power, protection and blown fuse LED indicators

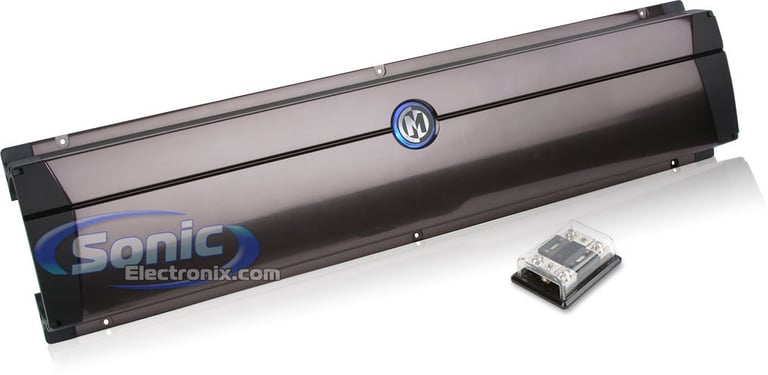

  • Custom black pearl finish
  • Signal To Noise Ratio: 95 dB
  • Input Sensitivity: 250mV - 9V
  • Input Impedance: 22Kohm
  • Damping Factor: >50
  • Output Impedance: 1-4Ohm

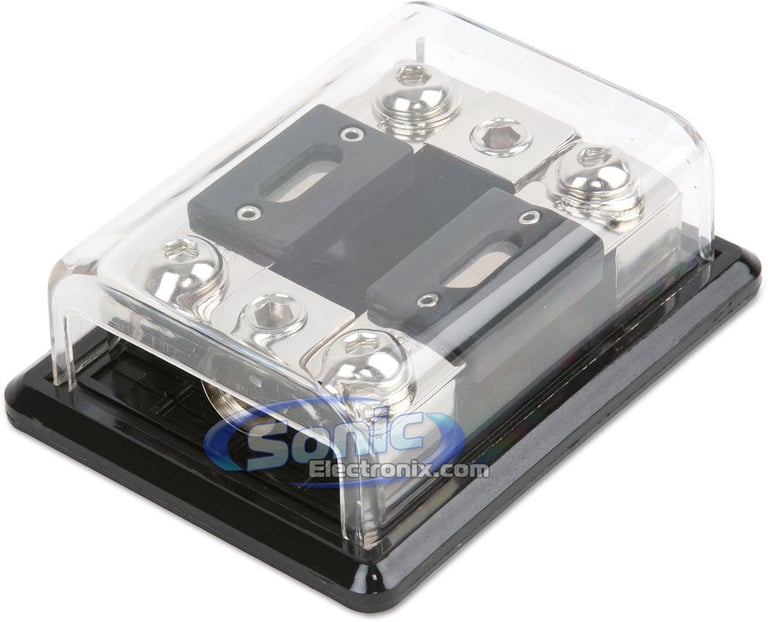

  • Includes 0 gauge fuse holder with two 250 amp ANL fuses
  • Low heat generation

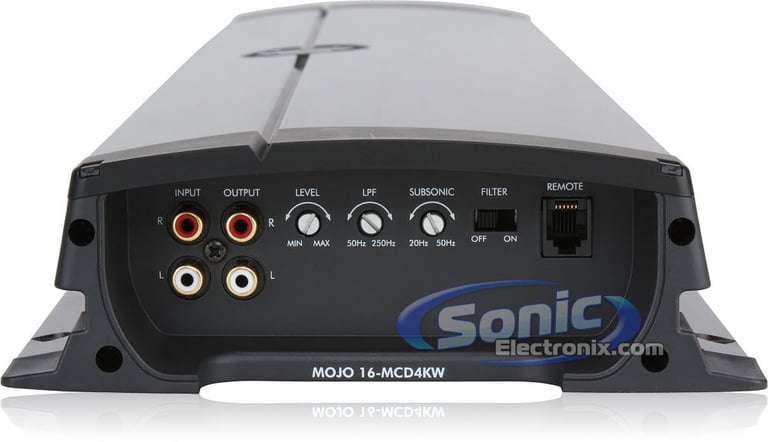

  • Gold-plated RCA inputs
  • Buffered RCA low level output (loop through)
  • Variable low-pass filter (50-250 Hz, 18 dB/octave)
  • Variable high pass subsonic filter (20-50 18dB/octave)
  • CEA-2006 compliant amplifier
  • Dimensions: 31-1/2"L x 7-5/8"W x 2-1/2"H
  • 0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty
Note: Vehicle charging system upgrades are mandatory.

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
1000 watts x 1 channel
RMS Power @ 2 ohms
2000 watts x 1 channel
RMS Power @ 1 ohm
4000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4000 watts
Total RMS Power Output
4000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.5%
Speaker Level Inputs
No
Preamp Outputs
2 pairs
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
95 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
250A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

16-MCD4KW

Weight:

38.00lbs

Internal SKU:

16mcd4kw

Internal Product ID:

16687

Product and How-to Videos


Customer Ratings & Reviews


Memphis 16-MCD4KW thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.4
Value
4.7
Features
4.4
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Do you really need this insane amp?

I got this amp from this store in good price. I have used them to drive 2 12 inch orion hcca subs. Before you buy this YOU MUST HAVE THE POWER!! to support them. I have a 160 amp alternator and 2 crap battery ( delco or optima or kinetik. battery is a battery go for h/o alt. instead) You should have at least 160amp+ and 1 gauge wiring in this. Compare it to my friend rockford t4000.1 by this size i could fit it in any place unlike rf and for power i broke my glass and bank. Its all depends in your power source. Not for noobs and broke people. This is overkill amp

By Meztizas00 on December 14, 2009

21 found this helpful


Big Power

If you need big power this is it! I have this amp hooked up to a 15" quad coil mojo in my explorer. This combo is out of this world. I crush any one who tries me. 2 or 3 15" L7s don't stand a chance. Alternator and battery mod is a MOST OR IT WILL OVER HEAT.

By Q on November 22, 2009

19 found this helpful


Straight Beast!!

This amp is a powerhouse!! If you have a realistic chance of getting 1 don't pass it up.Like said before you need to upgrade your alt and batteries.It does not like low voltage.NOT A NOOB AMP!!

By Jes on October 24, 2013

17 found this helpful
