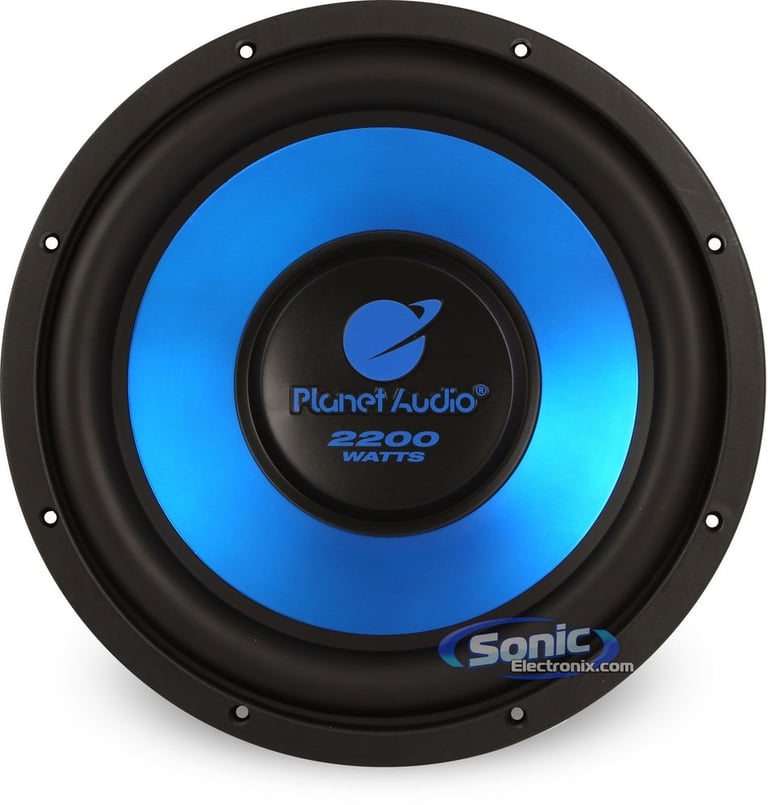

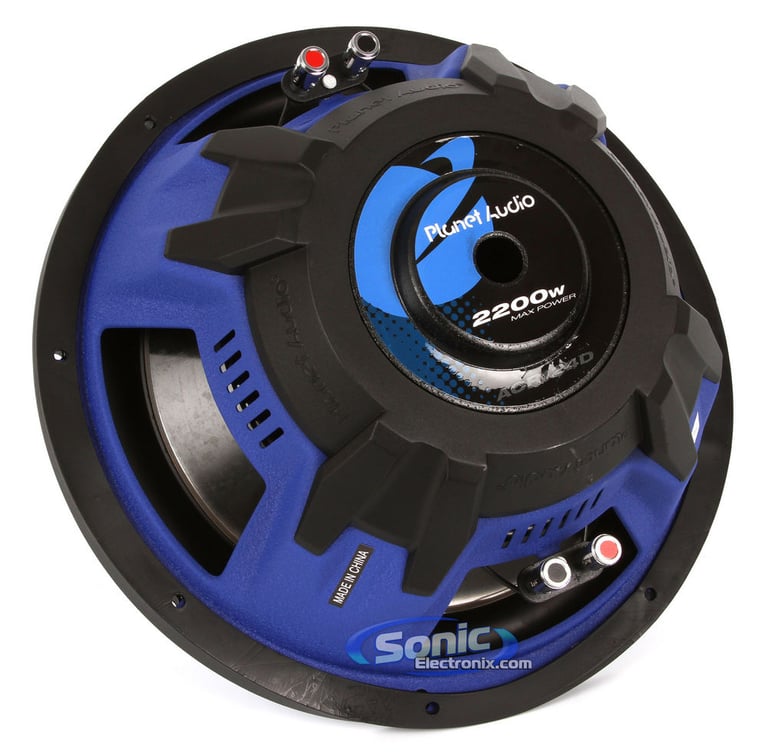

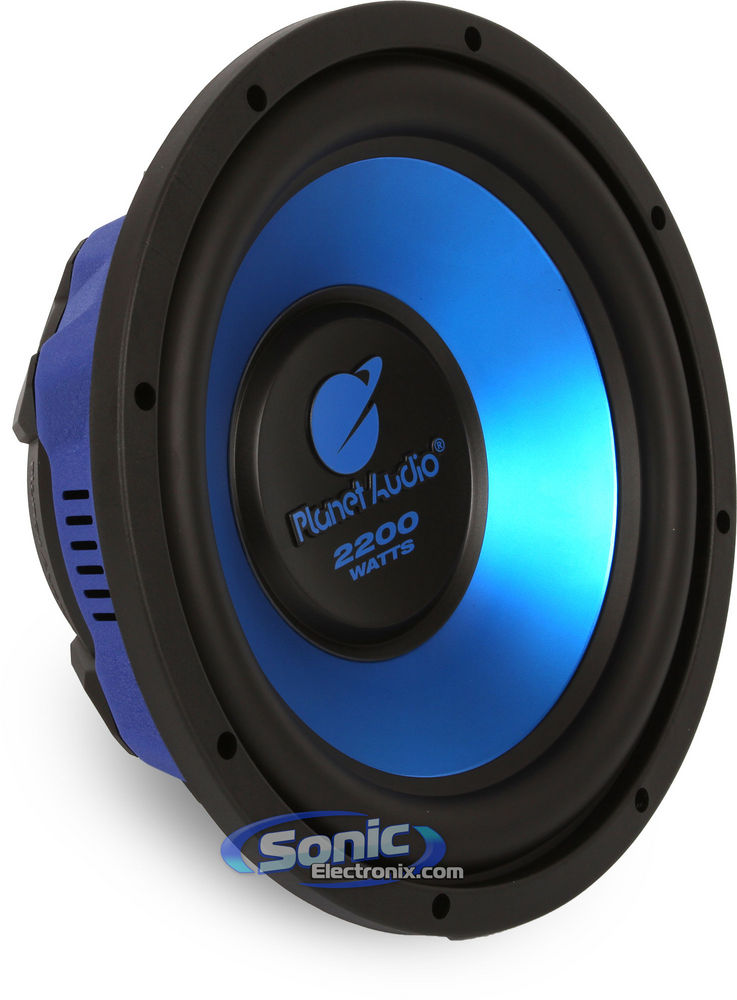

Planet Audio ACR124D

12" Dual 4-Ohm Anarchy Series Subwoofer

Product videos
highlight-star-icon

• 2200W Peak
• 1100W RMS
• Dual 4-Ohm Voice Coil
• Color Chrome Treated Poly Injection Cone
• Butyle Rubber Surround
• Blue Stamped Steel Basket

Learn more about the acr124d

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

95-8202 main

Metra 95-8202 Dash Kit

Install a new Double-DIN car stereo in select 2000-2020 vehicles from Toyota, Subaru, Scion

35
-43.50%

$12.99

List price $22.99

82-3412 main

Metra 82-3412

Speaker Adapter Bracket for select 1998-2024 vehicles from Chevrolet, GMC, Subaru

1
-34.63%

$16.99

List price $25.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

115
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
CAR723W main

Jensen CAR723W

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

15
-11.11%

$239.99

List price $269.99

Product Highlights


• 2200W Peak
• 1100W RMS
• Dual 4-Ohm Voice Coil
• Color Chrome Treated Poly Injection Cone
• Butyle Rubber Surround
• Blue Stamped Steel Basket

Description


Planet Audio brand icon

Authorized dealer

General Features:

  • 12" Dual 4-Ohm Anarchy Series Subwoofer
  • Power Handling:
    • Peak: 2200 watts
    • RMS: 1100 watts
  • Impedance: Dual 4 ohm
  • Color Chrome Treated Poly Injection Cone
  • Butyle rubber surround
  • Blue stamped steel basket
  • Dual 2" High Temp Kapton voice coil
  • Frequency response: 28-2500 Hz
  • Resonance Frequency (Fs): 31 Hz
  • Top-mount depth: 5-1/8"
  • Sensitivity: 96 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Planet Audio ACR124D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Planet Audio ACR124D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Planet Audio ACR124D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Planet Audio ACR124D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(1)

$599.99

List price $719.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Anarchy Series
Subwoofer Size
12"
Peak Power Handling
2200 watts
RMS Power Handling
1100 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
28 - 2500 Hz
Sensitivity
96 dB
Subwoofer Design
Round / Circle
Main Cone Color
Blue
Woofer Composition
Injection Molded Polypropylene with Metallic Finish
Woofer Surround
Butyl Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.5 cubic feet
Optimum Ported Box Volume
1.8 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
31 Hz
Equivalent Compliance (Vas)
2.132 liters
Total Speaker Q Value (Qts)
0.918
Electrical Q Value (Qes)
1.082
Electrical Resistance of Voice Coil (Re)
1.8 ohm
Mechanical Q Value (Qms)
6.04
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ACR124D

Weight:

10.00lbs

Internal SKU:

acr124d

Internal Product ID:

65761

Product and How-to Videos


Customer Ratings & Reviews


Planet Audio ACR124D thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
4.5
Features
5
Design
4.5
Usability
5

Customer Reviews

Sort by:

Loading...

great

It works good! good bass..bass..bass.. bass. bass bass bass

By Daviid on September 29, 2013

9 found this helpful


WOW..

I just installed these 2 12" subs in a custom ported box tuned at 35 hz..with a PX4000.1D at 2 ohm load..in my friend's 97 civic hatch..it sound's amazing..the trunk door and sides of the car rattles big..good stuff and can't beat the price..

By edrick on June 7, 2013

10 found this helpful




FS-50 small

Crimestopper FS-50

2-way Car Alarm, Keyless Entry, Remote Start Vehicle Security System w/ 1 LCD and 1 Side Kick Transmitter

$109.99

List price $299.99

SLICK10-V2 small

VIBE Audio Slick S10 (SLICK10-V2) Open Box

10" Single 4 ohm Slick Series Subwoofer

$39.99

List price $99.99

CS-2014FM small

Crimestopper CS2014FM / CS2014TW2

SuperPage 2-Way LCD Pager Alarm ( CS-2014TW2 / CS2014FM TW2 )

$114.99

List price $199.99

3015-STROCNT small

Griffin 3015-STROCNT

6 ft. (1.83 Meters) of iPhone and iPod StereoConnect Cable

$8.99

List price $14.99

C3RS-622LCD small

AutoPage C3 RS-622 LCD

Two Way LCD Remote Car Starter with Keyless Entry and Data Bus Serial Communication Port (RS622, RS-622LCD)

$109.99

List price $169.99

U1155TL small

Ultra Start by AST U1155TL

Add on Remote Start System Works with Factory and After Market Alarms

$49.99

List price $99.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2005 Toyota Highlander

1994 Mazda 323

1990 Jaguar XJS

2023 Kia EV6

2012 Toyota Sequoia

2016 Kia Forte

2020 Audi RS5

1986 Ford Ranger

1966 Buick Special

1974 Dodge Monaco

Vehicle
Store
Delete

2005 Harley Davidson FLHTC/I Electra Glide Classic

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
