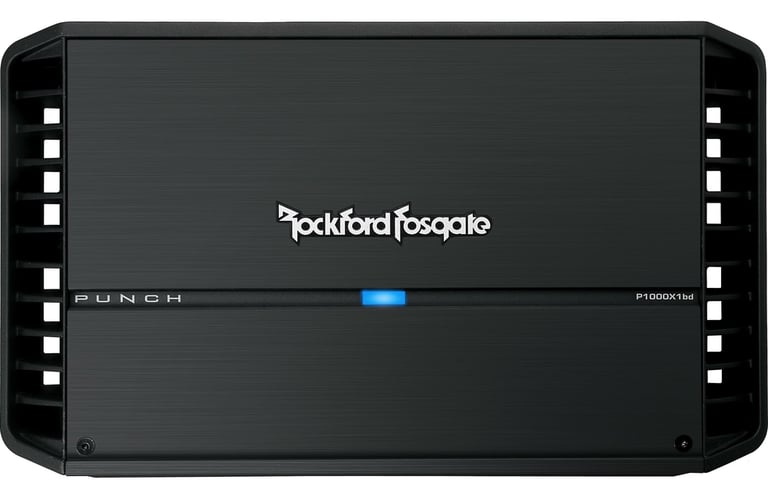

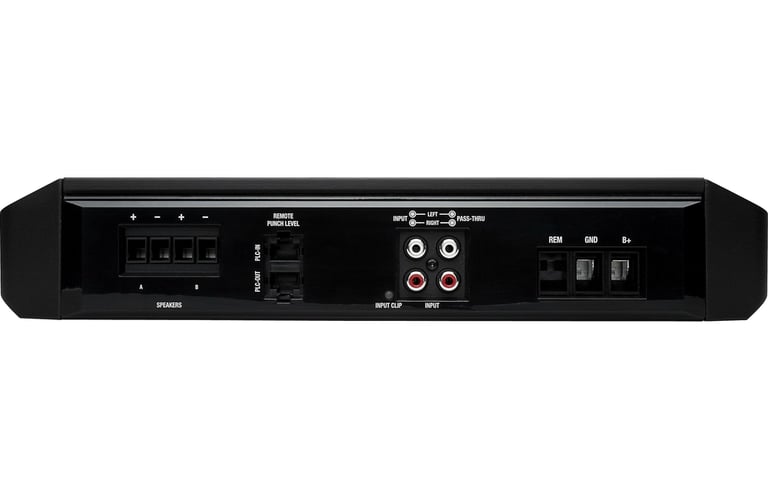

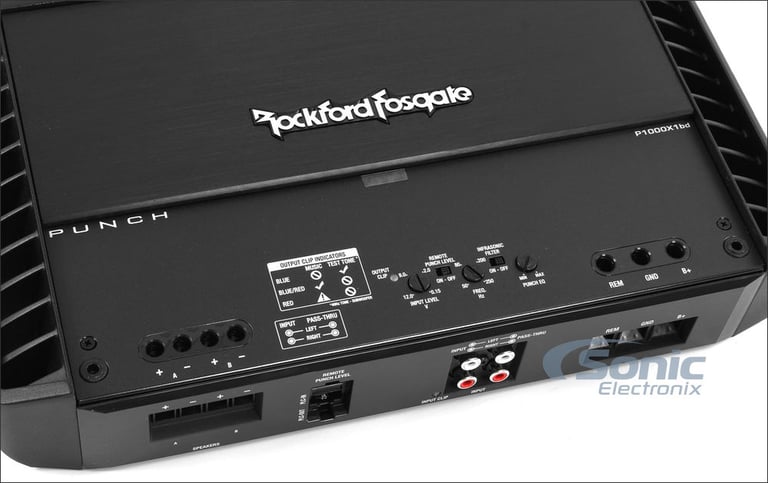

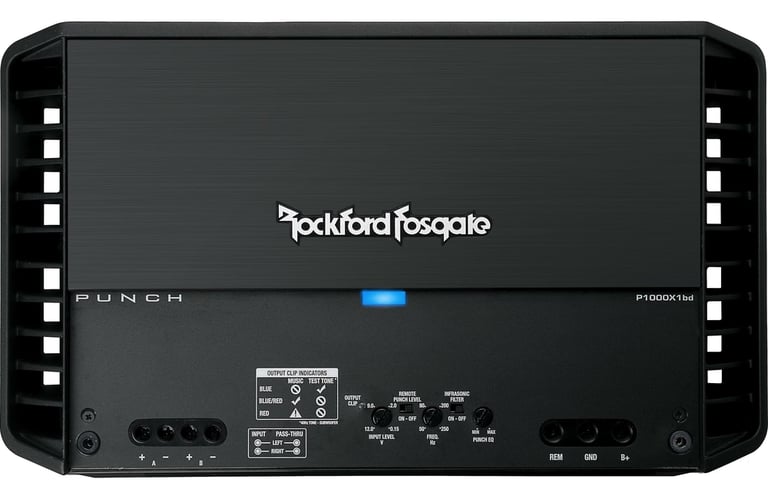

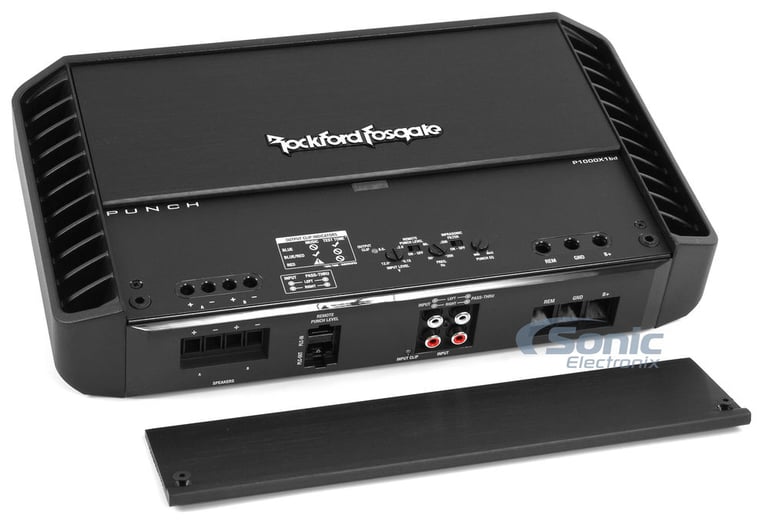

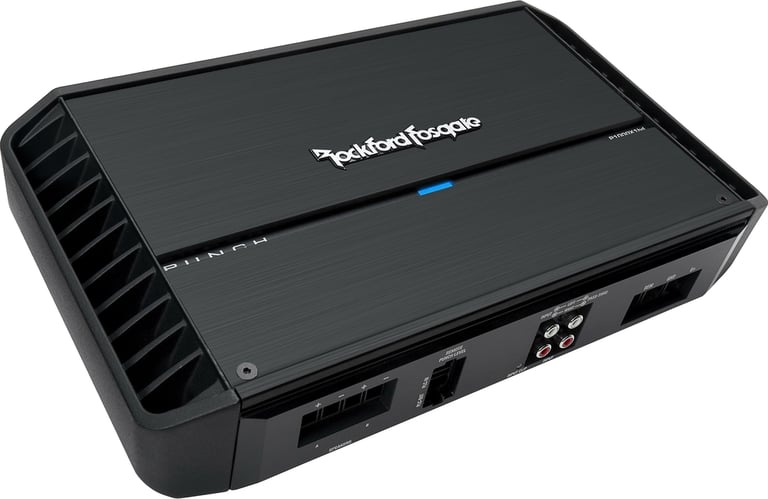

Rockford Fosgate Punch P1000X1bd (Open Box, Like New)

1000W RMS Class BD Punch Series Monoblock Car Amplifier

Lowest price in 30 days
highlight-star-icon

• 300 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class BD 1 ohm Stable Monoblock Amplifier

Learn more about the p1000x1bd_obn

We apologize

This item has been discontinued

Description


Rockford Fosgate brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)


P1000X1BD

The Punch P1000X1bd mono amplifier pumps out 1,000 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response is optimized for subwoofers. With its super efficient Class-BD circuit topology, the P1000X1bd assures maximum BOOM for your buck. Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.


Rockford Fosgate Punch P1000X1bd

1000W RMS Class BD Punch Series Monoblock Car Amplifier
Quantity: 1

Product Details:

  • Punch Series Class BD 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 channel
    • 2 ohm: 500 watts x 1 channel
    • 1 ohm: 1000 watts x 1 channel
  • Total RMS power output: 1000 watts
  • Power, protect, thermal, input, and output clip LED visual indicators
  • Wired bass level remote control with optional Rockford Fosgate PLC2
  • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
  • 1 pair of pre-amp outputs
  • Features C.L.E.A.N. Set-up
  • RCA pass-thru outputs
  • 12dB/octave Butterworth crossover
  • High level input capable with Auto Turn-On circuit
  • Short circuit and over current protection
  • Cast aluminum heatsink
  • Stealth top mounted control panel
  • Muted turn on
  • On-board Punch EQ with +18dB boost @ 45Hz
  • CEA-2006 compliant
  • Input sensitivity: 150mV - 12 volts
  • Frequency Response: 20 - 250 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 80 dB
  • Variable low-pass filter: 50 - 250 Hz
  • Subsonic filter: Fixed at 28Hz @ 12dB/Octave
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 140A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 7.76" L x 13.28" W x 2.38" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: P1000X1BD

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Speaker Level Inputs
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
1000 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
491 watts x 1 channel
Peak Power @ 2 ohms
874 watts x 1 channel
Peak Power @ 1 ohm
1430 watts x 1 channel
Amplifier Specifications
Series
Punch Series
Amplifier Class
BD
Number of Channels
1 - Mono
Total Peak Power Output
1430 watts
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
20 - 250 Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
0 - 28 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
140A x 1
Total Fuse Rating
140
Strappable
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
150mV - 12 volts
What is in the box?
Paperwork
User manual
Quick start guide
WITB: Amplifiers
Amplifier
Mounting screws (4)
Allen wrench
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

P1000X1BD_OBN

Weight:

12.00lbs

Internal SKU:

p1000x1bd_obn

Internal Product ID:

223768

Customer Ratings & Reviews


Rockford Fosgate Punch P1000X1bd (Open Box, Like New) thumbnail image

5 star
89%
4 star
11%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

What I was looking for

The following review is for P1000X1BD, which is a part of the bundle you are viewing.

Works great for me. Accidentally wired my subs for .5 ohms and sub still ran fine.

By cda4life on May 4, 2014

64 found this helpful


heavy hitter

The following review is for P1000X1BD, which is a part of the bundle you are viewing.

I would recommend this amp if u looking for hard bass this amp is for u and the price is always great with sonic.

By big rich on May 21, 2015

56 found this helpful


Great sound

The following review is for P1000X1BD, which is a part of the bundle you are viewing.

My girlfriend got this for me and it was a huge difference I got this amp pushing 2 jl 15w0v3 in a ported box and they shake windows very satisfied thanks sonic!!

By brad on March 27, 2015

52 found this helpful


Good amp

The following review is for P1000X1BD, which is a part of the bundle you are viewing.

This gives my Re sex12s good work out. Good lows. I'm happy with it

By Josh on June 5, 2015 Checkmark Icon Verified purchase

48 found this helpful


Rockford Fosgate Punch P1000X1bd

The following review is for P1000X1BD, which is a part of the bundle you are viewing.

First off, like all RF gear its underrated. My P1000x1bd's birth sheet specs it at 1472 watts at 1 ohm. Here are the pros/cons of this amp

PRO
- high power, sounds pretty good
- no turn on wire required, can "listen" to the rca inputs and turn the amp on or off
- has crossover and hpf
- accepts a large range of input voltages
- relatively compact for actual power output and runs cool even after extended high volume listening

CON
- at start up I hear a high pitch (almost like alternator whine but not actual alt whine) sweep as the amp comes to life. It takes about 20-30seconds and it starts at ~15khz and sweeps down to like 8-10khz. its not loud, but it is audible and is coming through 15" subs and its own internal LPF set to 80-100hz. After this is complete, it does not have any noise present and is a quiet amp
- my line levels are 5v and it needs to have the input sensitivity cranked to the .5v setting to balance with the rest of my system. Could just be that my line out isnt really 5v. However, the full range amp I am running is also a rockford amp and adjustment seems to be on point with 5v.
- you have to buy the bass knob. Come on RF. charge more if you need to include a 5 $ (your cost) bass knob in the box. I am not buying one on principle alone.

I am running 2 RF 15" P3d4s at 1ohm and they are a perfect match for the power this amp creates. Its definitely a bass heavy system, but doesnt have to be obnoxious either.

By Anonymous on May 24, 2018 Checkmark Icon Verified purchase

36 found this helpful


Punch 1000

The following review is for P1000X1BD, which is a part of the bundle you are viewing.

Very good amp price was good have this in 2010 tahie with 2 10 p2 fosgates and bass is clean and powerful. Set up was easy dont be confuesd on speaker connection still one channel. Tuning procedure was easy also

By Michael on December 21, 2017

36 found this helpful


Great quality

The following review is for P1000X1BD, which is a part of the bundle you are viewing.

Easy to set up with its built in hardware and music cd. Saves speakers by showing when you clip via led. Mine put our nearly 1300w rms. Never gets hot. Hide away controls and simple power wire connections.... i loved this amp when I had it.

By Kelvin on February 24, 2017 Checkmark Icon Verified purchase

35 found this helpful


A Dying Breed

The following review is for P1000X1BD, which is a part of the bundle you are viewing.

There arent many companies left whos power ratings actually stand up with the performance of the amp, BUT Rockford still sends a 1000x1 amp that still contains a CEA birth certificate. My amplifier was born pushing 1521 watts RMS. yes it really does. If you want the power and you want the label to tell you the power ratings that are as good or better than the number in the name, There is only one place left to look that i know of since Pheonix Gold sold out long ago. Rockford Fosgate, for the real world stats and ability to get beat up as they will from time to time

By Joshua on August 9, 2020

34 found this helpful


Great price

The following review is for P1000X1BD, which is a part of the bundle you are viewing.

Great amp for an even better price birth sheet reads 1400++ watts perfect match for my p400x4 which also birthed out Lil under 600! Can’t go wrong with these underrated quality amps!

By emmanuel on April 12, 2020 Checkmark Icon Verified purchase

36 found this helpful


Great customer service

The following review is for P1000X1BD, which is a part of the bundle you are viewing.

I don't understand why there's bad reviews with this company I got in touch with them easily 3 times I usually stay on hold with Comcast way longer they were quick to answer my questions shipment arrived when it was supposed to awesome Place great pricing

By Anonymous on September 27, 2018 Checkmark Icon Verified purchase

33 found this helpful
