JVC KW-AV61BT (Factory Refurbished)

In-Dash 6.1" Touchscreen DVD/MP3/USB Car Stereo Receiver w/ Bluetooth, iPod Support & Pandora Link

JVC
Shop all JVC
Product videos
highlight-star-icon

• Double DIN 6.1" LCD Touchscreen Display
• 50W x 4 Chan. Max, 20W x 4 Chan. RMS
• 3 Sets of 4V Preamp Outputs
• 3-Band Parametric Equalizer
• 24bit Digital Analog Converter
• Bluetooth Technology
• iPod and iPhone Support

Learn more about the LS-kwav61bt-RB

We apologize

This item has been discontinued

Product Highlights


• Double DIN 6.1" LCD Touchscreen Display
• 50W x 4 Chan. Max, 20W x 4 Chan. RMS
• 3 Sets of 4V Preamp Outputs
• 3-Band Parametric Equalizer
• 24bit Digital Analog Converter
• Bluetooth Technology
• iPod and iPhone Support

Description


JVC brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.


















General Features:

  • In-Dash AM/FM, DVD, MP3, USB Receiver
  • Bluetooth Technology for hands-free phone calls and wireless music streaming
  • Pandora Link integrates your car stereo with your iPhone and Pandora Internet Radio
  • Full-color 6.1" LCD touchscreen display
  • 2-way iPod control allows control from the iPod or the stereo
  • Physical knob for quick and easy volume adjustments
  • Variable Color Illumination button lighting
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 20 watts x 4 channels

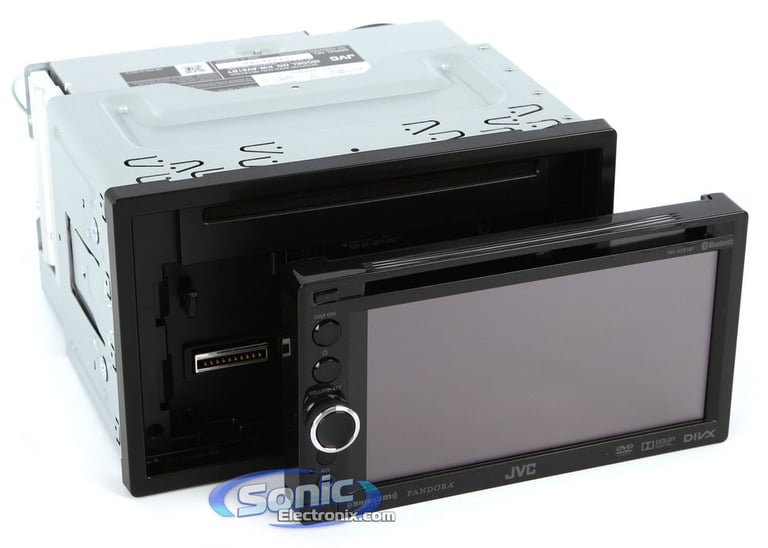

  • Theft-deterrent, detachable face plate
  • CD text information display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

Playback and Audio Features:

  • Playback of DVD, DVD-R, DVD-RW, DivX, CD, CD-R, CD-RW, AVI, MPEG, WAV, MP3 and WMA
  • Compatible with Apple iPhone 5 and iOS 6 software
  • Playback of region #1 DVD discs

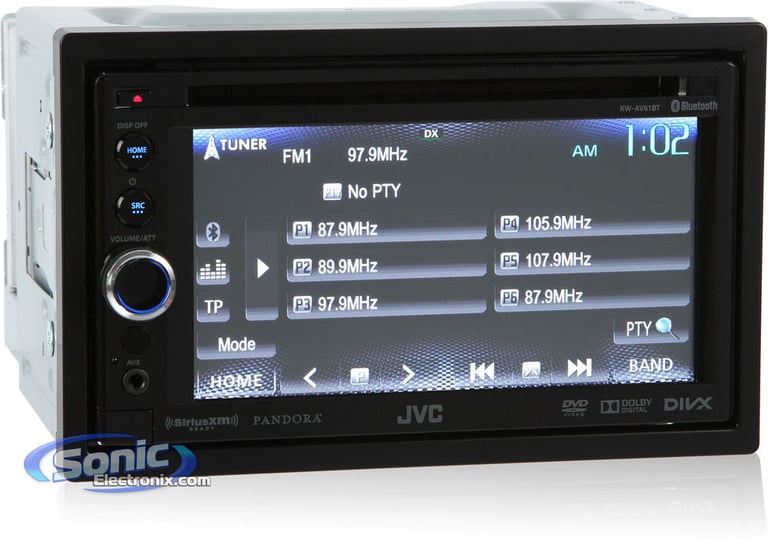

  • AM/FM tuner with 18FM/6AM presets
  • Electronic Shock Protection (ESP)
  • iEQ 3-band parametric equalizer with selectable tone curves
  • 24bit Digital Analog Converter (DAC) to enhance your MP3/WMA playback
  • App Link Mode for iPod and iPhone allows audio and video from supported apps

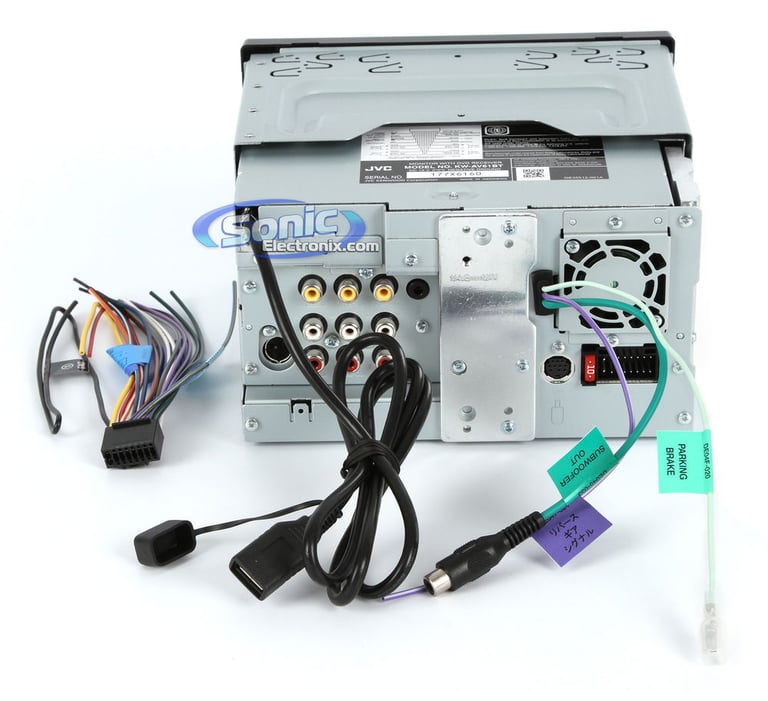

Expandability Options:

  • 3 Sets of 4V preamp outputs (front, rear and mono subwoofer)
  • SiriusXM Satellite Radio Ready: SiriusXM Radio Package and subscription required and sold separately
  • Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone
  • iPod and iPhone Ready: JVC KS-U30 required and sold separately, Standard USB-to-iPod Cable compatible with audio
  • Rear USB Input: USB port allows connection to digital devices such as flash drives, portable media players, etc.
  • Front Auxiliary Input: 3.5mm headphone jack allows connection to portable media devices such as MP3 players
  • Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input
  • Steering Wheel Control Ready: PAC SWI-JACKv1 or the Axxess ASWC required and sold separately
  • Rear RCA Video Output: Used for connection to separate monitors and devices
  • Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.
  • Wireless Remote Ready: JVC Remote Control required and sold separately

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth version 2.1 +EDR certified
  • Bluetooth range up to 32.8 ft.
  • Supports SMS message notifications and A2DP audio streaming
  • Bluetooth Profiles Supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • HSP: Headset Profile enables a Bluetooth headset to connect to a compatible mobile phone
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
    • OPP: Object Push Profile for sending basic "objects" such as pictures and other virtual material
  • Works with most Bluetooth enabled cell phones

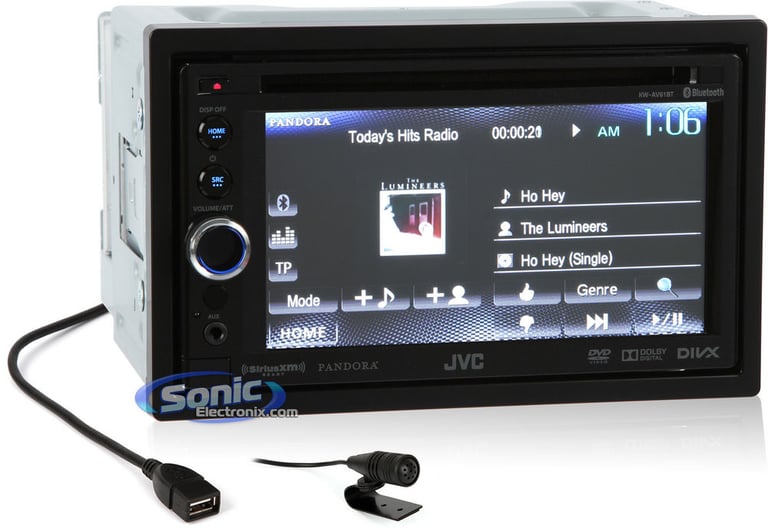

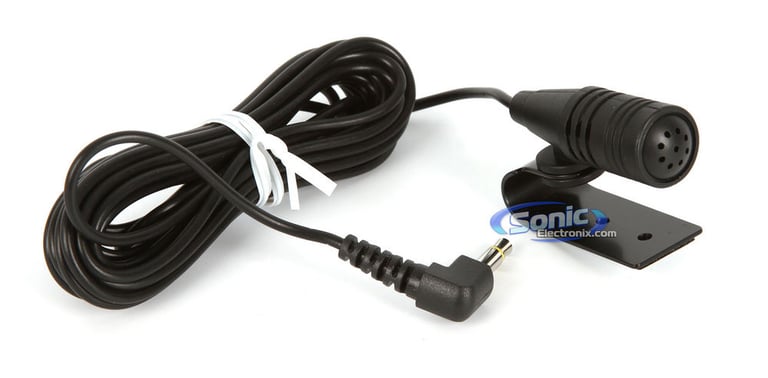

  • Includes an external wired microphone for clear, distortion-free talking
Also Found As: KWAV61BT, KW AV61BT, KW-AV61, KWAV61, KWAV61-BT



Have a Question about the JVC KWAV61BT?

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Double DIN
Anti-Theft Security
Detachable Faceplate
Wireless Remote
Optional (Accessory and sold separately)
Peak Power Output
50 watts x 4 channel
RMS Power Output
20 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
3-band parametric equalizer
Display Type
TFT-LCD Display
Touchscreen
Yes
Screen Size
6.1"
Display Adjustment
Brightness
Expandability Features
Inputs
Auxiliary (Front)
Auxiliary (Rear)
Backup Camera
Outputs
Composite Video (RCA)
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Radio Data System (RDS)
Yes
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

LS-KW-AV61BT-RB

Weight:

7.00lbs

Internal SKU:

LS-kwav61bt-RB

Internal Product ID:

89012
