Description


PAC brand icon

Authorized dealer

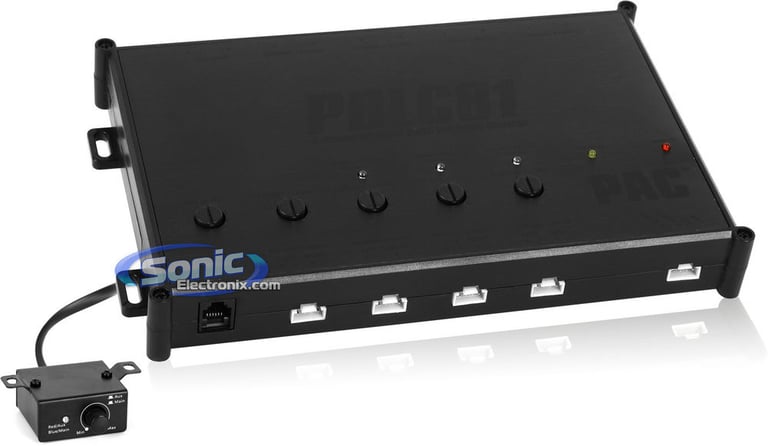

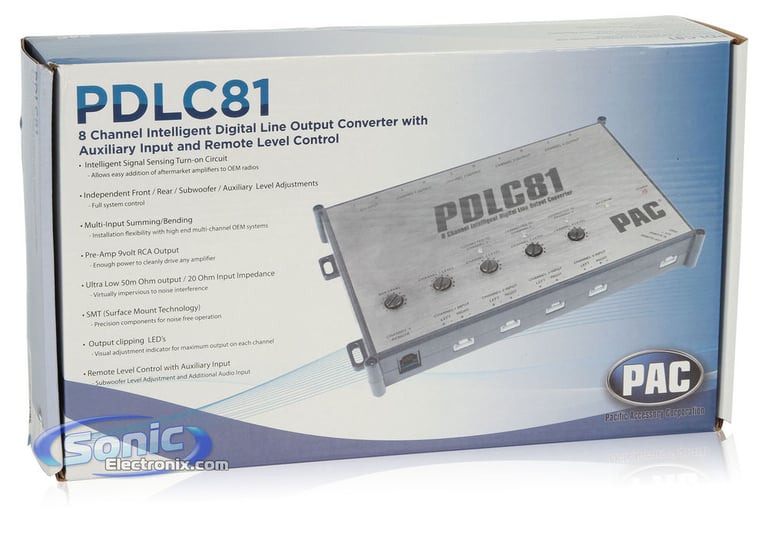

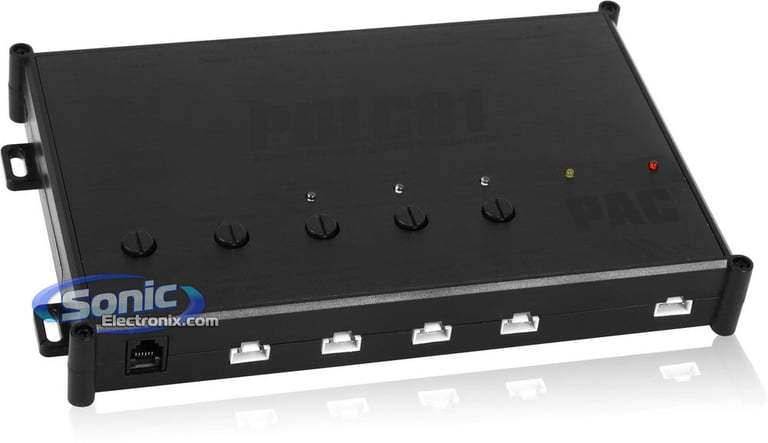

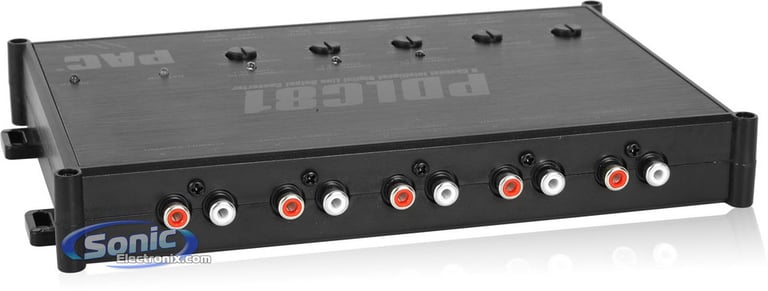

8-Channel Digital Line Output Converter

The New PAC PDLC81 8-Channel Digital line output converter is a one-device solution for today's sophisticated vehicles sound systems. It has programmable input and output circuitry with slide switches, which allows connection of RCA level or speaker level input or output. This advanced Line output converter will allow you to integrate with any number of OEM systems and achieve astounding sound quality. The flexibility of the PDLC81’s applications is only limited by the system for which it is used. Precision components were chosen with sound quality and noise free operation being the main goals.

General Features:

  • Intelligent Signal Sensing Turn-on Circuit. Allows easy addition of aftermarket amplifiers to OEM radios
  • Full system control. Independent Front / Rear / Subwoofer / Auxiliary Level Adjustments
  • Multi-Input summing/blending
  • Installation flexibility with high end multi-channel OEM systems (BMW,Mercedes,Cadillac)
  • High Output 10V RCA Output. Enough power to cleanly drive any amplifier
  • Ultra Low 50m Ohm output / 20 Ohm input impedance. Virtually impervious to noise interference
  • SMT (Surface Mount Technology)
  • Precision components for noise free operation
  • Output clipping LED’s. Visual adjustment indicator for maximum output on each channel

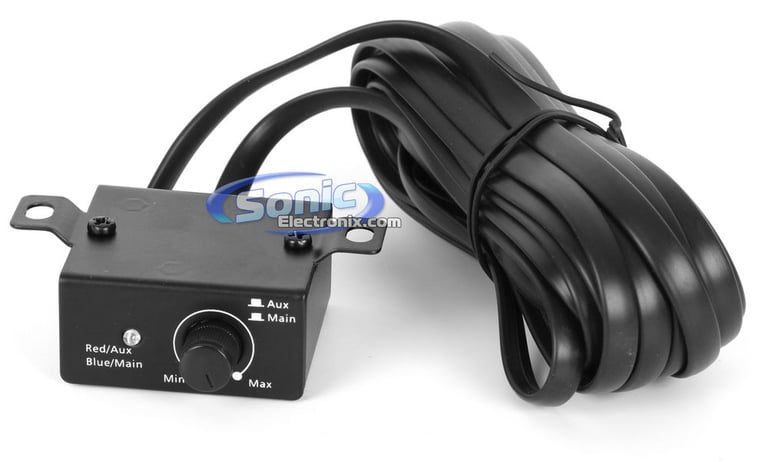

  • Remote Level control with Auxiliary input
  • Subwoofer level adjustment and additional audio input level (when active)
  • Color: Black
  • Dimensions: 9-1/4"W x 5-1/2"D x 1-1/2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
