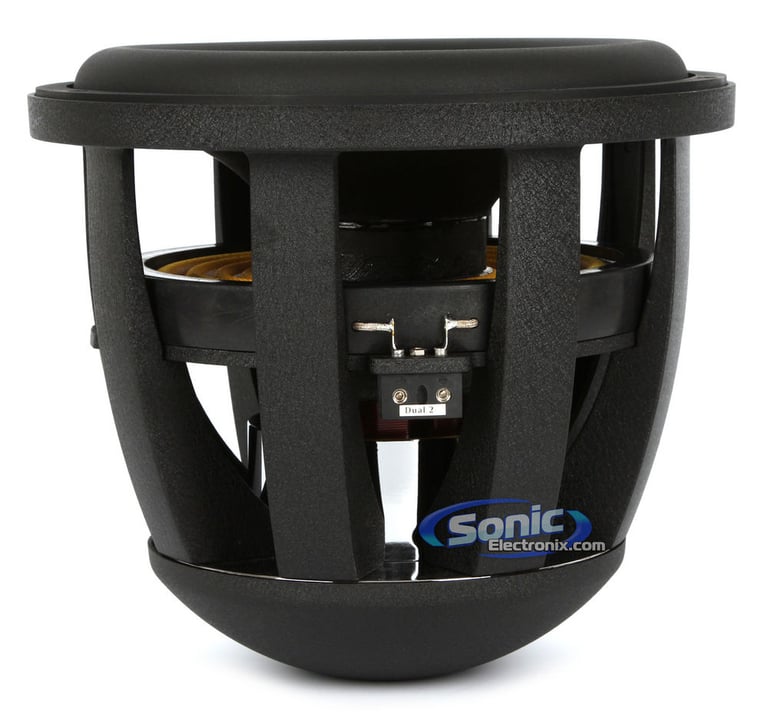

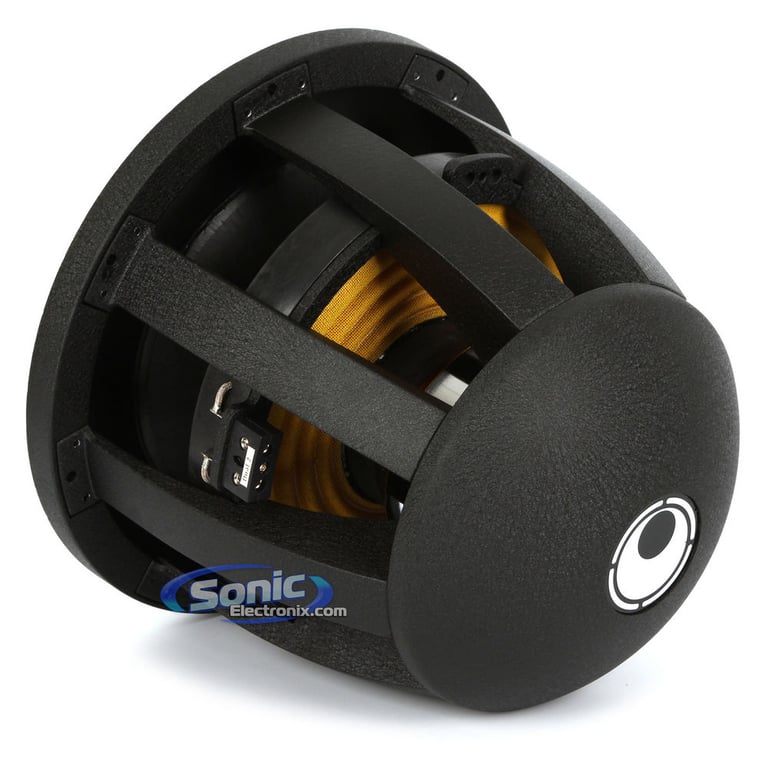

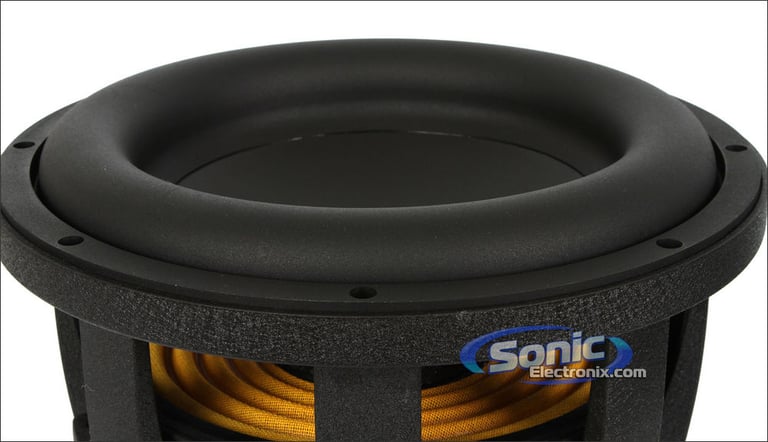

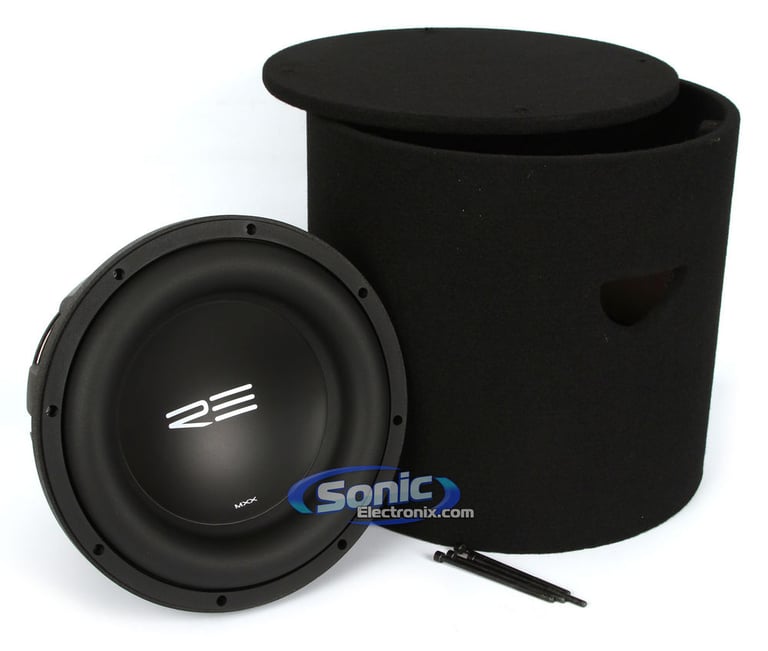

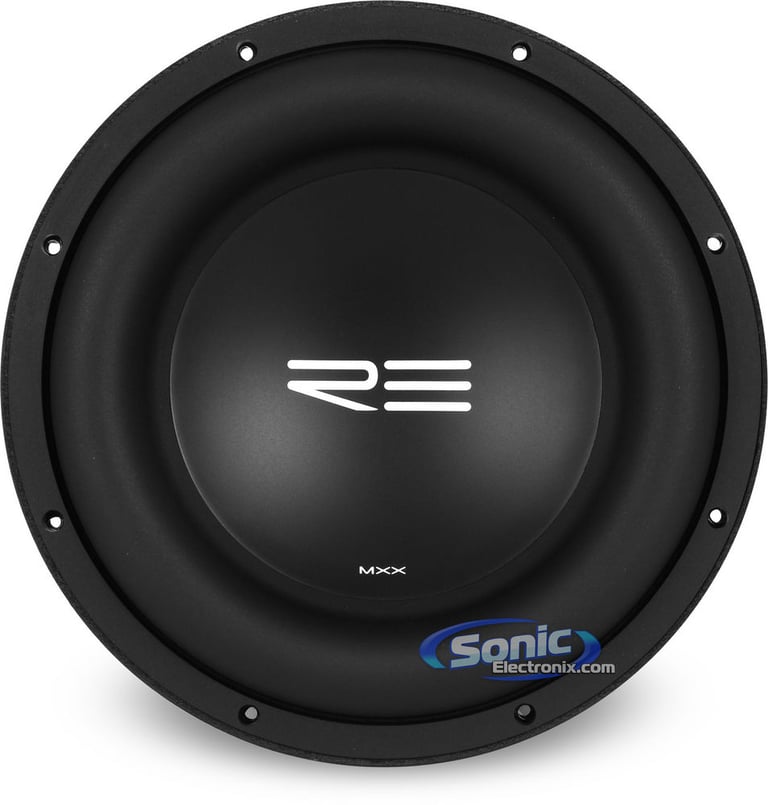

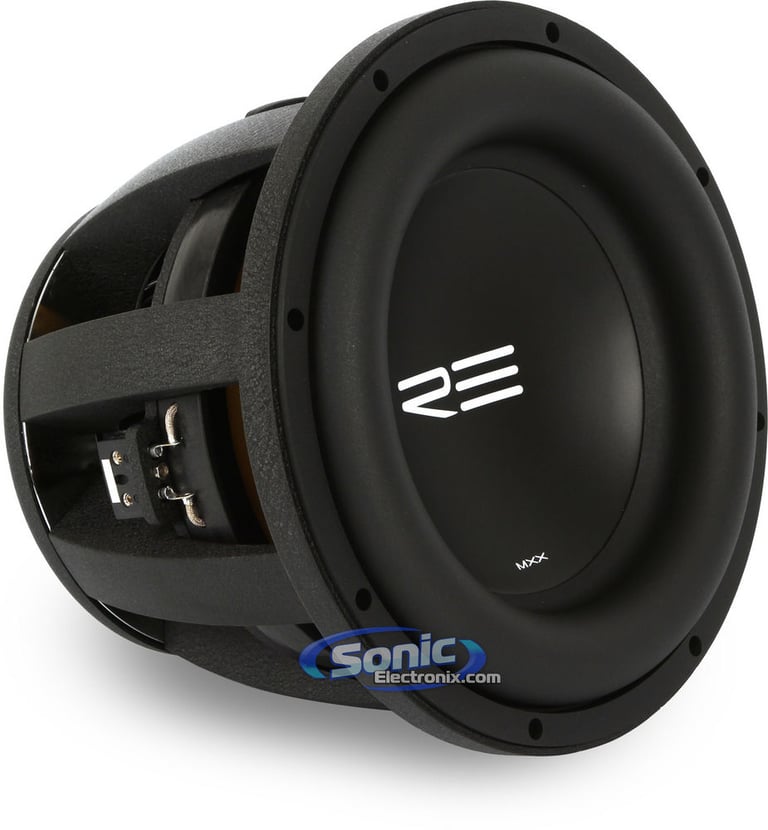

RE Audio MX12D1 (MX 12D1)

1500W 12" MX Series Dual 1 ohm Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 1500W
• Rubber Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Dual Progressive Spiders
• Powerful Neo Magnet
• 4" 4-Layer Aluminum Voice Coil
• Venting System

Learn more about the mx12d1

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

mx12v2d1 thumbnail

RE Audio MX12v2D1 (MX12 v2 D1)

OUR PRICE: $599.99

View item

Loading...
ESP65 main

NVX ESP65

360W Peak (120W RMS) 6.5" E-Series 2 Way Coaxial Car Speakers

13
-18.19%

$44.99

List price $54.99

Product Highlights


• RMS Power: 1500W
• Rubber Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Dual Progressive Spiders
• Powerful Neo Magnet
• 4" 4-Layer Aluminum Voice Coil
• Venting System

Description


RE Audio brand icon

Authorized dealer



Subwoofer Features:
  • 12" Dual 1 ohm MX Series Car Subwoofer
  • Power Handling:
    • RMS: 1500 watts
  • Impedance: Dual 1 ohm
  • Dual composite 2-piece cone
  • Ultra rubber surround
  • FEA Optimized motor structure
  • Dual progressive spiders
  • Tork-Tite terminals
  • 4" 4-Layer aluminum flat wire voice coil
  • Cast aluminum basket
  • Powerful "Neo" magnet
  • Mounting Depth: 10-1/4"
  • Mounting Hole Diameter: 11-1/2"
  • Proudly made in the USA
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
MX 12" T/S Parameters:
  • Electrical Q Value (Qes): 0.50
  • Mechanical Q Value (Qms): 3.21
  • Total Speaker Q Value (Qts): 0.43
  • Free Air Resonance (Fs): 23 Hz
  • Equivalent Compliance (Vas): 59 liters
  • One-Way, Linear Excursion (Xmax): 22 mm
  • Efficiency (SPL 1W/1m): 83.5 SPL
  • Effective Piston Area (Sd): 480 cm2
  • DC Resistance (Re): 1.4 ohm
  • Nominal Impedance (Znom): Dual 1 ohm
  • Thermal Power Handling (Pe): 1500 W
  • Force Factor (Bl): 14.56

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

RE Audio MX12 v2 D1 thumbnail
(newest, current model)
RE Audio MX 12D1 thumbnail
(previous model, replaced by RE Audio MX12v2D1 (MX12 v2 D1))

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

T2652-S main

Rockford Fosgate Power T2 T2652-S

400W Peak (200W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

42

Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

52L7XS121 small

Kicker L7XS121 (52L7XS121)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 10-1/8"

$1399.99

List price $1499.99

Specifications & Details


Subwoofer Specifications
Series
MX Series
Subwoofer Size
12"
RMS Power Handling
1500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
1 ohm
Voice Coil Diameter
4"
Sensitivity
83.5 dB
Xmax (millimeters)
22 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Dual Composite 2-Piece
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Optimum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Optimum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
10-1/4"
Cutout Diameter
13"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
23 Hz
Equivalent Compliance (Vas)
59 liters
Total Speaker Q Value (Qts)
0.43
Electrical Q Value (Qes)
0.50
Electrical Resistance of Voice Coil (Re)
1.4 ohm
Mechanical Q Value (Qms)
3.21
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MX 12D1

Weight:

52.00lbs

Internal SKU:

mx12d1

Internal Product ID:

68077
