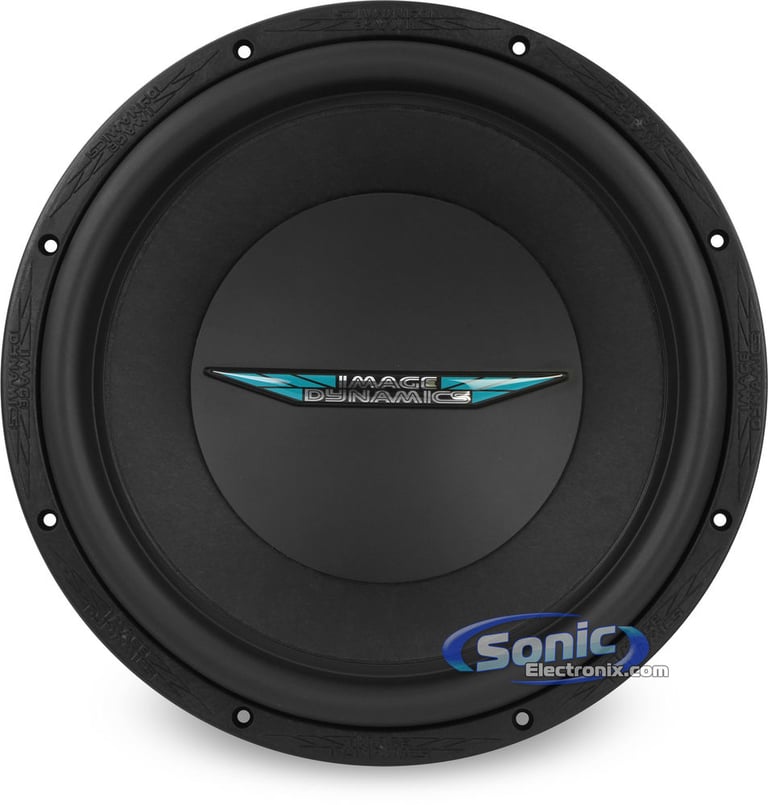

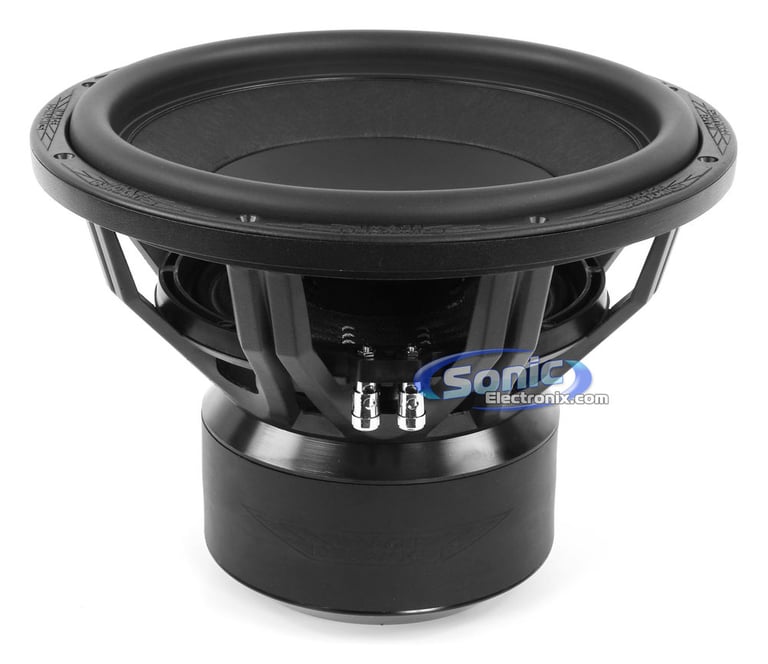

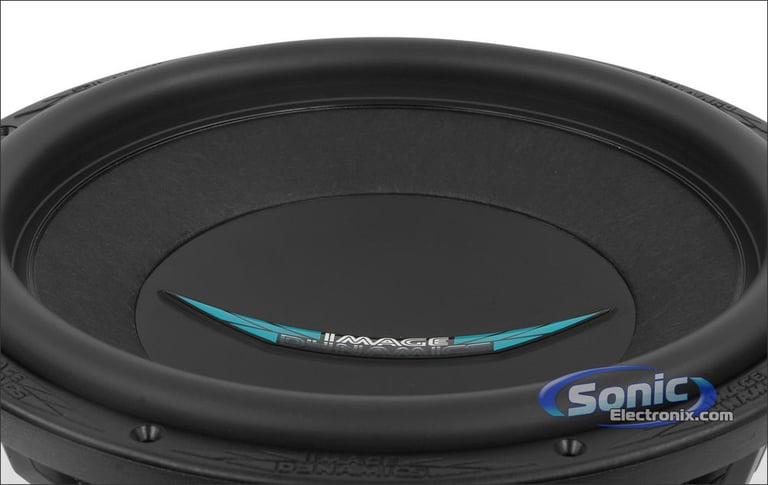

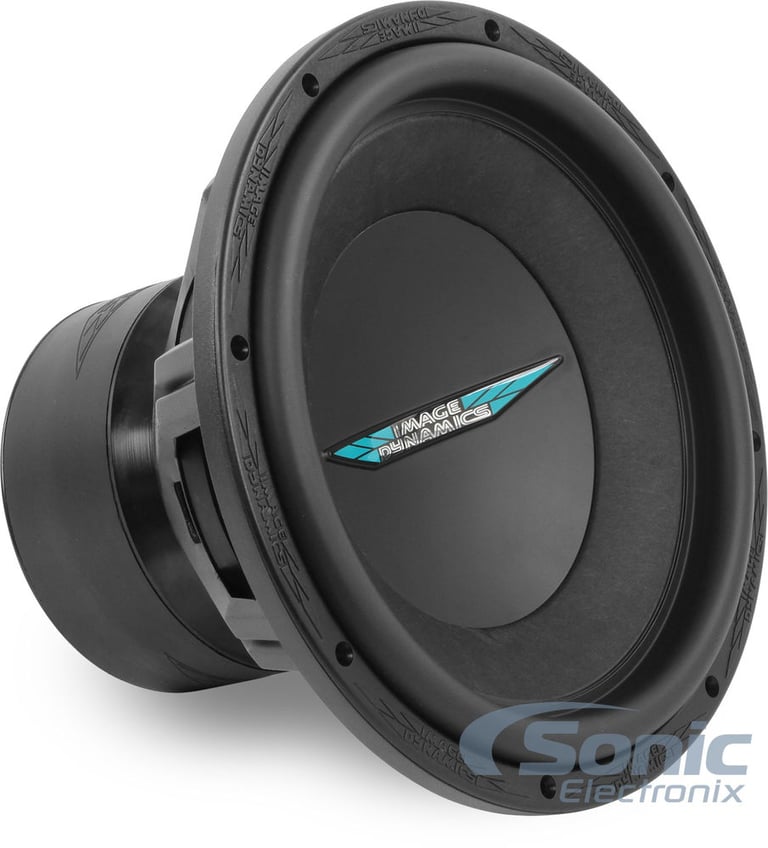

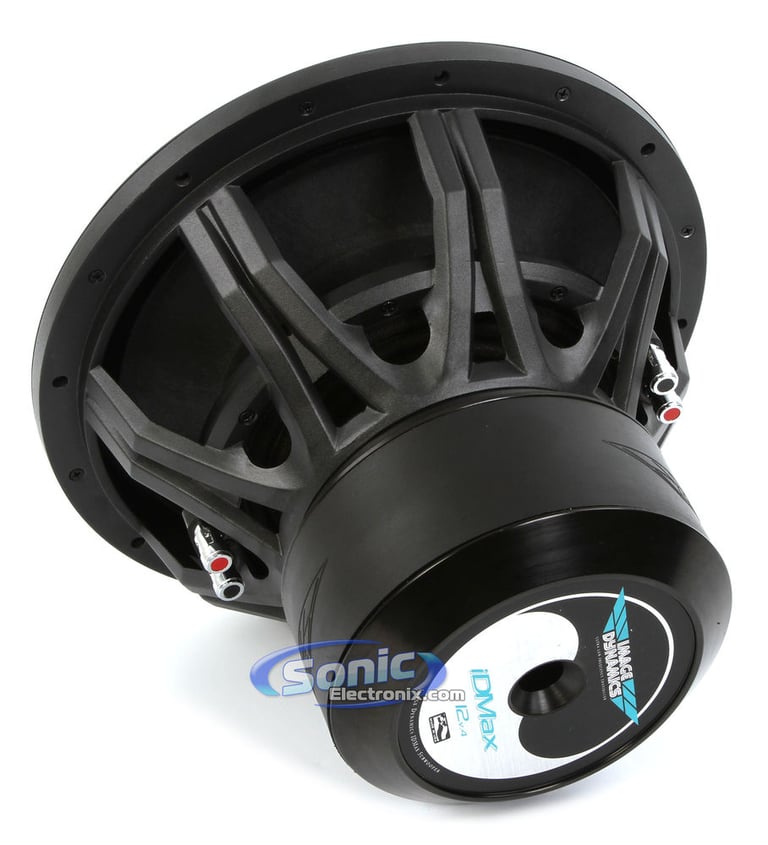

Image Dynamics IDMAX12 D4 V.4

1000W 12" ID MAXv4 Series Dual 4 Ohm Subwoofer

Product videos
highlight-star-icon

• 1000W RMS
• Paper Composite Cone Woofer
• Parabolic EPDM Rubber Surround
• Over 2" Linear Excursion
• RaDiaToR Cooling System

Learn more about the idmax12d4v4

We apologize

This item has been discontinued


Loading...
KIT-FLX1 main

iDataLink Maestro KIT-FLX1 Dash and Wiring Kit

Double DIN Dash and Wiring Kit for iDataLink-Compatible Car Stereo in select 2013-2019 Flex (Requires Maestro RR)

-17.31%

$429.99

List price $519.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$89.99

List price $107.99

XBAF68 main

NVX XBAF68

Universal 6x8" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

12
-26.68%

$21.99

List price $29.99

51KSS6804 main

Kicker KSS68 (51KSS6804)

500W Peak (250 RMS) 6x8" KS-Series 2-way 4-ohm Component Speaker System (KSS6804)

-10.71%

$249.99

List price $279.99

NSP35 main

NVX NSP35

200W Peak (70W RMS) 3.5" N-Series 2 Way Coaxial Car Speakers

55
-16.67%

$49.99

List price $59.99

ADS-MRR2 main

iDataLink Maestro RR2 Interface Module

Universal Stereo Replacement Interface Module for iDataLink Maestro Compatible Stereos

5
-18.75%

$259.99

List price $319.99

Product Highlights


• 1000W RMS
• Paper Composite Cone Woofer
• Parabolic EPDM Rubber Surround
• Over 2" Linear Excursion
• RaDiaToR Cooling System

Description


Image Dynamics brand icon

Authorized dealer



Product Features

  • 12" Dual 4 ohm ID MAX V.4 Series Subwoofer
  • Power Handling:
    • RMS: 1000 watts
  • Recommended Power Range: 200-1000 watts
  • Pressed paper composite cone woofer
  • Parabolic EPDM rubber surround
  • Over 2" long linear excursion
  • RaDiaToR cooling system for heat dissipation
  • Radiant Diametric Torsional Reinforcement
  • High compliance suspension design
  • Flat spider with NOMEX cloth woven tinsel leads
  • High-temperature flat wire, flat wound voice coil
  • Inverted dust cap with logo
  • Powder coated alloy proprietary basket
  • 3-1/2" peak-to-peak surround excursion
  • Frequency response: 20-250 Hz
  • Sensitivity: 93.1dB
  • Mounting depth: 8-1/4"
  • Cutout dimensions: 11"
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
Also found as: IDMAX12D4 V.4, IDMAX12 D4 V.4, IDMAX12 D4, IDMAX12D4, IDMAX12V.4 D4, IDMAXv4

Product history:

Image Dynamics IDMAX12 D4 V.4 thumbnail
(newest, current model)
Image Dynamics IDMAX12 V.3 D4 thumbnail
(previous model, replaced by Image Dynamics IDMAX12 D4 V.4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Image Dynamics IDMAX12 D4 V.4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Image Dynamics IDMAX12 D4 V.4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Image Dynamics IDMAX12 D4 V.4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Image Dynamics IDMAX12 D4 V.4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
ID Max V.4 Series
Subwoofer Size
12"
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 150 Hz
Sensitivity
93.1 dB
Xmax (millimeters)
24.9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Reinforced Paper
Woofer Surround
EPDM Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.50 cubic feet
Optimum Ported Box Volume
2.50 cubic feet
Top-Mount Depth (Mounting Depth)
8-1/4"
Cutout Diameter
11"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

IDMAX12 D4 V.4

Weight:

35.00lbs

Internal SKU:

idmax12d4v4

Internal Product ID:

68187

Product and How-to Videos

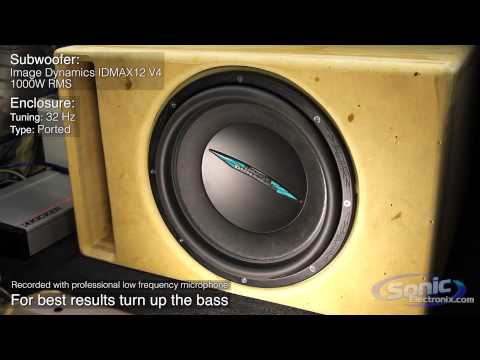

  • Image Dynamics IDMAX 12" Subwoofer Bass Demo | IDMAX12 in a Custom Ported box
  • Image Dynamics IDMAX v4 Car Subwoofer | CES 2013
  • NEW! Image Dynamics IDMAX Subwoofers
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Image Dynamics IDMAX12 D4 V.4 thumbnail image

5 star
75%
4 star
0%
3 star
25%
2 star
0%
1 star
0%



Durability
4.3
Value
4
Features
4.5
Design
5
Usability
4.5

Customer Reviews

Sort by:

Loading...

Best sound quality/spl sub period

I have had many subwoofers in my life but this is by far the best for sound quality and SPL that I have encountered. In addition this subjects and a small cubic foot box which makes it ideal for fiberglass enclosure's. I am using this subwoofer in conjunction with A jl audio HD 750/1 monoblock amplifier and it sounds amazing! I highly recommend the subwoofer to anyone that wants SQL for the price and the quality I cannot think of many that meet or exceed this one.

By Double D on February 19, 2015

35 found this helpful


WOW!

I had never heard of Image Dynamics before, until Sonic recommend their IDAMX 12 as an alternative to the JL Audio W7 12. I wanted a sub that could get loud but also maintain good sound quality. The Image Dynamics IDMAX 12 did not disappoint. I think it would be hard to beat it in a sound quality competition, honestly. It sounds amazingly clean, accurate, and tight, even in a ported enclosure. And when you put some power to it, it transforms into an absolute monster. I have mine powered by a BASH 500S subwoofer amp. If I even turn it up to half volume it shakes my six bedroom house, literally. I have tried turning it up all the way and the sub just drinks the power, but I don't leave it up for fear of clipping the amp. I would love to hear this beast on 900 watts. I think 1,000 watts continuously might push it to its limits. Even so, it performs impressively on just 500 watts. All in all, I would definitely recommend this sub to anyone looking for a high output driver that can maintain its composure at high volumes. The sound quality is impeccable. The build quality is solid. And the aesthetics are clean and simple.

By Trevor P. on April 18, 2014

34 found this helpful


VERY VERY NICE SOUNDING

I bought this sub for SQ and it also gets loud while keeping its composure.
Wanted a Focal K2 E30 KX but had a hard time with the $1000 price tag.
I have Focal Performance 165AS3 in the truck doors. I built a sealed fiberglass box for the IDMAX12. It is about 1.3cu ft. JL audio HD750 for the sub. For the Focals i'm running a JL HD 600/4. Thinking on getting a Audio Control DM608 for speaker processor for more control on the Focals.
This sub completes this setup nicely. I cant believe how hard it hits and how great it sounds! The deck is a Sony MEX-GS620BT.

By Sticker68 on April 14, 2018

17 found this helpful


not as expected

wasnt very impressed its loud and cant handle more than 750rms not as clean as i hoped the idq sounds way better to me for sq purposes

By holly on June 6, 2017

17 found this helpful
