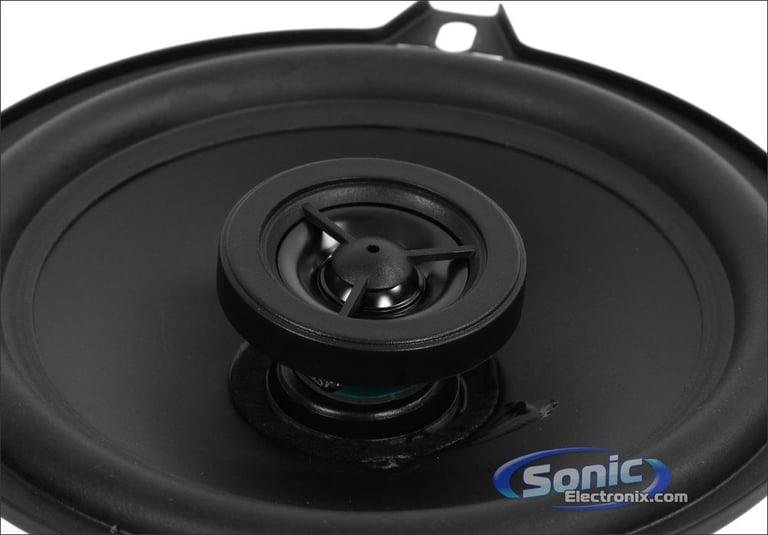

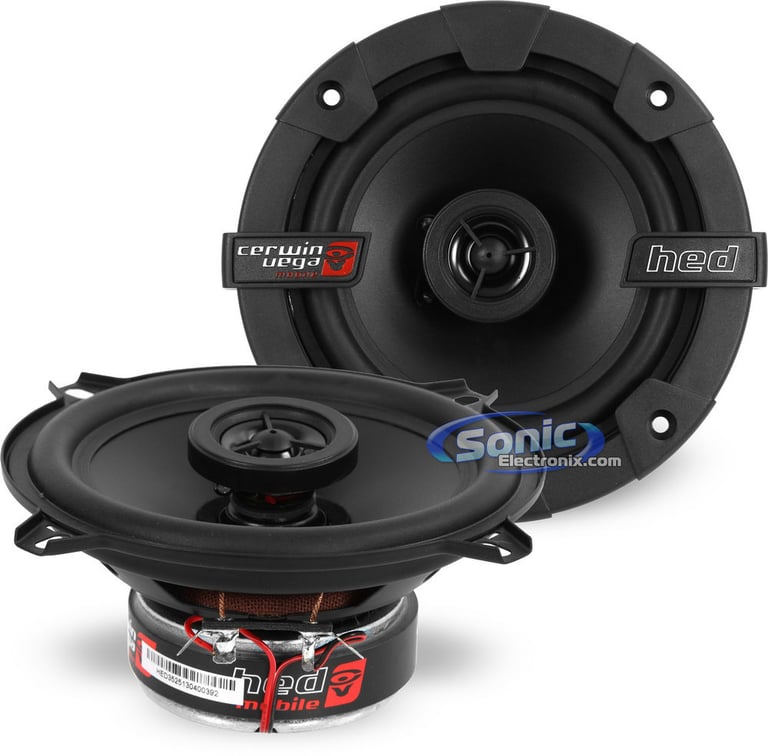

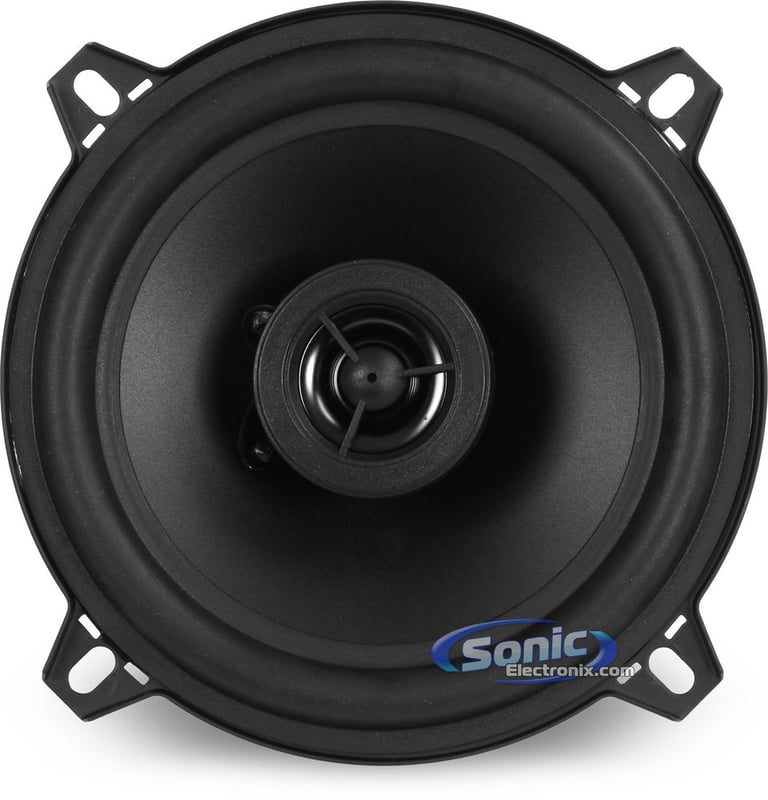

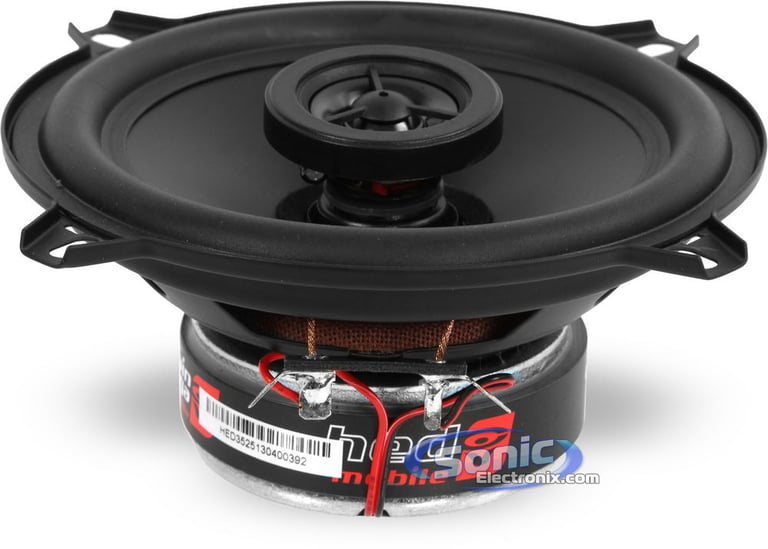

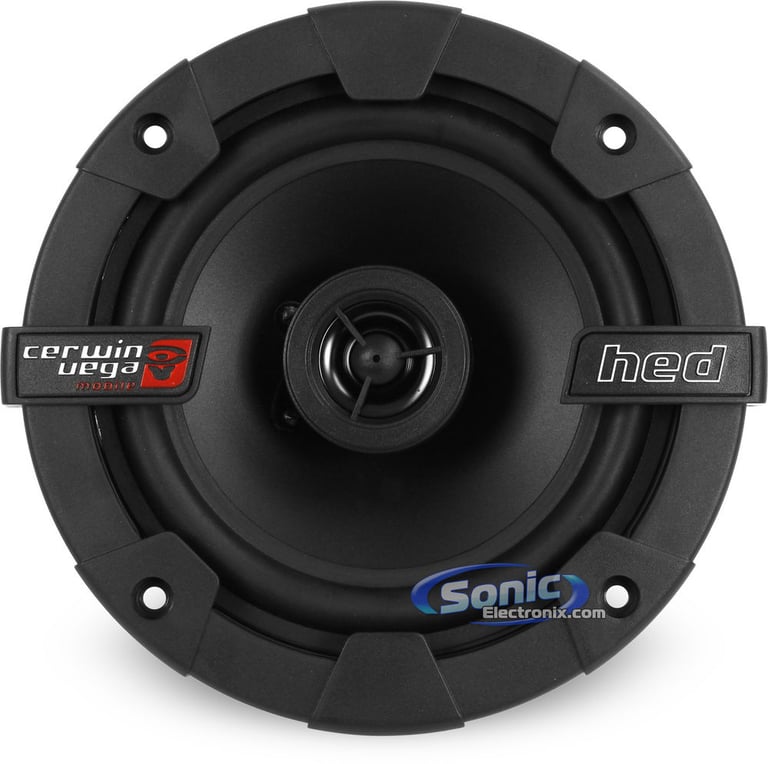

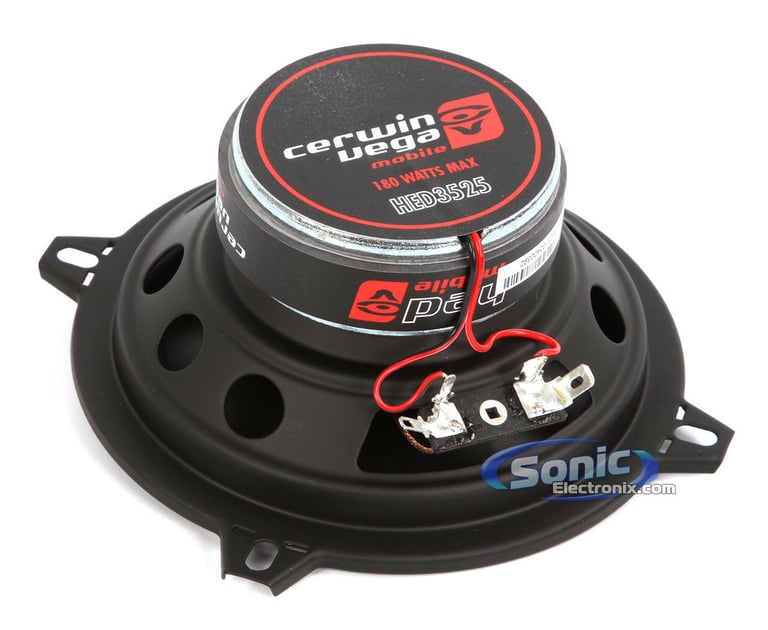

Cerwin-Vega HED3525

5-1/4" 2-Way HED Series Coaxial Car Speakers

Cerwin-Vega
Shop all Cerwin-Vega
highlight-star-icon

• Peak Power: 100W
• RMS Power: 50W
• 2-Way Coaxial
• 4 ohm Impedance
• Composite Polypropylene Cone
• Nitrile Butadiene Rubber Surround
• Mylar 19mm Dome Tweeters

Learn more about the hed3525

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

h452 thumbnail

Cerwin-Vega H452

OUR PRICE: $39.99

View item

Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

82-7000 main

Metra 82-7000

6" to 6.75" Speaker Mounting Adapters for select 2007-2023 vehicles from Mitsubishi

2
-52.65%

$17.99

List price $37.99

AXBUCH-MI6V main

Axxess AXBUCH-MI6V

Install a New Car Stereo and Add or Retain Backup Camera in select 2014-2024 vehicles from Mitsubishi

-10.53%

$50.99

List price $56.99

Lowest price in 30 days
VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
TS-A1671F main

Pioneer TS-A1671F

640W Peak (140W RMS) 6.5” A-Series 3-way 4-ohm Coaxial Car Speakers

3
-42.74%

$62.99

List price $110.00

UNIFRING main

NVX UNIFRING

Universal Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 6)

5
-16.65%

$29.99

List price $35.98

Description


Cerwin-Vega brand icon

Authorized dealer

Replace Your Factory Speakers

With the HED Series Cerwin Vega speakers, you're choosing sound quality that will give you many years of listening enjoyment. These 5-1/4" speakers are made from high quality parts that shape the way you hear your music. Specially formulated rubber surrounds are designed to impose very little restriction of the con'es movement. The polypropylene cone design is very light yet incredibly dense, allowing the cone to withstand various changes in direction speed without deformation. A mylar composite tweeter achieves a very clear and accurate high frequency band even at maximum output levels. If you're looking for quality at a price you can afford, look into the HED Series by the one and only Cerwin Vega.

General Features:

  • 5-1/4" HED Series 2-Way Car Speakers
  • Power Handling:
    • Peak: 200 watts per pair / 100 watts each
    • RMS: 100 watts per pair / 50 watts each
  • High strength composite Mica-filled Polypropylene cone material
  • Nitrile Butadiene Rubber (NBR) speaker surround
  • Linear rolled spider allows maximum cone control at all volume levels
  • Rolled Aluminum Former for superior thermal capabilities and increased power handling
  • 19mm Mylar Dome tweeter design
  • Lightweight Aluminium voice coil former
  • Ferrite magnet motor structure
  • Internal 6db tweeter crossover network
  • 4 ohm impedance
  • Frequency Response: 122-24,000 Hz
  • Top-Mount Depth: 2-1/4"
  • Sensitivity: 85dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Priced Per Pair

Product history:

Cerwin-Vega H452 thumbnail
(newest, current model)
Cerwin-Vega HED3525 thumbnail
(previous model, replaced by Cerwin-Vega H452)
Cerwin-Vega HED525 thumbnail
(previous model, replaced by Cerwin-Vega HED3525)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99


Best selling similar products

Club 522F small

JBL Club 522F (SPKCB522FAM)

• 135 watts Peak Each, 45 watts RMS Each
• Silk Edge Driven Dome tweeters
• UV-Resistant Polypropylene cone material
• Plus One woofer architecture
• Impedance: 3 ohm
• Sensitivity: 91 dB

$74.99

List price $129.95

46CSC54 small

Kicker CSC5 (46CSC54)

• 225 watts Peak Each, 75 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters with neodymium magnets
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(5)

$79.96

List price $119.99

43DSC504 small

Kicker DSC50 (43DSC504)

• 200 watts Peak Each, 50 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(17)

$74.99

List price $84.99

Specifications & Details


Speaker Specifications
Series
HED Series
Priced Per
Pair
Speaker Size
5-1/4"
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Size
3/4"
Tweeter Composition
Mylar
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Nitrile Butadiene Rubber NBR
Peak Power Handling
100 watts
RMS Power Handling
50 watts
Sensitivity
85 dB
Frequency Response
122 - 24000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-1/4"
Cutout Dimensions
4-7/16" x 4-7/16"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HED3525

Weight:

4.00lbs

Internal SKU:

hed3525

Internal Product ID:

68550
