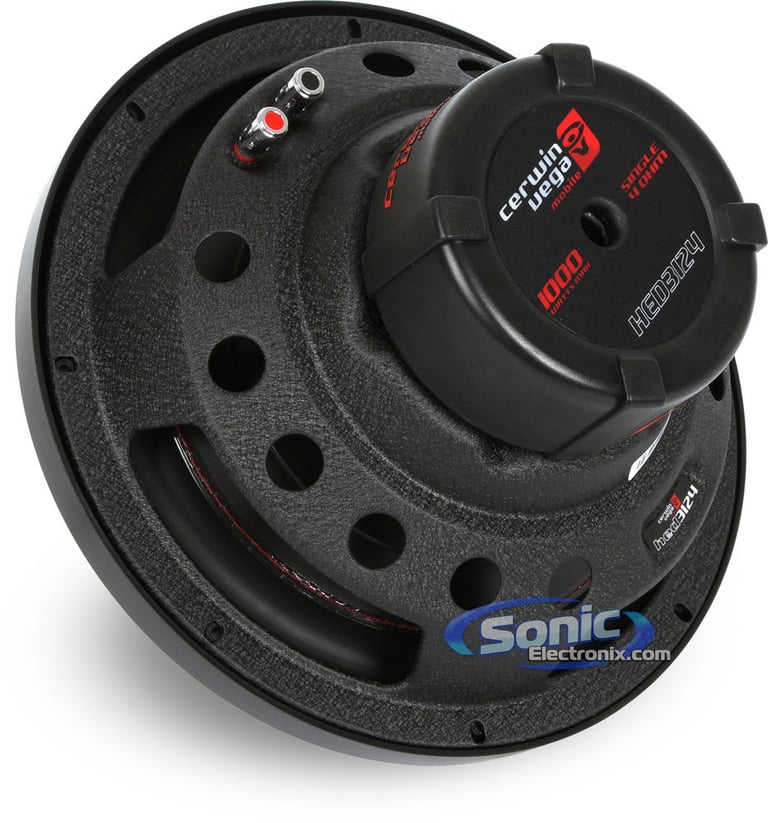

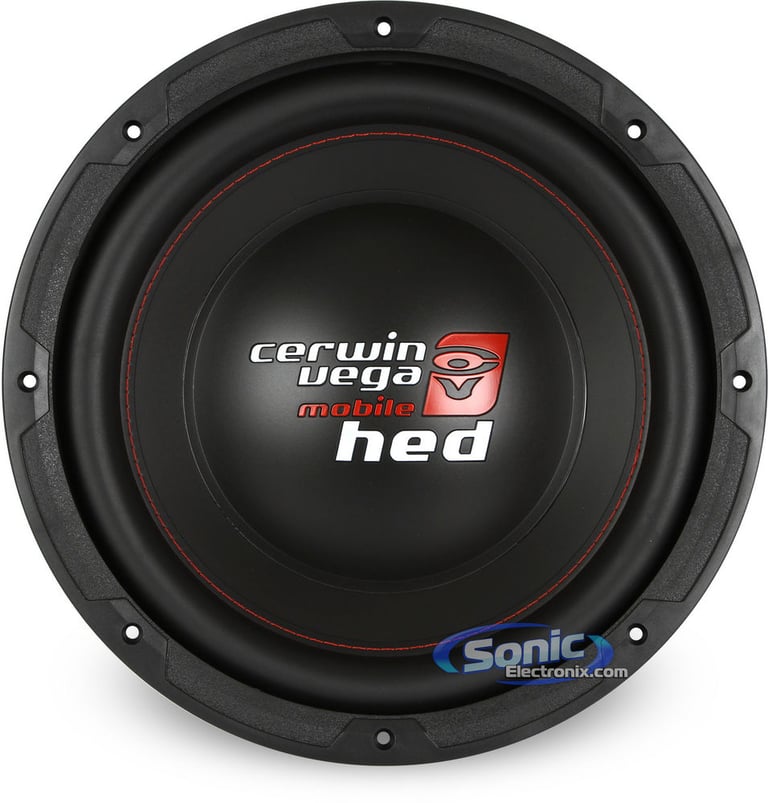

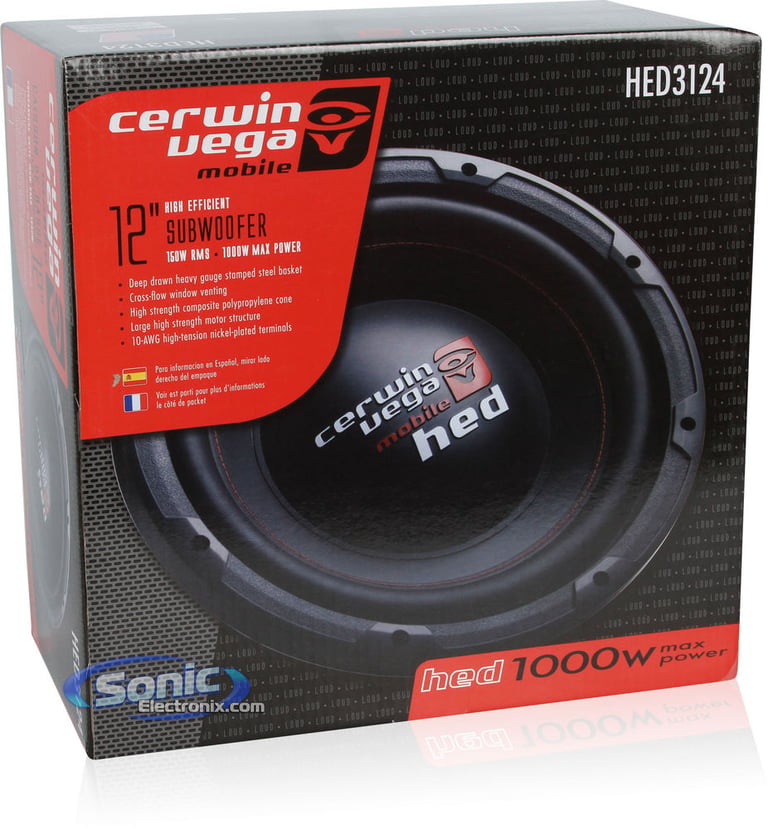

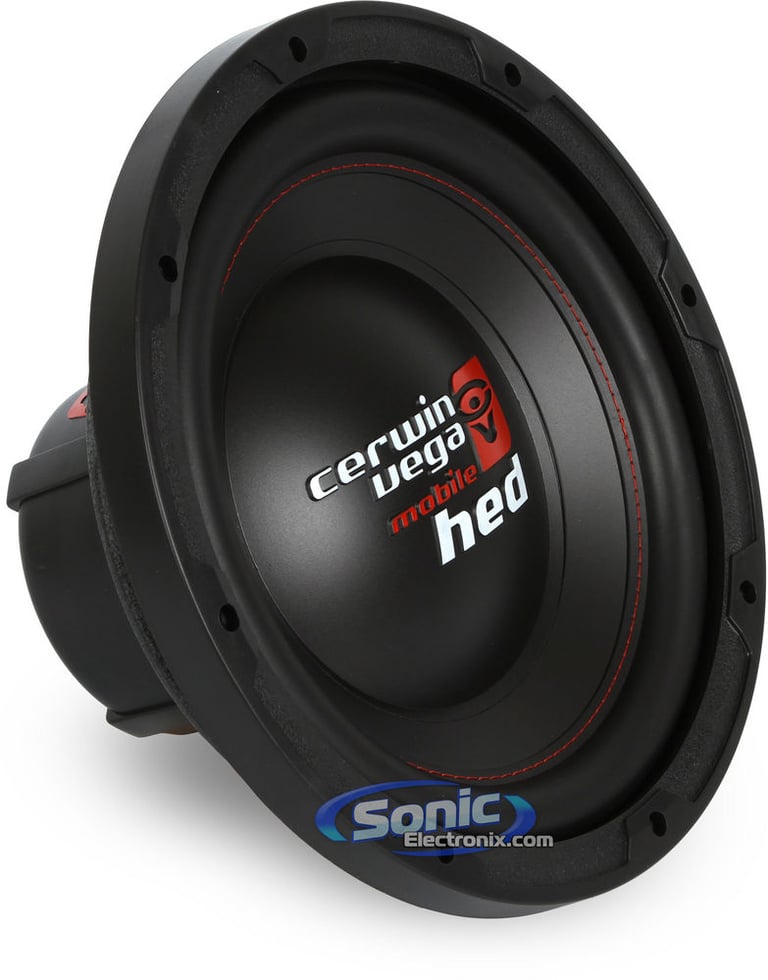

Cerwin-Vega HED3124

12" Single 4 Ohm HED3 Series Car Subwoofer

Product videos
highlight-star-icon

• 1000W Peak
• 150W RMS
• Composite Polypropylene Cone
• Butyl Rubber Surround
• Rolled Aluminum Former
• XFV Cross-Flow Window Venting for Massive Heat Dissipation

Learn more about the hed3124

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Product Highlights


• 1000W Peak
• 150W RMS
• Composite Polypropylene Cone
• Butyl Rubber Surround
• Rolled Aluminum Former
• XFV Cross-Flow Window Venting for Massive Heat Dissipation

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • 12" Single 4 Ohm HED3 Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 150 watts
  • Impedance: 4 ohm
  • Composite Polypropylene cone (CPPC)
  • Butyl rubber surround
  • Radial contact convex dome design (RCCD)
  • Rolled aluminum former
  • XFV Cross-flow window venting allows for massive heat dissipation from the voice coil
  • Resonance Frequency (Fs): 25 Hz
  • Top-mount depth: 5-15/16"
  • Sensitivity: 86 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Cerwin-Vega HED3124 thumbnail
(newest, current model)
Cerwin-Vega HED124 thumbnail
(previous model, replaced by Cerwin-Vega HED3124)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cerwin-Vega HED3124 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cerwin-Vega HED3124 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cerwin-Vega HED3124 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Cerwin-Vega HED3124 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
HED3 Series
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
150 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
86 dB
Xmax (millimeters)
7.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Composite Polypropylene Cone - CPPC
Woofer Surround
Butyl Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.25 cubic feet
Optimum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
5-15/16"
Cutout Diameter
11-11/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
25 Hz
Equivalent Compliance (Vas)
91 liters
Total Speaker Q Value (Qts)
0.494
Electrical Q Value (Qes)
0.567
Electrical Resistance of Voice Coil (Re)
3.42 ohm
Mechanical Q Value (Qms)
3.8222
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HED3124

Weight:

11.50lbs

Internal SKU:

hed3124

Internal Product ID:

68568

Product and How-to Videos

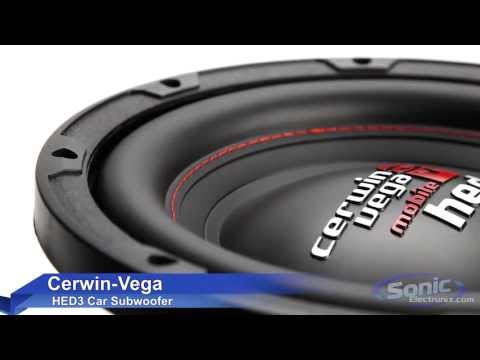

  • Cerwin-Vega HED3 Car Subwoofers | New HED Subs for 2013!
