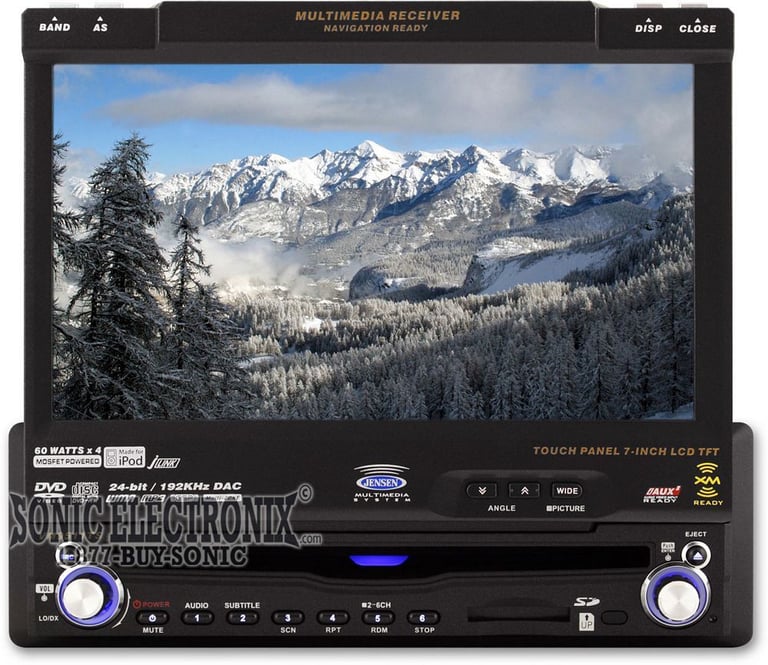

Jensen VM9511TS

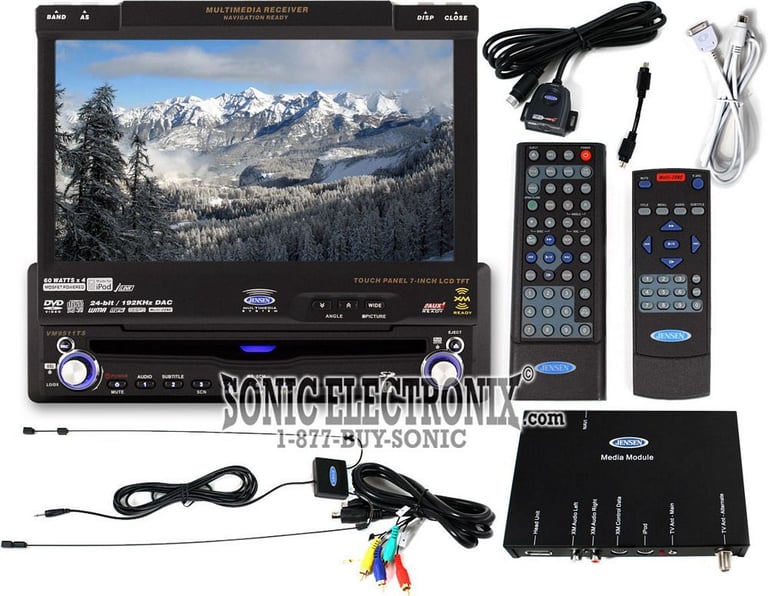

Motorized In-Dash 7" LCD with Touch Screen VM-9511TS

Jensen
Shop all Jensen
Product videos
highlight-star-icon

Motorized In-Dash 7" LCD with Touch Screen • 18W x 4 chan. RMS • 60W x 4 chan. Peak • display angle adjustment • two audio/video inputs • built-in TV tuner • dual-zone mode • two wireless remotes

Learn more about the vm9511ts

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

vm9414 thumbnail

Jensen VM9414

OUR PRICE: $399.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
P1692 main

Rockford Fosgate Punch P1 P1692

300W Peak (150W RMS) 6x9" Punch Series 2 Way Coaxial 4-ohm Speakers

82
KDC-X705 main

Kenwood eXcelon KDC-X705

Single DIN CD Multimedia Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

4
-18.21%

$229.00

List price $280.00

MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13
43DSC69304 main

Kicker DSC6930 (43DSC69304)

720W Peak (180W RMS) 6x9” DS Series 3-way 4-ohm Coaxial Car Speakers with Integrated Midrange

33
-14.29%

$119.99

List price $139.99

H7694 main

Cerwin Vega H7694

800W Peak (150W RMS) 6x9" HED Series 4-Way Coaxial 4-ohm Speakers

32
-25.93%

$79.99

List price $107.99

Product Highlights


Motorized In-Dash 7" LCD with Touch Screen • 18W x 4 chan. RMS • 60W x 4 chan. Peak • display angle adjustment • two audio/video inputs • built-in TV tuner • dual-zone mode • two wireless remotes

Description


Jensen brand icon

Authorized dealer

  • 7" TFT-LCD Touch Panel Display
  • Slide Out 7" Widescreen TFT Screen
  • High Pixel 1440 x 234 Resolution
  • Motorized Multi-Stage Tilt

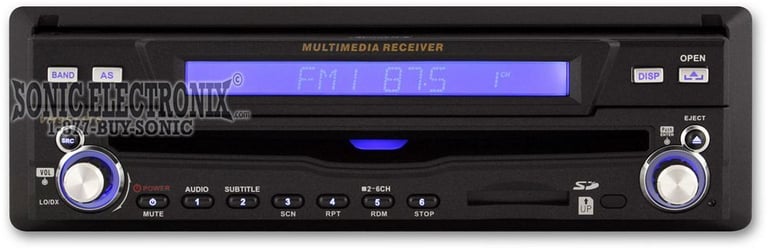

  • Front Panel LCD Display
  • Selectable Viewing Modes
  • MP3 & WMA Playback from CD & DVD (GIGA MP3)
  • Front Panel SD Memory Card Reader
  • DVD-R/W, DVD+R/W, & CD-R/W Compatible
  • ID3 & WMA Tag Readout
  • Built-In UHF/VHF TV Tuner with Included Antenna
  • MPEG, VCD, SVCD, JPEG, AVI, & Photo CD Playback
  • On-Screen Display (OSD) & Menus
  • Dual Zone - Front Audio & Rear DVD Video
  • Parental Control with Password
  • Selectable Jensen Plus Worldwide AM/FM Tuner with Presets
  • Satellite Radio Ready and CD Changer Control
  • 5.1 Channel 2V Preamp Audio Outputs
  • Subwoofer Preamp Output with Level Control and Crossover
  • Auxiliary Audio/Video Input
  • NAV100 Navigation System Input
  • Dedicated Rear Camera Input with Reverse Override

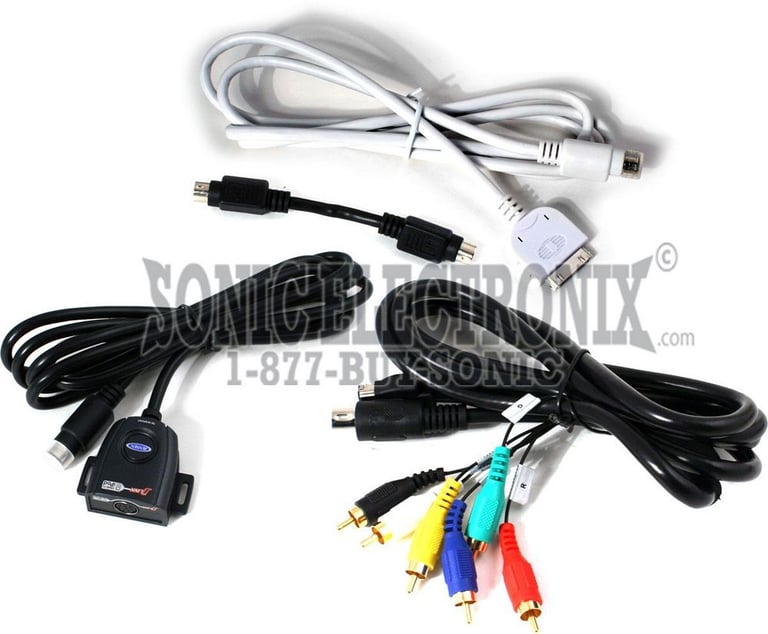

  • jLink Under Dash Connection Module with iPod Audio/Video Input
  • Included iPod Interface Cable with Apple-Approved Dock Connector
  • Rear Zone Audio/Video Outputs
  • 4-Channel MOSFET Amplifier

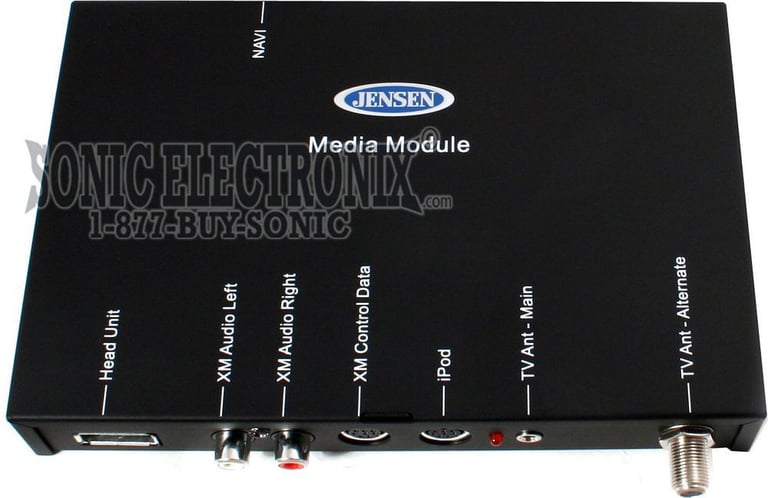

  • Compact Media Center Hideaway Box with A/V Inputs

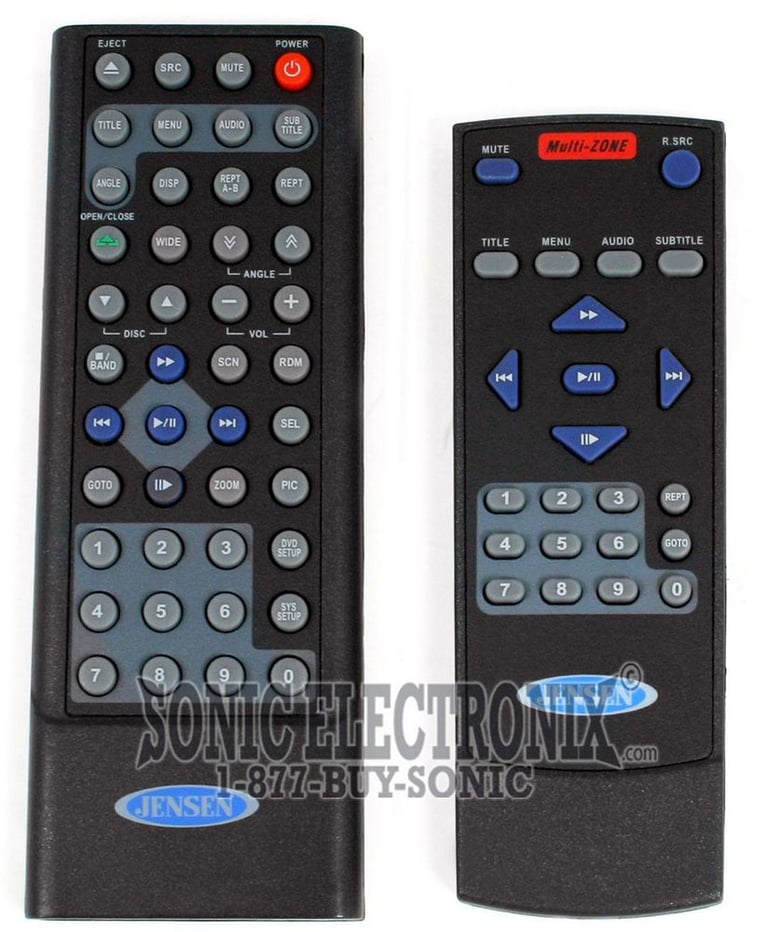

  • Full-Function Remote Control
  • Simplified "Kid Zone" Remote Control

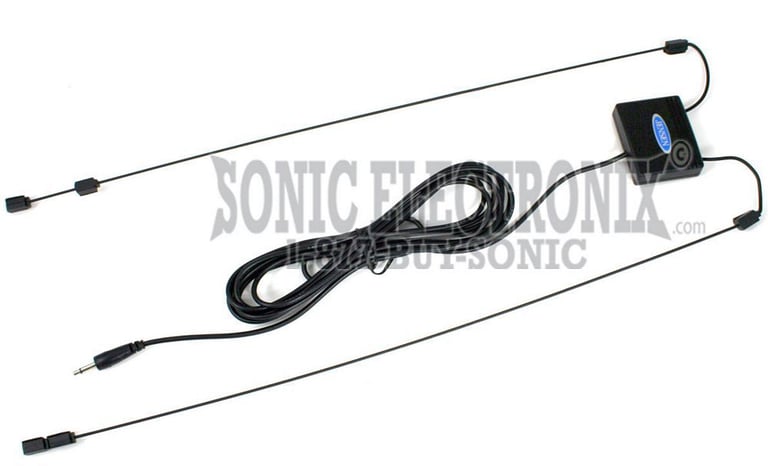

  • On-Glass TV Antenna Included
  • 1/8" Mini Jack & F-Connector TV Antenna Inputs
  • Main Unit Mounting Depth (DIN): 7"
  • LCD Resolution: 336,960 pixels
  • Playback Formats: DVD (region 1 only), MPEG, CD, VCD, SVCD, Photo CD, AVI, JPEG, HDCD, MP3, WMA
  • Video Format: NTSC/PAL Switchable (TV tuner is NTSC only)
  • DVD Frequency Response: 20-20,000 Hz
  • DVD Signal-to-Noise (S/N) Ratio: 95 dB
  • DVD Dynamic Range: >95 dB
  • Total Harmonic Distortion (THD): 0.05%

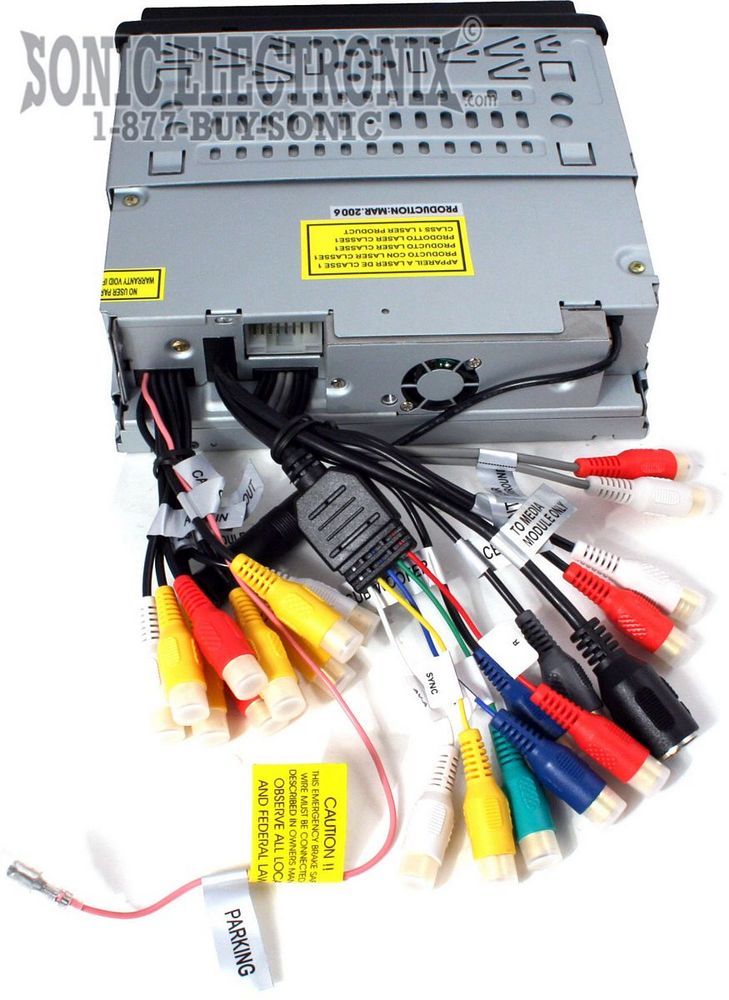

  • Preamp Outputs: 6 Channels Audio, 2 Composite Video
  • Preamp Inputs: 1 Stereo Audio, 2 Composite Video
  • Amplifier Power (Peak): 60W x 4
  • Amplifier Power (RMS): 18W x 4 (CEA-2006 Certified)
  • TV Tuning: ch. 2-69 UHF/VHF
  • FM Sensitivity: 9 dBf
  • CD Changer Control: Yes
  • Integrated SD Memory Card Reader
  • NAV100 Navigation System Input
  • Higher Power Amplifier
  • Replaces Model: VM9510TS ( VM-9510TS is the 2004-2005 model and it previously replaced VM9510 / VM-9510 )
  • 1-year SonicElectronix.com warranty


IMPORTANT INFORMATION REGARDING INSTALLATION AND VIDEO PLAYBACK ON NEW 2006 JENSEN VIDEO PRODUCTS:
CLICK HERE FOR VIDEO BYPASS DETAILS


DUE TO LIMITED PRODUCT AVAILABILITY THIS ITEM IS NO LONGER AVAILABLE FOR OUR "BEAT A PRICE" OFFER.

Product history:

Jensen VM9414 thumbnail
(newest, current model)
Jensen VM9413 thumbnail
(previous model, replaced by Jensen VM9414)
Jensen VM9512HD thumbnail
(previous model, replaced by Jensen VM9413)
Jensen VM9512 thumbnail
(previous model, replaced by Jensen VM9512HD)
Jensen VM9511TS thumbnail
(previous model, replaced by Jensen VM9512)
Jensen VM9510TS thumbnail
(previous model, replaced by Jensen VM9511TS)
Jensen VM9510 thumbnail
(previous model, replaced by Jensen VM9510TS / VM-9510TS ** VIDEO SALE! **)
