NVX XSP65

200 Watt 6.5" X-Series Component Mid-Bass Drivers/Woofers

NVX
Shop all NVX
Product videos
highlight-star-icon

• Peak Power: 200W
• RMS Power: 100W
• Copper Shorting Sleeve Reduces Compression of Motor Structure
• Mounting Depth: 2-15/16"
• Ultra-Lightweight Milled Egyptian Papyrus Pulp Woofer Cone
• 4 Ohm Impedance
• Sensitivity: 90dB

Learn more about the xsp65

We apologize

This item has been discontinued


Loading...
70-7001 main

Metra 70-7001 Wiring Harness

Install a new car stereo in select 1992-2012 vehicles from Mitsubishi, Eagle, Dodge

7
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

Product Highlights


• Peak Power: 200W
• RMS Power: 100W
• Copper Shorting Sleeve Reduces Compression of Motor Structure
• Mounting Depth: 2-15/16"
• Ultra-Lightweight Milled Egyptian Papyrus Pulp Woofer Cone
• 4 Ohm Impedance
• Sensitivity: 90dB

Description


NVX brand icon

Authorized dealer



The Woofer

In order to achieve the crisp and honest sound that sets the X-Series apart from the competition, the NVX engineers set out to build a midwoofer with precise linear movement and minimal mechanical damping. As a result of the extensive research and development process, this midwoofer features materials, technologies, and sound quality unique within the industry:

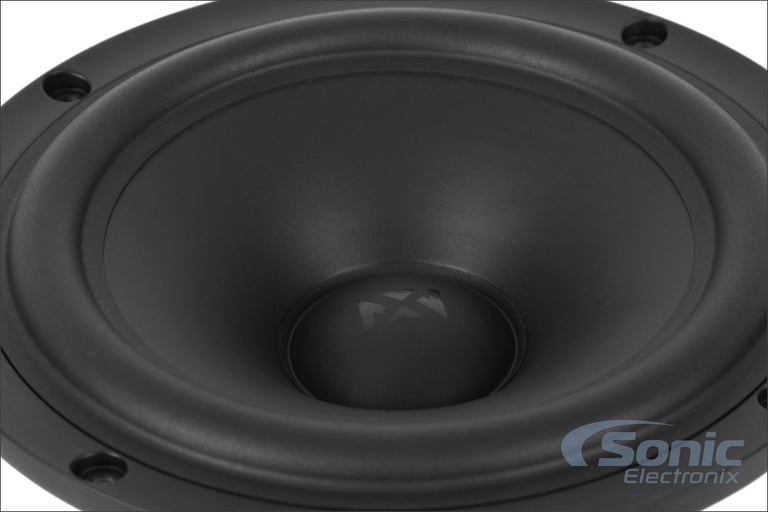

  • Milled Egyptian Papyrus Pulp Cone
    • Ultra-lightweight & stiff material for spectacular accuracy
    • Rich, natural tonal quality

  • Low-Damping Rubber Surround
    • Improves responsiveness
    • Optimized for use with high-quality amplifiers

  • Copper Shorting Sleeve
    • Improves power delivery to the voice coil
    • Reduces inductive distortion
    • Improves linear movement of cone
    • Improves high-end extension
    • Effectively dissipates heat

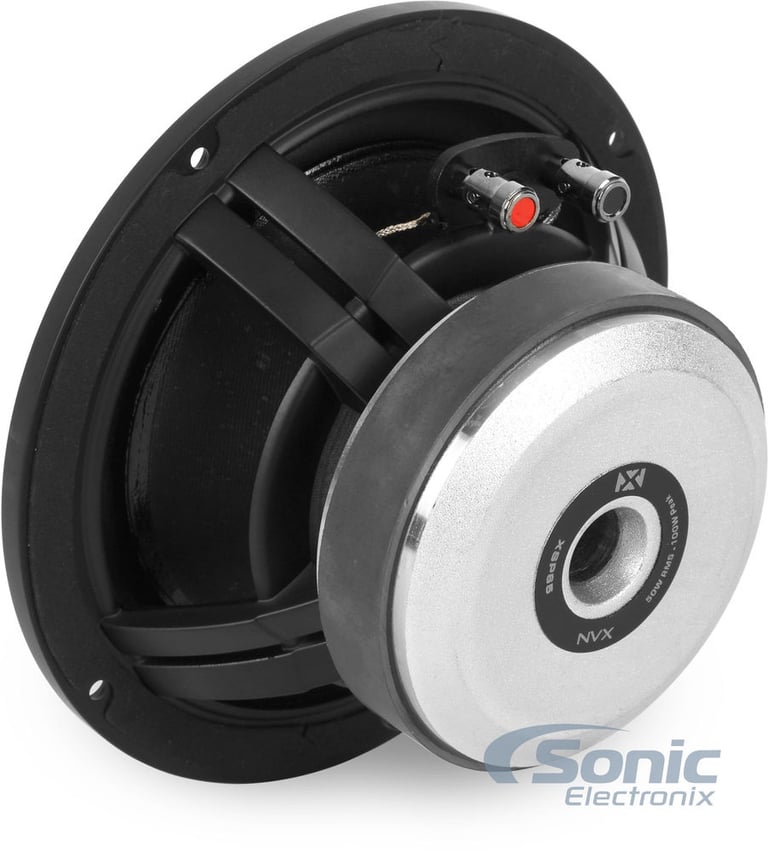

  • Cast Aluminum Basket
    • Reduces compression of the motor structure
    • Improves cone control
    • Reduces back wave interference
    • Reduces basket resonations

General Features:

  • 6-1/2" X-Series Mid-Bass Car Drivers
  • Power Handling:
    • Peak: 200 watts per pair / 100 watts each
    • RMS: 100 watts per pair / 50 watts each
  • Finely Milled Pulp and Egyptian Papyrus Fiber cone material is stiff yet lightweight
  • Low Damping Rubber speaker surround maintains linear movement better than any other material
  • Copper Shorting Sleeve placed in the air gap between the pole piece and the voice coil former reduces inductance
  • Shorting Sleeve improves power delivery to the voice coil, decreases inductive distortion and improves cone linearity
  • Low Turbulence Cast Aluminum Basket improves airflow to reduce compression of the motor structure
  • Relatively soft spider to reduce unwanted mechanical stiffness
  • Speaker housing designed to improve cone control and reduce back-wave interference
  • 3-dimensional cast design dramatically increases the strength and rigidity of the basket
  • Designed to perform optimally in a real car environment
  • 4 ohm impedance
  • Frequency response: 45-3,500 Hz
  • Top-mount depth: 2-15/16"
  • Sensitivity: 90dB

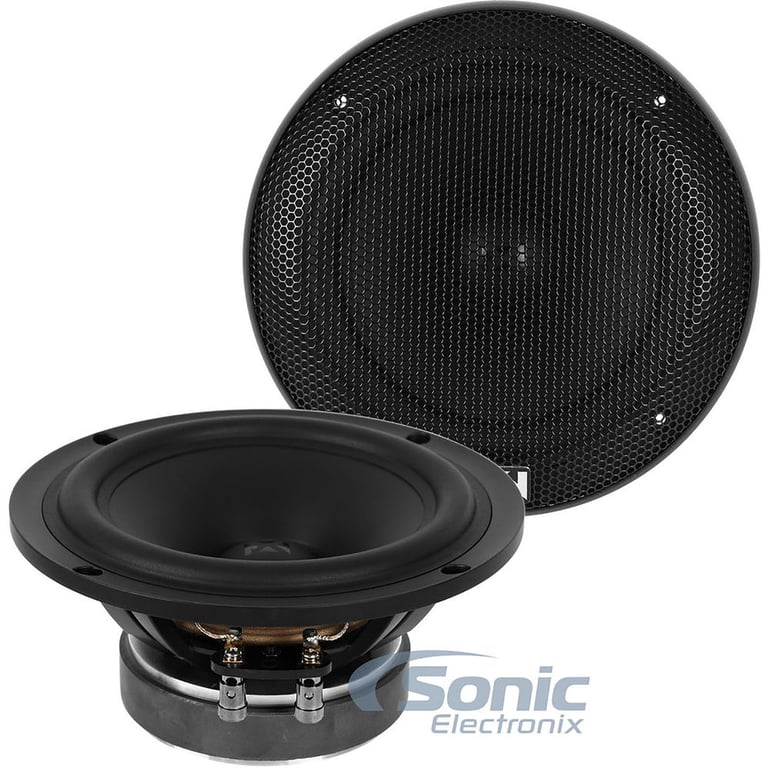

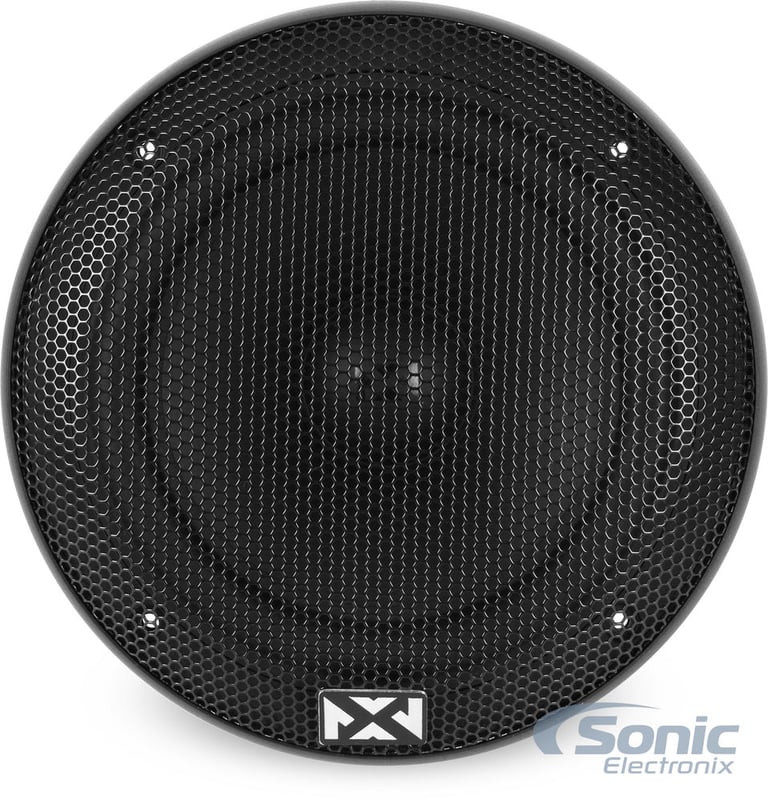

  • Replacement Grills Also Available: NVX XGR665
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Priced Per Pair


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT, CSDF620X2 main

Dual XRM59BT Stereo + (2-Pairs) of JVC CSDF620

Single DIN Mechless Car Stereo Receiver + (4-Total) JVC 6.5" Speakers

32
-50.42%

$88.25

List price $177.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
KDC-BT782HD main

Kenwood KDC-BT782HD

Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)

5
-18.89%

$219.00

List price $270.00

DMH-WT8000NEX main

Pioneer DMH-WT8000NEX

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, Alexa and Dolby Atmos Feature (SiriusXM and iDataLink Maestro Ready)

-18.75%

$1,299.99

List price $1600.00


Best selling similar products

CF-350mt small

JL Audio CF-350mt

• 3-1/2" CF Series Midtweeters
• 35 watts RMS Each
• 4 ohm Impedance

(4)

$229.99

List price $229.99

C165 small

Hertz C165

• 210 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(4)

$199.99

List price $230.00

C165F small

Hertz C165F

• 180 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

$199.99

List price $230.00

AP-M61SE small

Deaf Bonce Apocalypse AP-M61SE

• 260 watts Peak Each, 130 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 101.5 dB

(8)

$109.90

List price $109.90

CF-275mt small

JL Audio CF-275mt

• 2-3/4" CF Series Midtweeters
• 30 watts RMS Each
• 4 ohm Impedance

(12)

$169.99

List price $169.99

51KSC2704 small

Kicker KSC270 (51KSC2704)

• 100 watts Peak Each, 50 watts RMS Each
• Composite Paper cone material
• Impedance: 4 ohm
• Sensitivity: 85 dB

(3)

$59.99

List price $69.99

AP-M67AN small

Deaf Bonce Apocalypse AP-M67AN

• 600 watts Peak Each, 300 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 102 dB

(2)

$449.90

List price $449.90

AP-M60SQL small

Deaf Bonce Apocalypse AP-M60SQL

• 300 watts Peak Each, 150 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 97.5 dB

(4)

$119.90

List price $119.90

P3V2-25 small

Rockford Fosgate Punch P3 P3V2-25

• 150 watts Peak Each, 75 watts RMS Each
• 20-40% Mica reinforced Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 82 dB

$224.99

List price $299.99

XQS3v2 small

NVX XQS3 v2 (XQS3v2)

• 100 watts Peak Each, 50 watts RMS Each
• tweeters
• Carbon Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 85 dB

$129.99

List price $155.99

Specifications & Details


Speaker Specifications
Series
X Series
Priced Per
Pair
Speaker Size
6-1/2"
Design
Mid-range
Woofer Composition
Milled Pulp and Egyptian Papyrus
Woofer Surround
Rubber
Peak Power Handling
200 watts
RMS Power Handling
100 watts
Sensitivity
90 dB
Frequency Response
45 - 3500 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-15/16"
Cutout Dimensions
5-3/4" x 5-3/4"
General specifications
Marine Certified
No
Hi-Res Certified
No
Color
Black
Speaker Grilles
Yes
What is in the box?
Paperwork
User manual
WITB: Speakers
Speakers (2)
Grilles (2, attached)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

XSP65

Weight:

9.50lbs

Internal SKU:

xsp65

Internal Product ID:

68824

Product and How-to Videos


  • NVX X-Series Car Speakers (XSP) | True Audiophile Quality for Music Lovers
  • NVX X-Series Premium Component Car Speakers
  • 40 Mercury NVX Build
  • Zach Kerr of the Colts Shows His Buick at Slamology 2015

Customer Ratings & Reviews


NVX XSP65 thumbnail image

5 star
88%
4 star
13%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.7
Features
4.9
Design
4.8
Usability
4.7

Customer Reviews

Sort by:

Loading...

Fits in 2013 Kia Optima

Just finished installing them in my 2013 kia optima currently I am running them active through a deh80prs head unit and its amplified with RF t-600-4 so its getting about 115W rms at 4 ohms.

From listening to them for only short period so far; I can really tell the have a great roll off between the midbass and subbass.i have them crossed at 50hz with 12db slope. still haven't broke them in but I could tell the are going to improve the sq in my current set up.


My dislike so far is that it didn't come with any self tapping screws so I was fumbling a little bit and couldn't drive down to the store with my car door dismantled so I had to drill out the holes so it would fit factory screws.

Also FYI, this speaker does not fit in the The Install Bay VXT65 speaker baffle because basket on speaker is too large

In future models of NVX speakers I would like to see more mounting options the four around the baffle limits the possibilities in other cars.

By James on January 24, 2015

75 found this helpful


info

awsome sound quality havent had any problems with these speakers got a second set for one of my other cars wont run any other speakers great product

By jon on February 1, 2015

64 found this helpful


THE SUPER MAN OF MID-BASS DRIVERS!!!

I own a pair of these NVX Mid-bass drivers and X-series tweeters and all I ever tell anyone is, " yo, you wanna check out my system?, or "lets hear it on my system"! These drivers replaced my Focal 165VB and IM GLAD they did! They play much loader and have much more mid-bass!

BEWARE, these mid-bass drivers are large and in change, which makes the installation in some vehicle difficult, however these speakers are a great way to start building an "SQ" system!

By Michael on March 18, 2014

63 found this helpful


Underrated speaker

The salesman recommended these to blend with my JL C5 tweeters. I am running them active off a PPI 900.5 amp. Rounding out the bottom end is a JL slim 10" sub. After installing them yesterday I can say I'm initially impressed. They are efficient and sound clean out of the box. They have an excellent attack and I can really feel the low end kick I've been wanting. I can't wait to see what they sound like after they break in. I am disappointed the salesman told me I would not have to cut my doors in my Ridgeline. Unfortunately after using a 3/4" spacer, I still had quite a bit of trimming to do.

By Greg on July 27, 2015

15 found this helpful


Woah

Running 2 pairs of these in the doors of a 2012 Ridgeline. Active, 125W@2 ohms/pair. Crossed somewhere from 160Hz/6dB to 50Hz/24dB on the highpass, and from 2kHz/6dB lowpass, on up to 'no filter' for a natural rolloff, depending on tweeters and driver placement. I'm currently @ 63Hz/18dB, 3.2kHz/6dB, paired with Peerless OT19 tweets in sail pods and 2 Polk 12 inch subs.

Pros
This combo of tweeter/midbass is stunning and produces sparkling clarity, precision, and no fatigue. Wide stereo image and will shake your mirrors if you cross them low. I could get away with no subs if I wasn't a basshead. You can hear the mids outside my vehicle with all the windows rolled up and treated doors, they are that loud and clear!

Cons
These are big and deep speakers, not a drop-in experience. Also, this driver is a rebrand of a less-expensive DIY driver available elsewhere without grilles, screws, or spring terminals, so if you don't need that stuff... but I digress. I am curious to see how the cone material holds up in a car door environment.

By C-Dub on January 22, 2017

1 found this helpful


Superb

Incredible build quality. I bought these because they came highly recommended and I didn't want to spend a fortune on speakers. These replaced a set of Polk Audio db6501 components and I can say that they are a noticeable improvement. They required very little EQ to sound their best. They also play very smooth, clean and clear up past 4Khz, even though I don't run them that high. I gained a ton of mid bass as well. I would highly recommend these.

By Paul on May 16, 2017


Great Mid's

Love these mid range speakers. They have good mid bass and are very clear. Powering them with the NVX 800 Amp and they can handle the power. Higher recommend.

By Lloyd on January 20, 2017 Checkmark Icon Verified purchase


cost more , get more

These drivers are pretty expensive imo, but they perform way better than any coaxial speaker. If you want a mid bass that actually thumps pick these up. Only use with an amp. Awesome quality , big magnet, I'm happy

By Easy E on June 18, 2016




BASSLINK small

Infinity Basslink - Great Bass, Save Space!

200 Watt RMS 10" Self-Amplified Subwoofer Bass System with Remote Bass Control Included

(151)

$169.99

List price $349.95

99-3000B small

Metra 99-3000B Dash Kit

Install a new Single-DIN car stereo in select 1988-1994 vehicles from Chevrolet, GMC trucks (Blue)

(5)

$19.99

List price $35.99

No picture

Lightning Audio S4.300 Strike Series

$149.99

List price $249.99

CDM-9801 small

Memphis 16-PR2.50 R/B

(Refurbished) Power Reference PR Series 2-Channel Amplifier

(1)

$69.99

List price $159.99

KDC-MP342U small

Kenwood KDC-MP342U

In-Dash CD/MP3/WMA Car Receiver with Remote and Front Panel USB and Aux Inputs

(21)

$89.99

List price $169.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1995 Mitsubishi Eclipse

2016 Audi A6

2002 Ford Thunderbird

2014 MINI Cooper

2012 Audi S5

2008 Mitsubishi Eclipse

2014 BMW 428i

2016 Kia K900

2002 Daewoo Lanos

2003 MINI Cooper

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
