NVX XSP5KIT

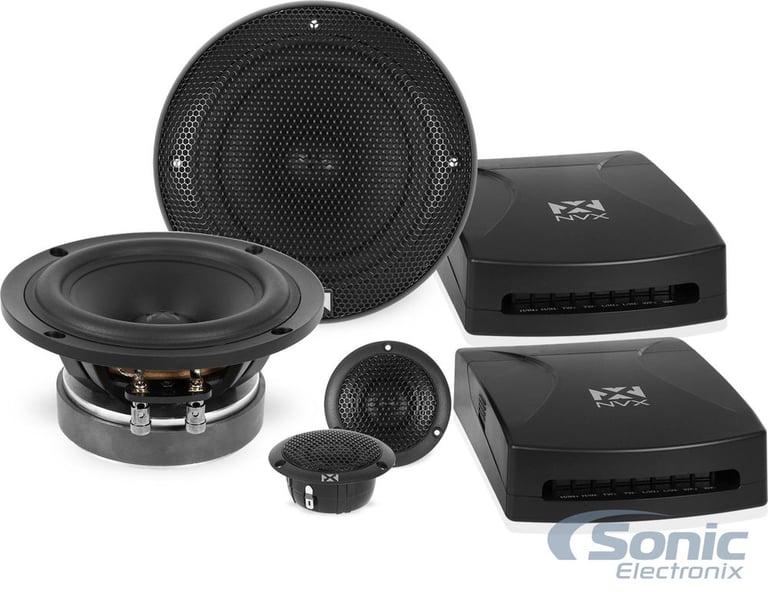

5-1/4" 2-Way X-Series Component Car Speaker System

NVX
Shop all NVX
Product videos
highlight-star-icon

• Peak Power: 210W
• RMS Power: 105W
• High Fidelity Crossover • 4 ohm Impedance

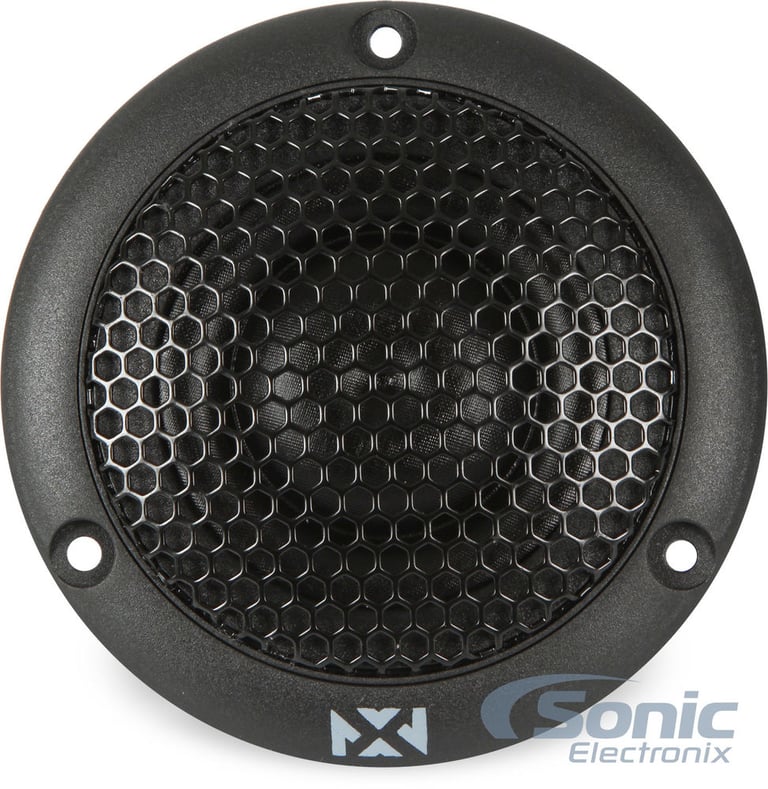

• 29mm Silk Dome Tweeters
• Finely Milled Pulp and Egyptian Papyrus Fiber Cone
• Low Damping Rubber Surround
• Copper Shorting Sleeve Reduces Inductive Distortion

Learn more about the xsp5kit

We apologize

This item has been discontinued


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
-11.43%

$309.99

List price $349.99

KDC-X705 main

Kenwood eXcelon KDC-X705

Single DIN CD Multimedia Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

4
-18.21%

$229.00

List price $280.00

KDC-BT782HD main

Kenwood KDC-BT782HD

Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)

5
-18.89%

$219.00

List price $270.00

Product Highlights


• Peak Power: 210W
• RMS Power: 105W
• High Fidelity Crossover • 4 ohm Impedance
• 29mm Silk Dome Tweeters
• Finely Milled Pulp and Egyptian Papyrus Fiber Cone
• Low Damping Rubber Surround
• Copper Shorting Sleeve Reduces Inductive Distortion

Description


NVX brand icon

Authorized dealer



General Features:

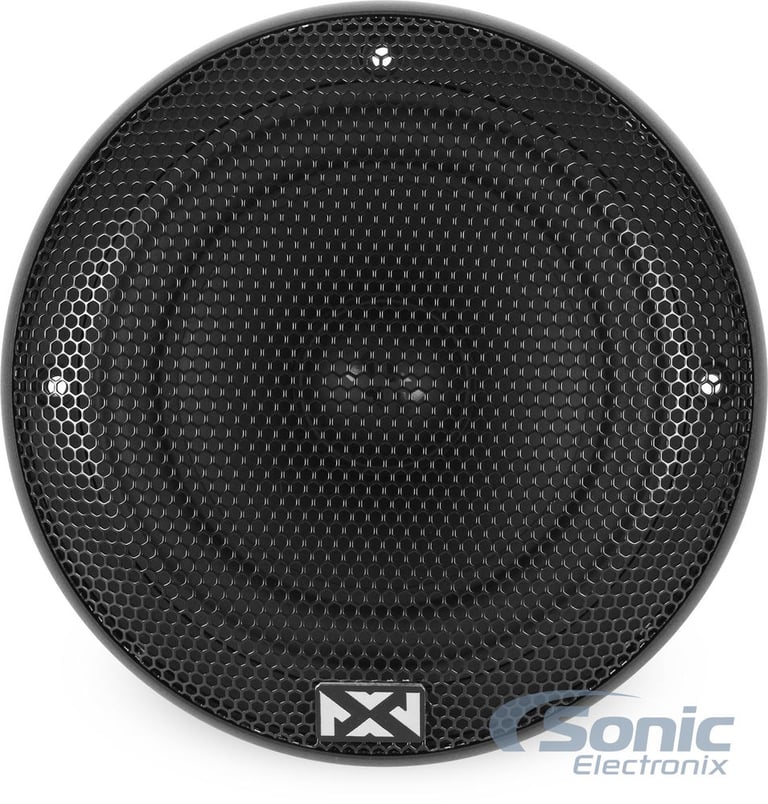

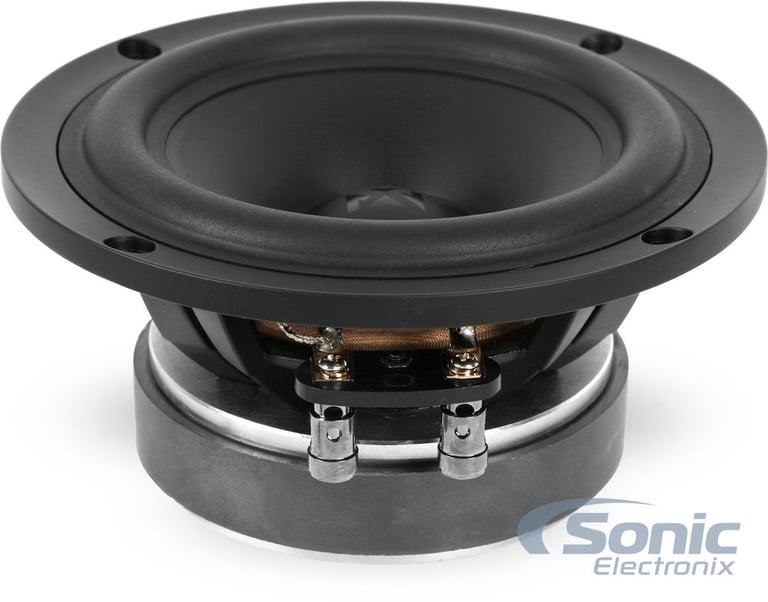

  • 5-1/4" X-Series Component System
  • Power Handling:
    • Peak: 420 watts per pair / 210 watts each
    • RMS: 210 watts per pair / 105 watts each

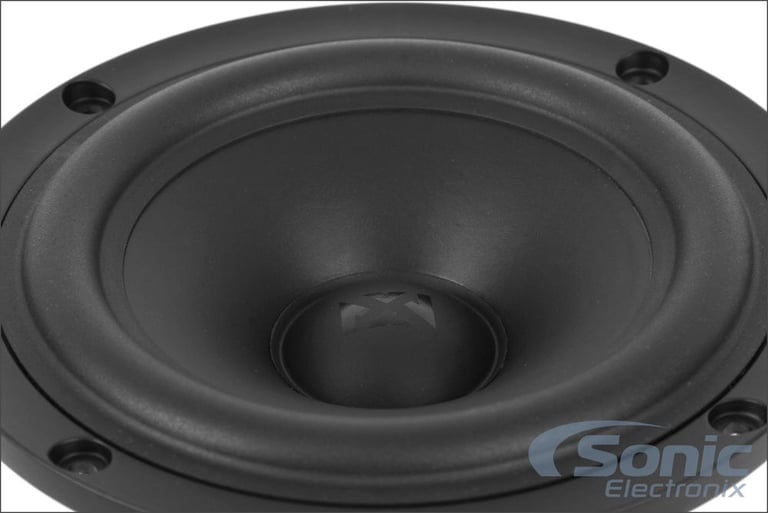

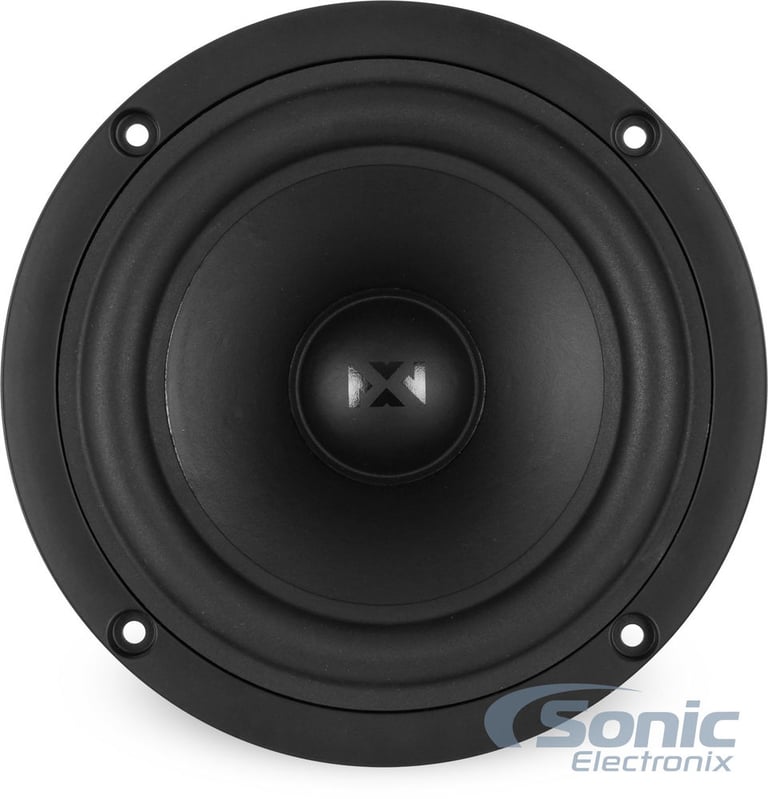

  • Finely Milled Pulp and Egyptian Papyrus Fiber cone material is stiff yet lightweight

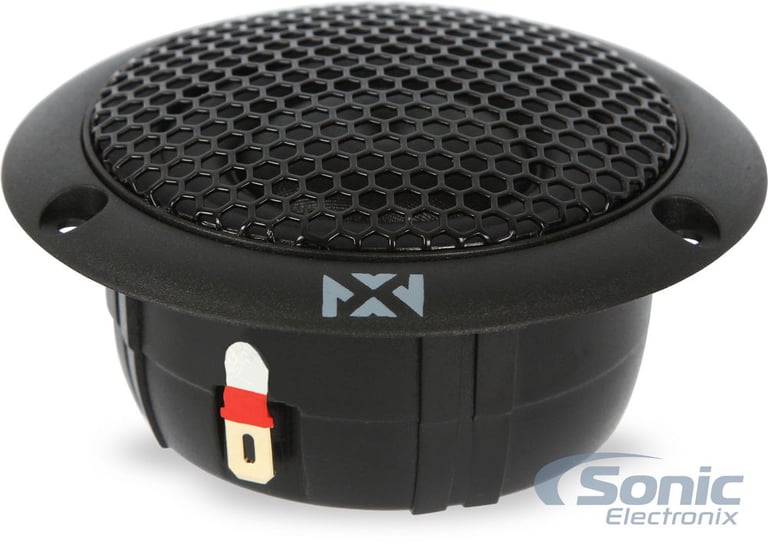

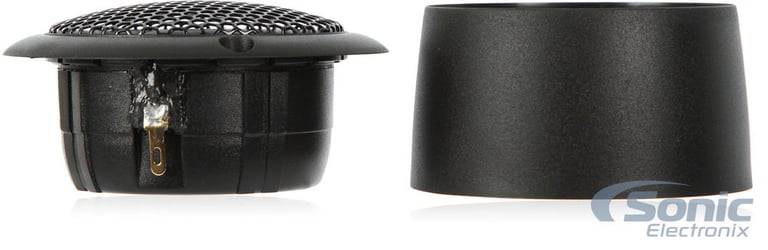

  • 29mm Silk Dome tweeter construction offers crisply detailed highs with warm characteristic
  • Dimpled tweeter dome improves the dispersion pattern for improved response
  • Low Damping Rubber speaker surround maintains linear movement better than any other material

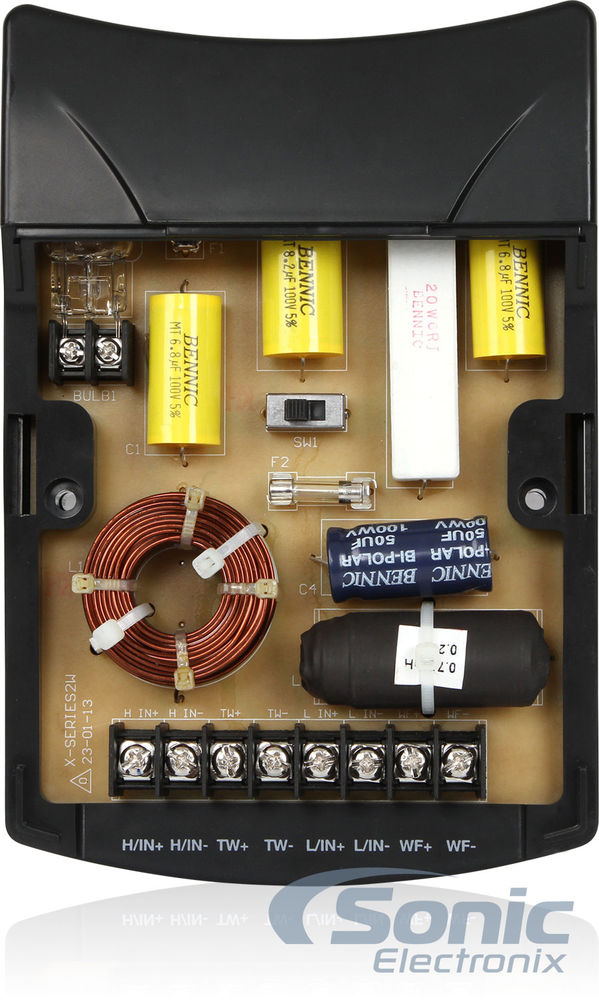

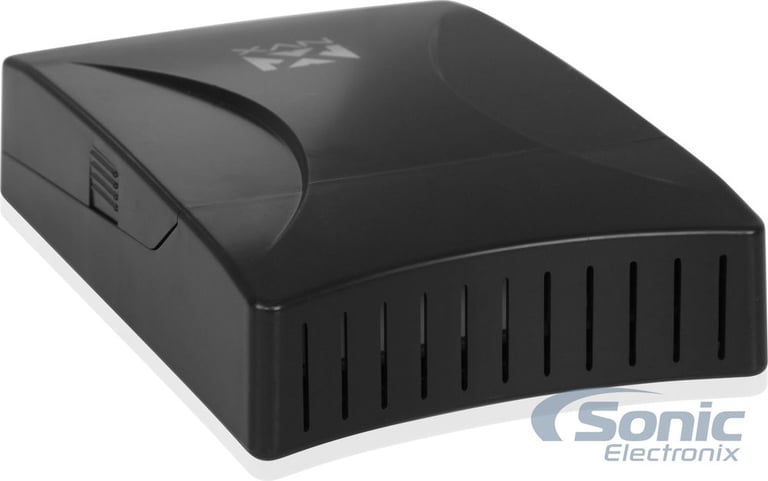

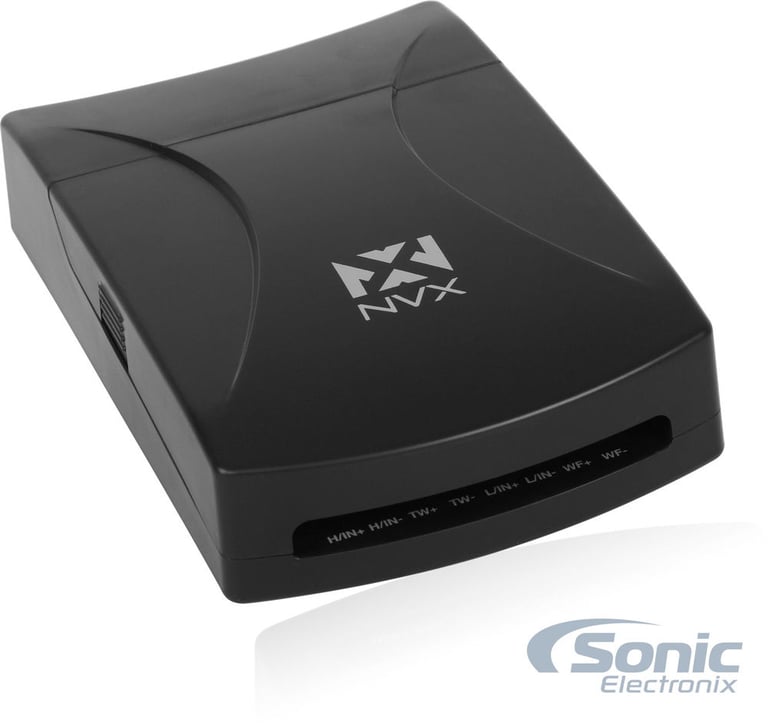

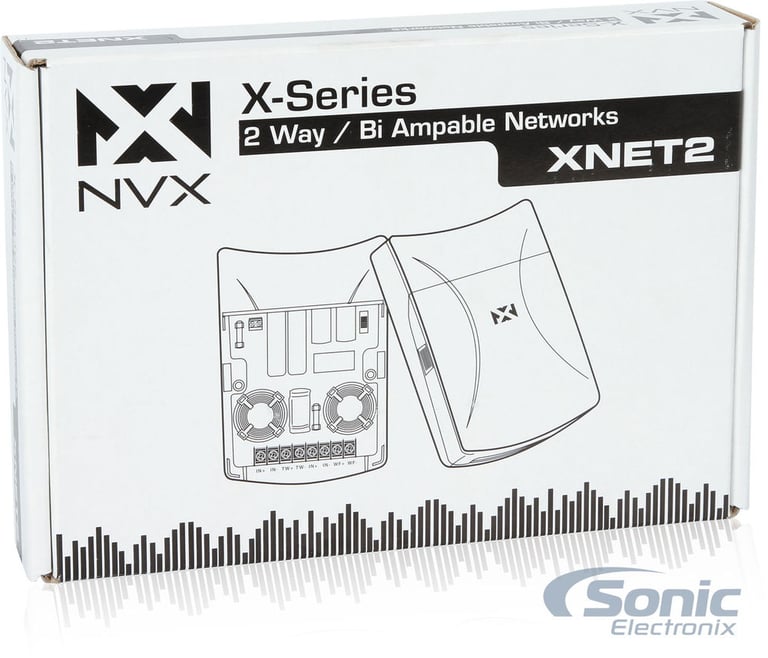

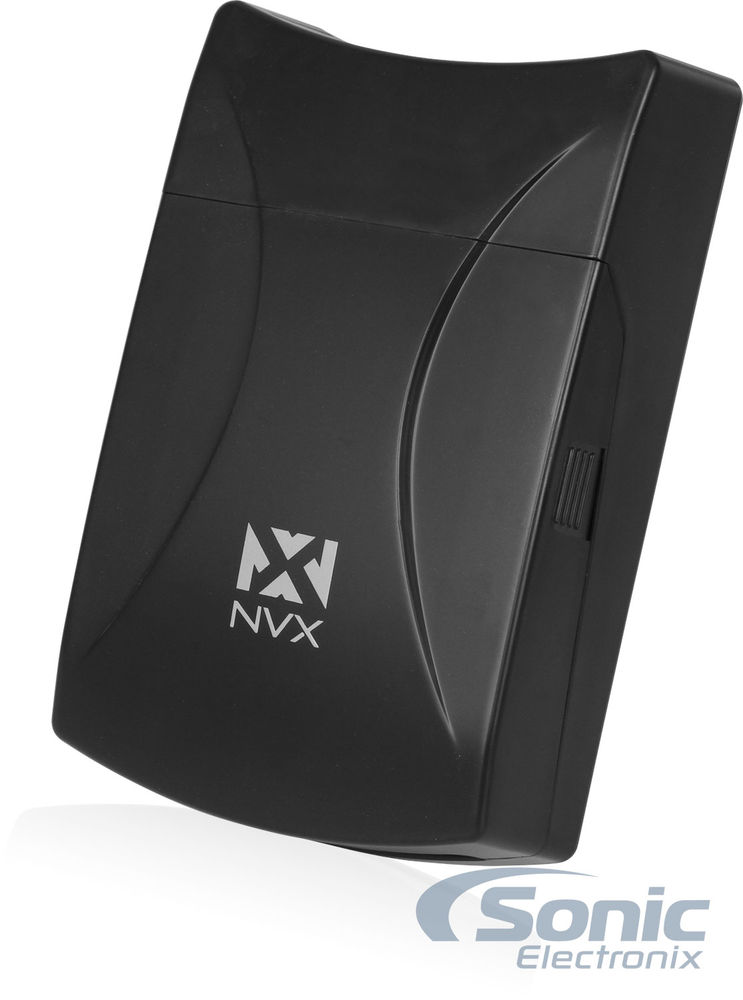

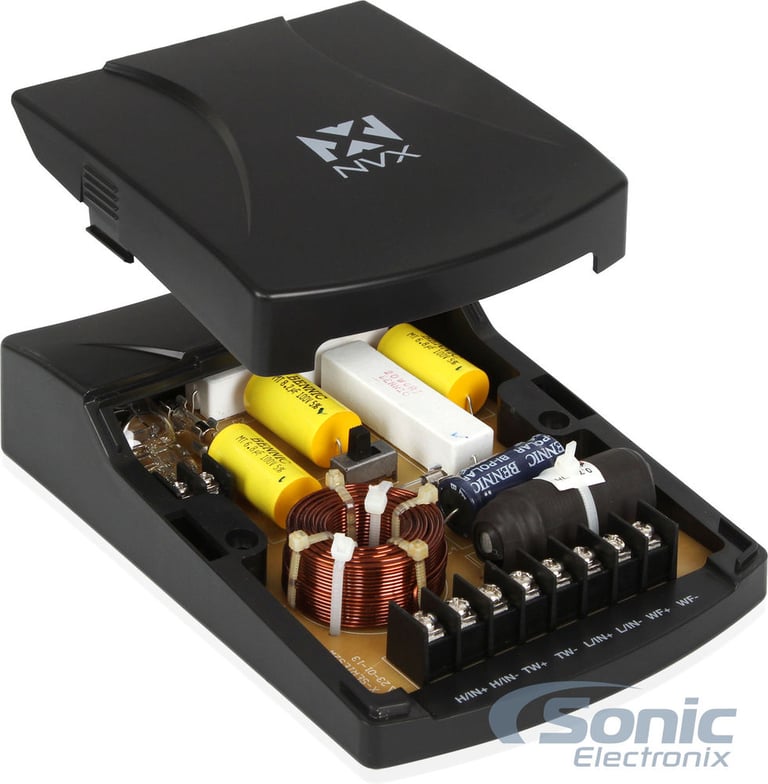

  • Included crossovers are engineered to beautifully complement the natural roll-off of the tweeter and midwoofer

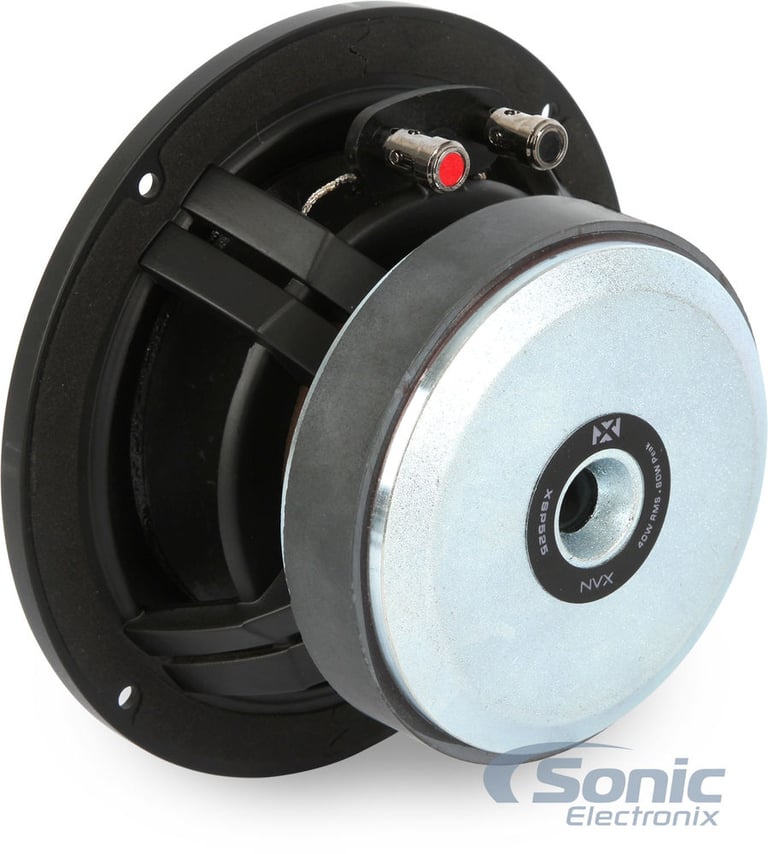

  • Copper Shorting Sleeve placed in the air gap between the pole piece and the voice coil former reduces inductance
  • Shorting Sleeve improves power delivery to the voice coil, decreases inductive distortion and improves cone linearity
  • Improved clarity and fidelity at higher notes reduced strain on the surround
  • Ring Radiator design prevents the surround from decoupling at higher frequencies

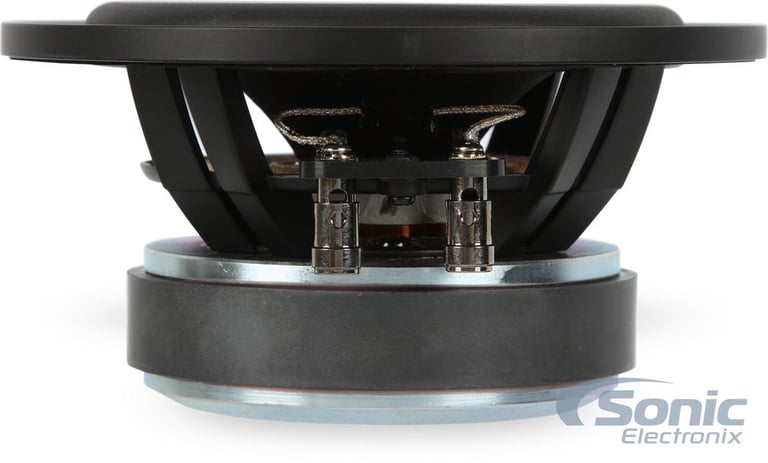

  • Low Turbulence Cast Aluminum Basket improves airflow to reduce compression of the motor structure
  • Relatively soft spider to reduce unwanted mechanical stiffness
  • Speaker housing designed to improve cone control and reduce back-wave interference

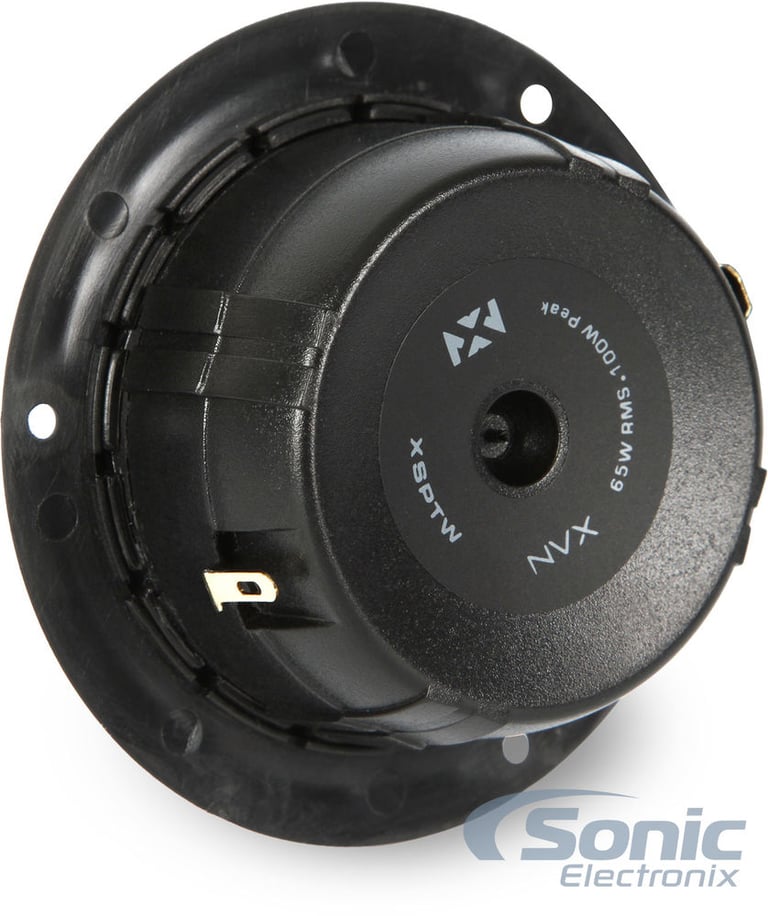

  • Robust Tweeter Chamber helps lower the resonant frequency, greatly improving imaging
  • 3-dimensional cast design dramatically increases the strength and rigidity of the basket
  • Designed to perform optimally in a real car environment
  • 4 ohm impedance
  • Frequency response: 75-22,000 Hz
  • Top-mount depth: 2-3/4"
  • Sensitivity: 90dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.


Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

DAX1050XR_MRR_FLCH2_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.97

List price $2479.97

DAX800XR_MRR_S8GM1_8 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1456.96

List price $2074.96

KWZ800AW_MRR_S8FO1 small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(39)

$1383.97

List price $1778.97

DAX800XR_MRR2_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(9)

$1473.96

List price $2143.96

DAX800XR_MRR_S8FO2_s small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1348.96

List price $1973.96

DAX800XR_MRR_S8GM3_CI small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1605.96

List price $2254.96

DAX800XR_MRR_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1403.96

List price $2053.96

KWZ800AW_MRR2_S8FO1 small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(8)

$1453.97

List price $1868.97

Specifications & Details


Speaker Specifications
Series
X Series
Priced Per
Pair
Speaker Size
5-1/4"
Design
2-way Component System
Tweeter Design
Dome
Tweeter Size
1-1/8"
Tweeter Composition
Silk
Woofer Composition
Milled Pulp and Egyptian Papyrus
Woofer Surround
Rubber
Peak Power Handling
210 watts
RMS Power Handling
105 watts
Sensitivity
90 dB
Frequency Response
75 - 22000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-3/4"
Cutout Dimensions
4-7/8" x 4-7/8"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

XSP5KIT

Weight:

14.80lbs

Internal SKU:

xsp5kit

Internal Product ID:

68827

Product and How-to Videos


  • NVX X-Series Car Speakers (XSP) | True Audiophile Quality for Music Lovers
  • NVX X-Series Premium Component Car Speakers
  • 40 Mercury NVX Build
  • Zach Kerr of the Colts Shows His Buick at Slamology 2015

Customer Ratings & Reviews


NVX XSP5KIT thumbnail image

5 star
87%
4 star
9%
3 star
4%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.8
Design
4.7
Usability
4.3

Customer Reviews

Sort by:

Loading...

suprised

The following review is for XNET2, which is a part of the bundle you are viewing.

this is the first time i have ever used the crossovers to a component set that sounded better than an active setup nvx has taken the time to put together a high end set of components for a good price. i' sold on the quality and value. if you pay alot more you can buy better but if you just want to listen to your music and have gas money to cruise this is one of a very few choices i would suggest. buy the x series components with crossovers and enjoy

By Jonathan on December 11, 2014

52 found this helpful


TRUE qaulity crossovers

The following review is for XNET2, which is a part of the bundle you are viewing.

I purchased these along with a set of NVX XSPTW tweeters and they are the real deal !! I had Best Buy install them and some how they set the rear speakers set up on HU for sub output and wired the front and rear set backwards . I was only getting lows on my right front and left rear speakers and my tweeter(s) that I had installed at the same time on the left rear had no output . The "professional installer" insisted that the crossover was faulty so I purchased another set of crossovers and replaced the left rear one and still had no sound from the left tweeter so I went back to Geek Squad and explained the problem . He rechecked the wiring and HU settings and like magic the tweeter worked . He said that the first crossover was faulty and I had to explain to him "the professional" that the crossover was fine , it was only doing what it was suppose to do . The tweeter output on the crossover was only receiving a frequency that was lower then the tweeter output from the crossover was designed to put out , there for there was no output coming from the crossover . In other words the crossover WAS DOING what it was designed to do by separating the frequencies properly and not damaging my new tweeter . I finally got it through the thick skull of "the professional" why the tweeter did not produce any sound . This in a nutshell proves that the crossover is quality made and is a must have when installing tweeters . I have all pros here and no cons on this product . NVX and Sonic are both top notch in quality . Sonic personal and service can not be beat !! I will use Sonic for all my future audio needs . Thanks again !!

By Freddy Krueger on May 2, 2015

40 found this helpful


Excellent low-reaching tweeters

The following review is for XSPTW, which is a part of the bundle you are viewing.

Keep in mind this tweeter isn't accommodating to just any installation. It's a rather large tweeter. That said, it's an excellent tweeter. Tremendous value. Belts it out solidly and cleanly in a 2-way, and can crossover low enough to work with mids in a front 2-way with ease. Been extremely pleased with them. Clean, smooth and after some playing time they seem to be even better. I have them on-axis in custom pods in an 8th gen Civic sedan. I have the levels pulled back on the DSP as they can easily overpower being on-axis. I'm crossing these anywhere between 2k-2.5k , currently around 2300hz. I imagine from the specs they could reach lower but work well as I have them. Like all NVX gear I've worked with thus far, these are outstanding.

By Babs on February 9, 2015

40 found this helpful


Great Tweeters!

The following review is for XSPTW, which is a part of the bundle you are viewing.

These tweeters are awesome, they are very loud and clean! At fist they might sound bright, but once you tune your system they really sound great!

P.S, these tweeters are big to work with!

By Michael on March 18, 2014

34 found this helpful


Excellent

The following review is for XSPTW, which is a part of the bundle you are viewing.

Huge upgrade to the Polk Audio Tweeters these replaced. Very natural and smooth sound. Little hard to install unless making a custom setup.

By Dave on March 16, 2014

30 found this helpful


Can't beat them for the price...

The following review is for XSPTW, which is a part of the bundle you are viewing.

These tweets lived up to all the hype. I really don't have a thing bad to say about them as far as their sound quality. Although, they did take a couple weeks to develop the all around smoothness they have now. The first day I did consider them just a tad harsh, but that was just the pre-break in time period. Other than that, just the size of these gargantuan tweets. Hard to find a suitable location for a stealth install. am about to purchase the 6.5" door speakers and make this house a happy home!

By Kevin on November 3, 2014

30 found this helpful


Great Tweeters!

The following review is for XSPTW, which is a part of the bundle you are viewing.

I was planning on getting some tweets that list for $580. Then someone convinced me to try these. I replaced my Rockford Fosgate T5 tweeters with these, and the improvement is awesome!

Details galore, not to bright and a very natural sound, They seem well built, and look great.The best tweeters that I've owned. They pair up great with the RF T5's woofers which is the best woofer i've owned.

Cons,
They are BIG, and i had to get creative to install them.

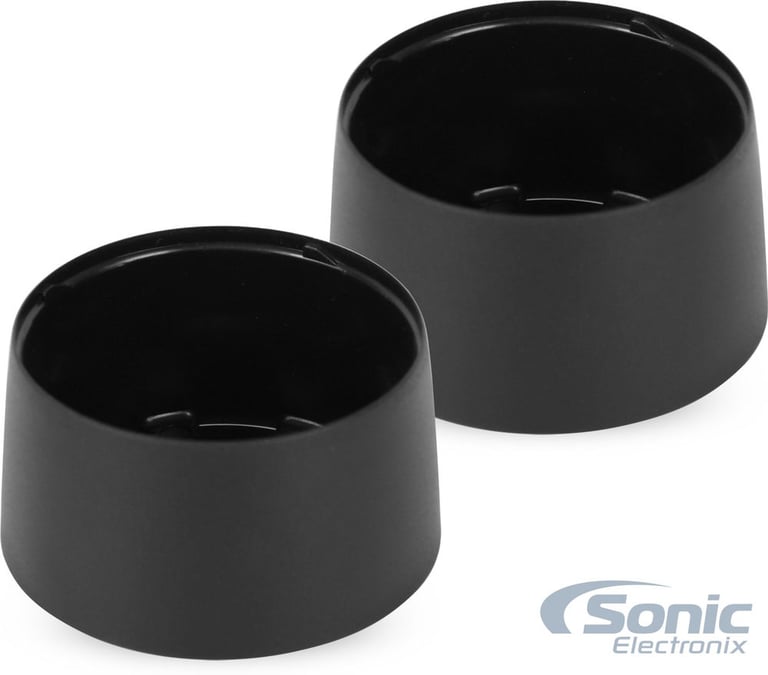

Also they don't seem to lock into their pod/cup to easily.

By Roland on October 16, 2013

25 found this helpful


The cat's MEOW..

The following review is for XSPTW, which is a part of the bundle you are viewing.

As some may already know these tweeters are based on the highly praised SB Acoustics driver and no SQ was lost in the translation..
The first thing you will notice about these tweeters is the weight, they're heavy and the second thing you will notice is the sound, they're incredible and totally transformed my sound stage, these tweeters will pull clear down to 800Hz but you'll enjoy crossing them at 1500Hz, this will raise the sound stage and put the bass on your dashboard, where it belongs..
Trust me you want these tweeters, stop waiting and buy them..

By george on July 4, 2015 Checkmark Icon Verified purchase

22 found this helpful


awsome tweeters great price

The following review is for XSPTW, which is a part of the bundle you are viewing.

these simply sound sweet. no long review you want tweeters you can play loud all day without tired ears or a headache for this price point buy these and a good amp and set up properly and (enjoy)

By Jonathan on September 16, 2014

24 found this helpful


NVX Tweeters AMAZING !!

The following review is for XSPTW, which is a part of the bundle you are viewing.

I installed a set of these in the rear of my car and I was just blown away by volume , clarity , and the overall enhancement of my audio listening pleasure . They play loud and do not have ANY distortion . I have all NVX speakers in my set up except I have a Pioneer 12 inch sub . I do believe they are very under rated on their power handling because my amp pushes 150 watts RMS per channel and the speakers ratings are only 50-65 watts RMS and I get high quality distortion free sound at high volume . The NVX tweeters have 800 - 22000HZ output rating so they also pick up quite a bit of your midrange frequencies ( that is why I purchased these ) The vocals are SO much more clear along with lead guitar and drum instruments . You can spend $500.00 on a set of tweeters and will not get ANY more quality sound then these NVX XSPTW models . If I could only fit another sub in my little Fiat 500 , I would be a strong contender in a audio competition because of these tweeters !! I strongly recommend this product matched up with a set of NVX XNET2 crossovers . That's only my opinion , I could be right !! Thank you again Sonic for your superior product and service .

By Freddy Krueger on May 2, 2015

21 found this helpful




RR2UAD small

Road Ready RR2UAD

Heavy Duty 2U Deluxe Amplifier Rack Case with Recessed Spring Loaded Handles

$179.99

List price $359.99

MA1537B small

Scosche MA1537B / MA1537 Dash Kit

Install a new Single-DIN car stereo in select 1995-2003 vehicles from Mazda (Black)

(10)

$12.95

List price $14.95

ADD-GM24 small

PAC ADD-GM24

Harness Used to Add or Replace Factory GM / Bose Amplifiers with Aftermarket Amplifiers

(6)

$14.95

List price $13.99

CS-HX648 small

JVC CS-HX648

6-1/2" 4-Way HX Series Coaxial Speakers

(4)

$59.95

List price $109.95

FD-7 small

American International FD-7

Reverse Antenna Adapter (Same as Scosche FDARB)

$3.49

List price $9.99

02-11-hyundai-accent-spkg small

NVX Complete N-Series Speaker Upgrade Kit for 2000-2005 Hyundai Accent

2 Pairs 5.25" NVX N-Series Speaker Upgrade Kit | Fits select 2000-2005 Accent

(27)

$93.48

List price $131.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1969 BMW 2000c

1989 Ford Tempo

1998 Saab 900

1966 BMW 2000cs

1968 BMW 2002ti

2004 Cadillac DeVille

2003 Cadillac DeVille

2023 Ram 1500

2015 Audi A6 Quattro

2005 Lexus GX470

Vehicle
Store
Delete

2024 Can-Am Defender MAX

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
