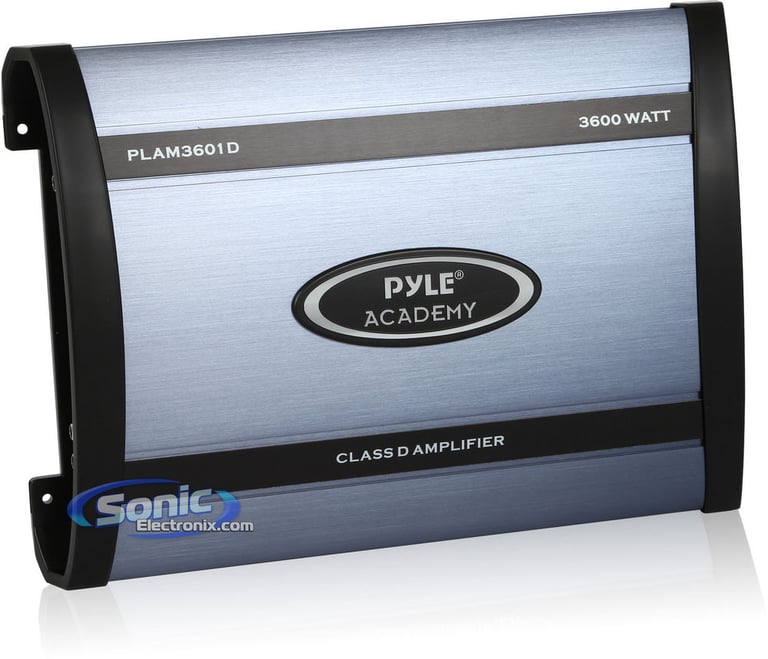

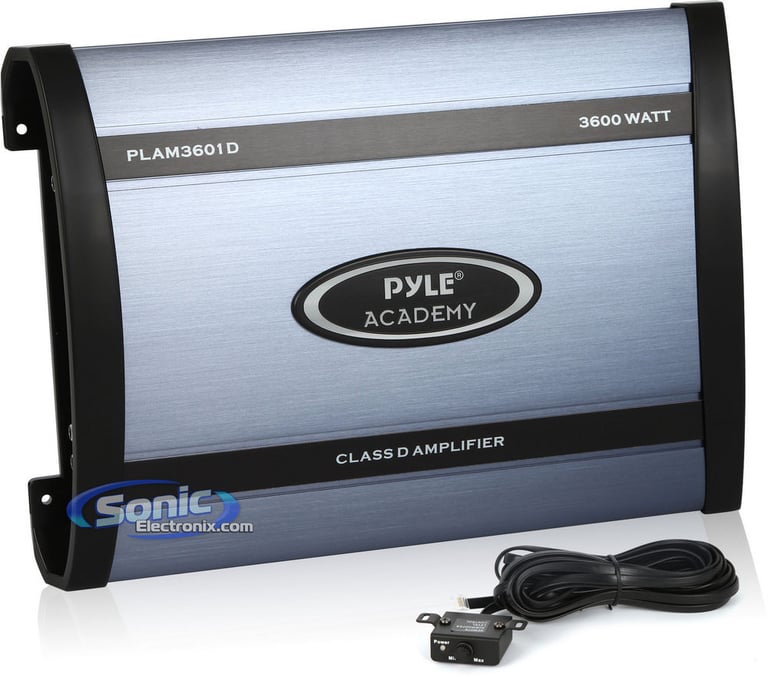

Pyle PLAM3601D

3600W Max Monoblock Single Channel Academy Series Class D Amplifier

Pyle
Shop all Pyle
Product videos
highlight-star-icon

• RMS: 1000W x 1 @ 4 ohm, 1500W x 1 @ 2 ohm, 2000W x 1 @ 1 ohm
• Total Peak Power: 3600W
• Wired Bass Remote Included
• Bass Boost: 0-12 dB
• Class D Circuitry
• Dimensions: 9-3/4"W x 13-3/4"L x 2-1/4"H

Learn more about the plam3601d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

29
-28.13%

$22.99

List price $31.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

AXLOC-FD2 main

Axxess AXLOC-FD2

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ford with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

11
-38.81%

$20.80

List price $33.99

SAT-01 main

PAC SAT-01 Antenna Adapter

Connect your factory SiriusXM antenna to a new aftermarket radio for select 2004-2024 vehicles from Ford, Audi, GMC

1
-44.86%

$15.99

List price $29.00

82-5602 main

Metra 82-5602

6X9" Speaker Adapter for select 2011-2020 Explorer and F-Pace

2
-47.51%

$20.99

List price $39.99

82-5603 main

Metra 82-5603

6" to 6-3/4" Speaker Adapter for select 2011-2019 Explorer

2
-50.01%

$19.99

List price $39.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Product Highlights


• RMS: 1000W x 1 @ 4 ohm, 1500W x 1 @ 2 ohm, 2000W x 1 @ 1 ohm
• Total Peak Power: 3600W
• Wired Bass Remote Included
• Bass Boost: 0-12 dB
• Class D Circuitry
• Dimensions: 9-3/4"W x 13-3/4"L x 2-1/4"H

Description


Pyle brand icon

Authorized dealer

General Features:

  • Academy Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1000 watts x 1 chan.
    • 2 ohm: 1500 watts x 1 chan.
    • 1 ohm: 2000 watts x 1 chan.
  • Max power output: 3600 watts
  • Pulse Width Modulated MOSFET power supply

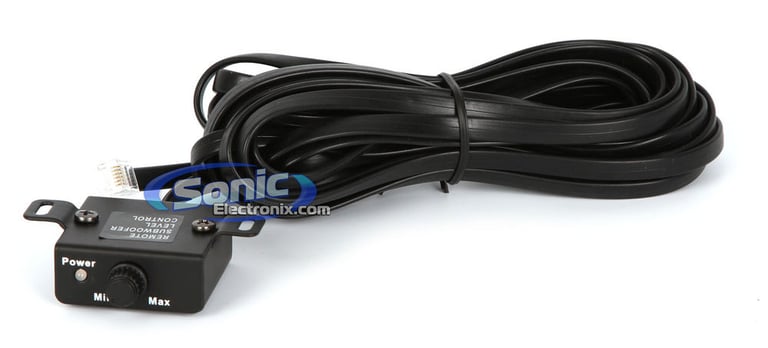

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Soft start turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation

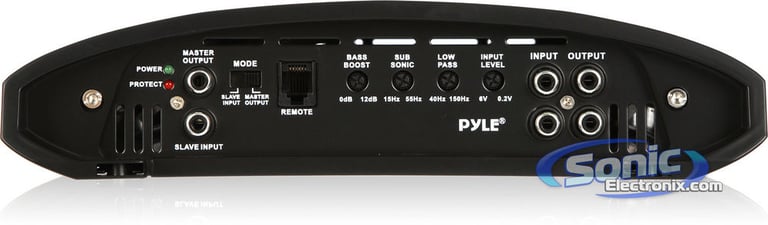

  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Variable low-pass filter (40-150 Hz)
  • Variable subsonic filter (15-55 Hz)
  • Frequency response: 10-50,000 Hz

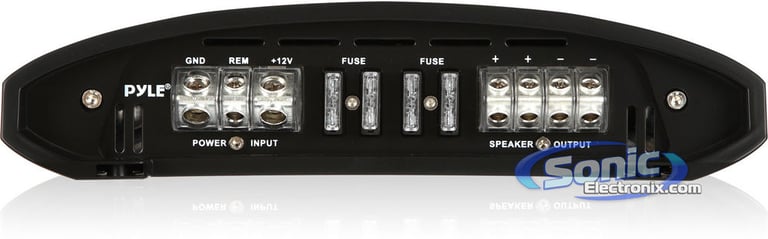

  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-3/4"W x 13-3/4"L x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
