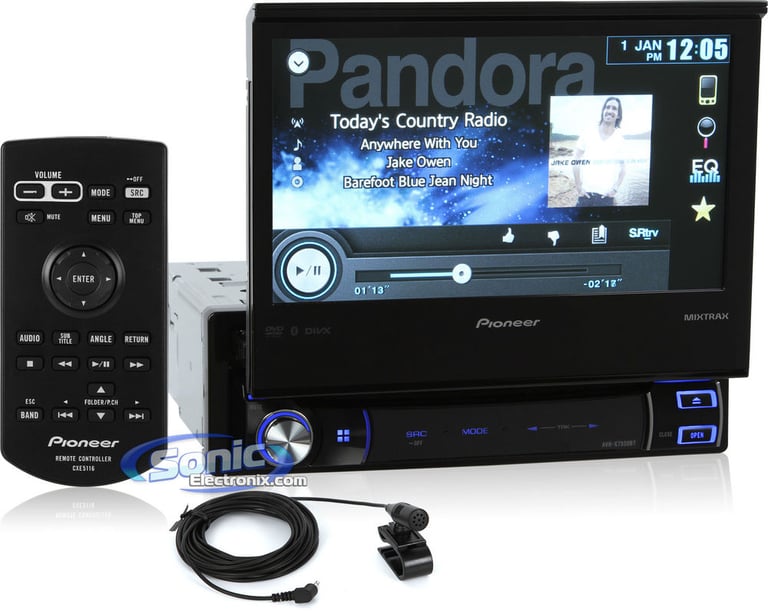

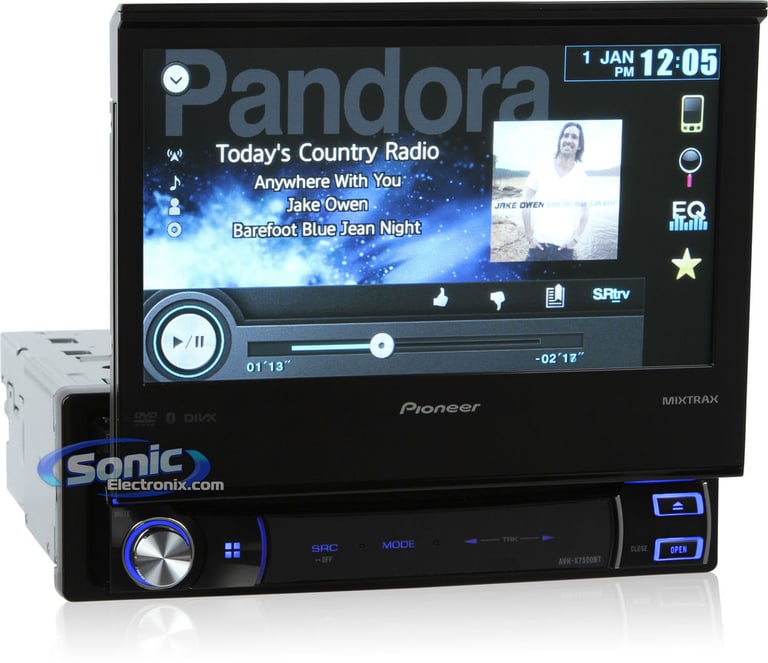

Pioneer AVH-X7500BT (Factory Refurbished)

In-Dash 7" DVD/MP3/USB Flip-Out Touchscreen Car Stereo Receiver w/ Bluetooth & MIXTRAX

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

In-Dash Single DIN Flip-Out DVD/MP3/USB Receiver • 7" LCD Touchscreen Display • 50W x 4 Chan. MAX • 22W x 4 Chan. RMS • 3 Sets of 4V Preamp Outputs • 8-Band Graphic Equalizer • A2DP Bluetooth Technology • MIXTRAX Technology

Learn more about the LS-avhx7500bt-RB

We apologize

This item has been discontinued

Product Highlights


In-Dash Single DIN Flip-Out DVD/MP3/USB Receiver • 7" LCD Touchscreen Display • 50W x 4 Chan. MAX • 22W x 4 Chan. RMS • 3 Sets of 4V Preamp Outputs • 8-Band Graphic Equalizer • A2DP Bluetooth Technology • MIXTRAX Technology

Description


Pioneer brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.
















General Features:

  • In-Dash Flip-Out AM/FM, DVD, CD, MP3, USB Receiver
  • Full-color 7" LCD touchscreen WVGA high-resolution display with angle adjustment
  • Bluetooth with A2DP and AVRCP audio streaming for hands free phone calls and music playback
  • MIXTRAX application will create a non-stop mix of your music library with DJ inspired effects
  • AppRadio Mode lets you experience control of compatible apps from the receiver when connected to Apple iPhone
  • Pandora Link integrates your car stereo with your iPhone and Pandora Internet Radio
  • Android compatible with Pandora Internet Radio and Aha Radio apps
  • CEA-2006 compliant amplifier
  • Power Output (14.4V):
    • Peak: 50 watts x 4 channels
    • RMS: 22 watts x 4 channels (Pioneer Certified)
    • RMS: 14 watts x 4 channels (CEA Certified)
  • Variable Color Illumination with 112 color selections

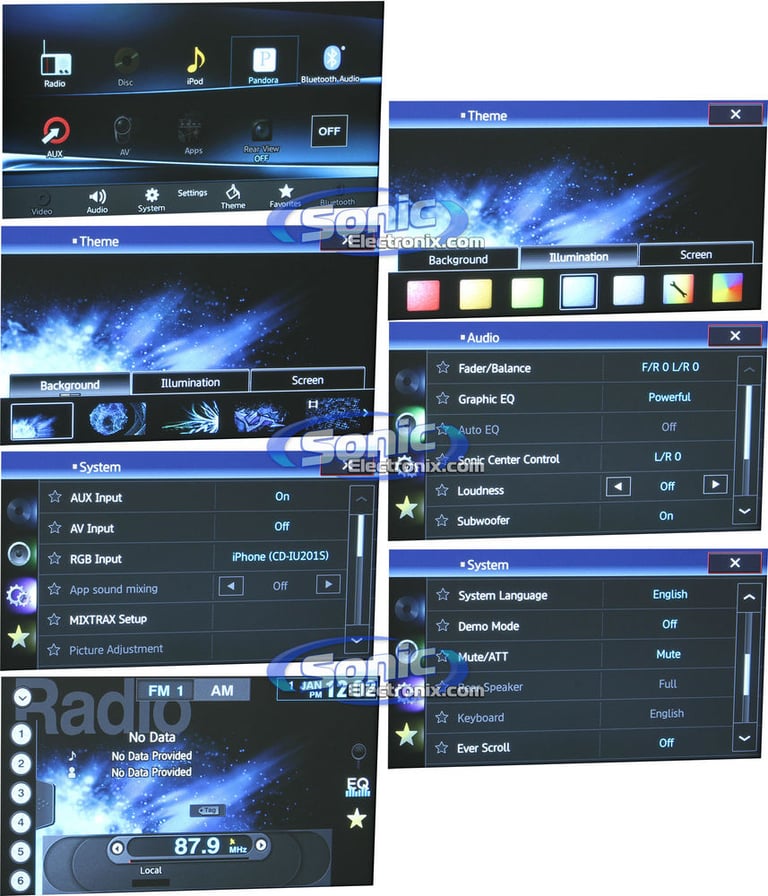

  • Home menu with function icons for easy one-touch access
  • Improved alphabet search and dual-speed scroll for List Searches
  • 16:9 Aspect ratio and anti-glare technology for bigger picture and exceptional viewing
  • Intuitive interface with advanced touch slide operation provides an easy to use in-car experience

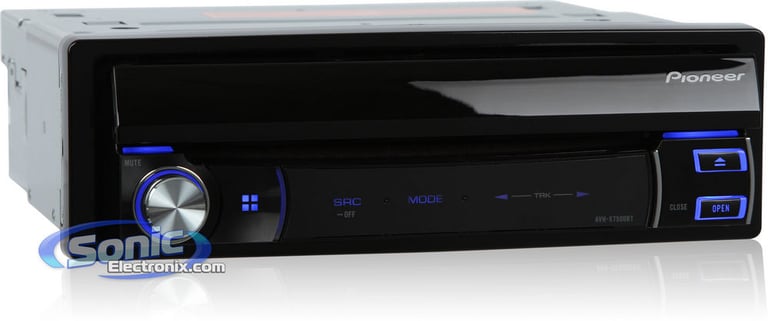

  • Theft-deterrent, partially detachable face plate
  • Song info and album art appear on the screen
  • CD text information display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 90-day Sonic Electronix Warranty

Playback and Audio Features:

  • Playback of CD, CD-R/RW, DVD, DVD-R/RW, DivX, MP3, WMA, AAC, MPEG4 and JPEG
  • App Mode for iPhone allows control of compatible apps from the display
  • Playback of Region 1 DVD discs (United States, Canada, Bermuda, U.S. territories)
  • Dolby Digital Decoder automatically down-mixes Dolby signals
  • Advanced Sound Retriever to restore your compressed media to near CD quality
  • Advanced analog and digital processing for smoother broadcast signal reception
  • 24-bit Digital Analog Converter (DAC) to enhance your MP3/WMA playback
  • Supertuner IIID AM/FM tuner with 24FM/6AM presets
  • Sonic Center Control adjusts for particular listening positions
  • High Pass (HPF) and Low Pass (LPF) digital crossover filters
  • 8-Band graphic equalizer with custom preset memory
  • 7-Preset equalizer curves (Powerful, Natural, Vocal, Flat, Super Bass, Custom 1 and Custom 2)
  • Supports Pandora Radio streaming with a unique custom interface displayed on the receiver

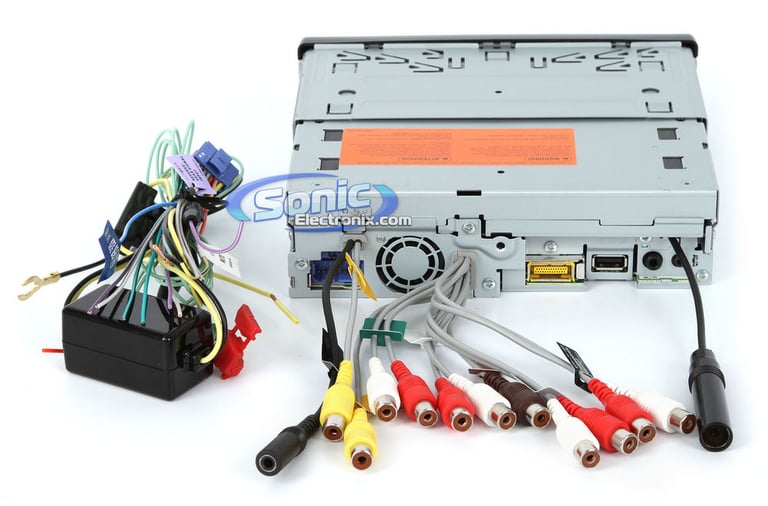

Expandability Options:

  • 3 Sets of 4V preamp outputs (front, rear and subwoofer)
  • Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone
  • iPod/iPhone Ready: Search for music by artist, album, genre, and playlist. Pioneer CD-IU201S required and sold separately
  • Rear Auxiliary Input: 3.5mm headphone jack allows connection to portable media devices such as MP3 players
  • GPS Navigation Ready: Pioneer AVIC-U250 required and sold separately

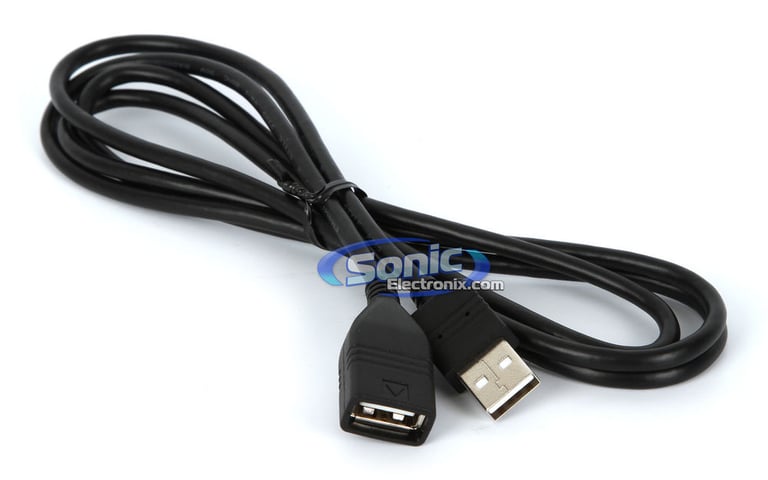

  • Rear 1 Amp USB Input: USB port allows connection to digital devices such as flash drives, portable media players, etc.
  • Rear RCA Audio/Video Inputs: Used for connecting accessories such as game consoles, video cameras, etc.
  • Rear RCA Video Output: Used for connection to separate monitors and other devices
  • Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input. The Pioneer ND-BC6 is recommended and sold separately
  • Auto Equalizer Compatible: Pioneer CD-MC20 required and sold separately for automatic audio equalization inside the car
  • Steering wheel remote ready: PAC SWI-PSv1 or the Axxess ASWC required and sold separately

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth version 2.0 +EDR certified
  • Supports A2DP audio streaming
  • Bluetooth profiles supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
    • SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
  • Works with most Bluetooth enabled cell phones

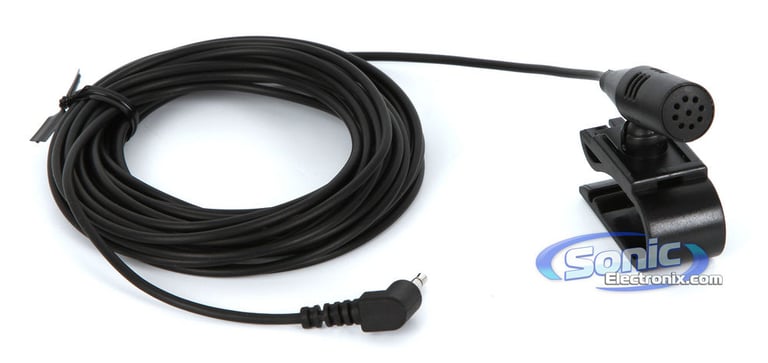

  • Includes an external 13' wired microphone for crystal clear, distortion-free talking

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Single DIN
Anti-Theft Security
Detachable Faceplate

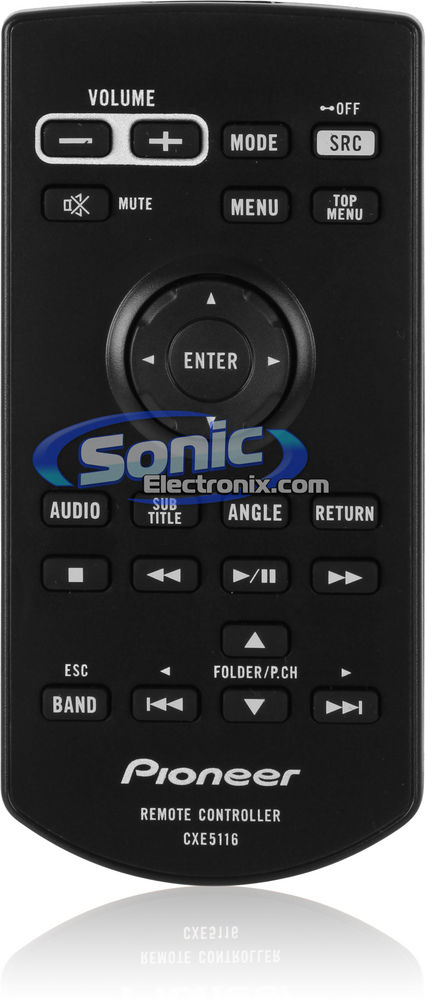

Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
8-Band Graphic EQ
Display Type
TFT-LCD Display
Touchscreen
Yes
Display Adjustment
Brightness
Color
Contrast
Dimmer
Expandability Features
Inputs
Auxiliary (Rear)
Backup Camera
Outputs
Composite Video (RCA)
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
24
AM Presets
6
Radio Data System (RDS)
Yes
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

LS-AVH-X7500BT-RB

Weight:

7.00lbs

Internal SKU:

LS-avhx7500bt-RB

Internal Product ID:

71824
