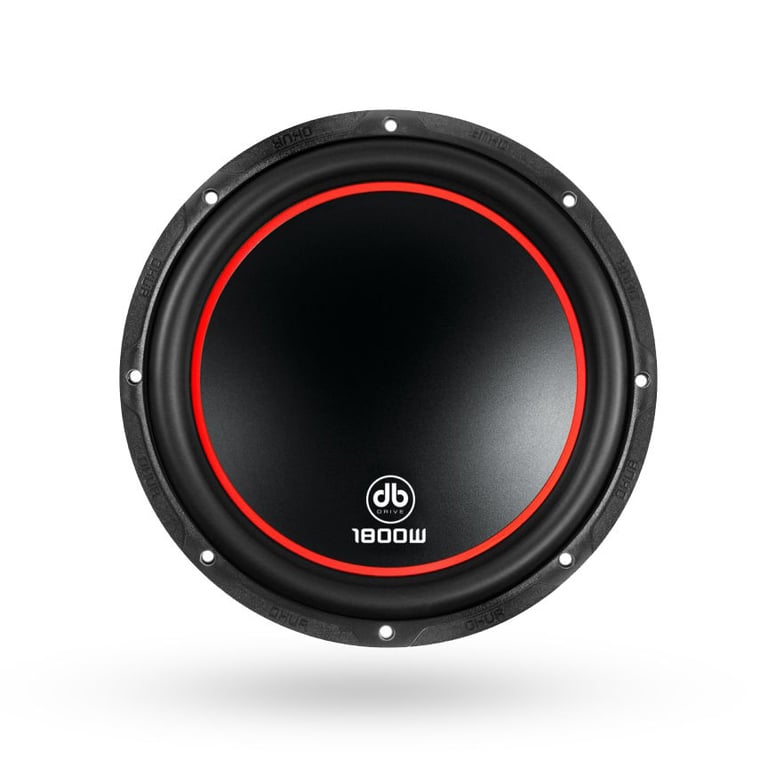

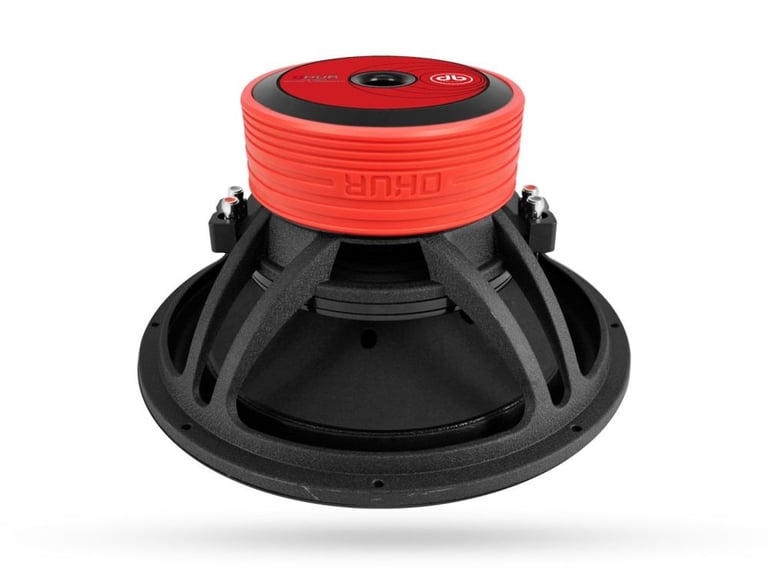

DB Drive K7 15D4

15" Dual 4 Ohm K7 Series Car Subwoofer

db Drive
Shop all db Drive
Product videos
highlight-star-icon

• 15" K7 Series Subwoofer
• Dual 4 ohm Voice Coil
• 1800W Max
• 900W RMS
• Non Transfer Paper Cone
• NBR Rubber Surround
• Spring Terminals
• Stamped Steel Basket

Learn more about the k715d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
MEX-N5300BT main

Sony MEX-N5300BT

Single DIN CD Receiver with Bluetooth and Built-in NFC

82

$158.00

List price $159.99

Product Highlights


• 15" K7 Series Subwoofer
• Dual 4 ohm Voice Coil
• 1800W Max
• 900W RMS
• Non Transfer Paper Cone
• NBR Rubber Surround
• Spring Terminals
• Stamped Steel Basket

Description


db Drive brand icon

Authorized dealer

General Features:

  • 15" Dual 4 Ohm K7 Series Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 900 watts
  • Non transfer paper cone
  • NBR Rubber surround
  • Die cast aluminum frame
  • VAC Polypropylene cone
  • Black electro-plated top and bottom plates
  • Mixed material spider
  • PVC Trim ring and gasket
  • Heavy gauge spring terminals
  • 2-1/2" 4-Layer voice coil with aluminum former
  • 140 oz. Ferrite magnet
  • Resonance Frequency (Fs): 25 Hz
  • Top-mount depth: 7-7/16"
  • Sensitivity: 87 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DB Drive K7 15D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DB Drive K7 15D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DB Drive K7 15D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 DB Drive K7 15D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

P3D2-15 small

Rockford Fosgate Punch P3 P3D2-15

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 2 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 7.58"
• Sensitivity: 86 dB

(27)

$309.99

List price $339.99

YSW152 small

NVX YSW152

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

SW-M15D1 small

Sundown Audio M-15 D1 15" (M15D1)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 12.06"
• Sensitivity: 83.024 dB

(1)

$659.99

List price $791.99

Specifications & Details


Subwoofer Specifications
Series
K7 Series
Subwoofer Size
15"
Peak Power Handling
1800 watts
RMS Power Handling
900 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2-1/2"
Sensitivity
87 dB
Xmax (millimeters)
19.812 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Paper
Woofer Surround
Nitrile Butadiene Rubber NBR
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
2.26 cubic feet
Optimum Ported Box Volume
2.68 cubic feet
Top-Mount Depth (Mounting Depth)
7-7/16"
Cutout Diameter
14.09"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
25.74 Hz
Equivalent Compliance (Vas)
104.34 liters
Total Speaker Q Value (Qts)
0.37
Electrical Q Value (Qes)
0.42
Electrical Resistance of Voice Coil (Re)
6.44 ohm
Mechanical Q Value (Qms)
3.45
