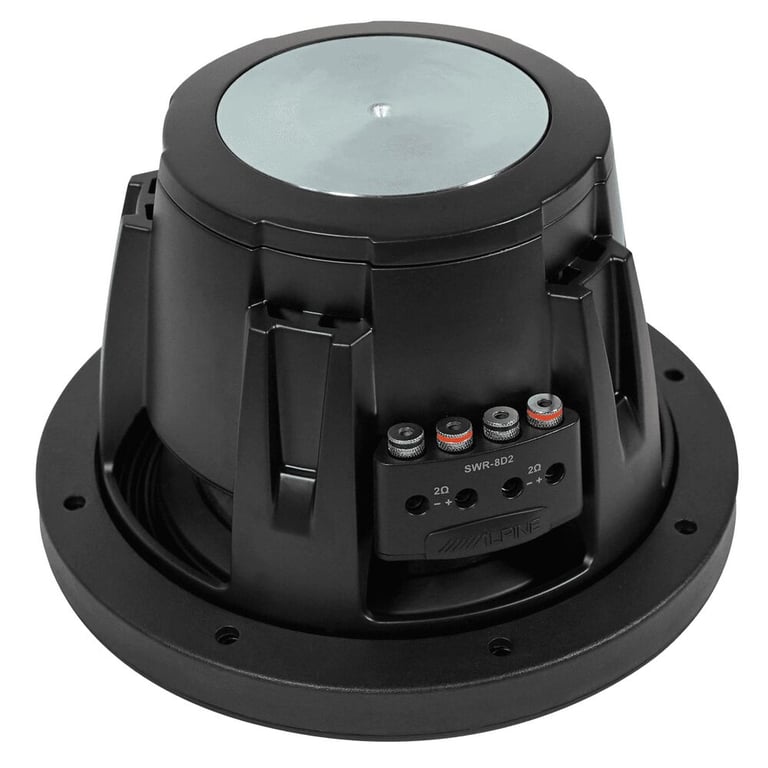

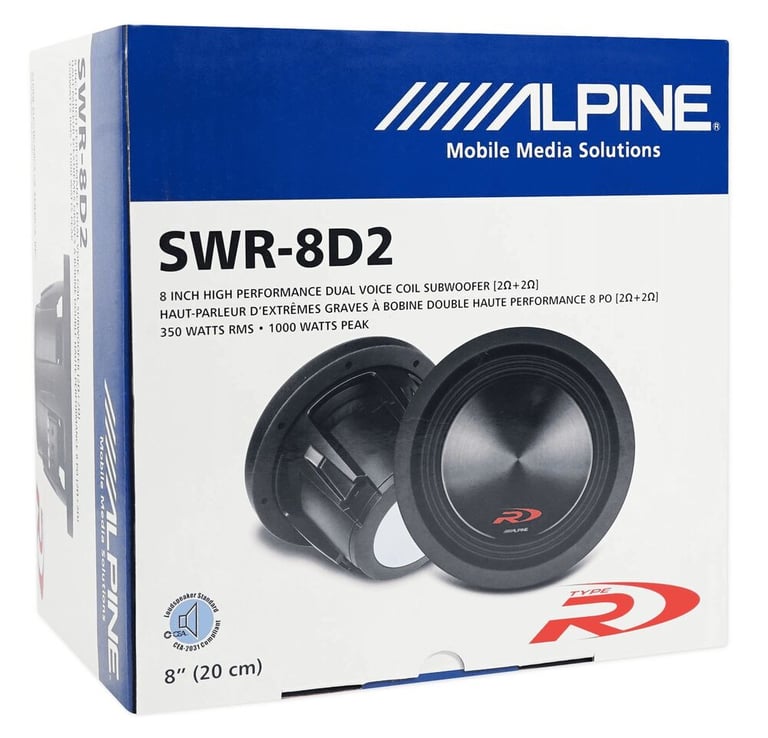

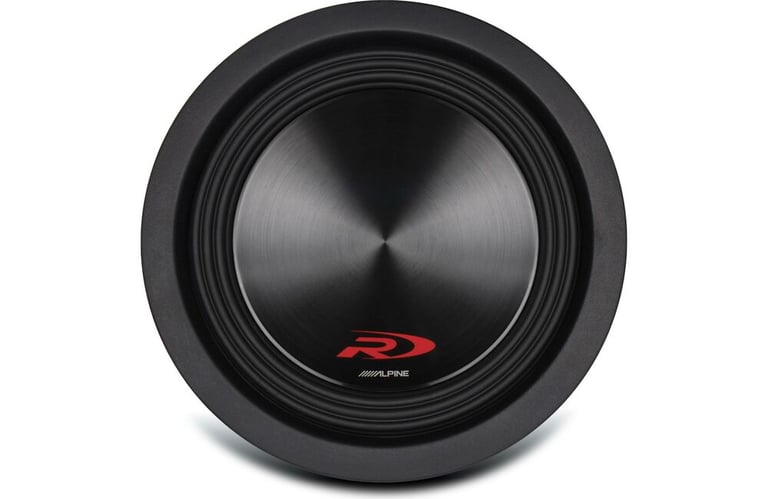

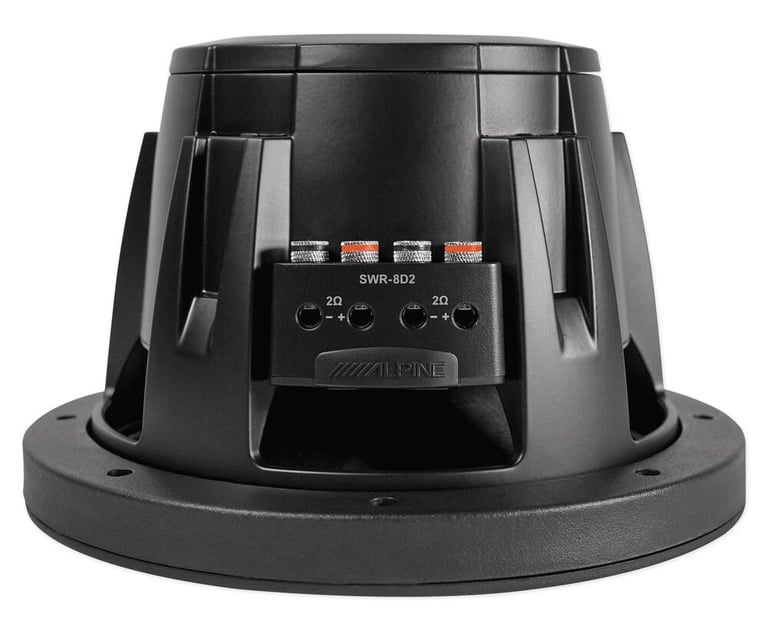

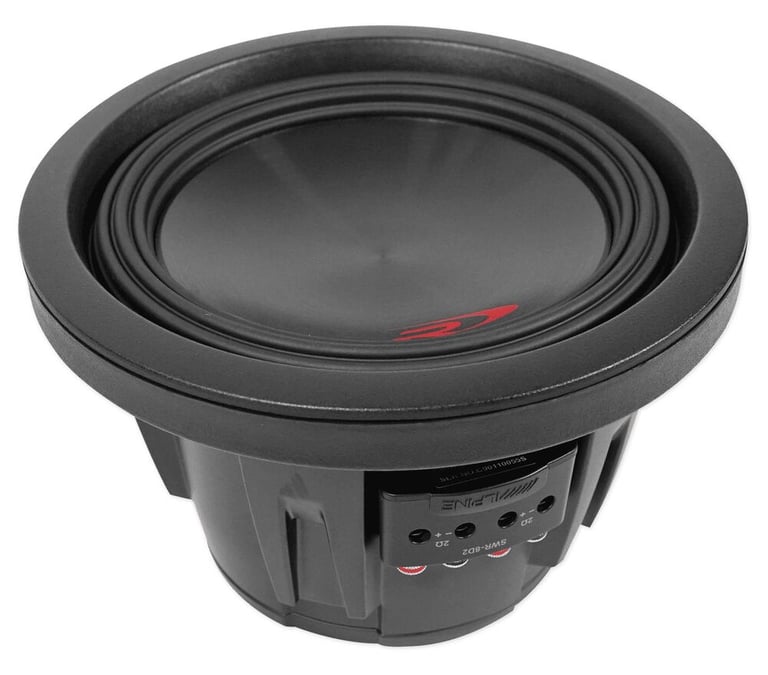

Alpine Type-R SWR-8D2

1000W Peak 8" Type-R Series Dual 2 ohm High Performance Subwoofer

Alpine
Shop all Alpine
Product videos
highlight-star-icon

• 1000W Peak
• 150-350W RMS
• Dual 2-Ohm Voice Coil
• Kevlar Treated Pulp Cone
• Durable HAMR Santoprene Surround

Learn more about the swr8d2

We apologize

This item has been discontinued


Loading...
NSH-5601 main

NVX NSH-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Mazda, Lincoln

-38.49%

$7.99

List price $12.99

99-5842T main

Metra 99-5842T TurboTouch Dash Kit

Single DIN or Double DIN Stereo TurboTouch Dash Kit and Harness for select 2010-2012 Flex without Navigation

-30.03%

$430.99

List price $615.99

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

FRING68 main

NVX FRING68

Universal 6x8" or 5x7" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

12
-46.68%

$15.99

List price $29.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

H735 main

Cerwin-Vega H735

500W Peak (60W RMS) 3.5" HED Series 2-Way Coaxial 4-ohm Speakers

34
-16.67%

$59.99

List price $71.99

VT1 main

Cerwin-Vega VT1

360W Peak (120W RMS) 1" Vega Series 2025 Edition 4-ohm Tweeters with External Crossovers

XED1T main

Cerwin-Vega XED1T

1000W Peak (90W RMS) 1” XED Series 4-ohm Piezo Dome Tweeters

19
-16.67%

$29.99

List price $35.99

ADS-MRR main

iDataLink Maestro RR Interface Module

Universal Stereo Replacement Interface Module for iDataLink Maestro Compatible Stereos

36
-17.39%

$189.99

List price $229.99

Product Highlights


• 1000W Peak
• 150-350W RMS
• Dual 2-Ohm Voice Coil
• Kevlar Treated Pulp Cone
• Durable HAMR Santoprene Surround

Description


Alpine brand icon

Authorized dealer

Product Details:

  • 8" Dual 2-Ohm Type-R Series Car Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 150-350 watts
  • Impedance: Dual 2 ohm
  • Reinforced Parabolic Cone Structure with Poly-Mica Dust Cap & Pulp-Kevlar Cone
  • Durable HAMR Santoprene surround
  • Nomex Progressive Conex spider
  • Compound Radius Curve pole geometry
  • Oversized 1.6", High-Temperature, 4-Layer Dual Voice Coil
  • 52 oz. magnet motor structure
  • Frequency response: 30-200 Hz
  • Resonance Frequency (Fs): 40Hz
  • Excursion: 12mm
  • Top-mount depth: 4-1/2"
  • Sensitivity: 83.5dB
  • Subwoofer Grilles Sold Separately - Alpine KTE-8G
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

Product history:

Alpine SWR-8D2 thumbnail
(newest, current model)
Alpine SWR-823D thumbnail
(previous model, replaced by Alpine Type-R SWR-8D2)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine Type-R SWR-8D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine Type-R SWR-8D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine Type-R SWR-8D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Alpine Type-R SWR-8D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

SW-EV68D2 small

Sundown Audio E8 v.6 D2 8" (E8V6D2)

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 2 ohm
• Pressed Paper Cone
• Pressed Foam Surround
• Mount depth: 4.98"
• Sensitivity: 82.4 dB

$169.99

List price $203.99

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

R2-W8D2 small

Alpine R2-W8D2

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.6 dB

$239.95

List price $360.00

R2-W8D4 small

Alpine R2-W8D4

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 4 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.7 dB

$239.95

List price $360.00

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

DES84 small

Diamond Audio DES84

• Peak Power: 500 watts
• RMS Power: 250 watts
• Fiber-Reinforced High Strength Paper Cone
• Impedance: Dual 4 ohm
• Sensitivity: 82.1 dB

$239.99

List price $219.99

Specifications & Details


Subwoofer Specifications
Series
Type-R Series
Subwoofer Size
8"
Peak Power Handling
1000 watts
RMS Power Handling
350 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
1-5/8"
Sensitivity
83.5 dB
Xmax (millimeters)
12 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
Santoprene Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.25 cubic feet
Optimum Sealed Box Volume
0.30 cubic feet
Maximum Sealed Box Volume
0.50 cubic feet
Minimum Ported Box Volume
0.5 cubic feet
Optimum Ported Box Volume
0.70 cubic feet
Maximum Ported Box Volume
0.70 cubic feet
Top-Mount Depth (Mounting Depth)
4-1/2"
Cutout Diameter
6-15/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
40 Hz
Equivalent Compliance (Vas)
10.5 liters
Total Speaker Q Value (Qts)
0.50
Electrical Q Value (Qes)
0.54
Electrical Resistance of Voice Coil (Re)
1.85 + 1.85 ohm
Mechanical Q Value (Qms)
7.2
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SWR-8D2

Weight:

9.50lbs

Internal SKU:

swr8d2

Internal Product ID:

72375

Product and How-to Videos


Customer Ratings & Reviews


Alpine Type-R SWR-8D2 thumbnail image

5 star
86%
4 star
14%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
4.7
Features
4.6
Design
4.9
Usability
4.6

Customer Reviews

Sort by:

Loading...

Excellent 8" sub

I have one of these in my Tacoma. It's defiantly not earth-shattering melt your brain bass, but it is punchy and has great definition in the bass notes. I have no problem with the amount of output that one of these getting 300 watts RMS.

I like the 2 ohm version because you can wire the voice coils in a series and get a 4 ohm load, most 2 channel amps bridge into a 4 ohm load well.

I have it in a sealed box at about .27 cubic feet internal volume, and it sounds great. More than enough output. Perform well in cold weather as well as warm. I've had it for about 6 months now.

The sub is very well made. It has a heavy duty cast basket, nice terminals, and looks great. It was a shame to cover it up with a grill.

I am very happy with this sub and have no desire to try a JL one.

By timothom on February 19, 2015

22 found this helpful


Good value

Good speaker all you can expect from an eight inch. No matter how much power you put to it, it's not a 12 inch sub.

By Harry T Baggs on August 22, 2014

24 found this helpful


great little sub.

This sub sounds very good. Plays low tight and accurate. Great bang for the buck.

By greger on April 5, 2015

20 found this helpful


Alpine SWR-8D2 Sub Woofer

These Subs are Dual Voice coil 2 ohm subwoofers "Type R"
These out perform most 12s... You definitely want two of them...
They are a very nice quality, Very clean Bass Not clattery like a lot of 12s and they hit hard... make sure you have the right box and they are properly powered and you will love them...

Alpine - "Feel Your Music"

By MoonShine on January 5, 2015

25 found this helpful


Cool

This sub is not loud. It is an excellent choice for a sound quality build. This sub is the best sounding subwoofer that I have ever heard. Excellent quality. Simply beautiful.

By Charles on July 21, 2017

2 found this helpful


Very "good" product

Please read. As I attempted to post a review to the dual 4 ohm version, and Sonic Electronic apparently will not allow a review to go though unless it is 5 starts. All I will say about this sub is that you are warned. Quality is not the Alpine Type-R specialty any longer. Do not attempt to post a bad review when you have an issue either because they will filter it out.

By Joseph on April 5, 2016

4 found this helpful


You won't be disappointed

I would definitely recommend these to anyone looking for bass in small space. I've built a lot of systems from just 200watts to even things out to 5000watt monsters so I'm pretty jaded, it takes something special to impress me and I must say in a 0.8cf (0.4 per driver) enclosure with a port tuned to 38hertz with just 500watts these little 8" subs made my jaw drop, don't get me wrong your not going to bass box with a well built 12" set up, they're not going to reach down as low as 15's but set um up right and you won't be disappointed. Worth double what Sonic sell them for easy.

By Keith on March 2, 2016 Checkmark Icon Verified purchase

2 found this helpful




CQ-RX100U small

Panasonic CQ-RX100U

CD, MP3, WMA Receiver with Front 3.5mm Auxiliary Input and Remote

(2)

$74.99

List price $109.99

No picture

HushMat 10331

31 Square Feet Cargo Kit that Contains (16) 12" x 23" Silver Foil Ultra Dampening Pads

$159.99

List price $229.95

FZCDi small

Odyssey FZCDi

Flight Ready ATA Medium Format CD Player DJ Case with Slide-Out Front Panel

$109.99

List price $149.99

BV9986BI small

Boss BV9986BI (Open Box)

In-Dash 7" LCD Touchscreen DVD, MP3, CD Stereo with Built-in Bluetooth, Mini-USB Port & iPod Control (Open Box)

$154.99

List price $469.00

RC5768 small

RCA RC5768

240W Max, 5" x 7" / 6" x 8" 2-way Full Range Speakers

(1)

$22.99

List price $999.99

SACRAMENTOCD33 small

Blaupunkt Sacramento CD33

$94.99

List price $179.99

MEMPHIS-MP66 small

Blaupunkt Memphis MP66

In Dash CD/MP3 Reciever with Remote

$309.99

List price $799.99

ZNSDTRUNK small

StreetWires ZNSDTRUNK

10-Sheets of 12" x 24" Zero Noise NoiseKiller Self Adhesive 1.5mm Sound Dampening Material

$74.99

List price $189.99

No picture

Blaupunkt Monte Carlo MP34

$119.99

List price $179.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2011 Ford Flex

2015 Buick Enclave

2013 Buick Enclave

2012 Chevrolet Avalanche

2023 Audi SQ8

2013 Hyundai Accent

2007 GMC Sierra Denali

1994 Chevrolet LLV

2020 Kia Forte

1972 Lincoln Continental

Vehicle
Store
Delete

2021 Can-Am Defender PRO HD10

2025 Can-Am Defender DPS HD10

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
