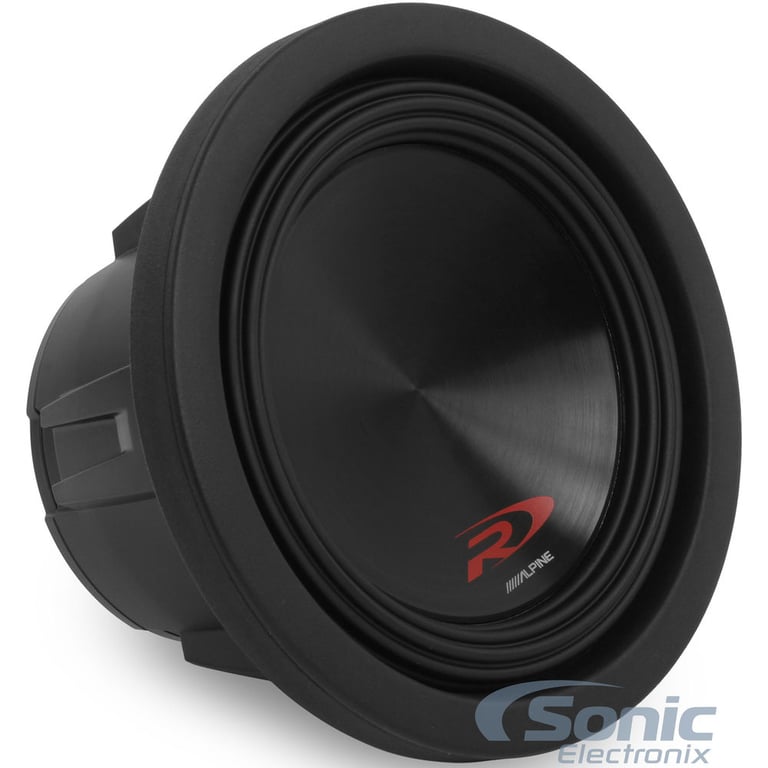

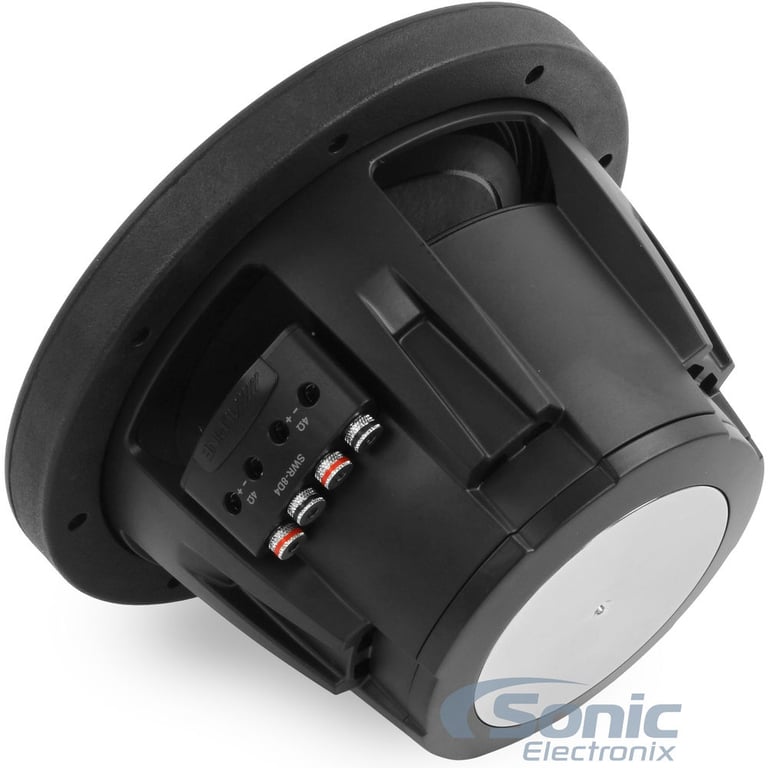

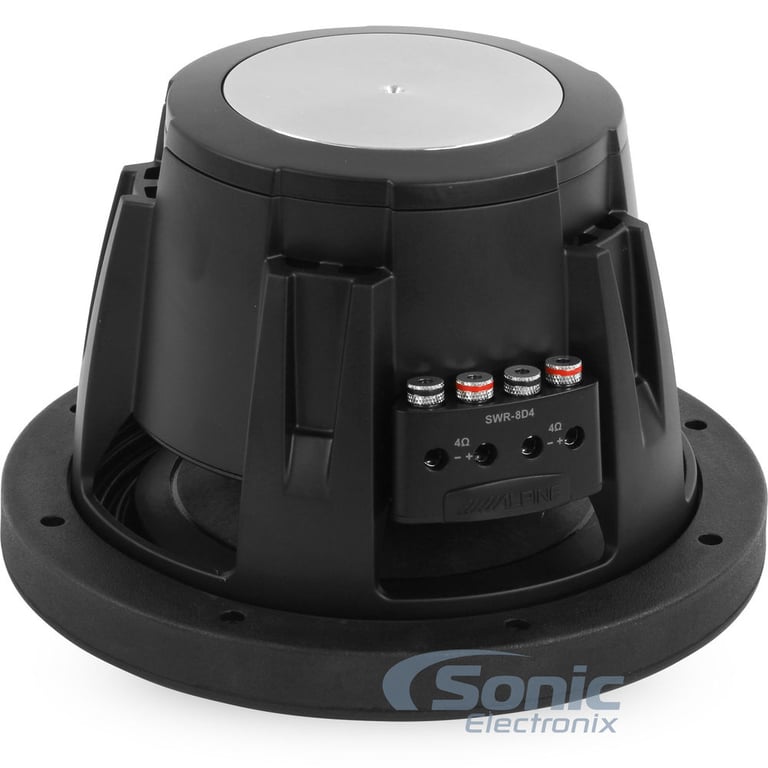

Alpine Type-R SWR-8D4

1000W Peak 8" Type-R Series Dual 4 ohm High Performance Subwoofer

Alpine
Shop all Alpine
Product videos
highlight-star-icon

• 1000W Peak
• 150-350W RMS
• Dual 4-Ohm Voice Coil
• Kevlar Treated Pulp Cone
• Durable HAMR Santoprene Surround

Learn more about the swr8d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65A-150 main

SSV Works US2-C65A-150

Loaded 8" Cage-Mount Speaker-Pods Enclosure with SSV Works Speakers

Product Highlights


• 1000W Peak
• 150-350W RMS
• Dual 4-Ohm Voice Coil
• Kevlar Treated Pulp Cone
• Durable HAMR Santoprene Surround

Description


Alpine brand icon

Authorized dealer



General Features:

  • 8" Dual 4-Ohm Type-R Series Car Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 150-350 watts
  • Impedance: Dual 4 ohm
  • Reinforced Parabolic Cone Structure with Poly-Mica Dust Cap & Pulp-Kevlar Cone
  • Durable HAMR Santoprene surround
  • Nomex Progressive Conex spider
  • Compound Radius Curve pole geometry
  • Oversized 1.6", High-Temperature, 4-Layer Dual Voice Coil
  • 52 oz. Double Strontium magnet motor structure
  • Sealed box volume: 0.15-0.50 cu. ft.
  • Ported box volume: 0.25-0.70 cu. ft.
  • Frequency response: 30-200 Hz
  • Resonance Frequency (Fs): 40Hz
  • Excursion: 12mm
  • Top-mount depth: 4-1/2"
  • Sensitivity: 83.5dB
  • Subwoofer Grilles Sold Separately - Alpine KTE-8G
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

Product history:

Alpine SWR-8D4 thumbnail
(newest, current model)
Alpine SWR-843D thumbnail
(previous model, replaced by Alpine Type-R SWR-8D4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine Type-R SWR-8D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine Type-R SWR-8D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine Type-R SWR-8D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alpine Type-R SWR-8D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

R2-W8D2 small

Alpine R2-W8D2

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.6 dB

$239.95

List price $360.00

Specifications & Details


Subwoofer Specifications
Series
Type-R Series
Subwoofer Size
8"
Peak Power Handling
1000 watts
RMS Power Handling
350 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
1-5/8"
Frequency Response
30 - 200 Hz
Sensitivity
40 dB
Xmax (millimeters)
12 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
Santoprene Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.25 cubic feet
Optimum Sealed Box Volume
0.30 cubic feet
Maximum Sealed Box Volume
0.50 cubic feet
Minimum Ported Box Volume
0.5 cubic feet
Optimum Ported Box Volume
0.70 cubic feet
Maximum Ported Box Volume
0.70 cubic feet
Top-Mount Depth (Mounting Depth)
4-1/2"
Cutout Diameter
6-15/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
42 Hz
Equivalent Compliance (Vas)
10.3 liters
Total Speaker Q Value (Qts)
0.57
Electrical Q Value (Qes)
0.62
Electrical Resistance of Voice Coil (Re)
3.7 + 3.7 ohm
Mechanical Q Value (Qms)
6.8
