Name: Alpine MRV-F300 (Open Box, Complete)
Brand: Alpine
SKU: ls-mrvf300-obc7
Price: 149.95 USD
Availability: Discontinued

by Alpine

About
Specs & Details
Reviews
Add-ons
Related Searches

Alpine MRV-F300 (Open Box, Complete) Image 1 — Alpine MRV-F300 (Open Box, Complete)

Alpine MRV-F300 (Open Box, Complete) Image 2 — Alpine MRV-F300 (Open Box, Complete)

Alpine MRV-F300 (Open Box, Complete) Image 3 — Alpine MRV-F300 (Open Box, Complete)

Alpine MRV-F300 (Open Box, Complete) Image 4 — Alpine MRV-F300 (Open Box, Complete)

Alpine MRV-F300 (Open Box, Complete) Image 5 — Alpine MRV-F300 (Open Box, Complete)

Alpine MRV-F300 (Open Box, Complete) Image 6 — Alpine MRV-F300 (Open Box, Complete)

Product highlights

• RMS Power: 50W x 4-Chan. @ 4 ohm, 75W x 4-Chan. @ 2 ohm
• 3-Way System Protection
• 4/3/2/1 Channel Operation
• 8 Gauge Power and Ground Inputs
• Same Power in a 40% Smaller Chassis

Learn more about the ls-mrvf300-obc7

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Like New:
A Open Box, Like New product is an apparently untouched product in perfect condition that includes all accessories and packaging. Original protective wrapping may be missing, but the original packaging is intact and pristine. There are absolutely no signs of wear on the item or installation. Instructions are included. Warranty details are included in the item description or comments. Item is suitable for presenting as a gift and savings should be abundant!

General Features:

V-Power Series 4-Channel Class D Car Amplifier
RMS Power Rating:

4 ohm: 50 watts x 4 chan.
2 ohm: 75 watts x 4 chan.
Bridged, 4 ohm: 150 watts x 2 chan.

Pulse Width Modulated MOSFET power supply
Wired remote bass level control included
LED power (green) and protect (red) indicators
Selectable Bass Boost (0 or +12 dB bass boost at 50 Hz)
Soft start turn-on
4/3/2 or Mono channel operation
Speaker-level (high-level) inputs with signal sensing for automatic turn-on
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink
Input sensitivity:

Low level: 200mV-4V
High level: 500mV-10V

Variable high-pass filter (50-400 Hz, 12 dB/octave)
Variable low-pass filter (50-400 Hz, 24 dB/octave)
CEA-2006 compliant amplifier
8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 7-7/8"W x 7-7/8"L x 2-3/16"H
Authorized Internet Dealer
30 Day Sonic Electronix Warranty

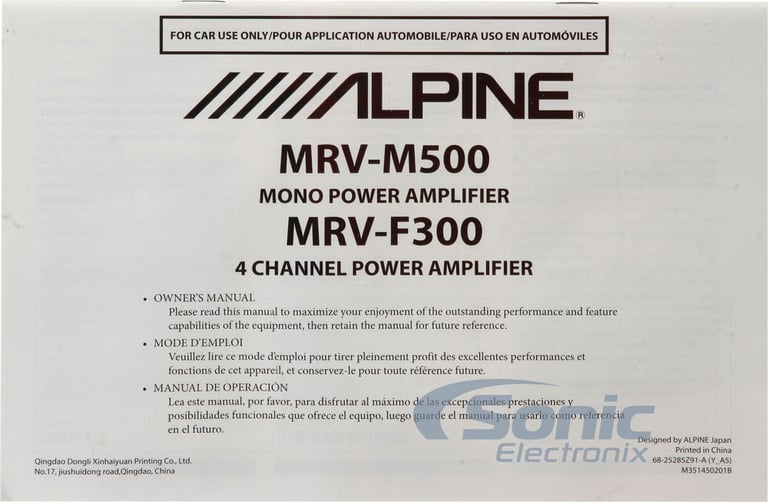

Check out the Alpine MRV-F300 Owner's Manual

Product history:

	Alpine MRV-F300 (Open Box, Complete) (newest, current model)
	Alpine MRP-F300 (previous model, replaced by Alpine MRV-F300 (Open Box, Complete))
	Alpine MRP-F250 (previous model, replaced by Alpine MRP-F300)

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

50 watts x 4 channel

RMS Power @ 2 ohms

75 watts x 4 channel

Bridged RMS Power

150 watts x 2 channel

Amplifier Specifications

Series

V Power Series

Amplifier Class

Number of Channels

4-Channel

Total RMS Power Output

300 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.03%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 400 Hz

Low-Pass Crossover Frequency

50 - 400 Hz

Signal-to-Noise Ratio

98 dB

Bass Boost

Selectable 0/+12 dB

Remote bass/level controller

Fuse Rating

40A x 1

Total Fuse Rating

Strappable

Sonic Certified Amplifier

Amp Bluetooth Connectivity

Hi-Res Certified

What is in the box?

Paperwork

User manual

WITB: Amplifiers

Amplifier
Mounting screws (4)
Allen wrench

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix
