Pyle PLDNV77U

Double-DIN GPS Car Stereo w/ Bluetooth & 7" LCD Touchscreen

Pyle
Shop all Pyle
Product videos
highlight-star-icon

• Built-in GPS Navigation
• Built-In Bluetooth with A2DP Audio Streaming
• 7" LCD Touchscreen Display
• 80W x 4 Chan. Max, 17W x 4 Chan. RMS
• 2 Sets of 2V Preamp Outputs
• 2-Band Parametric Equalizer
• Dual SD Card Readers

Learn more about the pldnv77u

We apologize

This item has been discontinued


Loading...
AXDI-FOC main

Axxess AXDI-FOC

Install New Car Stereo and Retain Steering Wheel Controls and Other Factory Features In select 2011-2019 vehicles from Ford

-10.37%

$120.99

List price $134.99

Limited time!
DMX809S main

Kenwood eXcelon DMX809S

6.8” Double DIN Digital Multimedia Touchscreen Bluetooth Receiver with Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

10
-37.63%

$499.00

List price $800.00

Product Highlights


• Built-in GPS Navigation
• Built-In Bluetooth with A2DP Audio Streaming
• 7" LCD Touchscreen Display
• 80W x 4 Chan. Max, 17W x 4 Chan. RMS
• 2 Sets of 2V Preamp Outputs
• 2-Band Parametric Equalizer
• Dual SD Card Readers

Description


Pyle brand icon

Authorized dealer










General Features:

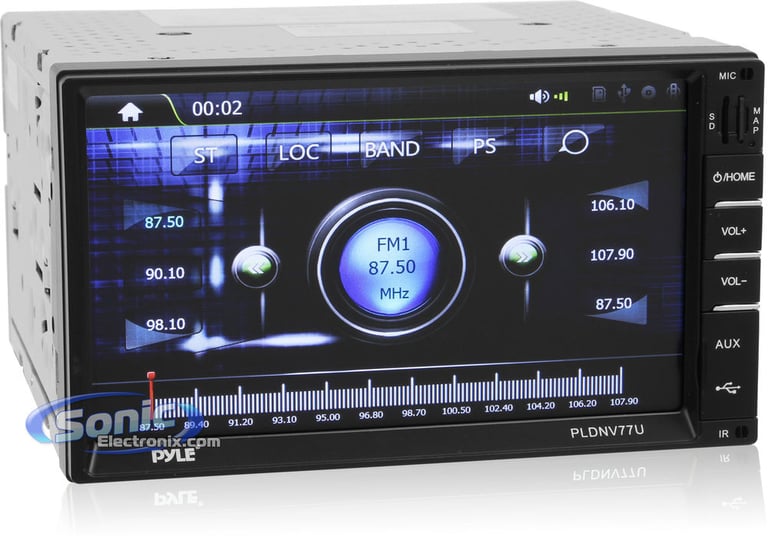

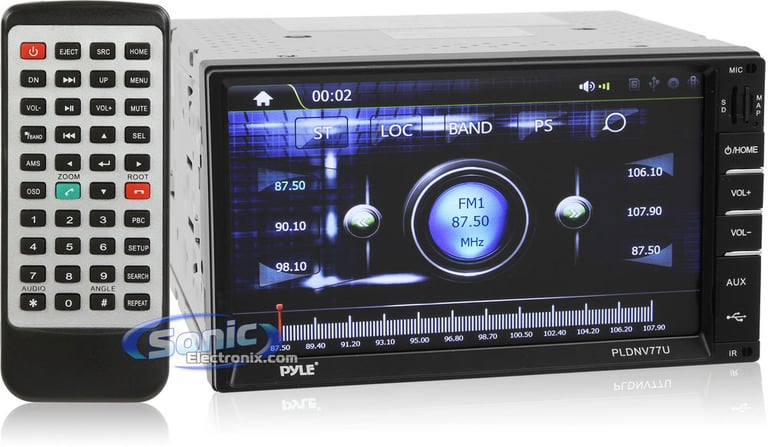

  • Pyle PLDNV77U In-dash Receiver
  • Full-color 7" wide screen LCD touchscreen 16:9 display
  • GPS Navigation with hands-free voice guidance
  • Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone
  • Motorized, flip-down face plate
  • Blue illuminated button lighting
  • Power Output:
    • Peak: 80 watts x 4 channels
    • RMS: 17 watts x 4 channels
  • Wireless remote control included
  • CD text information display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • Graphic touchscreen allows easy control of functions by touch
  • Includes 4GB SD Card with Maps of USA, Canada and Mexico
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Playback and Audio Features:

  • Playback of MP3, MP4, WMA and JPEG
  • AM/FM tuner with 18FM/12AM presets
  • Electronic Shock Protection (ESP)
  • 2-band parametric equalizer (bass and treble)
  • SD Card reader for audio and video playback

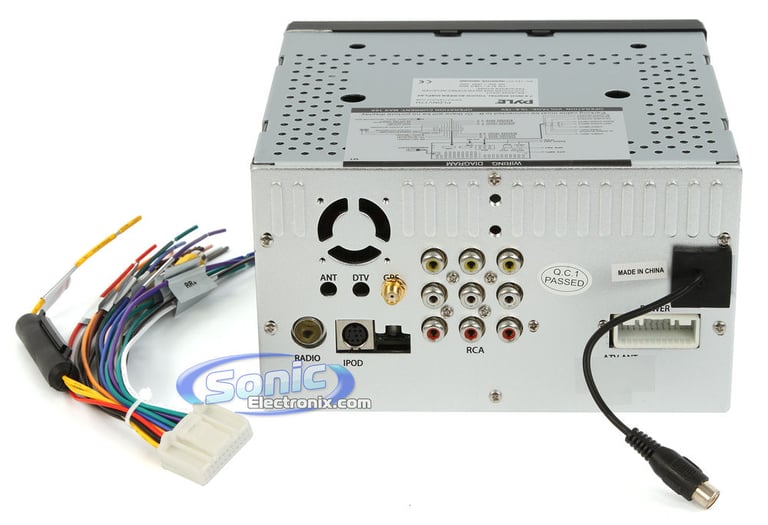

Expandability Options:

  • 2 Sets of 2V preamp outputs (front, rear/subwoofer)
  • iPod and iPhone Ready: Pyle USB-to-iPod cable is included

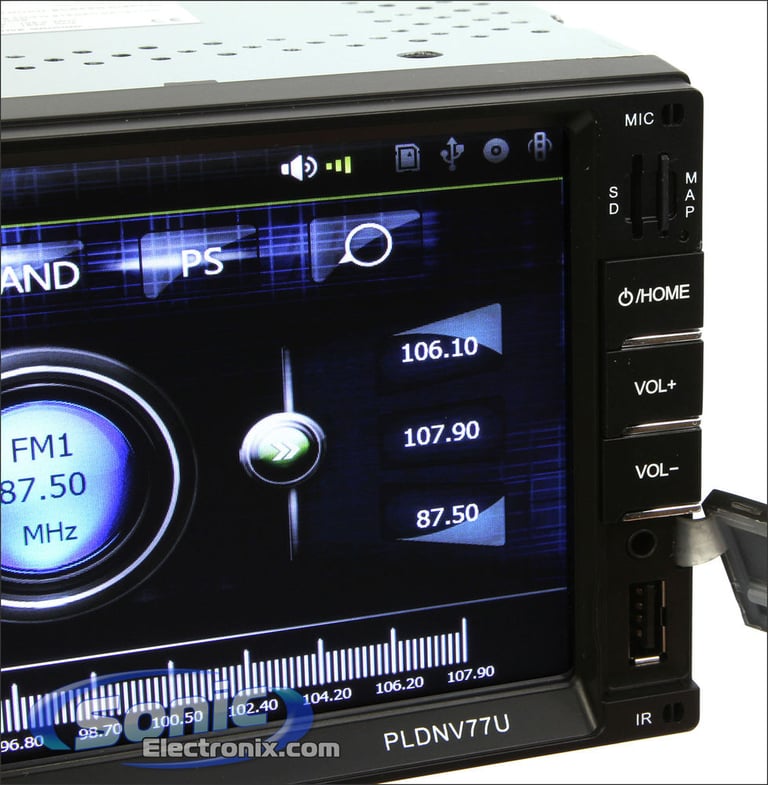

  • Front USB Input
  • Backup Camera Input
  • 2 Rear RCA Video Output
  • Rear RCA Audio/Video Inputs

Navigation Features:

  • Navigate with the convenience of voice guidance
  • Turn by turn map guidance
  • USA, Canada and Mexico maps
  • Turn by turn directions
  • Speed display

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth version 3.0 +EDR certified
  • Bluetooth Profiles Supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • Works with most Bluetooth enabled cell phones
  • Includes an external wired microphone for clear, distortion-free talking

Note: Installation may require modification of dashboard or dash kit.

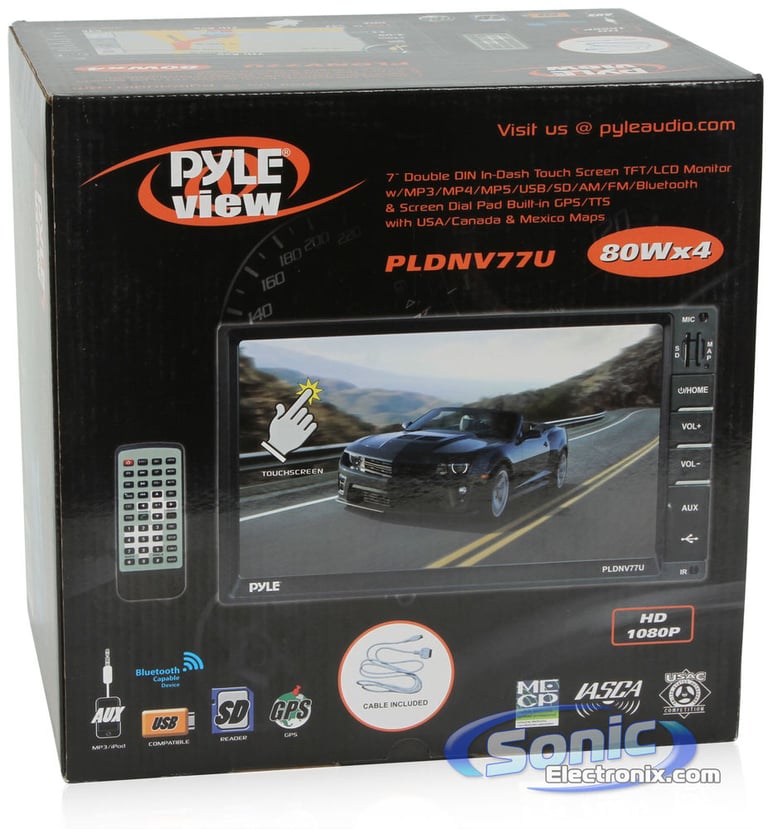

What's in the Box?

  1. PLDNV77U Receiver
  2. Owner's Manual

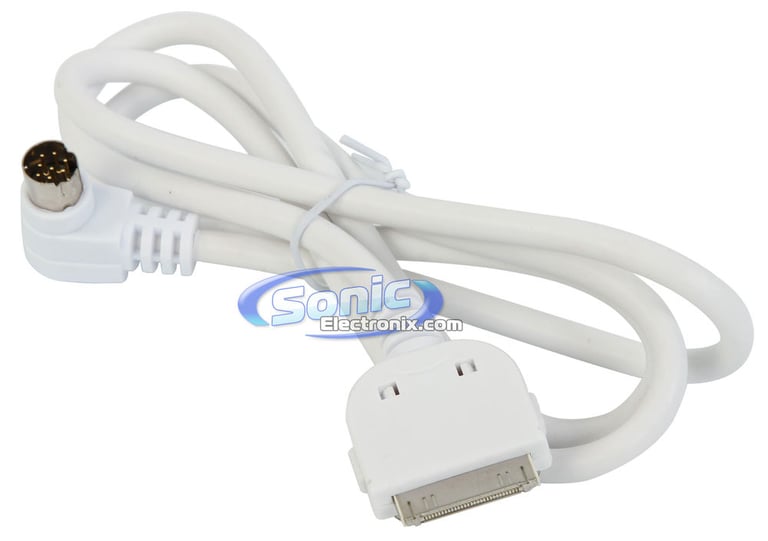

  3. iPod Connection Cable

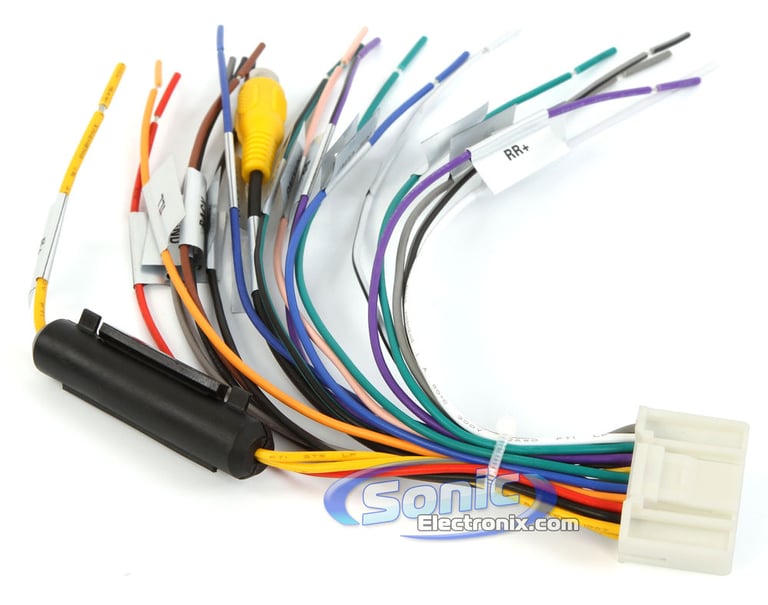

  4. Speaker Output Stereo Harness

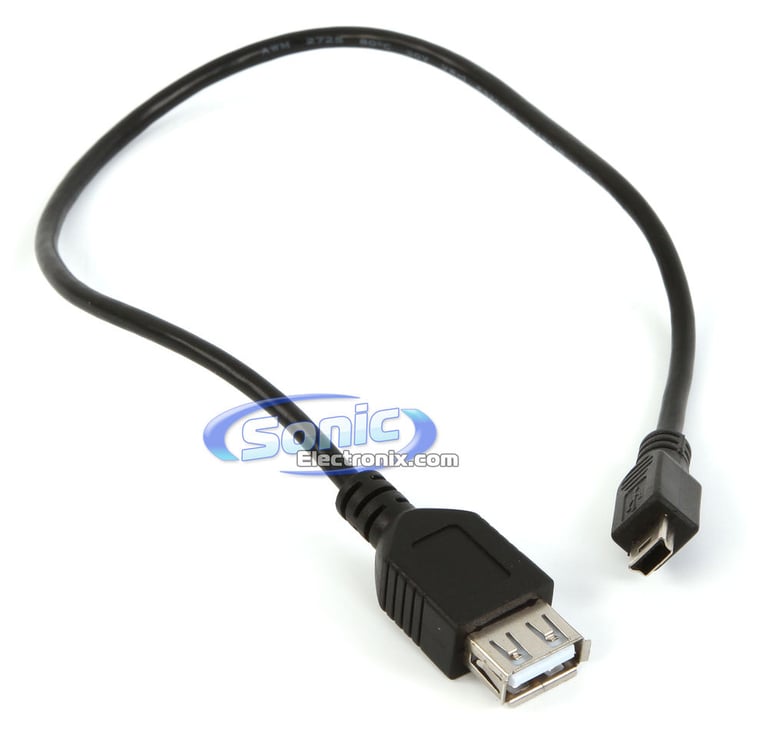

  5. MiniUSB to USB Adapter Cable

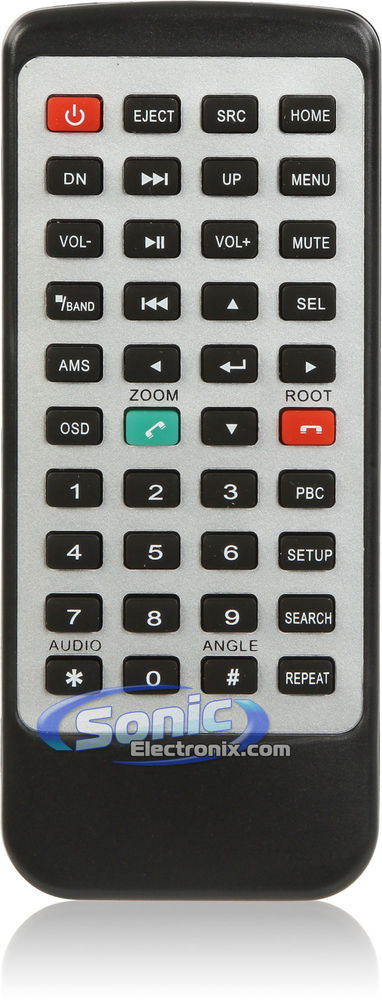

  6. Wireless Remote Control

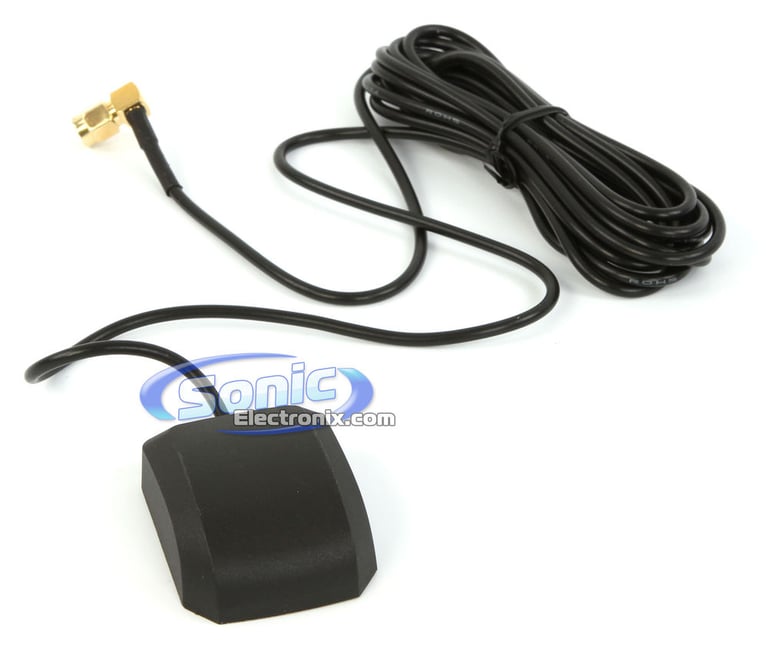

  7. Wired GPS Antenna
  8. Stereo Trim Ring
  9. Limited Warranty Card

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

D9-MST2015L-64GB small

Dynavin D9-MST2015L-64GB

• Replaces the 4" factory screen with a 10" touchscreen
• Custom Fit In-Dash Bluetooth Digital Multimedia Receiver
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• Built-in Navigation
• 3 sets of 3 volts preamp outputs
• 16-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• Integrated CANBUS for steering wheel controls

(2)

$899.99

List price $899.99

D9-SP-MOST-64GB small

Dynavin D9-SP-MOST-64GB

• Custom Fit In-Dash Bluetooth Digital Multimedia Receiver
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• Built-in Navigation
• 3 sets of 3 volts preamp outputs
• 16-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• Integrated CANBUS for steering wheel controls

(1)

$769.99

List price $699.99

D9-E46-64GB small

Dynavin D9-E46-64GB

• Compatible with Business CD units
• Custom Fit In-Dash Bluetooth Digital Multimedia Receiver
• 7" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• Built-in Navigation
• 3 sets of 3 volts preamp outputs
• 16-Band Parametric EQ
• SiriusXM Satellite Radio Ready
• Integrated CANBUS for steering wheel controls

$799.99

List price $799.99

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Double DIN
Anti-Theft Security
Detachable Controls
Wireless Remote
Yes
Peak Power Output
80 watts x 4 channel
RMS Power Output
17 watts x 4 channel
Preamp RCA Outputs
2 Sets (4-Channel)
Preamp Voltage
2 volts
Built-In Equalizer
2-band parametric equalizer
Display Type
TFT-LCD Display
Touchscreen
Yes
Screen Size
7"
Display Adjustment
Brightness
Smartphone Integration
Compatible Smartphones
iPhone (iOS)
Expandability Features
Inputs
Audio/Video (Rear)
Backup Camera
Outputs
Composite Video (RCA)
Memory Card Slot
SD
Steering Wheel Control Compatible
No
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
12
Navigation Features
Map Database
Not Specified by Manufacturer
Maps
Complete 50 USA
Canada
Mexico
Map Dimensional Display
2D
3D
Points of Interest
Not specified by manufacturer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PLDNV77U

Weight:

4.00lbs

Internal SKU:

pldnv77u

Internal Product ID:

72820

Product and How-to Videos


Customer Ratings & Reviews


Pyle PLDNV77U thumbnail image

5 star
25%
4 star
42%
3 star
17%
2 star
17%
1 star
0%



Durability
3.8
Value
4.4
Features
3.9
Design
4.4
Usability
3.9

Customer Reviews

Sort by:

Loading...

Not a bad unit for the price

Manual is useless. Screen pictures in manual don't match the unit. Installation kit needed much modification before it worked - even though it was supposed to be for my vehicle. No mounting screws supplied either with the unit or the installation kit. Sound is OK using factory speakers. No CD or DVD Player - yet the manual talks about "loading a DVD" - and the remote even has a button to load a DVD.

By AC on August 25, 2014

56 found this helpful


no gps signal

looked like a great deal back in April. now the GPS cannot find a signal for the last 2 months. have tried everything.

By jk on September 26, 2014

55 found this helpful


The other app radio

It's one of the cheapest navi head units that had everything in one didn't even care about it not having a DVD / CD player because I couldn't even remember the last cd I used all you need is the USB or micro sd cards

By Javier on January 8, 2014

54 found this helpful


great value

works great have it 4 weeks I love it and I don't need a amp it has good power I just love it

By rigo on September 6, 2014

51 found this helpful


Sonic honors warantee

My first Pyle PLDNV77U was temperature sensitive in hot weather.
It was replaced with a new one. The new one works fine. I like it a
lot. I have much to learn on using all of its features. My only thought about a complaint would be the User Manual or may is say the lack of
more detailed one.

Thanks a lot for taking my comments on the PLDNV77U. I was used to
as much more expensive navigator that was in my Lincoln but as I learn to use the PLDNV77U I am happy with it.

By Mark on August 11, 2014

51 found this helpful


Not bad for the price.

I am not an audio head by any means. I'm more of a performance guy, but this head unit is very nice and looks great in my 98 Eclipse. The only problem I had was I connected my iphone 5 through the USB and it froze. But Bluetooth works fine with it! If you have any problems with it you can usually find it in the reviews. The reset button is very important. Navigation works nicely. Would recommend for anyone on a budget but probably should be patient with it. It said this wouldn't for my vehicle but double DIN are all the same. Just might need to weather strip the open creases. Thanks guys.

By David on February 20, 2014

48 found this helpful


Great product

i bought tis product, really good, but manual is bad. play sensational.

By Jose on December 13, 2013

44 found this helpful


Great Value!

Have had this product for a few days, so cant comment on life of product. I will say this thing is bundled with features even though the price is less $200. Does not have dvd/cd player, but who uses them anyway. Again for less $200 its a great purchase, im sure its not as good as a clarion but at a third of the price cant complain.

By Michael on October 31, 2013

42 found this helpful


Don't buy

Save your money and get something else. When I first bought this, I had to exchange it thinking they sent me a bad one because it would literally change its mode to "USB Installing" when I never plugged in a USB. After I got the second one, it started doing the same thing. AUX port doesn't work, tried with so many different cables. Even though it says "USB Installing", the USB port never worked. I was so fed up with it that I never even tried the SD Slot. Never used the GPS, because you can't play music and the GPS at the same time, not a good thing. I only use the Bluetooth, which works for the most part, until it switches to the "USB Installing" screen, then you have to change it all back to Bluetooth. Thinking of getting a new NON-PYLE head unit now

By bob on March 31, 2015

28 found this helpful


Works Great

The unit doesn't have CD or DVD play back although you can hook it up thru the RCA jacks in the back but I don't really ever use these anyway. The GPS is excellent better than my Magellan and the stereo sounds good. This unit was installed in a 2001 F150 super-crew and the shop that did it did a great job. If you don't need CD or DVD this unit is a good choice to buy!

By Randy on April 17, 2015

23 found this helpful




B0521 small

Beats B0521 (Red)

RemoteTalk Cable For Beats By Dre Headphones

$29.95

List price $29.95

TYSVMISSILE small

Swann SWTOY-MISSIL Missile Strike

3 Channel Remote with 6-Way Mobility and Real Launching Projectiles

$39.99

List price $73.00

No picture

Pyle PLDNV695 - Open Box, Good Condition (Used)

Double-DIN GPS Car Stereo w/ 6.95" LCD Touchscreen, Bluetooth Open Box Complete (Good, Used)

$172.44

List price $319.99

DUAL12INP_2X_EV412D4 small

Tru Spec Dual 12in P with 2x Sundown Audio E12 v.4

Dual 12" Vented Prefabricated Enclosure for Sundown SA 12" Subwoofers with 1500W Peak (750W RMS) 12" E Series Dual 4-ohm Car Subwoofer

(6)

$724.97

List price $887.97

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2018 Ford Transit Connect

2014 Ram 2500

2007 Cadillac SRX

2022 Audi Q4 e-tron

2021 Dodge Durango

2008 Dodge Nitro

2014 Chevrolet Impala

1997 Dodge Stratus

2012 Buick Regal

2023 Genesis GV70

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
