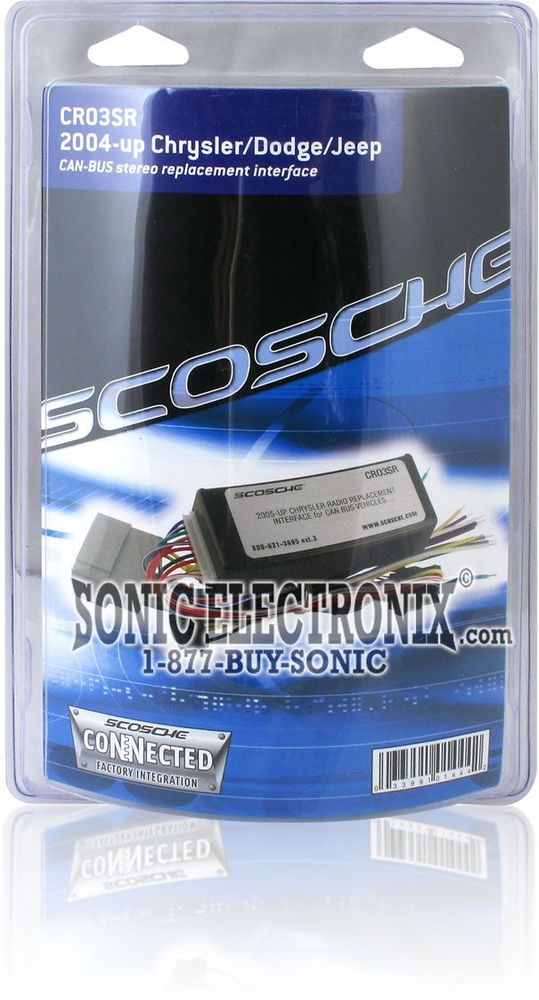

Scosche CR03SR (CR03SRB / DCCR03SRB)

Wire Harness to Connect an Aftermarket Stereo Receiver to Select 2005-up Chrysler / Dodge / Jeep Specialty CAN Bus Vehicles

Scosche
Shop all Scosche
highlight-star-icon

In-dash car radio harness that plugs into the factory OEM radio plug for select 2005-up Chrysler / Dodge / Jeep Specialty Harness Interface Plug for CAN Bus Vehicles

Learn more about the cr03sr

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

49ST9MR4 main

Kicker ST9MR4 (49ST9MR4)

1200W Peak (600W RMS) 9" Street Series Pro Midrange 4-ohm Speakers

-9.09%

$199.99

List price $219.99

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Description


Scosche brand icon

Authorized dealer

**This Product is discontinued. However, the PAC C2R-CHY4 (C2R-CHY4v1) is compatible replacement model. Please make sure that it is compatible for your vehicle.**

When replacing your factory radio with an after-market car stereo, the Scosche CR03SR wire harness is a must for a quick and clean installation. It eliminates cutting your OE radio plug. After connecting it, your install is simple as the wires will color-match and easily connect to the after-market stereo. Without the Scosche CR03SR, you would have to cut the OE radio plug and manually test each wire to connect to your after-market receiver.

In addition, because you do not have to cut your OE radio plug off, the CR03SR allows you to reinstall your factory receiver if necessary. A great example is if you sold your car, but wanted to keep your after-market radio and re-install your factory stereo receiver. We also recommend the Scosche BOBAZT for a quick connection that is sure to last.

Product Features:
  • Harness is used when installing an aftermarket stereo
  • Connects the aftermarket stereo harness to the vehicles factory harness
  • Designed specifically to fit the compatible vehicles
  • Plugs into the factory harness without cutting any wires
  • Standard color coded wires provide a consistent and simplified installation
  • Made from OEM quality materials
  • Compatible with Select 2005-up Chrysler / Dodge / Jeep Specialty Harness Interface Plug for CAN Bus Vehicles

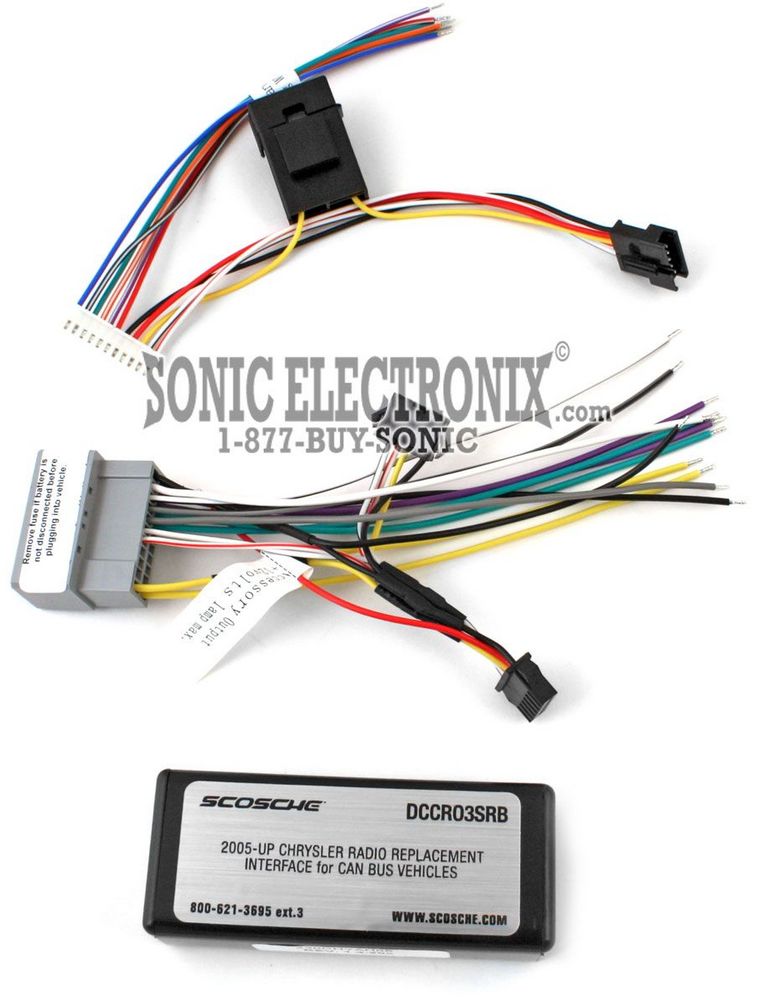

Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
Compatible with the following vehicles:
  • Dodge:
    • 2004 - up Durango
    • 2006 - up Ram
    • 2006 - up Charger
    • 2005 - up Magnum
