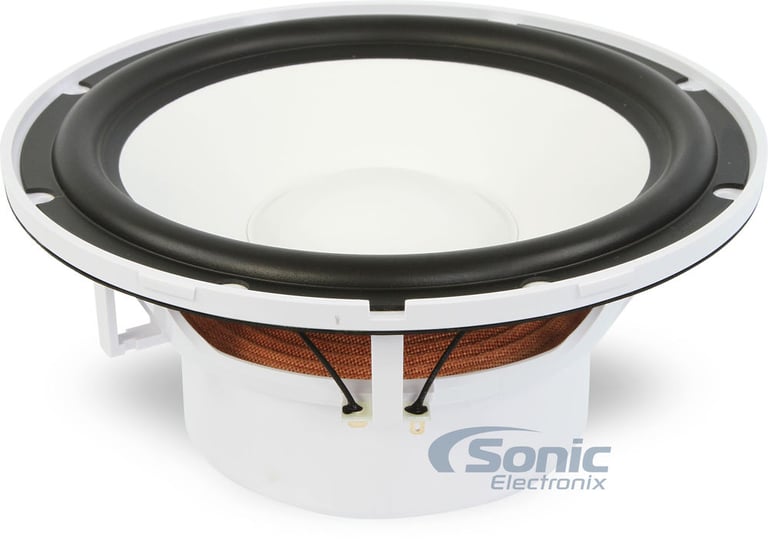

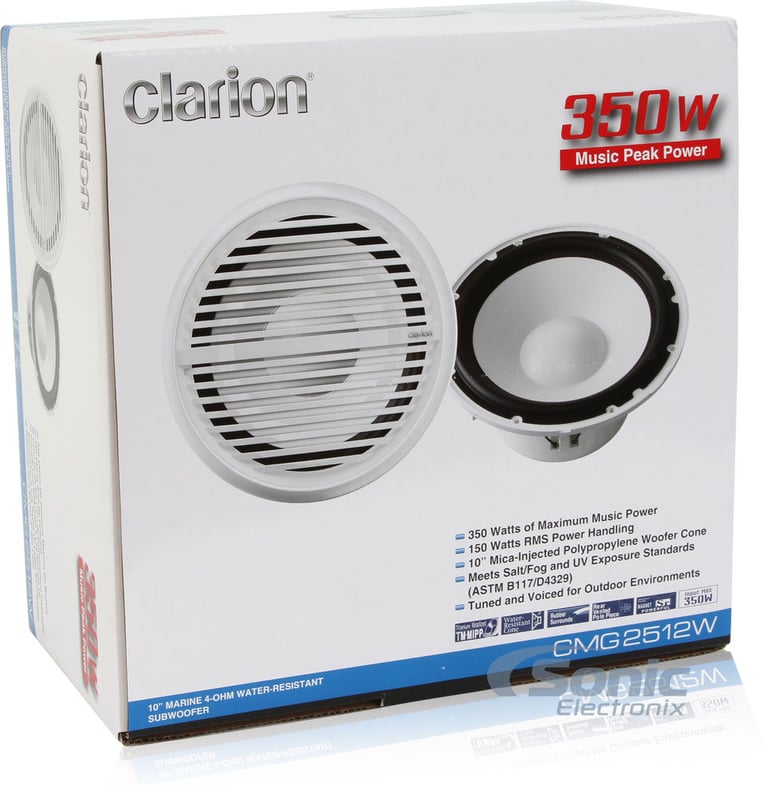

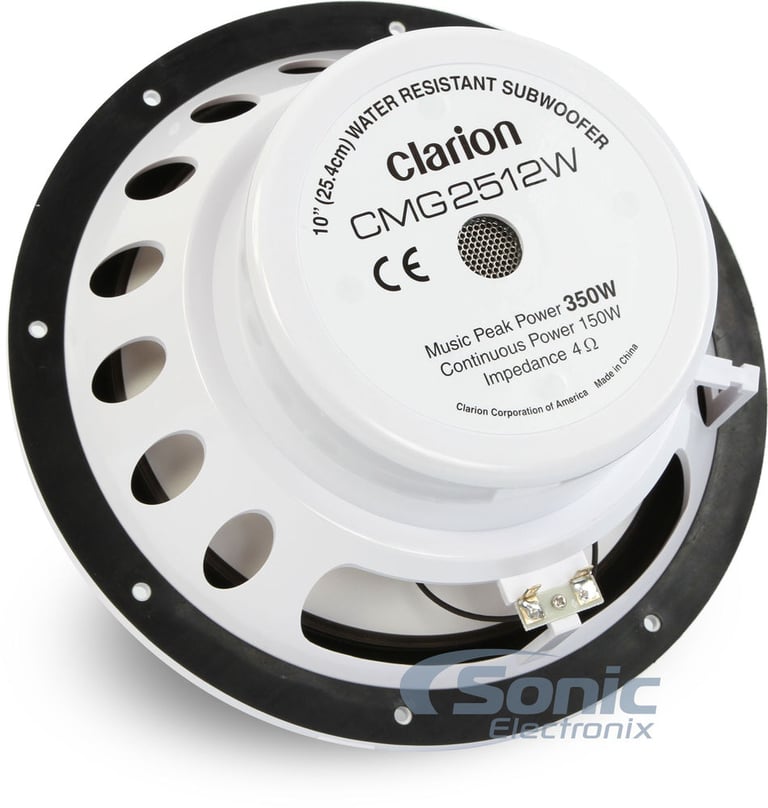

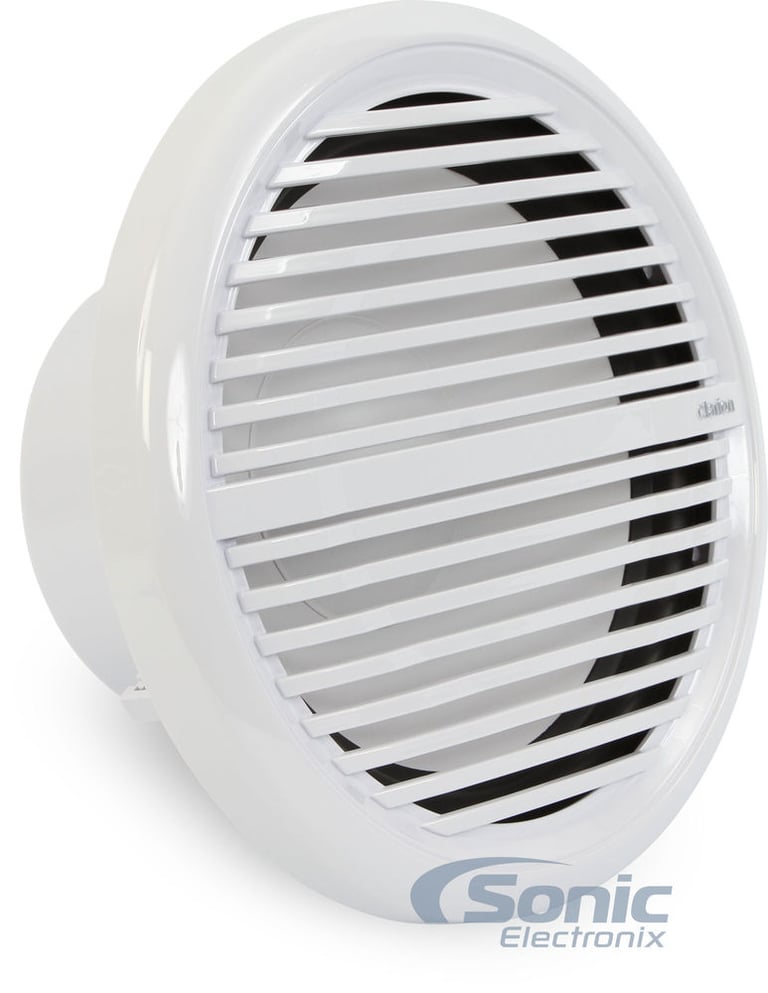

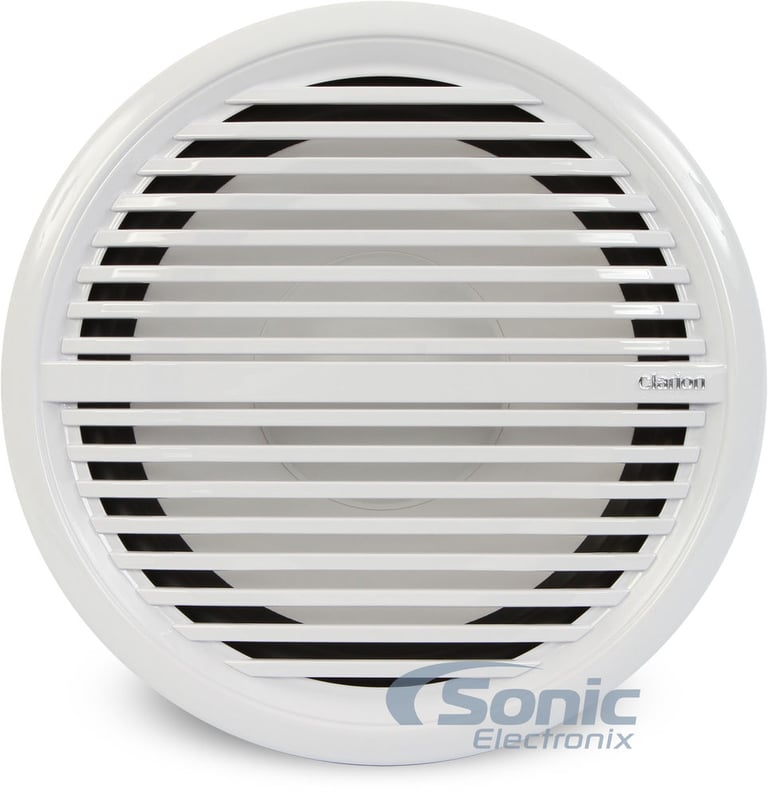

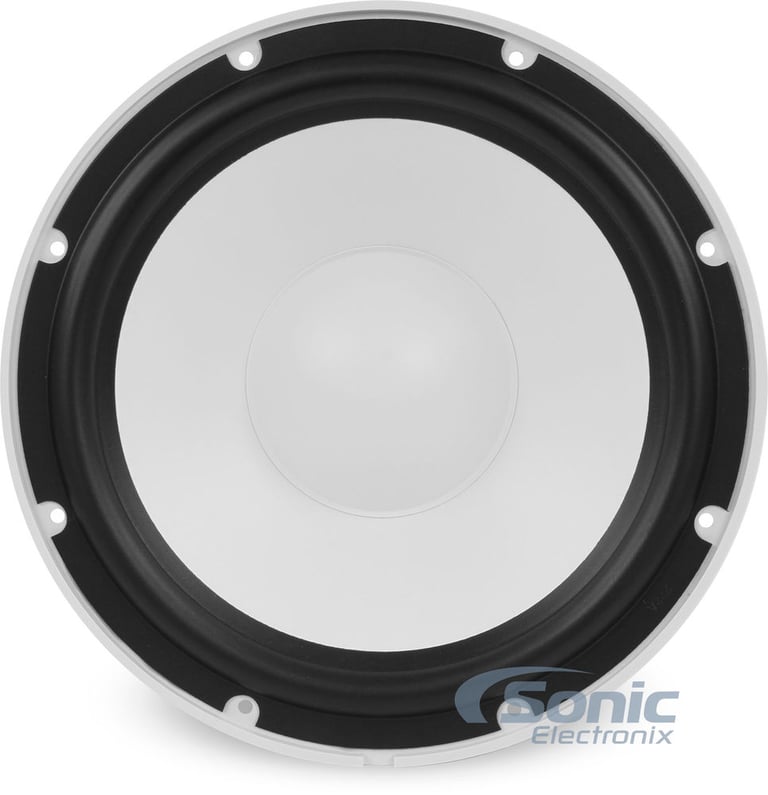

Clarion CMG2512W

350W Peak (150W RMS) 10" CMG Series Single 4 Ohm Marine Subwoofer

Clarion
Shop all Clarion
highlight-star-icon

• 150W RMS
• 350W Peak
• Mica-Injection Polypropylene Cone
• Santoprene Rubber Surround

Learn more about the cmg2512w

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Description


Clarion brand icon

Authorized dealer

General Features:

  • 10" Single 4 Ohm CMG Series Marine Subwoofer
  • Power Handling:
    • Peak: 350 watts
    • RMS: 150 watts
  • Recommended power range: 50 - 150 watts RMS
  • Mica-Injection polypropylene cone
  • Santoprene rubber surround
  • Meets CEA-2031 compliant loudspeaker standards
  • Top-mount depth: 4-3/16"
  • Frequency Response: 36 - 1,500 Hz
  • Sensitivity: 85 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Clarion CMG2512W Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Clarion CMG2512W Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Clarion CMG2512W Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Clarion CMG2512W Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

M6-10IB-S-GwGw-4 small

JL Audio M6-10IB-S-GwGw-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Synthetic Rubber Surround
• Mount depth: 5.9"
• Sensitivity: 86.1 dB

(3)

$479.99

List price $479.99

JBLMARSUBSD102GAM small

JBL Stadium Marine 102 (JBLSUBMASD10AM)

• Peak Power: 900 watts
• RMS Power: 300 watts
• Impedance: 2 or 4 ohm
• Multi-color RGB LED lights
• Plus One Polypropylene Cone
• Rubber Surround
• Mount depth: 4-7/8"
• Sensitivity: 89 dB

$149.95

List price $449.95

STADIUMMW1000AM small

JBL Stadium Marine MW1000 (MW1000AM)

• RMS: 300 Watts / Peak: 900 Watts
• Plus One cones provide more overall speaker-cone area than other cones in its class
• Unique and eye-catching RGB illumination
• Features SSI (Switch-Selectable Impedance), which allows you to choose either 2 or 4 ohm load impedance
• Durable One-piece Polymer basket

$149.95

List price $449.95

XM1041WL small

Kenwood eXcelon XM1041WL

• Peak Power: 1300 watts
• RMS Power: 300 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 5-1/2"
• Sensitivity: 84 dB

$199.00

List price $580.00

M2D2-10I small

Rockford Fosgate M2D2-10I

• Peak Power: 1600 watts
• RMS Power: 400 watts
• Impedance: Dual 1 or 4 ohm
• Mineral-Filled Polypropylene Cone
• Santoprene Rubber Surround
• Mount depth: 4.44"
• Sensitivity: 90.3 dB

$439.99

List price $399.99

PSW10.4D small

DS18 PSW10.4D

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Water Resistance Paper Cone
• Rubber Surround
• Mount depth: 3"
• Sensitivity: 84 dB

(1)

$179.95

List price $179.95

M6-8IB-S-GmTi-i-4 small

JL Audio M6-8IB-S-GmTi-i-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Injection Molded Polypropylene Cone
• Synthetic Rubber Surround
• Mount depth: 5"
• Sensitivity: 86.7 dB

$429.99

List price $429.99

M6-8IB-S-GwGw-i-4 small

JL Audio M6-8IB-S-GwGw-i-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Synthetic Rubber Surround
• Mount depth: 5"
• Sensitivity: 86.8 dB

(1)

$399.99

List price $399.99

REVO 12 XXX V4-B small

Wet Sounds REVO 12 XXX V4-B

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Polypropylene-Carbon Fiber Hybrid cone
• Santoprene Rubber surround
• Mount depth: 6.53"
• Sensitivity: 89 dB

(1)

$1099.99

List price $1099.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
350 watts
RMS Power Handling
150 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
36 - 1,500 Hz
Sensitivity
85 dB
Subwoofer Design
Round / Circle
Main Cone Color
White
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Santoprene Rubber
Subwoofer Grille
Yes - Included
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.00 cubic feet
Maximum Sealed Box Volume
2.60 cubic feet
Minimum Ported Box Volume
1.10 cubic feet
Maximum Ported Box Volume
2.70 cubic feet
Top-Mount Depth (Mounting Depth)
4-3/16"
Cutout Diameter
8.917"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CMG2512W

Weight:

7.00lbs

Internal SKU:

cmg2512w

Internal Product ID:

73909

Customer Ratings & Reviews


Clarion CMG2512W thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great Speaker

Sound great easy to install nice quality would recommend to others

By bob Jr on November 7, 2013

50 found this helpful


On Point & On Time

Received my 10' sub woofer . Installed it , looks great sounds great.
Only question is , the sub woofer has eight holes to install and I only received four screws .
Besides that couldn't be happier, I would definitely use Sonic again.
Everything went smooth.

By Cad Man on February 15, 2017
