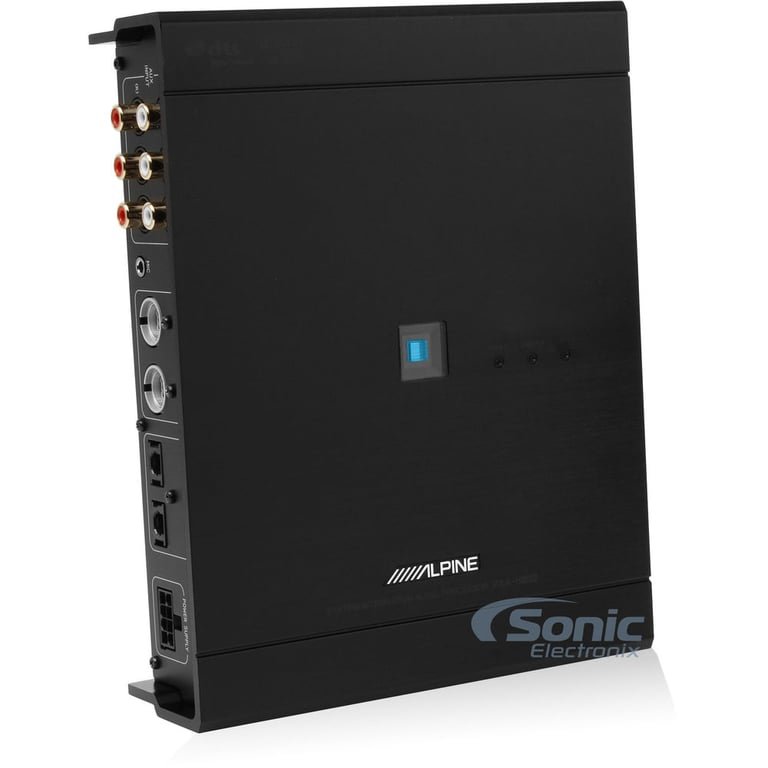

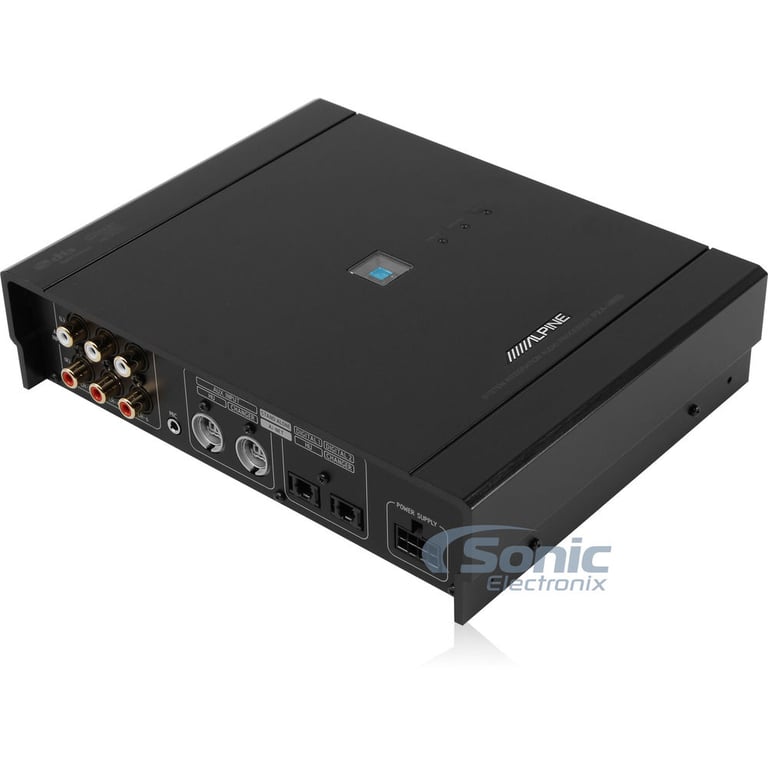

Alpine PXA-H800 (pxah800) 8-Channel Imprint Audio Processor with

Alpine PXA-H800

8-Channel Imprint Audio Processor with Optical Inputs

8-Channel Imprint Audio Processor with Optical Inputs

• 31-Band Graphic EQ
• 10-Band Parametric Equalizer
• Audiophile-grade Components
• Time Correction and Digital Crossover
• ImprintEQ with Post-Tuning Adjustment
• True 5.1-channel Surround Sound


List price $800.00
Save: $50.05


In Stock. Only 2 Left! with warranty
Thanks , You Pay:
Order within 7 hrs 52 mins to ship today

FREE delivery: Thu, June 24 to VA.

Item Condition: Brand new

The item is brand new and not used.

Open box: $654.99


Add a protection plan

3 years for
4 years for

60-Day Money-Back

Hassle Free Returns

365-Day Coverage

Warranty assistance for a year


Authorized dealer

Professional Sound Quality

The PXA-H800 provides all the audio processing functions necessary to enable the system to reach the highest levels of sound quality.

Audiophile-grade Components

A series of ultra-high performance audio components have been built-in to the PXA-H800 to achieve the heritage quality sound of Alpine. A complete 6-channel analog-to-digital converter, the CIRRUS CS5366 is ideal for unrivaled sound quality. The ADC uses a differential input architecture, which provides excellent noise rejection.

To reproduce the sound source without degradation, two ultra-fast accurate 32-Bit floating-point SHARC® DSP’s are used for high-performance and rich audio feature applications.

The use of four Wolfson 24-Bit D/A converters - normally a component found only in professional recording systems - help to ensure superb detail and soundscape.

Time Correction and Digital Crossover

Digital high pass and low pass filters allow you to set slopes from 0 to –36 dB/oct. with gain from –24 to 0dB. You can customize your system with the exact frequency crossovers you want.

Digital Time Correction lets you achieve optimum sound staging by ensuring that the sounds from all speakers reach your ears at the same time. Up to 8 channels can be automatically or manually corrected , from 0 to 20ms in 0.5ms steps.

ImprintEQ with Post-Tuning Adjustment

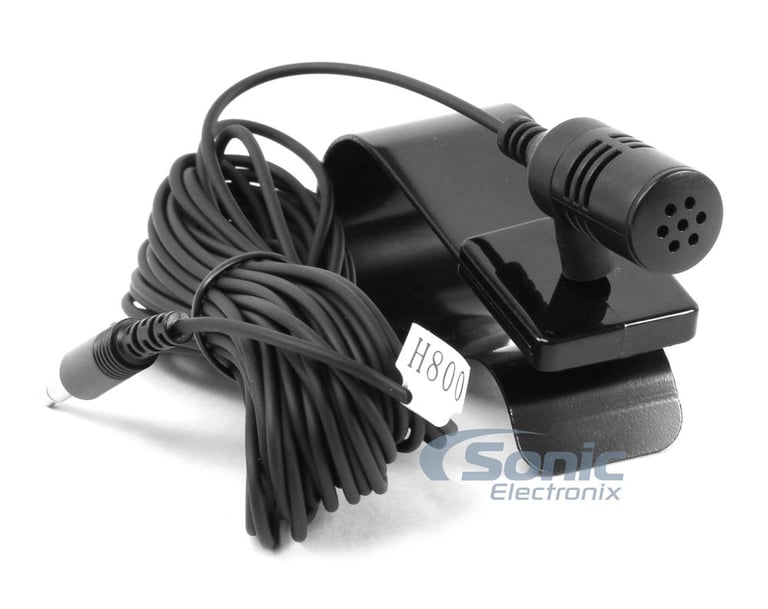

ImprintEQ is a hardware/software combination that can overcome the acoustic problems present in every vehicle interior. The software optimizes the sound stage, tonal balance and definition automatically. After the tuning is complete, you can manually adjust the settings if you desire.

Extensive EQ Capabilities

The PXA-H800 provides either graphic or parametric equalization.

The graphic EQ provides 31 bands for each of the five channels, plus 10 bands for the subwoofer, with gain from –12 to +12dB. While the parametric EQ lets you select a band and then adjust the output level and width for precise tuning. You get 10 bands for each of the five channels, plus five for the subwoofer, with detailed Q settings and gain from –12 to +12dB.


This exclusive Alpine technology restores sound quality that is lost in the recording or transmission processes. MediaXpander+ is especially good for making compressed digital audio files from iPod or other media players sound better. It is also effective for older recordings on CD, and improves the bass from factory-installed speakers. Access the MediaXpander+ by simply selecting MX from the menu options.


Even superior sound can be degraded by road, wind and air conditioner noise. RoadEQ takes the internal and external inputs and cancels out the noise to deliver optimal sound to your ears. It compares the original and recorded signals to create frequency-specific level adjustments to cancel the noise components. This powerful processor performs these operations at 48,000 times per second.

True 5.1-channel Surround Sound

Enjoy true 5.1-channel surround sound just like your home cinema system. You can hear multi-channel sound from movie and music sources in the Dolby Digital and DTS Digital Surround formats. The PXA-H800 also provides Dolby Pro Logic II decoding, so you can even enjoy stereo recordings in surround sound.


Euphony makes it possible to enjoy 5.1-channel sound from 2-channel sources. It creates natural surround sound from CD or iPod with wider soundscapes and harmonics. It especially enhances vocal and instrumental quality, for a superior sound field and no listener fatigue.

Bi-Phantom Center Speaker

Even if you don’t have a center speaker, you can still enjoy 5.1-channel sound. Alpine has included a Bi-Phantom function, which uses the front left and right channels to create a phantom center channel, enhancing vocal quality.

RUX-C800 Remote Commander for PXA-H800

To maximize the functionality of the PXA-H800, add the RUX-C800 (sold separately). The RUX-C800 provides full control of all PXA-H800 functions and its own display to reveal all the detailed information.

Keep your Factory Control

Upgrade your sound, without the sacrifice of any of your factory control. Keep the look and functionality of your dashboard, including your steering wheel controls and features your car may already come with, such as Bluetooth wireless technology, DVD video capability, navigation, iPod support, SIRIUS/XM Satellite Radio, Auxiliary inputs, etc. The PXA-H800 also gives you control over your sound using the factory radio volume control. Leave all of your factory control intact and upgrade to signature Alpine sound.

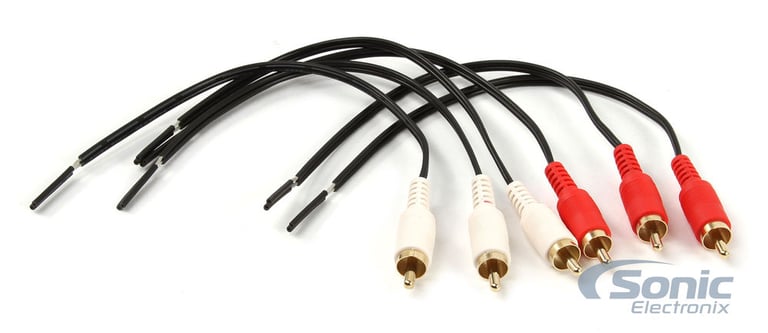

Six Speaker-Level Inputs

With six speaker-level inputs, you can connect six channels of sound from a head unit and other components that do not have preamp outputs. There’s no need for separate line output converters.

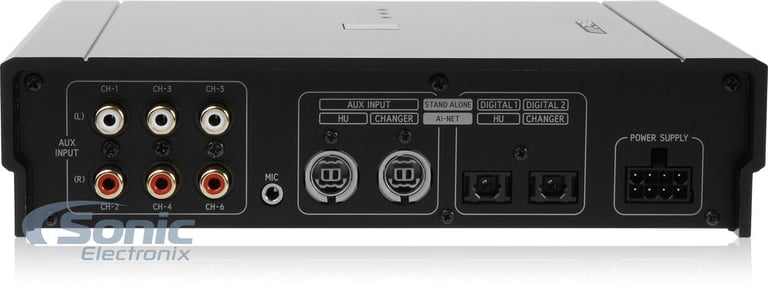

Add More Media Sources

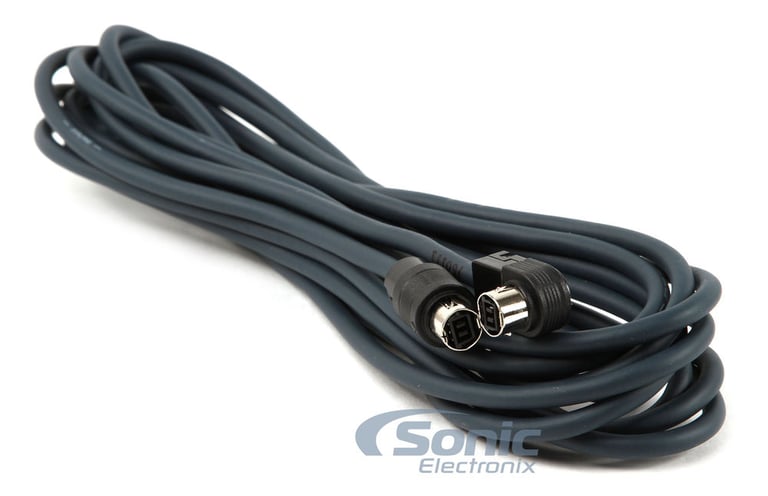

With two Ai-NET connections, two optical digital inputs and six-channel RCA inputs, adding components for front and rear seat entertainment is a breeze. And of course, with the PXA-H800 in your system, you’ll maximize the sound from your factory system.

Fine Tuning via PC

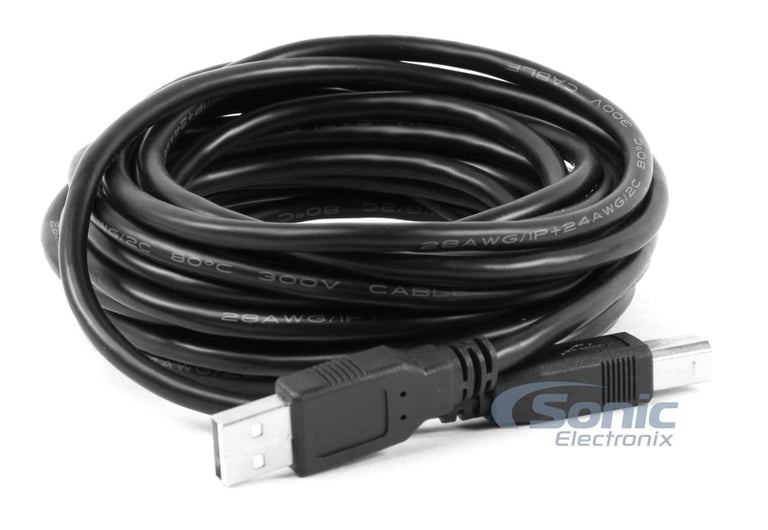

Connect your PC to the PXA-H800 with the supplied USB cable and access the easy-to-use GUI that lets you make detailed audio settings. Store six different tuning presents (such as bass, acoustic, etc.) on the computer for later selection or for use to tune different vehicles.

General Features:

  • 24-Bit Ultra High Performance DAC
  • 6-Channel Analog RCA or Speaker Inputs, 2 Optical Inputs, and 2 Ai-NET Inputs
  • 4 Volt Pre-Outs
  • ImprintEQ
  • 31-Band Graphic EQ for Speakers
  • 10-Band Graphic EQ for Subwoofers
  • 10-Band Parametric Equalizer for Front, Rear, and Center Channels
  • 5-Band Parametric EQ for Subwoofer
  • 8-Channel Digital Time Correction
  • MediaXpander Plus
  • Dolby Digital
  • Dolby Pro Logic II
  • DTS Digital Surround Sound
  • PC Software Included
  • Preset Access with INA-W910
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Alpine PXA-H800 thumbnail
(newest, current model)
Alpine PXA-H100 thumbnail
(previous model, replaced by Alpine PXA-H800)
General Specifications
Equalizer Bands
41 band
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
Speaker Level Inputs
Total Number of Inputs
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Alpine PXA-H800

Alpine PXA-H800



Write a review

Overall rating distribution

5 star
4 star
3 star
2 star
1 star

By feature average rating



June 10, 2014

alpine pxa upgrade from h100 to h800

I really wanted more adjustability with my cars system. the pxa h100 was a good piece but was limited on both inputs and outputs. the pxa h800 solved that for me. it can accept speaker level input on it's RCA jacks and that worked flawlessly. the auto set up was pretty good and allows "tweaking" after it's run. truth I'd my truck never sounded so good. not only did sonic have the best price on it, I also got it right away.

my system consists of Orion hccas, a 150,250, and 275, all active
morel mids and tweets and a custom built 12


found this helpful.


February 25, 2014

Nothing will ever compare

I Highly recommend this to anyone doing a factory or after market unit install the quality is just superb. the options are endless, fine tuning capabilities are out of this world. only 1 down fall is the set up can be a little bit confusing at first.


found this helpful.
