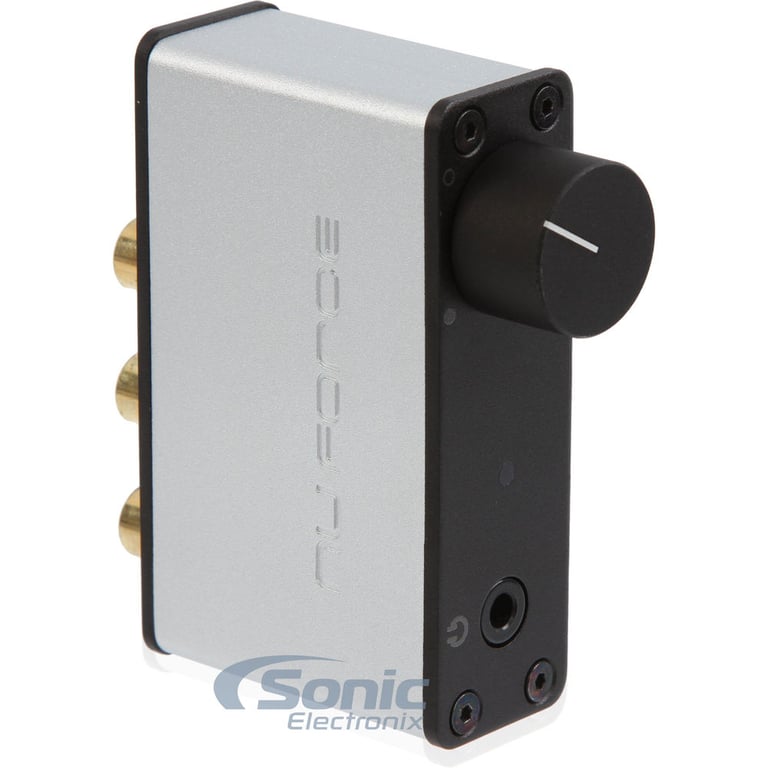

NuForce Icon uDAC-3 (Silver)

High-Resolution USB Desktop Headphone Amplifier and Digital Audio Converter (DAC)

NuForce
Shop all NuForce
highlight-star-icon

• Desktop USB DAC
• 24-Bit/96 kHz
• TOCOS Volume Control
• Analog RCA, Digital Coaxial, and 3.5mm Outputs
• USB Bus Powered, 80 mA/5V

Learn more about the udac3-svr

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

95-6511-17 main

Metra 95-6511-17 Dash Kit

Install a new Double-DIN car stereo in select 2007-2020 vehicles from Dodge, Jeep, Chrysler

8
-48.02%

$12.99

List price $24.99

40-EU10 main

Metra 40-EU10 Antenna Adapter

Install a New Car Stereo and Retain Factory Antenna in select 2000-2017 vehicles from BMW, Mercedes-Benz, Ford

44
-14.30%

$11.99

List price $13.99

99-6511 main

Metra 99-6511 Dash Kit

Install a new Single-DIN car stereo in select 2007-2020 vehicles from Dodge, Jeep, Chrysler Multi-Kit

12
-41.39%

$16.99

List price $28.99

72-7902 main

Metra 72-7902

Install New Speakers in select 1990-2024 vehicles from Ram, Dodge, Jeep

20
-28.59%

$9.99

List price $13.99

82-6601 main

Metra 82-6601

6" - 6.75" Speaker Adapter for select 2002-2018 vehicles from Jeep, Dodge

6
-41.39%

$16.99

List price $28.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

TWPZ main

DS18 TWPZ

80W Peak (40W RMS) 1" Slim Dome Super Tweeters

6
DPX505BT main

Kenwood DPX505BT

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

18
-22.17%

$179.00

List price $230.00

Limited time!
CMR2724 main

Jensen CMR2724

7" Double DIN Touch Screen Digital Multimedia Receiver with Bluetooth

4
-25.00%

$82.49

List price $109.99

Description


NuForce brand icon

Authorized dealer

NuForce UDAC3
Hi-Res Portable DAC. More Power. More Detail.
The NuForce Icon uDAC-3 (Silver) Amplifier Offer an Incredible Listening Experience

The NuForce uDAC-3 is the answer to all Audiophile hopes and dreams. If you consider yourself to be an Audiophile, Headphone Guru, Music Enthusiast, or Audio Guru, then this is the item for you. Designed as an upgraded replacement to the best selling predecessor uDAC-2, the NuForce uDAC-3 will blow your mind. This 3rd generation uDAC series amplifier has no capacitors within the audio signal path, eliminating any potential distortion. The NuForce uDAC-3 delivers truly superior sound via a high-performance, 24bit/96kHz USB Digital Audio Converter (DAC) and allows you to connect digital audio from your computer to your home stereo, desktop sound system, powered speakers or headphones.

The NuForce Icon uDAC-3 (Silver) Amplifier Offer an Incredible Listening Experience

Engineered to maximize the performance of any headphone 16 to 300 Ohm, you can now efficiently power your favorite Beyerdynamic, Sennheiser, Grado, Westone, Shure, Audio Technica, Denon, Ultimate Ears, AKG or Sony headphones, and hear what they are truly made of. The NuForce uDAC 3 is guaranteed to impress, and will impress anyone who has the chance to test one for themselves. Built with a compact profile, and an affordable price, everyone deserves that chance! Now Available In Black, Red, and this sleek Silver color tone. Get yours today, and listen to your headphones again, for the first time.



Product Features:

  • Desktop USB DAC
  • Engineered for use with home PC Computers, Laptops, Notebooks, Tablets, MAC or Macbook, Home Stereo System, or many more for Premium Audiophile Grade Sound Performance
  • High-performance 24-bit Resolution and 96kHz Sample Rate for immaculate reproduction
  • USB-Powered, no external power supply required
  • Direct-Stream Digital (DSD) Decoding capability
  • TOCOS Volume Control for precise channel tracking
  • Headphone Amp Circuitry powers headphones with impedance ratings from 16 to 300 Ohm, producing 80mW x 2 channels at 16 Ohm

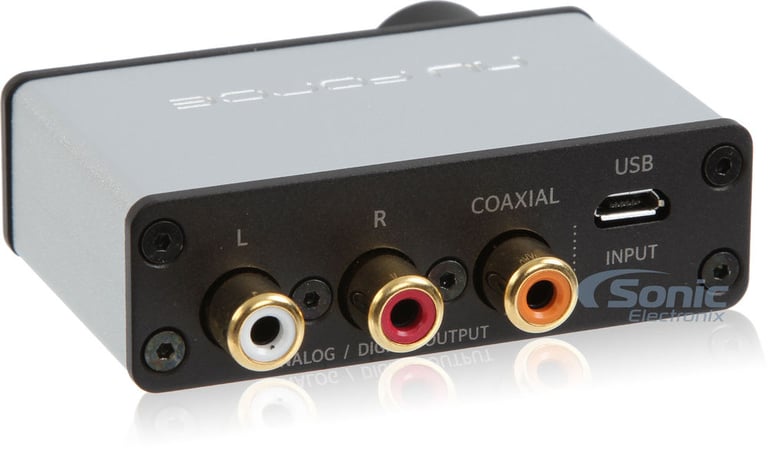

  • Includes analog RCA, digital coaxial, and 3.5mm outputs for a Variety of Applications
  • Double Jitter-Reduction Mechanism at data level and oversampling filter stages for the best sound quality
  • 2V Analog output
  • Coaxial S/PDIF output
  • No Capacitors In Any of the Signal Paths to reduce and prevent signal tarnish
  • Color: Silver
  • Manufacturer Part Number: NF-UDAC3-SVR
  • Also Found As: NuForce U-DAC 3 Silver, U-DAC3 SIL, NF-UDAC3-SIL, uDAC-3 SIL, NF-ICON-UDAC3-SVR
  • Also available in Black (NF-UDAC3-BLK) , and Red (NF-UDAC3-RED)

Technical Specifications:

  • Input: USB Digital (1.1 and 2.0 compatible)
  • Native Bit Rate: 32, 44.1, 48, 88.2, 96 kHz, 24-bit
  • Output: Analog RCA output = 2Vrms
  • Dynamic Range: 90 dB
  • Signal-to-Noise Ratio (SNR): 98 dB
  • Total Harmonic Distortion (THD): 0.05%
  • Digital Output: coaxial RCA 75-ohm
  • 3.5mm Output Power: 80mW x 2 @ 16-Ohm
  • Frequency Response: 20 - 20,000 Hz
  • USB Bus Powered, 80 mA/5V
  • Maximum Power Consumption: 500mW
  • Dimensions: 2-11/16"W x 1-1/2"D x 53/64"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

What's in the Box?

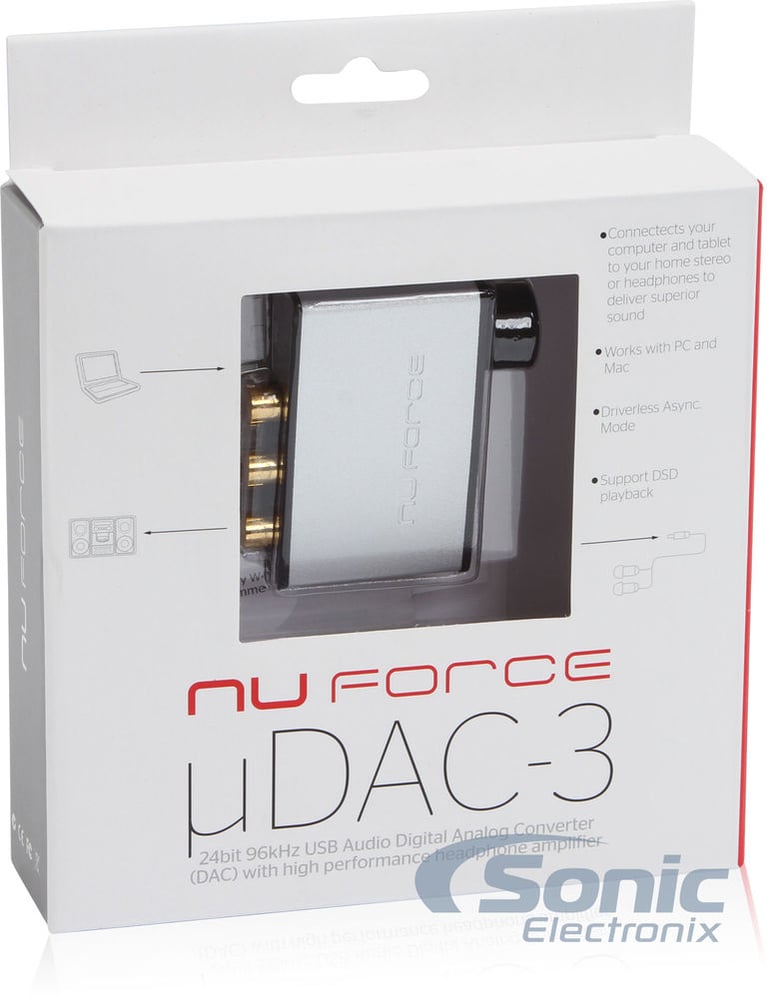

  • NuForce uDAC-3 (Silver)

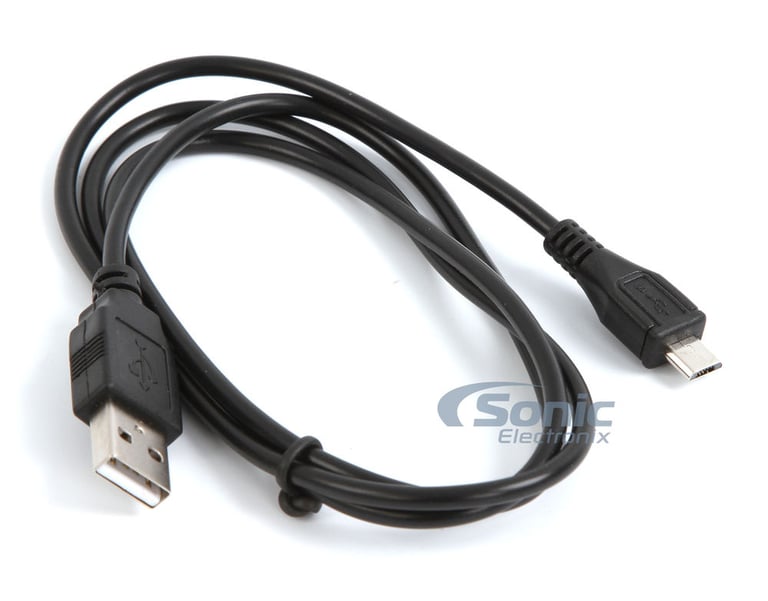

  • USB Cable (3.3 Feet)
  • Owners Manual
  • Warranty Information

Product history:

NuForce UDAC-3 Silver thumbnail
(newest, current model)
NuForce ICON-UDAC2-SILVER thumbnail
(previous model, replaced by NuForce Icon uDAC-3 (Silver))

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

Specifications & Details


Headphone Amplifier Specifications
Amplifier Style
Desktop
Digital-to-Analog Converter (DAC)
Built-in
Frequency Response
20 - 20000 Hz
THD (Total Harmonic Distortion)
0.05%
Input Connection
USB
Output Connection
3.5mm Mini-Jack
Number of Outputs
3
Output Power
80 mW
Power Requirement
USB
Width
2-11/16"
Height
1-1/2"
Depth
53/64"
DAC Specifications
THD (Total Harmonic Distortion)
0.05%
Frequency Response
20 - 20000 Hz
Signal-to-Noise Ratio
98 dB
Digital Inputs
USB Type-A
Line Level Outputs
3.5mm Headphone Jack
Sample Rate
24-bit at 96 kHz
Power Requirement
USB
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

UDAC-3 Silver

Weight:

0.48lbs

Internal SKU:

udac3-svr

Internal Product ID:

74006
