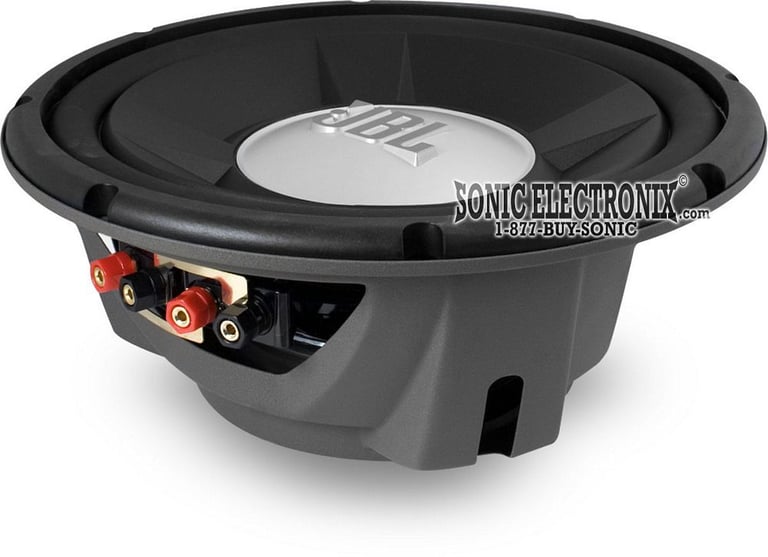

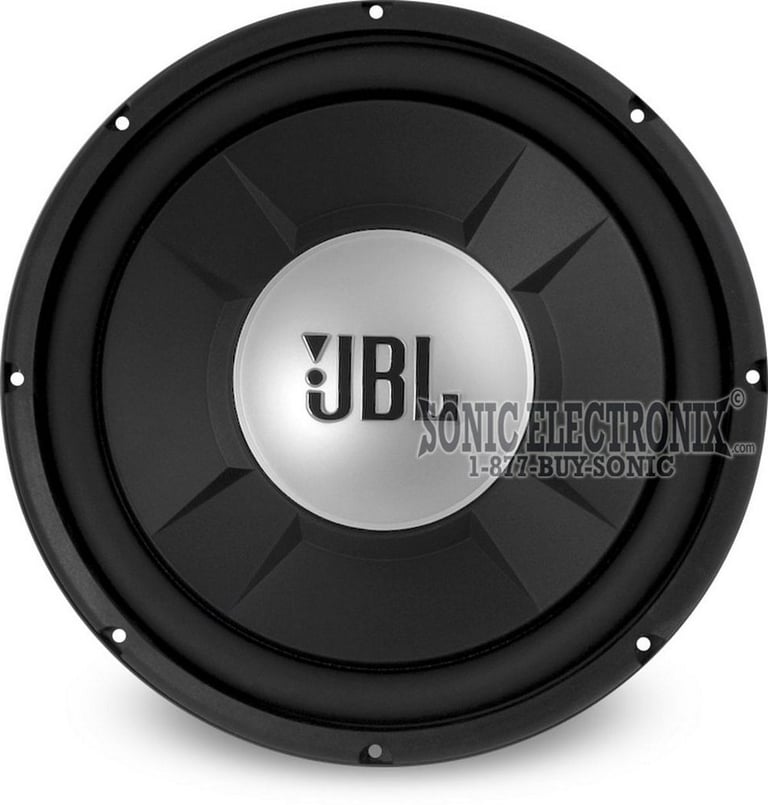

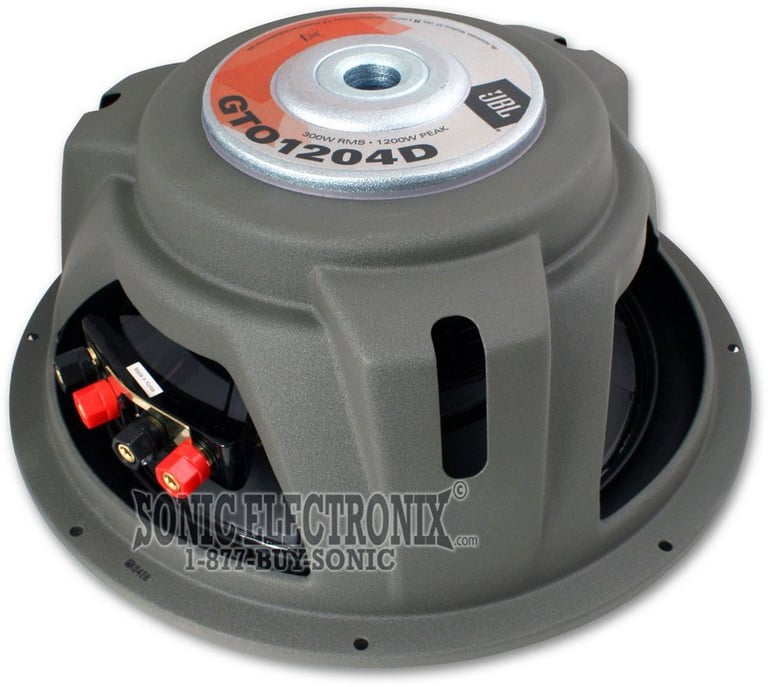

JBL GTO1204D

Grand Touring Series 12" Dual 4 ohms Subwoofer GTO 1204D

JBL
Shop all JBL
Product videos
highlight-star-icon

12" Dual 4 Ohm Grand Touring Series Subwoofer • 300W RMS • 1200W Max • Dual 4-ohm Voice Coils • Polypropylene Cone with Hi-roll rubber surround • Vented polepieces

Learn more about the gto1204d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

gto1214d thumbnail

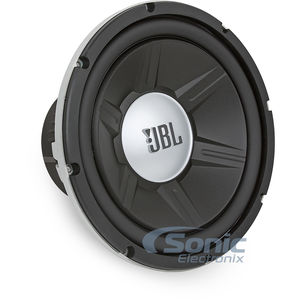

JBL GTO1214D

OUR PRICE: $109.95

View item

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Product Highlights


12" Dual 4 Ohm Grand Touring Series Subwoofer • 300W RMS • 1200W Max • Dual 4-ohm Voice Coils • Polypropylene Cone with Hi-roll rubber surround • Vented polepieces

Description


JBL brand icon

Authorized dealer

  • 12" Dual 4 Ohm Grand Touring Series Subwoofer
  • Power Handling:
    • RMS: 300 watts
    • Peak: 1200 watts
  • Impedance: Dual 4 ohm
  • New proprietary frame, in-board motor structure and new cone design give the sub a sleeker design, allowing it to fit into most vehicles without sacrificing performance.
  • Progressive spider - improved control at limits and less sound distortion.
  • Polypropylene Cone with Hi-roll rubber surround supplies cone edge suspension with greater control at limits.
  • Vented polepieces supply help cool the motor structure, raising the subwoofer's thermal power handling tolerance.
  • Frequency Response: 23-400 Hz
  • Sensitivity: 93 dB
  • 1-year SonicElectronix.com warranty

Product history:

JBL GTO1214D thumbnail
(newest, current model)
JBL GTO1204D thumbnail
(previous model, replaced by JBL GTO1214D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL GTO1204D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JBL GTO1204D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL GTO1204D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 JBL GTO1204D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1200 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
23 - 400 Hz
Sensitivity
93 dB
Xmax (millimeters)
12.5 mm
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
5-1/16"
Cutout Diameter
11-3/16"

Item Details


Manufacturer:

JBL

Model Number:

GTO1204D

Weight:

10.00lbs

Internal SKU:

gto1204d

Internal Product ID:

7437

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


JBL GTO1204D thumbnail image

5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
2
Value
4
Features
4
Design
4
Usability
4

Customer Reviews

Sort by:

Loading...

Jbl 12 inch

Good sub, hit wide range of notes. The bass produced by the sub was good but not the best I have heard for its size. I had one in a ported box in my two door Tahoe, powered by a 1200 watt pioneer amp (turned down of course) and it sounded really good. It hit most hight notes and it sounded great on low bass pitches. Unfortunately the wiring on the sub itself is somewhat prone to burning out because I had two different subs and they both went out the same way with one of the wires being singed off by heat. Good sub though.
